SUZUKI GSX-R1000  ('09-'16)
REAR SETS


SATO RACING Rear Sets for 2009-16 Suzuki GSX-R1000 are CNC-machined from billet aluminum and anodized in your choice of all Black, or Silver or Gold finish with Black-anodized shift pedal assembly. Modular design lets you choose from 8 adjustable positions that bring your feet progressively higher up compared to stock, to help you achieve a more aggressive riding position well-suited to the fast straights and steep lean angles you may encounter on the track. These Rear Sets can be set up for either stock shift pattern or reverse (GP style) shift pattern.

Available options for these Rear Sets include a Brake Return Spring, a Shift Spindle Holder which reinforces the shift shaft for more precise shift action, and a billet aluminum Shift Arm that provides a wider adjustability compared to the stock shift arm.

Also available for GSX-R1000 '09-'16 : Race Concept Racing Rear Sets (high positions)

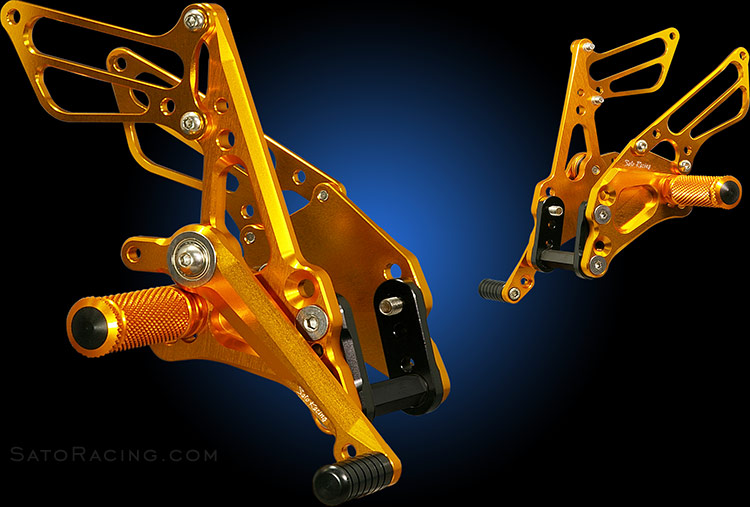

SATO RACING Suzuki GSX-R1000 '09-'16 Rear Sets


POSITIONS

1 0mm Back 14mm Up
2 0mm Back 24mm Up
3 10mm Back 14mm Up
4 10mm Back 24mm Up
5 2.5mm Back 29mm Up
6 2.5mm Back 39mm Up
7 12.5mm Back 29mm Up
8 12.5mm Back 39mm Up

note: all measurements are in relation to stock position (0 mm).

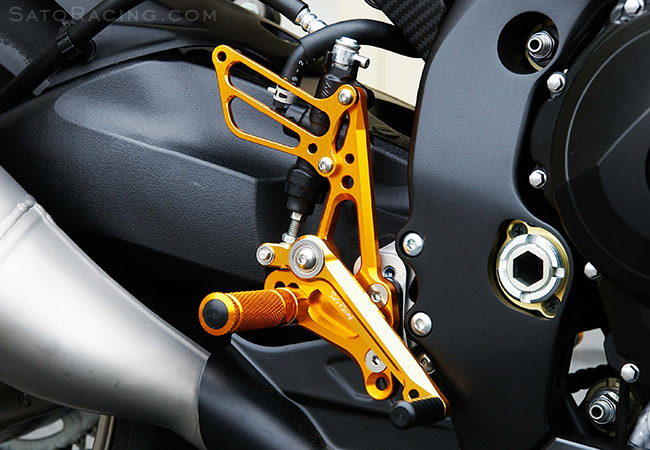

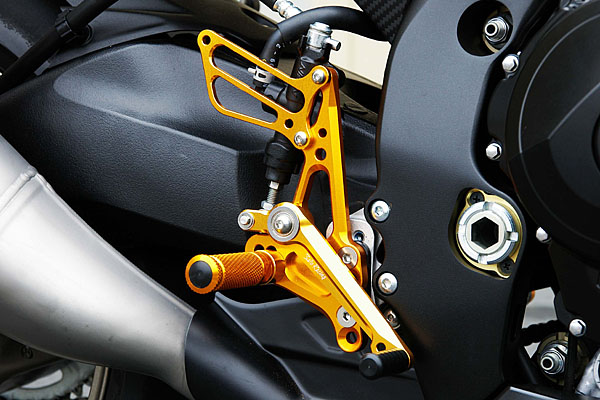

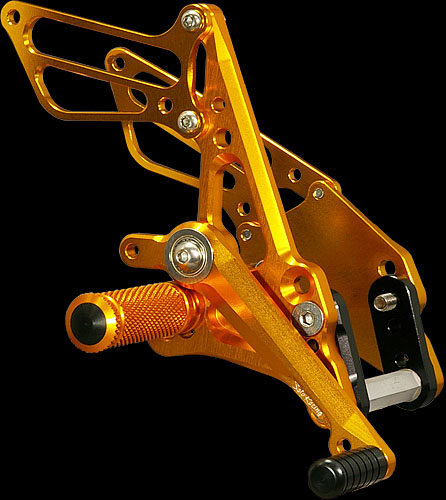

SATO RACING Suzuki GSX-R1000 '09-'16 Rear Sets [R]-side
Footpegs feature a finely knurled grip pattern with excellent non-slip characteristics. The shift
and brake pedals utilize double stainless bearings for smooth, precise movement and a solid feel.

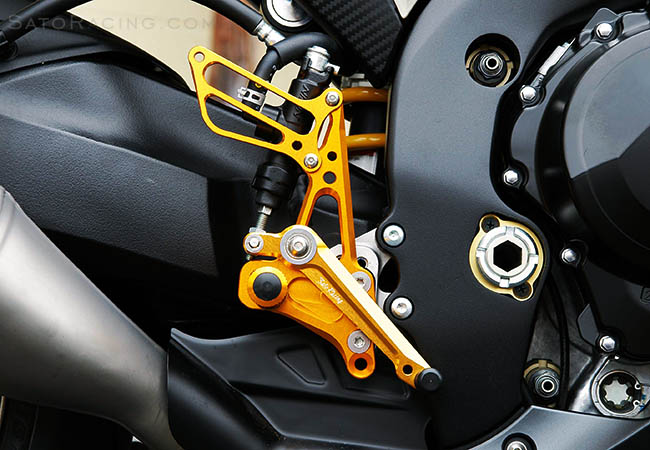

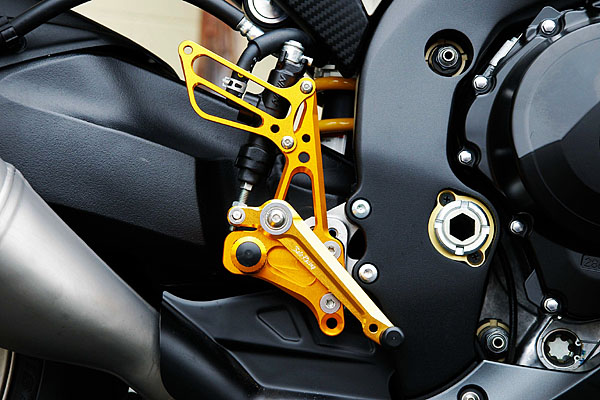

SATO RACING Suzuki GSX-R1000 '09-'16 Rear Sets [R]-side
Step Plate position is adjustable. You can also adjust the positions of the shift and brake pedal tips.
A brake light switch (not shown installed in the above photos) is included with these Rear Sets.

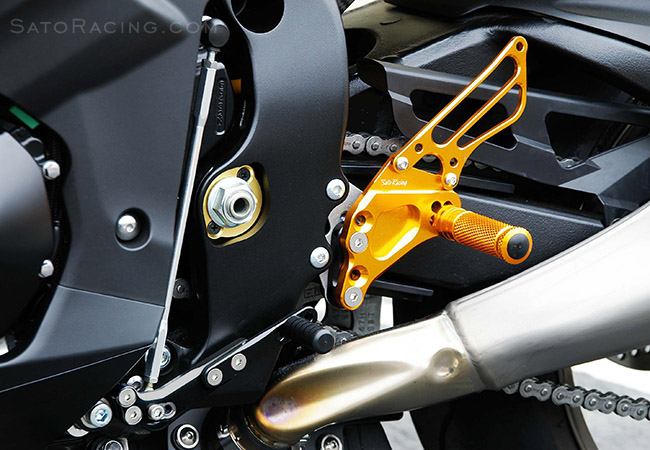

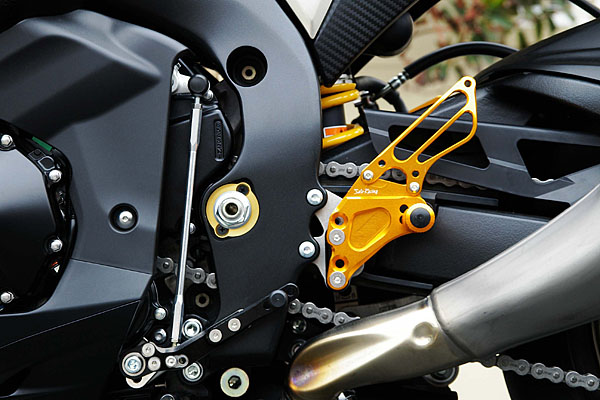

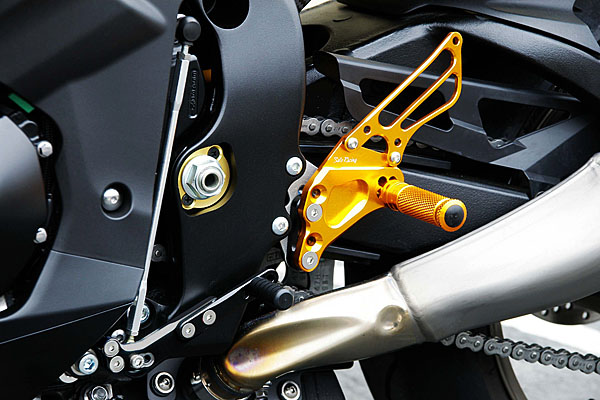

SATO RACING Suzuki GSX-R1000 '09-'16 Rear Sets [L]-side
(Shift Pedal Assembly comes in BLACK only)

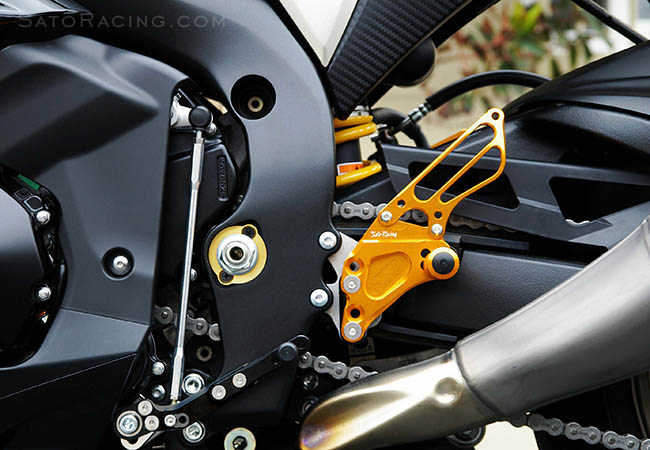

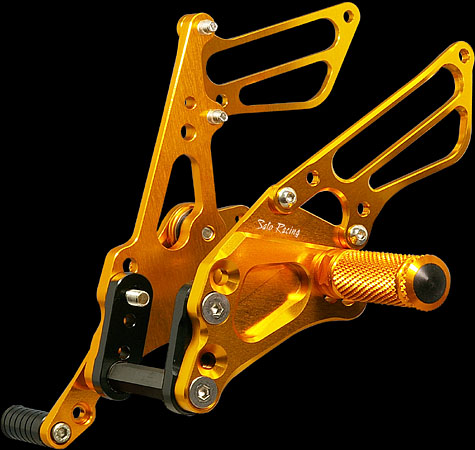

SATO RACING Suzuki GSX-R1000 '09-'16 Rear Sets [L]-side

You can set it up for either stock shift pattern or reverse (GP) shift pattern by flipping the stock change arm. These Rear Sets are designed for use with the stock Suzuki shift rod, but if you want a shift rod in another color, or shorter length (such as if you will be using these rear sets with a quickshifter), We do sell Shift Rods separately in various colors and lengths. Click Here for details.




BLACK S-GSX109RS-BK
$545
SILVER
w/ BLACK Shift Assembly
S-GSX109RS-SV
$545
GOLD
w/ BLACK Shift Assembly
S-GSX109RS-GD
$545

(Brake light switch is included in kit)


Click Here for important info about Sato color-anodized parts.




______________________________________________________________________

OPTIONS

______________________________________________________________________


SUZUKI GSX-R1000 ('09-'16)
SHIFT SPINDLE HOLDER


Our Shift Spindle Holder for GSX-R1000 reinforces the stock shift spindle, adding strength and rigidity to the spindle and reducing lateral movement and excessive play during shifting. Works great with Sato Rear Sets. Gold anodized billet aluminum with a Teflon-coated bushing.

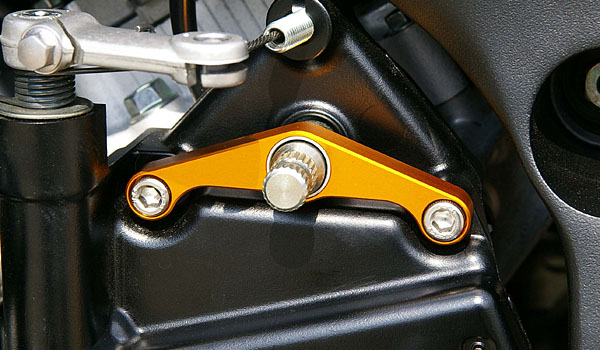

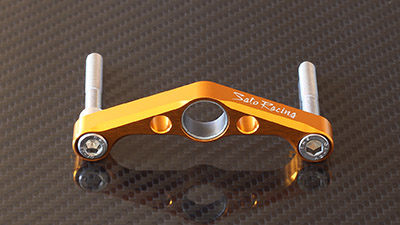

SATO RACING Shift Spindle Holder for Suzuki GSX-R1000 '09-

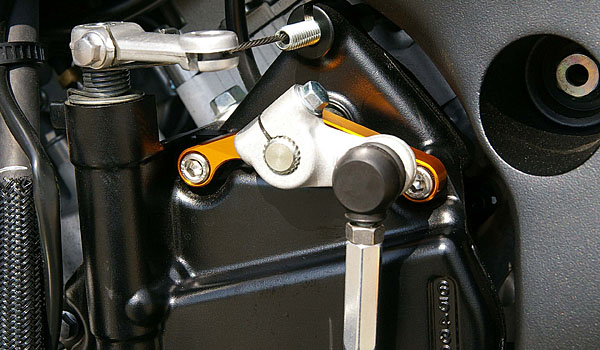

SATO RACING Shift Spindle Holder for Suzuki GSX-R1000 '09-'16


SATO RACING Shift Spindle Holder for Suzuki GSX-R1000 '09-'16

GOLD S-GSX109RS-SHDR
$75

Click Here for important info about Sato color-anodized parts.




______________________________________________________________________


BRAKE RETURN SPRING

SATO RACING Brake Return Spring quickens the pedal return and may make the pedal feel stiffer and more responsive compared to no spring. (For use with specified SATO RACING Rear Sets).


RS-RSP
$8.00



_________________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



______________________________________________________________________


REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List

Common replacement parts for Rear Sets part# S-GSX109RS:

FOOT PEG [BLACK] PEG-BK
$42
FOOT PEG [SILVER] PEG-SV
$42
FOOT PEG [GOLD] PEG-GD
$42
HEX HEAD M8-40mm
(Foot Peg bolt)
HBT-M840
$2.00
PEDAL TIP (DELRIN) ST-001D18
$15
BUTTON HEAD M6-20mm
(for R-side Pedal Tip)
BBT-M620
$1.50
BUTTON HEAD M6-25mm
(for L-side Pedal Tip)
BBT-M625
$1.50
SHIFT PEDAL SPD8 [BLACK]
(L-side #8)
SPD-8B
$30.00
FLAT HEAD M6-10mm
(L-side #18)
FBT-M610
$1.50
WASHER M6
(R-side #17)
WS-6
$1.00
E-CLIP M6
(R-side #18)
ECP-6
$1.50
BRAKE LIGHT SWITCH
(P-1.25)

BSW-125
$25

Additional replacement parts such as Rod Ends and related hardware can be found HERE.


More Sato Racing items for 2009-16 GSX-R1000

Suzuki Shift Arm Race Concept Rear Sets Oil Cap
