PEDAL TIPS

SATO RACING Rear Sets come standard with Pedal Tips (toe pegs) made of tough black Delrin nylon. We also carry additional styles of Pedal Tips, such as a shorter version of the Delrin Pedal Tips, and aluminum Pedal Tips with rubber grips, in Short and Long styles. Long style is available with either Black or Gold anodized aluminum cores. Short style comes in Gold only. Sold individually.

Coming Soon! Pedal Plate - an alternative design to replace the Pedal Tip on the brake side. Details Below.

Pedal Tips for SATO RACING Rear Sets
L-R: Short style (DELRIN), Standard type (DELRIN), Long style Aluminum
with Rubber Grip in Black and Gold, and Short style in Gold.

	STYLE	QTY: 1
	PEDAL TIP - SHORT (DELRIN)	ST-001DS $15
	STANDARD PEDAL TIP (DELRIN)	ST-001D18 $16.50
	PEDAL TIP - LONG (DELRIN)	ST-001D18L $18.00
	RUBBER PEDAL TIP - LONG [BLACK]	ST-001R $20
	RUBBER PEDAL TIP - LONG [GOLD]	ST-001R-GD $20
	RUBBER PEDAL TIP - SHORT [GOLD]	ST-001RS-GD $20

NOTE: Most of our Pedal Tips utilize the pedal tip bolts that come standard with SATO Rear Sets. Bolt is sold separately. See the Parts List for your Rear Sets to find out the bolt size you will need.
(Most current models specify to use Button Head M6-20mm bolt.)

	BUTTON HEAD M6-15mm*	BBT-M615 $1.50
	BUTTON HEAD M6-20mm (standard size)	BBT-M620 $1.50
	BUTTON HEAD M6-25mm**	BBT-M625 $1.50
	LOW SOCKET HEAD M6-20mm***	LSBT-M620 $4.00
	LOW SOCKET HEAD M6-15mm***	LSBT-M615 $4.00

* Button Head M6-15mm bolt or Low Socket Head cM6-15mm bolt can be used with our SHORT-style DELRIN Pedal Tip (ST-001DS), or our RUBBER PEDAL TIP (Short or Long style) on rear sets with recessed bolt holes on the back side of the pedal. This shorter size is not recommended for use with our Standard length DELRIN pedal tips (ST-001D18). (The standard M6-20mm bolt is also compatible with our Rubber Pedal Tips)

** Button Head M6-25mm bolt is recommended for certain Sato Rear Sets (mostly earlier models) with pedals that do not have recessed bolt holes. If the holes are recessed on the back of your pedal, in most cases it is best to use the M6-20mm bolt length.

*** The Low Socket Head bolt style is specified for use with certain 2018 and newer Sato Rear Sets models.

Replacement Rubber Sleeves

	RUBBER SLEEVE [SHORT] for SHORT-style Rubber Pedal Tips	ST-001RS-SL2 $5.50
	RUBBER SLEEVE [LONG] for LONG-style Rubber Pedal Tips	ST-001R-SL $5.50

PEDAL PLATE

This lightweight anodized billet aluminum Pedal Plate for competition use* features a flat top with a pyramidal-motif grip pattern. An optional Spacer bar can be added to extend the plate outward by an additional 10mm. Includes stainless steel bolts. This is intended to replace the brake pedal tip, for more sure-footed braking. Compatible with most models of SATO RACING Rear Sets.

* NOTE: SATO RACING Race Concept parts are limited production and experimental racing parts intended for track use only.

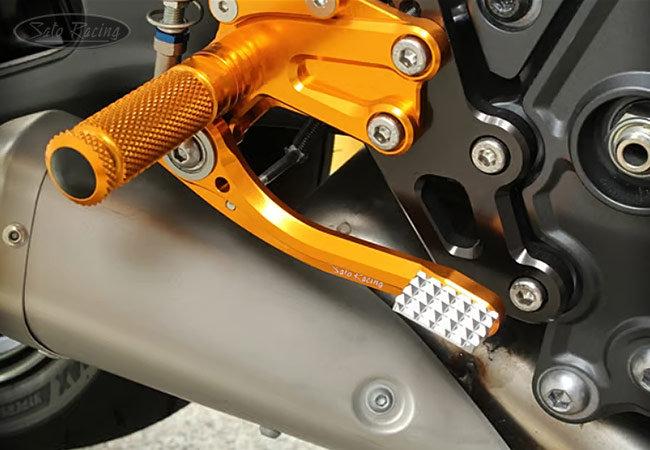

RACE CONCEPT Pedal Plate for SATO RACING Rear Sets

RACE CONCEPT Pedal Plate and Spacer for SATO RACING Rear Sets

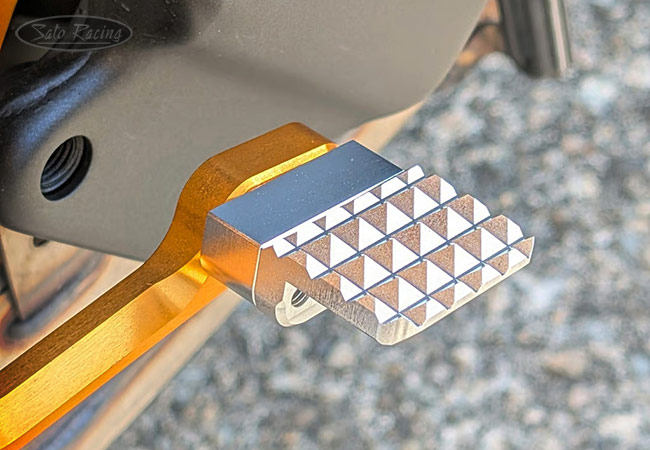

Pedal Plate with optional 10mm Spacer.

RACE CONCEPT Pedal Plate and Spacer for SATO RACING Rear Sets

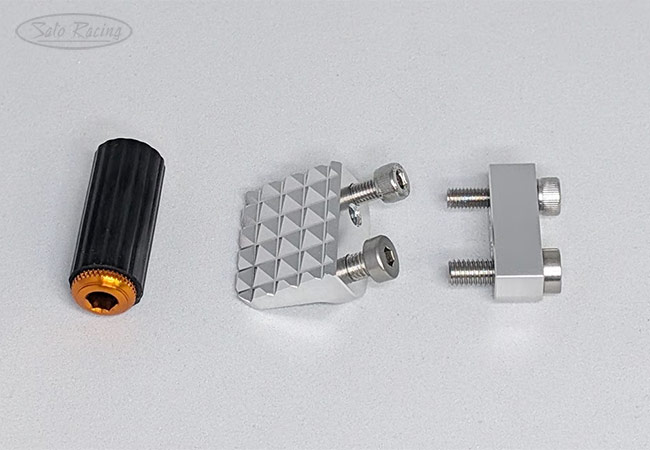

Pedal Plate and optional Spacer, alongside a Short-style Pedal Tip for size comparison.
The Spacer includes longer bolts.

RACE CONCEPT Pedal Plate and Spacer for SATO RACING Rear Sets

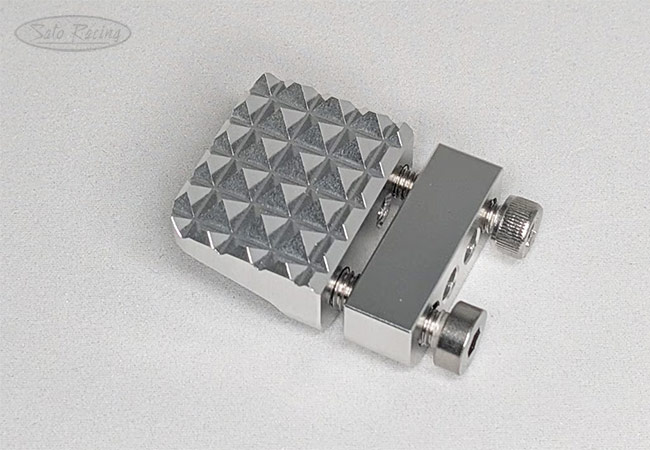

Pedal Plate combined with optional Spacer

	PEDAL PLATE	RCPLATE $TBD
	SPACER (10mm) for Pedal Plate	RCPLATE-SPC10 $TBD

ARRIVING SOON
