SHIFT ROD
Replacement part for SATO RACING Rear Sets

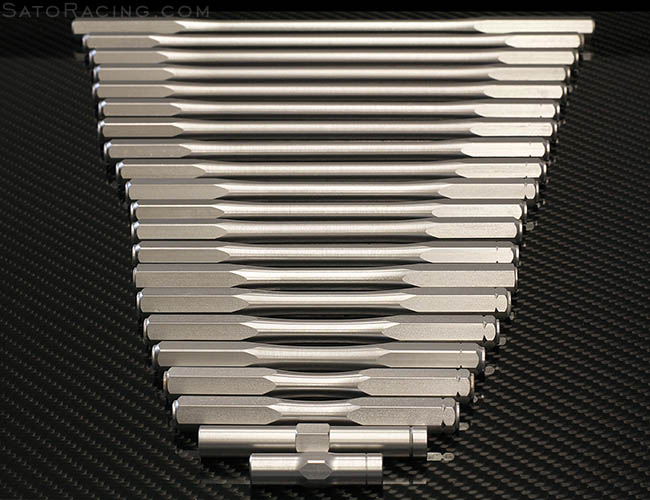

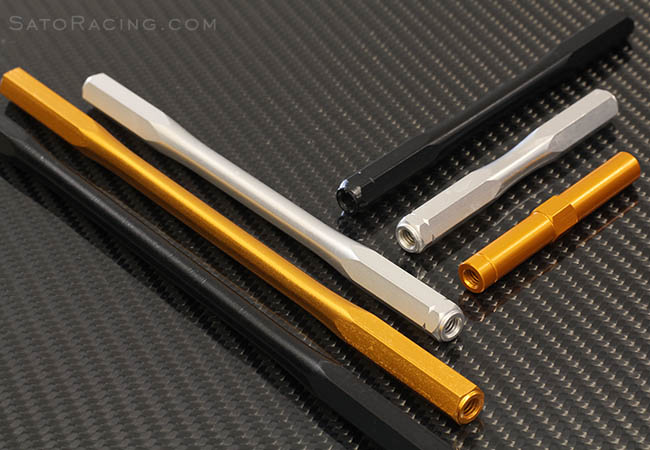

SATO RACING Shift Rods are made of high strength billet aluminum, and are available in a wide variety of lengths, ranging from 40mm all the way up to 255mm. Our shift rods have M6-size internal threading on both ends (unless otherwise specified), with a standard (right hand) thread on one end, and a left hand (reverse) thread on the other end. Choice of anodized Black, Silver or Gold (most sizes).

Whether you need a new replacement Shift Rod for your Sato Rear Sets, or want a different length of rod than what came standard with your Rear Sets (such as might be the case if installing an aftermarket quick-shifter with Sato Rear Sets), we most likely have the length of Shift Rod you are looking for.


(To find the correct Shift Rod for your Sato Rear Sets model, see the Parts List Diagram).
LENGTH
(mm)		 COLOR PRICE
40 BLACK SRD-40-B
$35
40 SILVER SRD-40-S
$35
40 GOLD SRD-40-G
$35

50 BLACK SRD-50-B
$39
50 GOLD SRD-50-G
$39

70 BLACK SRD-70-B
$39
70 SILVER SRD-70-S
$39
70 GOLD SRD-70-G
$39

80 BLACK SRD-80-B
$39

90 BLACK SRD-90-B
$39
90 SILVER SRD-90-S
$39
90 GOLD SRD-90-G
$39

100 BLACK SRD-100-B
$39
100 SILVER SRD-100-S
$39
100 GOLD SRD-100-G
$39

110 BLACK SRD-110-B
$39
110 SILVER SRD-110-S
$39
110 GOLD SRD-110-G
$39

LENGTH
(mm)		 COLOR PRICE
120 BLACK SRD-120-B
$39
120 SILVER SRD-120-S
$39
120 GOLD SRD-120-G
$39

130 BLACK SRD-130-B
$39
130 SILVER SRD-130-S
$39
130 GOLD SRD-130-G
$39

135 BLACK SRD-135-B
$39
135 SILVER SRD-135-S
$39

140 BLACK SRD-140-B
$39
140 SILVER SRD-140-S
$39
140 GOLD SRD-140-G
$39

145 BLACK SRD-145-B
$39
145 SILVER SRD-145-S
$39
145 GOLD SRD-145-G
$39

150 BLACK SRD-150-B
$39
150 SILVER SRD-150-S
$39
150 GOLD SRD-150-G
$39

LENGTH
(mm)		 COLOR PRICE
160 BLACK SRD-160-B
$39
160 SILVER SRD-160-S
$39
160 GOLD SRD-160-G
$39

170 BLACK SRD-170-B
$39
170 SILVER SRD-170-S
$39
170 GOLD SRD-170-G
$39

180 BLACK SRD-180-B
$39
180 SILVER SRD-180-S
$39
180 GOLD SRD-180-G
$39

190 BLACK SRD-190-B
$39
190 SILVER SRD-190-S
$39
190 GOLD SRD-190-G
$39

LENGTH
(mm)		 COLOR PRICE
195 BLACK SRD-195-B
$39
195 SILVER SRD-195-S
$39
195 GOLD SRD-195-G
$39

205 BLACK SRD-205-B
$45
205 SILVER SRD-205-S
$45
205 GOLD SRD-205-G
$45

210 BLACK SRD-210-B
$45
210 SILVER SRD-210-S
$45
210 GOLD SRD-210-G
$45

220 BLACK SRD-220-B
$45
220 SILVER SRD-220-S
$45

LENGTH
(mm)		 COLOR PRICE
230 BLACK SRD-230-B
$45
230 SILVER SRD-230-S
$45

245 BLACK SRD-245-B
$45
245 SILVER SRD-245-S
$45
245 GOLD SRD-245-G
$45


SHIFT ROD HARDWARE

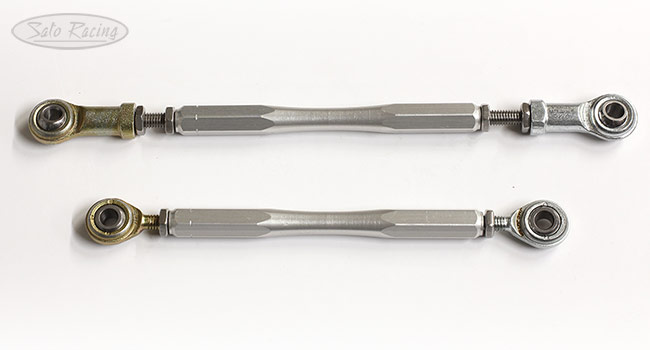

Comparison of Shift Rod hardware for Sato Racing Rear Sets

See above comparison photo of different Shift Rod hardware for Sato Racing Shift Rods. The Shift Rods are identical length. Top shift rod has female rod ends with 45mm studs and 2 jam nuts at both ends - Bottom Shift Rod has shorter male rod ends with single jam nuts at both ends. As you can see, changing the rod end hardware at one or both ends can dramatically alter the overall length of the shift rod assembly, even without changing the Shift Rod itself.


The following parts are most commonly used on Sato Rear Sets to attach the Shift Rod. ( Contact SATO RACING if you need other parts not listed below.

RDED-M6 M6 MALE ROD END RDED-M6
$12.50
M6 MALE
REVERSE ROD END		 RDED-M6L
$12.50
M6 FEMALE ROD END RDED-F6
$15
M6 FEMALE
REVERSE ROD END		 RDED-F6L
$15


STUD-M6 STUD BOLT M6-45mm STUD-M6
$2.50
STUD-M6L REVERSE
STUD BOLT M6-45mm		 STUD-M6L
$4.20
JNT-6 JAM NUT M6 JNT-6
$1.75
JNT-6L REVERSE
JAM NUT M6		 JNT-6L
$2.50


ROD END COLLAR 3 RDED-CLR3
$6.00
ROD END COLLAR 6 RDED-CLR6
$6.00
SOCKET HEAD M6x20mm SBT-M620
$1.50
SOCKET HEAD M6x25mm SBT-M625
$1.50
HEX HEAD M6x18mm HBT-M618
$2.00
BUTTON HEAD M6x15mm BBT-M615
$1.50
BUTTON HEAD M6x18mm BBT-M618
$2.00
