HONDA RC51 ('00 -'06)
REAR SETS


SATO RACING Rear Sets for Honda RC51 (VTR1000) SP1 and SP2 are made from lightweight, high strength billet aluminum anodized in your choice of Black, Silver, or Gold finish. Modular step plate design lets you select from 7 adjustable positions in a range that brings your feet from near-stock position to progressively higher up and further back compared to stock.

An optional Reverse Shift Kit gives these Rear Sets a reverse shifting pattern.

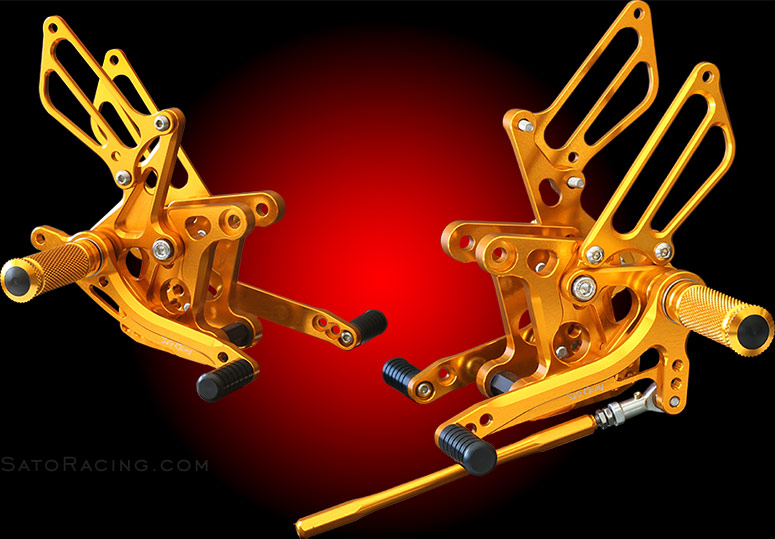

SATO RACING Honda RC51 Rear Sets in Gold

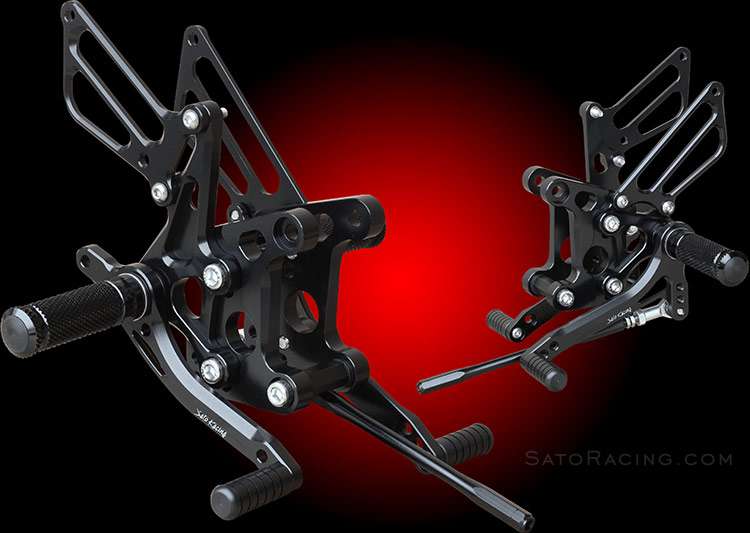

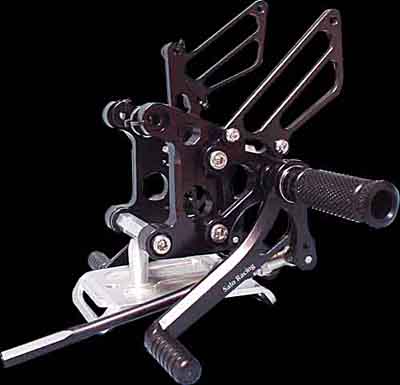

SATO RACING Honda RC51 Rear Sets in Black

POSITIONS

1 0 mm Back
(stock position)
10mm Up
(0.4" Up)
2 0 mm Back
(stock position)
20mm Up
(0.8" Up)
3 10mm Back
(0.4" Back)
10mm Up
(0.4" Up)
4 10mm Back
(0.4" Back)
20mm Up
(0.8" Up)
5 10mm Back
(0.4" Back)
30mm Up
(1.2" Up)
6 20mm Back
(0.8" Back)
20mm Up
(0.8" Up)
7 20mm Back
(0.8" Back)
30mm Up
(1.2" Up)

note: all measurements are in relation to stock position (0 mm).

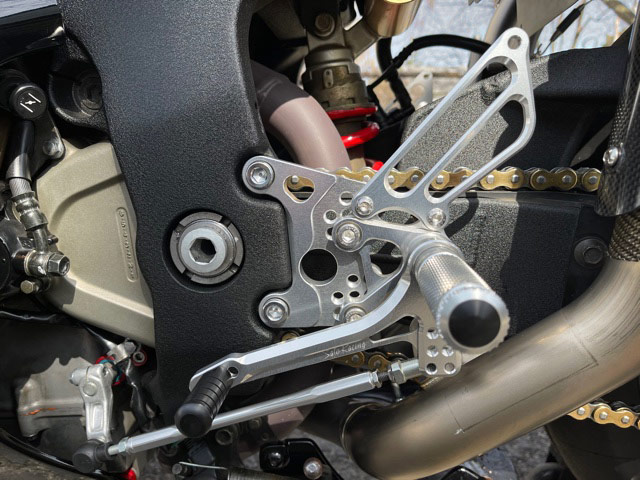

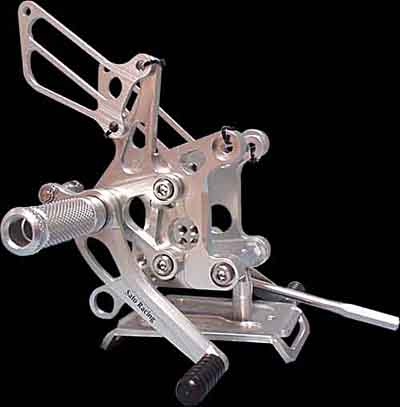

Sato Racing Rear Sets in Silver on an RC51

The shift and brake pedals utilize miniature double stainless bearings for smooth, precise lever actuation. The Base Plate provides 7 adjustable positions.

A pressure-type brake light switch that attaches to the master cylinder is included. Kit also includes black anodized exhaust hanger brackets for use with the stock exhaust (Not pictured).

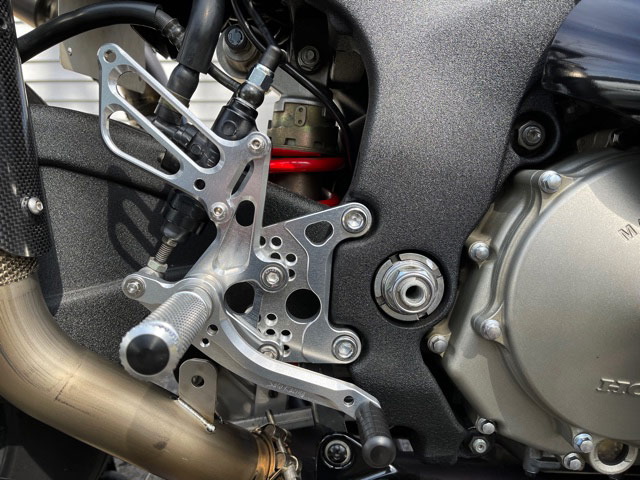

Sato Racing Rear Sets in Silver on an RC51

The Foot Pegs have a finely knurled pattern for nice grip, along with a comfortable intuitive feel. The Foot Pegs' end caps and the Pedal Tips (toe pegs) are made of tough, abrasion-resistant black Delrin, providing some protection from scrape damage if you drag a peg.

Provides a stock shift pattern when paired with the OEM change arm. For Reverse / GP shift pattern, you will need our optional
Reverse Shift Kit. (See below).
(Photos courtesy of Jason H.)




BLACK H-RC51RS-BK
$590
SILVER H-RC51RS-SV
$590
GOLD H-RC51RS-GD
$590

(Brake light switch included.)


Click Here for important info about Sato color-anodized parts.



OPTIONAL PARTS


HONDA RC51
REVERSE SHIFT KIT


This Reverse Shift Kit lets you change the shifting pattern of Sato Racing RC51 Rear Sets from stock to reverse shift pattern. Includes a precision-machined billet aluminum change arm and spacer collar with a black-anodized finish, and a reverse/left-hand threaded male rod end.

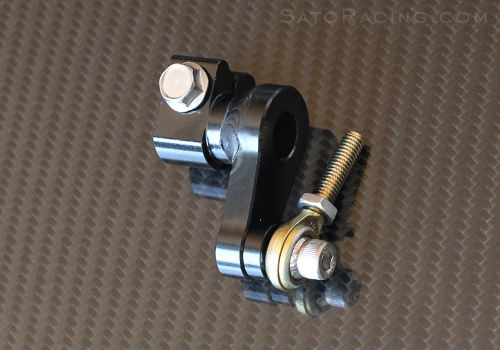

Sato Racing Honda RC51 Reverse Shift Kit

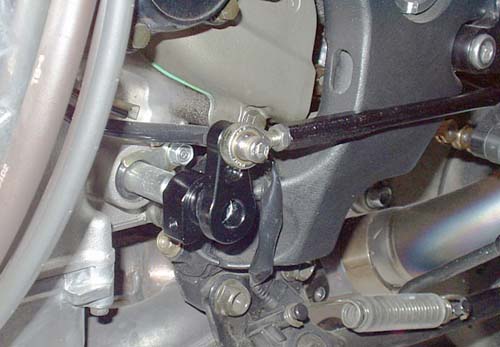

Sato Racing Reverse Shift Kit installed on an RC51

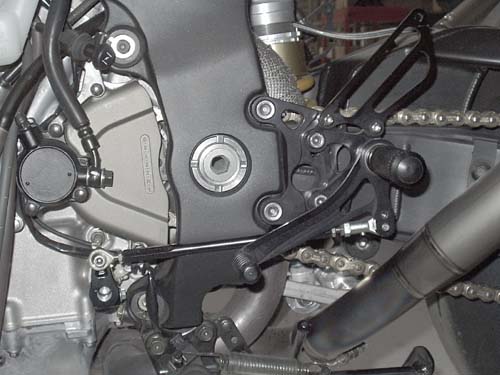

Sato Racing RC51 Rear Sets with Reverse Shift Kit


REVERSE SHIFT KIT H-RC51RS-CHAM
$85.00





BRAKE RETURN SPRING

Sato Racing Rear Sets with Return Spring attached

SATO RACING Brake Return Spring is not required with these Rear Sets, but we offer it as an option, since it can quicken the brake pedal return and in some cases may make the pedal feel more responsive compared to no spring.


RETURN SPRING 40 RS-RSP
$8.00





PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45



Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List


Some replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG
(BK/ SV/ GD)
PEG
$42
PEDAL TIP (DELRIN)
ST-001D18
$15
PEG BEARING COLLAR 12.5
(BK/ SV / GD)   (L-side #19)
PEGBGCLR-125
$15
STUD BOLT LONG (M8-65mm)
(L-side peg bolt)
STBT-L
$4.50
STUD BOLT SHORT (M8-55mm)
(R-side peg bolt)
STBT-S
$4.50
FLANGE NUT M8
(for peg bolt)
FNT-8
$1.50
PEG WASHER - M8 PWS-8
$1.00
SOCKET HEAD M8 x 15mm
(#2)
SBT-M815
$1.50
BUTTON HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50
BUTTON HEAD M6-10mm
(L-side #4)
BBT-M610
$1.50
BASE PLATE COLLAR 5
(L-side #10 / R-side #14)
BPCLR-5
$8.00
BRAKE ROD M40
(R-side #11)
BRD-M40
$13.50
WASHER M6
(R-side #16)
WS-6
$1.00
E-CLIP M6
(R-side #17)
ECP-6
$1.50
BUTTON HEAD M6-25mm
(R-side #19)
BBT-M625
$1.50
SHIFT ROD 170
(BK/ SV/ GD)
(L-side #15)
SRD-170
$39
ROD END COLLAR 3
(L-side #20)
RDED-CLR3
$6.00
FEMALE ROD END M6
(L-side #9)
RDED-F6
$15
JAM NUT M6
(L-side #7)
JNT-6
$1.75
STUD M6
(L-side #8)
STUD-M6
$2.50
RETURN SPRING 40
(Option)
RS-RSP
$8.00
BRAKE LIGHT SWITCH
(P-1.25)

BSW-125
$25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
