DUCATI MULTISTRADA ( -'09) /
HYPERMOTARD/1100/S ( -'11)

REAR SETS

SATO RACING Rear Sets with optional Heel Guard on a Hypermotard

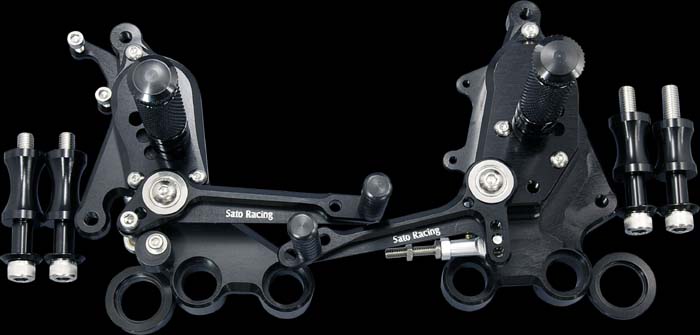

SATO RACING Rear Sets for first generation Multistrada and Hypermotard are CNC-machined from high strength billet aluminum and anodized in your choice of deep Black, Silver or vivid Gold finish.

Numerous options available for these Rear Sets include a matching anodized aluminum Heel Guard Set, a left side Sprocket Cover, and an adjustable Shift Arm, also available in Black, Silver or Gold. Mix and match colors for a unique custom look!

SATO RACING Ducati Multistrada/ Hypermotard Rear Sets + Heel Guard [R] SATO RACING Ducati Multistrada/ Hypermotard Rear Sets + Heel Guard [L]
GOLD Rear Sets kit shown with optional Heel Guard Set


POSITIONS

Choose from 6 adjustable peg positions, bringing your feet higher and further back
compared to stock, for a less upright body position well-suited for spirited riding.


SATO RACING Rear Sets with optional Heel Guard on a Hypermotard

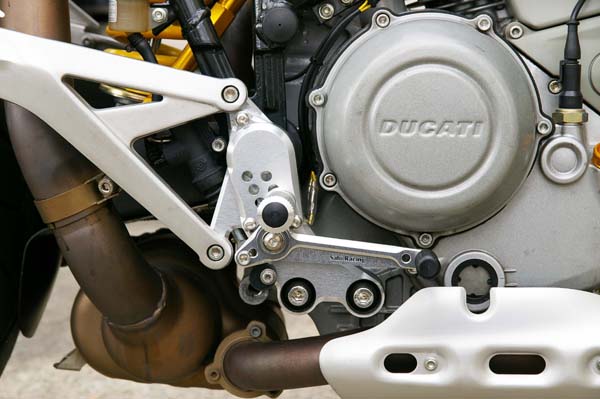

Rear Sets with optional Heel Guards on a Hypermotard 1100 series. The
brake pedal has double stainless bearings for smooth, precise braking feel.

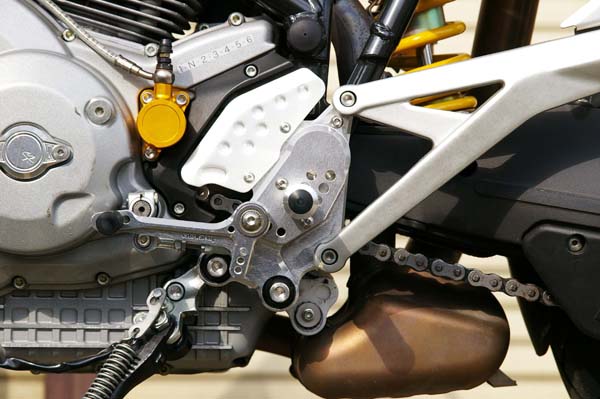

Rear Sets on a Multistrada, shown installed with the stock passenger peg brackets*.


Rear Sets on a Multistrada, shown installed with the stock passenger peg brackets*.

SATO RACING Rear Sets with Sprocket Cover on a Multistrada

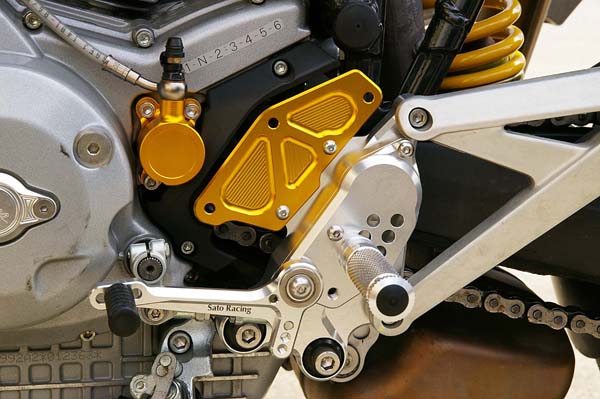

Rear Sets shown with optional Sprocket Cover on a Multistrada.

SATO RACING Rear Sets with optional Heel Guard on a Hypermotard

Rear Sets with optional Heel Guards and Sprocket Cover on a Hypermotard 1100.

You can switch from stock shift pattern to reverse (GP-style) shift pattern by flipping the stock shift arm. We also offer an optional matching anodized billet aluminum Shift Arm that works well with these Rear Sets, providing additional holes for attaching the shift rod, which allow you to shorten or lengthen the shift stroke.

SATO RACING Rear Sets with optional Heel Guard on a Hypermotard
Rear Sets with optional Heel Guards and Sprocket Cover on a Hypermotard 1100.
Foot Pegs are finely knurled for a comfortable feel and great grip even in wet conditions.



REAR SETS

Online Special -
We have temporarily dropped our prices on the Gold version of these Rear Sets! So if you have always wanted to try out these excellent Rear Sets, now is your chance!*

BLACK D-MULTIRS-BK
$980
SILVER D-MULTIRS-SV
$980
GOLD * D-MULTIRS-GD
$980   $780

* (Clearance item pricing - no exchanges / returns)


NOTE: Certain Multistrada 620/1100 (non-S) models that came stock with one-piece rear sets/ tandem brackets
require the purchase of the following stock parts in order to use the stock passenger pegs with these Rear Sets:

Ducati part#     description
DU 11710671A     Adjuster Rod
DU 82712791A     Chain Cover*
DU 82410791A    Rear R Footrest*
DU 82410801A    Rear L Footrest*

*
optional - only needed if you want to use tandem brackets with the Sato Rear Sets.
Our Heel Guard Set can be installed in place of stock tandem brackets - See below.



OPTIONAL PARTS


DUCATI MULTISTRADA ( -'09)/ HYPERMOTARD/1100/S ( -'11)
HEEL GUARD SET

Set of 2 anodized billet aluminum Heel Guards, in Black, Silver or Gold, with mounting hardware. For use with SATO RACING Multistrada/ Hypermotard Rear Sets (part# D-MULTIRS).

SATO RACING Heel Guard Set and Sprocket Cover for Ducati Multistrada and Hypermotard with Sato Rear Sets
(Left side photo also shows Sprocket Cover, sold separately)


HEEL GUARD SET

BLACK D-MULTIHG-BK
$120
SILVER D-MULTIHG-SV
$120
GOLD D-MULTIHG-GD
$120






DUCATI MULTISTRADA ( -'09)/ HYPERMOTARD (1100/S) ( -'11)
SPROCKET COVER

This anodized billet aluminum Sprocket Cover (L-side) for first generation Ducati Multistrada and Hypermotard looks great when installed with SATO RACING Rear Sets. Choice of Black, Silver or Gold.

SATO RACING Rear Sets with optional Heel Guard on a Hypermotard

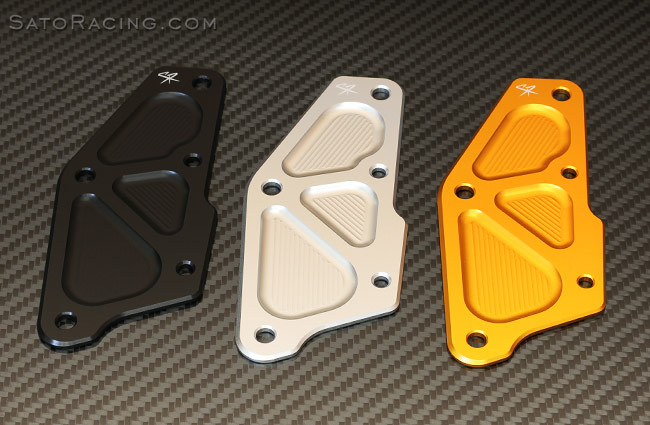

SATO RACING Sprocket Cover for Ducati Multistrada and Hypermotard


SPROCKET COVER

BLACK D-MULTISCVR-BK
$40
SILVER D-MULTISCVR-SV
$40
GOLD D-MULTISCVR-GD
$40




REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List

More Sato Racing items for these Ducati models

Pedal Tips Shift Arm Clutch Slave Cylinder
