DUCATI DIAVEL ('11-'18)
REAR SETS
| SATO RACING Rear Sets
for 2011-18 Ducati Diavel features a track-engineered, competition-ready design, with components precision CNC-machined out of high strength billet aluminum, and fastened together with stainless steel bolts and hardware.
Modular adjustable design provides 12 unique foot peg positions in a range that places your feet further back
compared to stock, for a more aggressive position well suited for spirited riding. Choice of all-Black anodized finish, or Silver or Gold anodized controls with contrasting Black anodized Base Plates / Exhaust Hanger. Available options include an adjustable billet aluminum Shift Arm that looks great with these Rear Sets, and new cut-out style Racing Foot Pegs. |

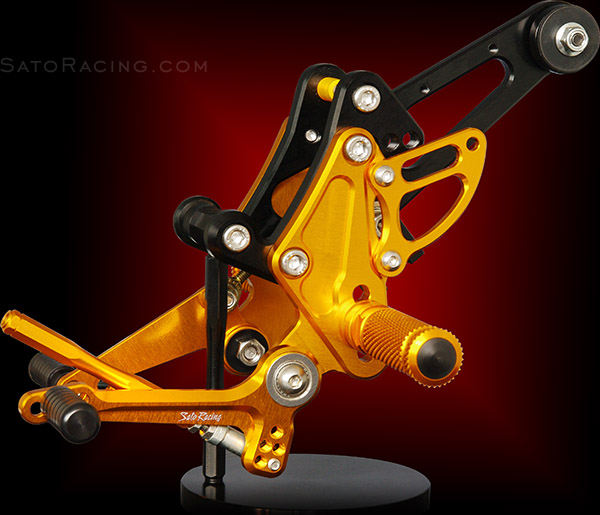

![SATO RACING Ducati Diavel Rear Sets [K]-side](pics/ducatidiavel_RS_L_600x515.jpg "SATO RACING Ducati Diavel Rear Sets [L]-side")

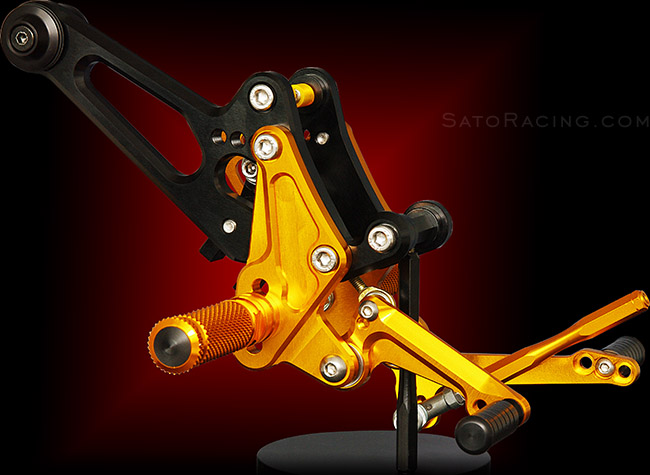

![SATO RACING Ducati Diavel Rear Sets [R]-side](pics/ducatidiavel_RS_R_650x475.jpg "SATO RACING Ducati Diavel Rear Sets [R]-side")
POSITIONS
| 1 | 30mm Back | 0mm |
| 2 | 30mm Back | 14mm Up |
| 3 | 30mm Back | 28mm Up |
| 4 | 40mm Back | 0mm |
| 5 | 40mm Back | 14mm Up |
| 6 | 40mm Back | 28mm Up |
| 7 | 50mm Back | 0mm |
| 8 | 50mm Back | 14mm Up |
| 9 | 50mm Back | 28mm Up |
| 10 | 60mm Back | 0mm |
| 11 | 60mm Back | 14mm Up |
| 12 | 60mm Back | 28mm Up |
note: all measurements are in relation to stock position (0 mm).

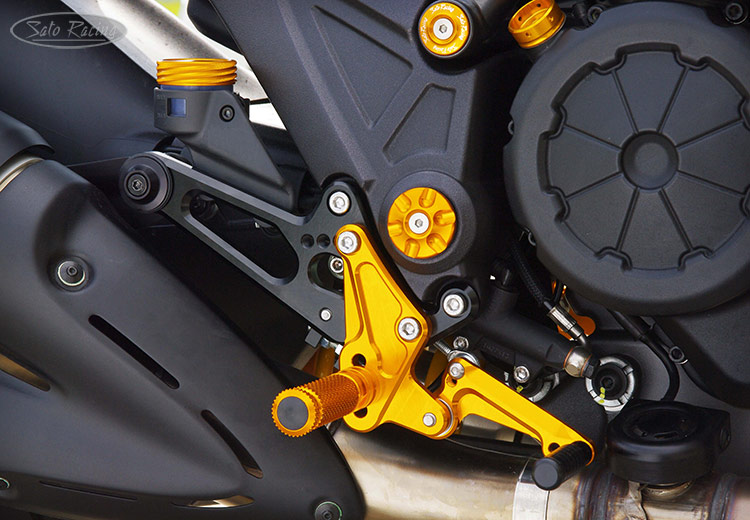

![SATO RACING Rear Sets [R]-side on a Ducati Diavel. SATO RACING Brake Fluid Reservoir Cap and Oil Filler Cap also shown.](pics/ducatidiavel_rs_fitR1.jpg "SATO RACING Rear Sets [R]-side on a Ducati Diavel. SATO RACING Brake Fluid Reservoir Cap and Oil Filler Cap also shown.")
The shift and brake pedals use dual miniature stainless bearings for smooth, precise lever actuation.
These rear sets are compatible with the stock brake light switch / ABS.

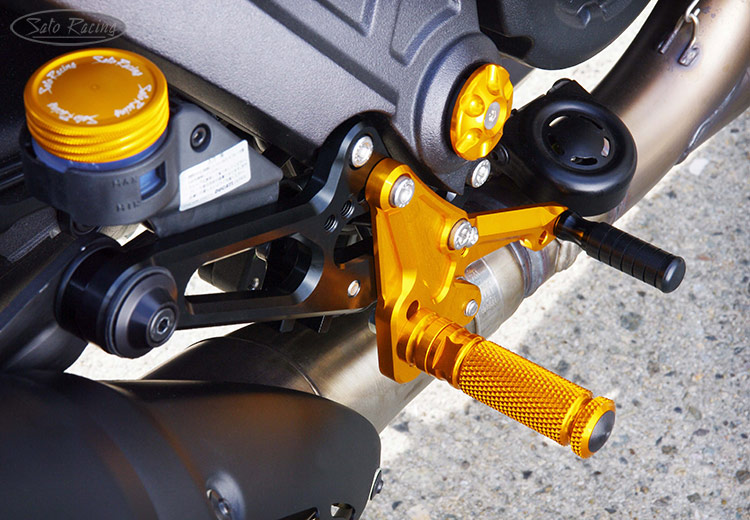

![SATO RACING Rear Sets [R]-side on a Ducati Diavel. Sato Fluid Reservoir Cap also shown.](pics/ducatidiavel_rs_fitR2.jpg "SATO RACING Rear Sets [R]-side on a Ducati Diavel. Sato Fluid Reservoir Cap also shown.")
The Foot Pegs are finely knurled for optimal grip, along with a comfortable, intuitive feel.
The Base Plates and Exhaust Hanger Bracket are made of Black anodized billet aluminum.

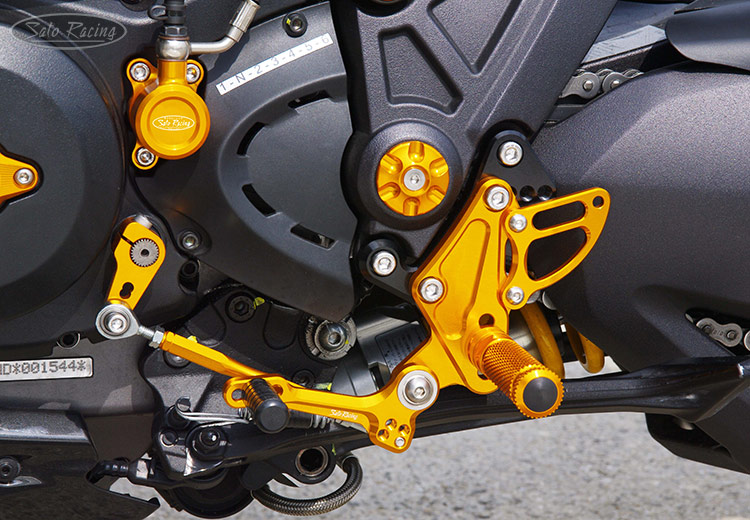

![SATO RACING Ducati Diavel Rear Sets [L]-side. Clutch Slave Cylinder also shown.](pics/ducatidiavel_rs_fitL1.jpg "SATO RACING Ducati Diavel Rear Sets [L]-side. Clutch Slave Cylinder also shown.")
The positions of the Foot Peg and the Step Plate are each adjustable several ways, so
you can find the ideal position for your riding style. ( Shown with optional Shift Arm )

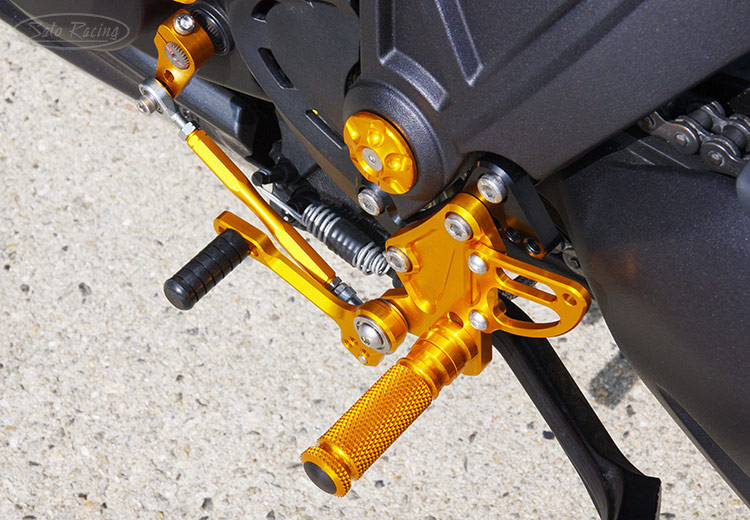

![SATO RACING Ducati Diavel Rear Sets [L]-side](pics/ducatidiavel_rs_fitL2.jpg "SATO RACING Ducati Diavel Rear Sets [L]-side")
Shown with optional Shift Arm
Note: These Rear Sets provide a stock shifting pattern only.
Reverse (GP) shift pattern is not an option on this model.
 |
BLACK | D-DLRS-BK $695 |
 |
 |
SILVER w/ BLACK Base Plates |
D-DLRS-SV $695 |
|
 |
GOLD w/ BLACK Base Plates |
D-DLRS-GD $695 |
|
'Refurbished' model:
Returned item - Like new, but some parts may show
minor scuffs from handling or an attempted install.
It has been repackaged and verified to be complete.
|
BLACK (REFURBISHED) |
D-DLRS-BK-RFB $645 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $52 |
|
 |
SILVER | RCPEG-SV $52 |
|
 |
GOLD | RCPEG-GD $52 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 5 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $48 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#20) |
PEGCLR-15 $15 |
|
 |
HEX HEAD M8-40mm (#35, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) (#8) |
ST-001D18 $16.50 |
|
 |
BUTTON HEAD M6-20mm (#29, for L-side Pedal Tip) |
BBT-M620 $1.50 |
|
 |
COLLAR 15-6 [BLACK] (R-side #18) |
HGCLR-15 $8.00 |
|
 |
BUTTON HEAD M6-35mm (#31, for R-side Pedal Tip) |
BBT-M635 $1.75 |
|
 |
SHIFT ROD 40 (BK/ SV/ GD) (R-sde #12) |
SRD-40 $35 |
|
|
SHIFT ROD 100 (BK/ SV/ GD) (L-side #13) |
SRD-100 $39 |
|
 |
ROD END COLLAR 3 (L-side #16) |
RDED-CLR3 $6.00 |
|
 |
COLLAR 3-8 (R-side #17) |
CLR3-8 $6.00 |
|
 |
SOCKET HEAD M6-15mm (R-side #22) |
SBT-M615 $1.50 |
|
 |
SOCKET HEAD M6-20mm (L-side #23) |
SBT-M620 $1.50 |
|
 |
SOCKET HEAD M6-35mm (#24) |
SBT-M635 $1.75 |
|
 |
SOCKET HEAD M8-15mm (#25) |
SBT-M815 $1.50 |
|
 |
SOCKET HEAD M8-20mm (#26) |
SBT-M820 $1.50 |
|
 |
SOCKET HEAD M8-25mm (#27) |
SBT-M825 $1.50 |
|
 |
BUTTON HEAD M6-10mm (#28) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-25mm (R-side #30) |
BBT-M625 $1.50 |
|
 |
BUTTON HEAD M8-25mm (L-side #32) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-30mm (R-side #33) |
BBT-M830 $2.00 |
|
 |
FLAT HEAD M6-15mm (R-side #34) |
FBT-M615 $1.50 |
|
 |
STUD M6 (#36) |
STUD-M6 $2.50 |
|
 |
PEG WASHER - M8 (#37) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 (#38) |
SWS-8 $1.20 |
|
 |
JAM NUT M6 (#39) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#40) |
JNT-6L $2.50 |
|
 |
MALE ROD END M6 (#43) |
RDED-M6 $12.50 |
|
 |
M6 MALE REVERSE ROD END (#44) |
RDED-M6L $12.50 |
|
 |
FEMALE ROD END M6 (#45) |
RDED-F6 $12.50 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
