KTM 390 Duke ('17-'23)
REAR SETS
| SATO RACING
Rear Sets for 2017-23 KTM 390 Duke* features a track-engineered design, with components precision CNC-machined out of high strength anodized billet aluminum, with stainless steel fasteners. Modular step plate design lets you select from 8 foot peg positions in a wide adjustment range, bringing your feet higher
up compared to stock. Choice of all-Black anodized finish, or a vivid Gold finish with contrasting Black anodized base plates. * Also fits the non-US 250 Duke 2017-21. This model is mostly compatible with the similar 2020-24 200 Duke, but some additional hardware is necessary. (Mention you have a 200 Duke when ordering, and we will include it.) |
POSITIONS
| 1 | 25mm Forword | 12.5mm Up |
| 2 | 25mm Forword | 25mm Up |
| 3 | 12.5mm Forword | 12.5mm Up |
| 4 | 12.5mm Forword | 25mm Up |
| 5 | 0mm | 25mm Up |
| 6 | 0mm | 37.5mm Up |
| 7 | 12.5mm Back | 25mm Up |
| 8 | 12.5mm Back | 37.5mm Up |
note: all measurements are in relation to stock position (0 mm).

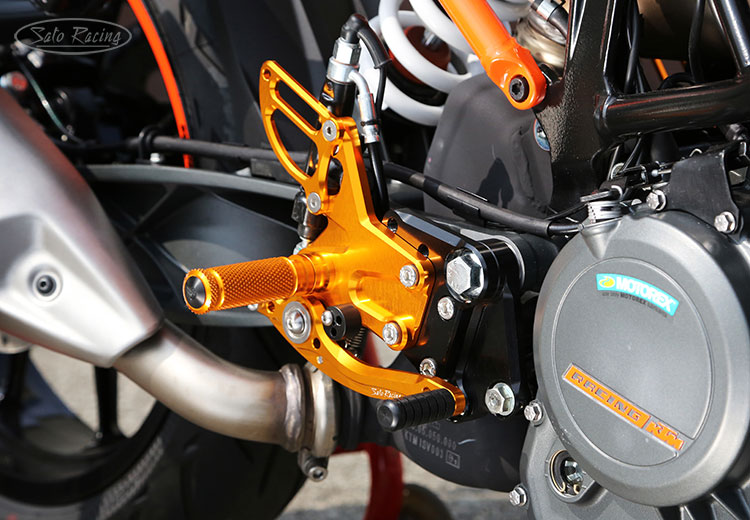

![SATO RACING Rear Sets for 2017+ KTM 390 Duke [R]-side](pics/KTM390Duke17_RearSets_fitR1.jpg "SATO RACING Rear Sets for 2017+ KTM 390 Duke [R]-side")
The shift and brake pedals use dual miniature stainless
bearings for smooth, precise operation with a solid feel.

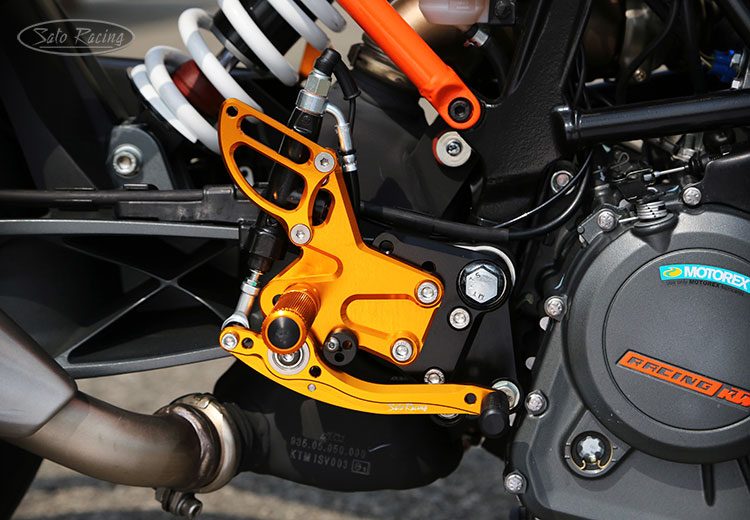

![SATO RACING Rear Sets for 2017+ KTM 390 Duke [R]-side](pics/KTM390Duke17_RearSets_fitR2.jpg "SATO RACING Rear Sets for 2017+ KTM 390 Duke [R]-side")
The positions of the Step Plate and the Foot Peg can be independently
adjusted, so you find the ideal foot position to suit your riding style.

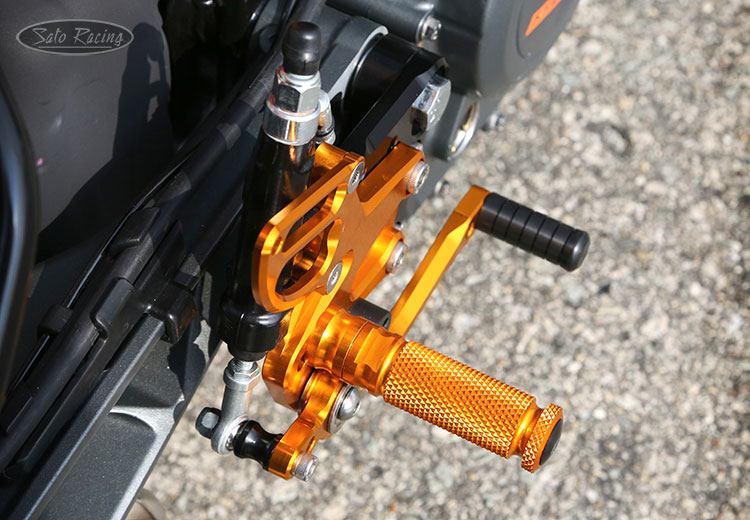

![SATO RACING Rear Sets for 2017+ KTM 390 Duke [R]-side](pics/KTM390Duke17_RearSets_fitR3.jpg "SATO RACING Rear Sets for 2017+ KTM 390 Duke [R]-side")
The foot pegs have a finely knurled pattern for excellent grip characteristics.
The standard Pedal Tips are made of tough Delrin. Other styles of Pedal Tips,
including aluminum Pedal Tips with fluted rubber grips, are an available option.

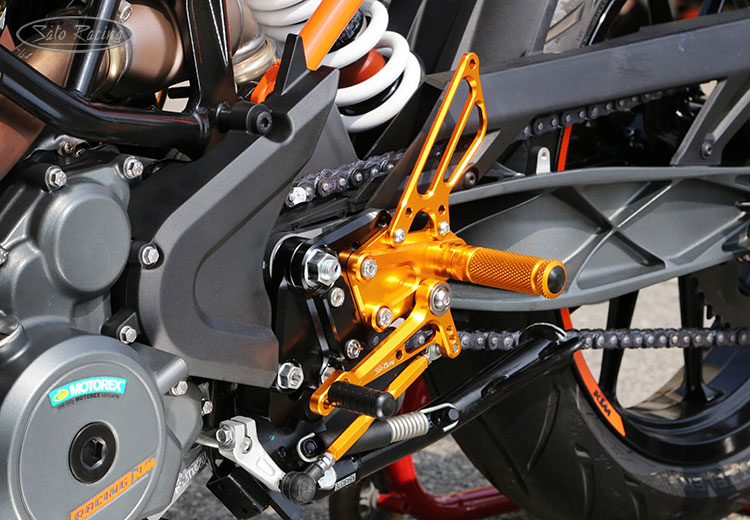

![SATO RACING Rear Sets for 2017+ KTM 390 Duke [L]-side](pics/KTM390Duke17_RearSets_fitL1.jpg "SATO RACING Rear Sets for 2017+ KTM 390 Duke [L]-side")
These Rear Sets provide a stock shift pattern. (Reverse / GP shift pattern is not an option).

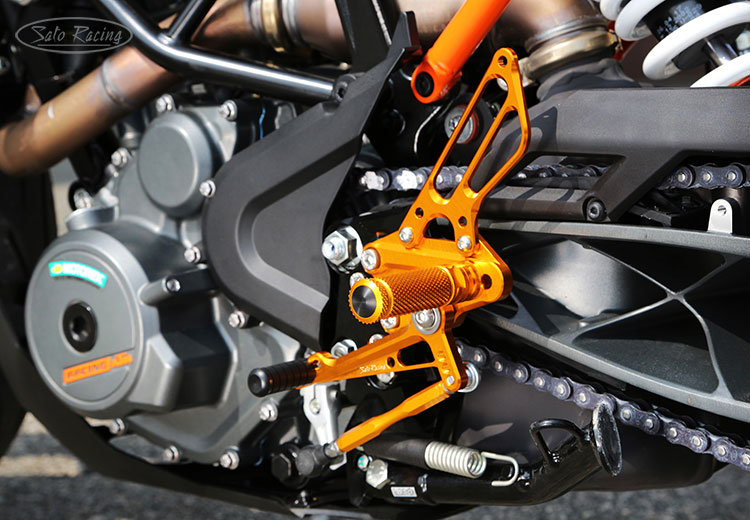

![SATO RACING Rear Sets for 2017+ KTM 390 Duke [L]-side](pics/KTM390Duke17_RearSets_fitL2.jpg "SATO RACING Rear Sets for 2017+ KTM 390 Duke [L]-side")

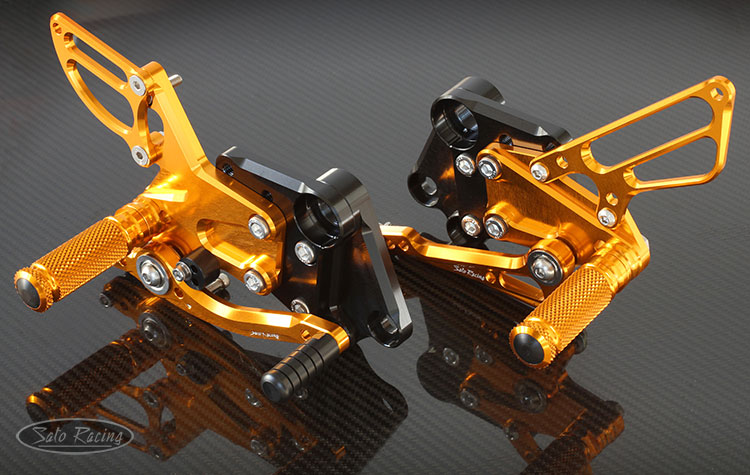

Choice of all-Black anodized finish, or vivid Gold finish over contrasting Black base plates.

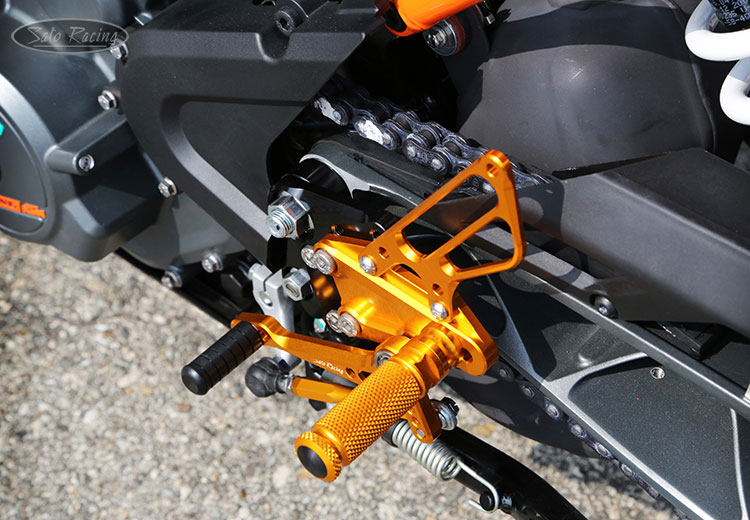

![SATO RACING Rear Sets for 2017+ KTM 390 Duke [L]-side](pics/KTM390Duke17_RearSets_fitL3.jpg "SATO RACING Rear Sets for 2017+ KTM 390 Duke [L]-side")
| BLACK | KTM-D39017RS-BK $700 |
 |
| GOLD w/ BLACK base plates |
KTM-D39017RS-GD $700 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your SATO RACING Rear Sets, or view the PDF parts list:
Parts List - L-side | Parts List - R-side
