HONDA CBR650R / CB650R ('19-'24)
REAR SETS

SATO RACING Rear Sets for 2019-24* Honda CBR650R and CB650R features components precision machined out of light-weight, high strength billet aluminum, with stainless steel bolts, Modular adjustable design lets you select from 6 foot peg positions that bring your feet up higher up and further back compared to stock, for a sportier, more aggressive riding position ideal for the fast straights and steep lean angles encountered on the track. ABS-compatible. Choice of all Black anodized finish, or Silver or Gold w/ contrasting Black anodized base plates and levers.

4 variations of these Rear Sets are now available:

Part# H-65021RS fits 2019-24 CBR650R and CB650R with the standard shift linkage (no quickshifter), and works with both stock and reverse shift pattern, depending on the mount direction of the provided shift arm.

Part# H-65021RSQ fits 2019-24 models equipped with the optional Honda quickshifter, providing a stock shifting pattern. Compatible with 2024 e-clutch equipped models.

Part# H-65019RSQ is our popular original design for CBR650R. |t fits 2019+ models with the Honda quickshifter, providing a stock shift pattern. This model is similar to part# H-65021RSQ, but has a slightly more forward range of peg positions.

Part# H-65019RSR fits 2019-24 CBR650R and CB650R with the Honda quickshifter, providing a GP-style reverse shift pattern.

POSITIONS - H-65021RS/ H-65021RSQ

1	27mm Back (1.1" Back)	50mm Up (2" Up)
2	37mm Back (1.5" Back)	50mm Up (2" Up)
3	47mm Back (1.9" Back)	50mm Up (2" Up)
4	30mm Back (1.2" Back)	38mm Up (1.5" Up)
5	40mm Back (1.6" Back)	38mm Up (1.5" Up)
6	50mm Back (2" Back)	38mm Up (1.5" Up)

POSITIONS - H-65019RSQ/ H-65019RSR

1	22.5mm Back (0.9" Back)	50mm Up (2" Up)
2	32.5mm Back (1.3" Back)	50mm Up (2" Up)
3	42.5mm Back (1.7" Back)	50mm Up (2" Up)
4	20mm Back (0.8" Back)	38mm Up (1.5" Up)
5	30mm Back (1.2" Back)	38mm Up (1.5" Up)
6	40mm Back (1.6" Back)	38mm Up (1.5" Up)

note: all measurements are in relation to stock position (0 mm).

The following photos show Rear Sets part# H-65021RS on a 2021 CB650R unless otherwise noted.

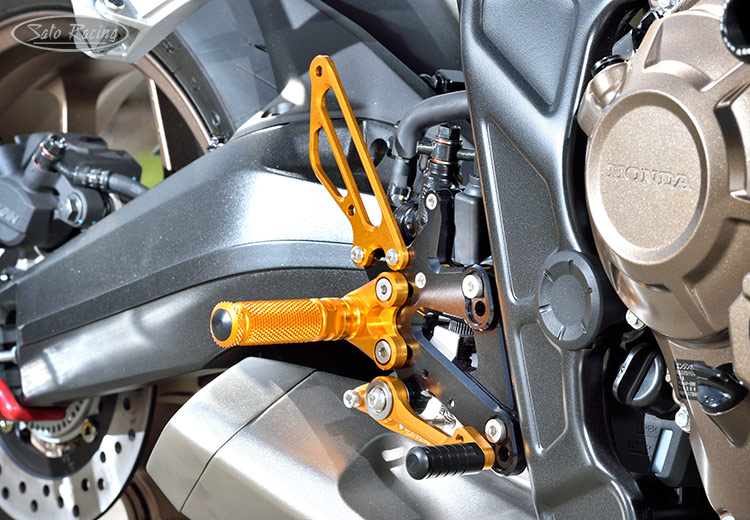

SATO RACING Rear Sets R-side for Honda CBR650R / CB650R
The positions of the base plate, step plate and pedal tip can each be adjusted to your
preference. These Rear Sets are designed for use with the stock brake light pull switch.

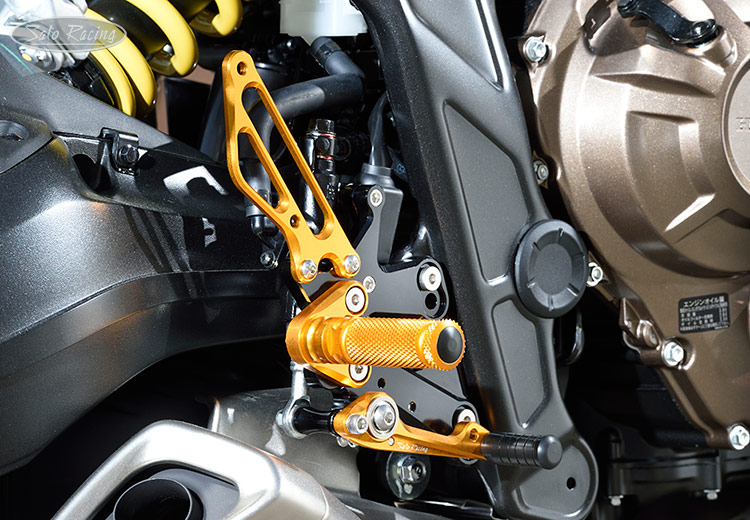

SATO RACING Rear Sets R-side for Honda CBR650R / CB650R
Footpegs feature a finely knurled grip pattern with excellent non-slip characteristics.

The standard Pedal Tips are made of tough, abrasion-resistant black Delrin. Additional
styles of Pedal Tips, such as aluminum with fluted rubber grips, are also available.

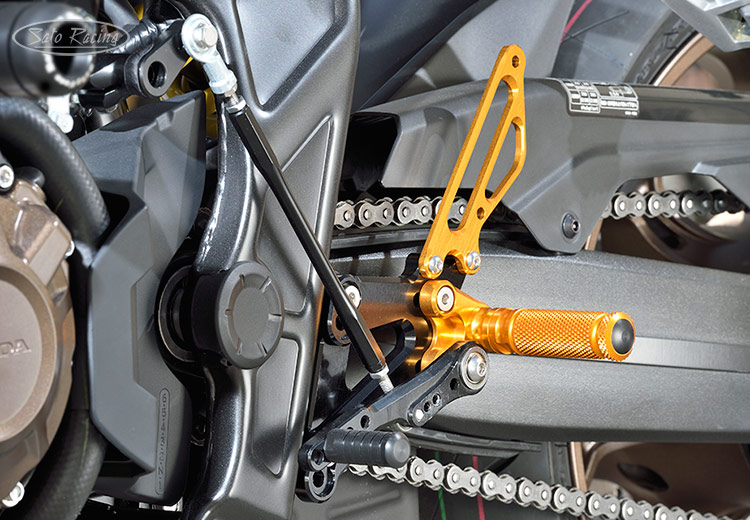

SATO RACING Rear Sets L-side for Honda CBR650R / CB650R
Part# H-65021RS-GD shown in the photo above. The shift and brake pedals incorporate
double miniature stainless bearings for smooth, precise lever actuation with a solid feel.

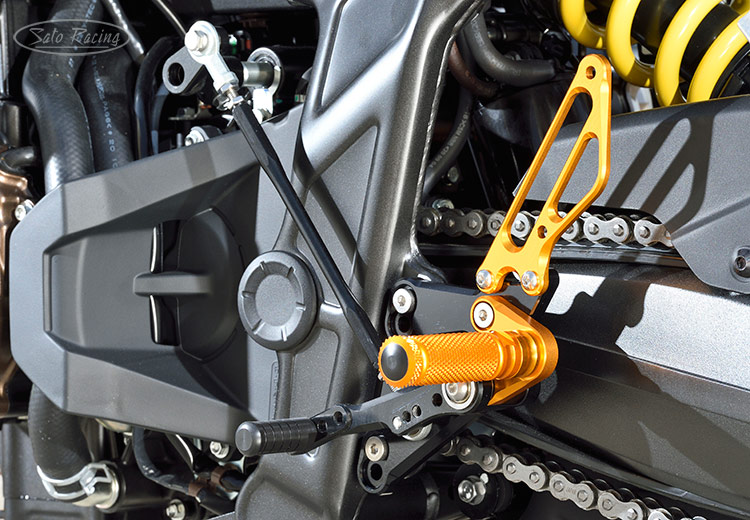

SATO RACING Rear Sets L-side for Honda CBR650R / CB650R
On Rear Sets part# H-65021RS, you can set it up for either stock shift pattern or
reverse (GP-style) shift pattern by changing the mount angle of the shift arm.

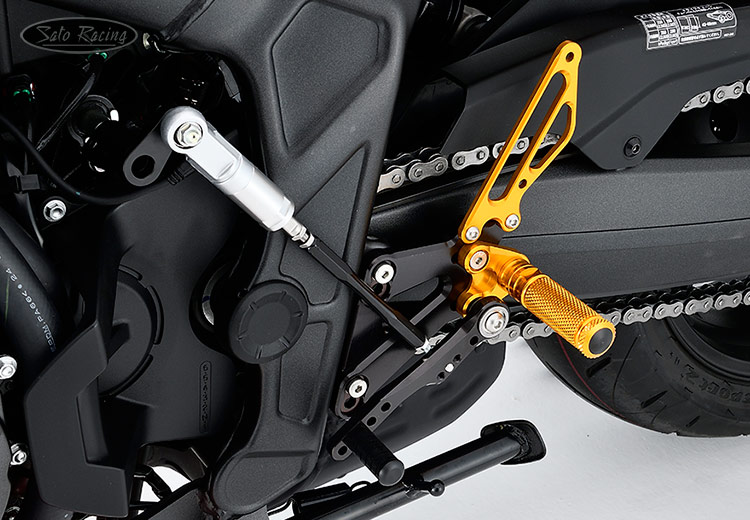

SATO RACING Rear Sets for Honda 2019+ CBR650R with quickshifter
Part# H-65021RSQ-GD shown installed on a 2024 CBR650R with E-Clutch and
the Honda quickshifter. This model provides a dedicated stock shift pattern.

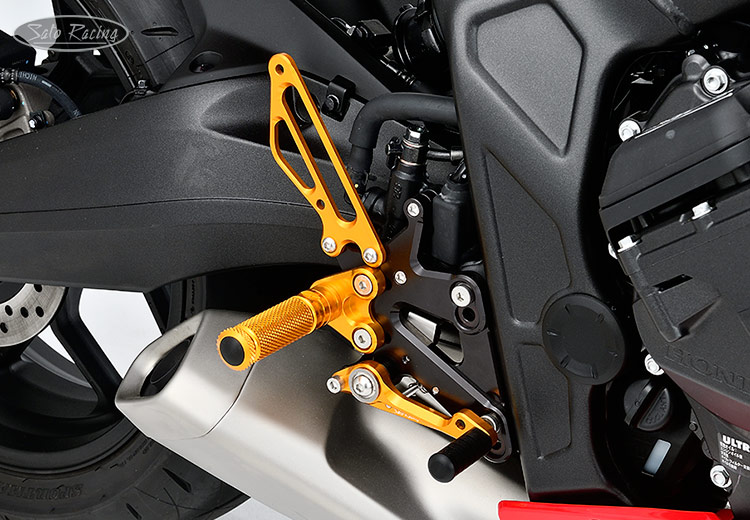

SATO RACING Rear Sets for Honda 2019+ CBR650R with quickshifter
Part# H-65021RSQ-GD installed on a 2024 CBR650R with E-Clutch

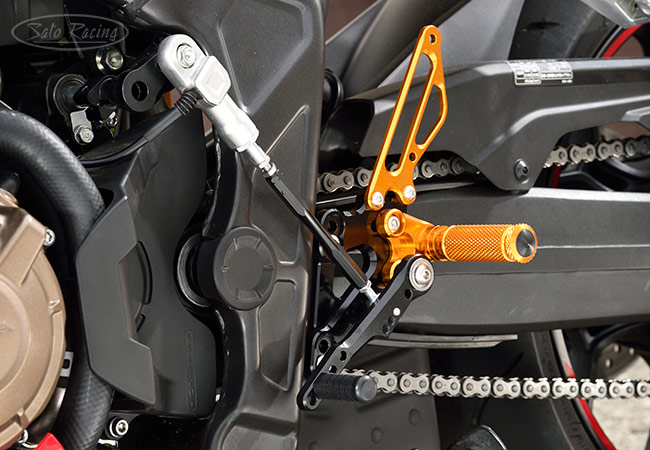

SATO RACING Rear Sets for Honda 2019+ CBR650R with quickshifter
Part# H-65019RSQ-GD shown installed on a 2019 CBR650R with the Honda quickshifter.
This version has a slightly less rearward range of positions compared to part# H-65021RSQ.

SATO RACING Reverse Shift Rear Sets for Honda 2019 CBR650R
Part# H-65019RSR-GD shown installed on a 2019 CBR650R equipped with the Honda
quickshifter. This setup gives it a reverse / race shift pattern. This dedicated 'Reverse
Shift' version Rear Sets comes with a color-matched shifter lever instead of Black.

Part# H-65021RS
(for 2019-24 models with the standard shifter)

BLACK	H-65021RS-BK $575
SILVER w/ Black base plates / levers	H-65021RS-SV $575
GOLD w/ Black base plates / levers	H-65021RS-GD $575

Part# H-65021RSQ - Standard Shift Rear Sets for 2019-24 models
equipped with the optional OEM Honda quickshifter.

BLACK	H-65021RSQ-BK $575
SILVER w/ Black base plates / levers	H-65021RSQ-SV $575
GOLD w/ Black base plates / levers	H-65021RSQ-GD $575

Part# H-65019RSQ - Standard Shift Rear Sets (original design) for 2019+ models with the OEM quickshifter. NOTE: This model has a slightly less rearward range of footpeg positions than the similar Rear Sets part# H-65021RSQ.

BLACK	H-65019RSQ-BK $575
SILVER w/ Black base plates / levers	H-65019RSQ-SV $575
GOLD w/ Black base plates / levers	H-65019RSQ-GD $575

Part# H-65019RSR - Reverse Shift Rear Sets for 2019+
CBR650R/ CB650R equipped with the OEM Honda quickshifter.

BLACK	H-65019RSR-BK $570
SILVER w/ Black base plates	H-65019RSR-SV $570
GOLD w/ Black base plates	H-65019RSR-GD $570

Click Here for important info about Sato color-anodized parts.

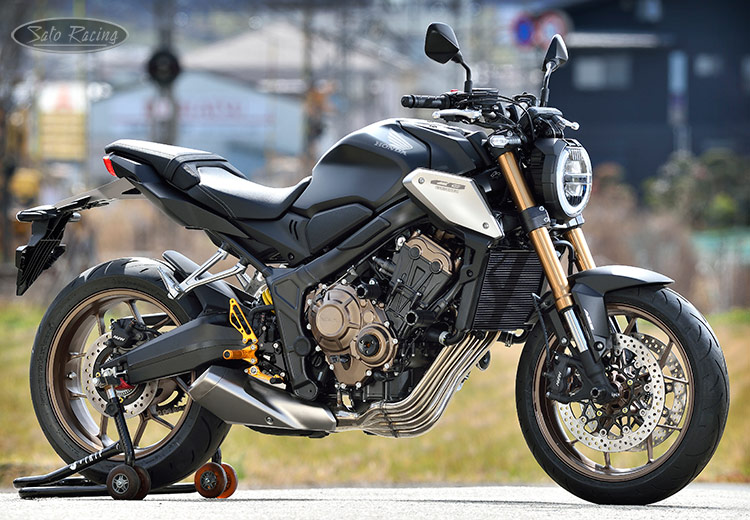

image - 2021 Honda CB650R with SATO RACING Rear Sets, Sliders and other parts
2021 Honda CB650R with SATO RACING Rear Sets and other parts

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

Have questions or prefer to order by phone? You can call us to place an order -

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your SATO RACING Rear Sets, or view the PDF parts list:

for OEM Honda quick-shifter:
Original design - H-65019RSQ - L-side   |   H-65019RSQ - R-side

Rev. Shift version - H-65019RSR - L-side   |   H-65019RSR - R-side

Design v.2 - H-65021RSQ - L-side   |   H-65021RSQ - R-side

For standard shift linkage (no quick-shifter):
Original design spec - H-650RS

Design version 2 - H-65021RS - L-side   |   H-65021RS - R-side

Most replacement parts for these Rear Sets models
can be purchased in our Online Store:

	FOOT PEG (BK/ SV/ GD)	PEG $42
	PEG COLLAR 12 (BK/ SV/ GD)	PEGCLR-12 $15
	HEX HEAD M8-40mm (Foot Peg bolt)	HBT-M840 $2.00
	PEDAL TIP (DELRIN)	ST-001D18 $15
	LOW SOCKET HEAD M6-20mm (bolt for Pedal Tip)	LSBT-M620 $4.00
	[L] HEEL GUARD (BK/ SV/ GD)	HG-8L $55
	[R] HEEL GUARD (BK/ SV/ GD) for H-65021RS/ RSQ	HG-8R $55
	[R] HEEL GUARD (BK/ SV/ GD) for H-65019RSQ/ RSR	HG-1R $60
	STEP PLATE (L/R) (BK/ SV/ GD)	S-GSX105SP-L $92
	SHIFT ROD 100 [BLACK] (for stock shift w/ OEM quick-shifter)	SRD-100-B $39
	SHIFT ROD 170 [BLACK] (for stock shift w/ STD shift linkage)	SRD-170-B $39
	CHANGE ARM (for STD shift linkage)	CA-7 $70
	CHANGE ARM (for OEM quickshifter)	CA-15 $70
	SHIFT PEDAL [BLACK](for Std Shift)	SPD-CP016B $85
	BRAKE PEDAL (BK/ SV/ GD) (for H-650RS/ H-65019RS/ RSR)	BPD-19 $80
	COLLAR 10-8 (narrow)	CLR-10-8N $8.00
	BEARING COLLAR 3 [BLACK]	PEGBGCLR-3SB $10.00
	ROD END COLLAR 19 (For H-650RS/ H-65019RSQ/ RSR)	RDEDCLR-19 $8.00
	ROD END COLLAR 29 (For H-65021RS/ H-65021RSQ)	RDED-CLR29 $8.00
	HEX HEAD M6-18mm	HBT-M618 $2.00
	HEX HEAD M5-8mm	HBT-M58 $2.00
	LOW SOCKET HEAD M8-15mm	LSBT-M815 $4.00
	LOW SOCKET HEAD M8-20mm	LSBT-M820 $4.00
	SOCKET HEAD M6-55mm	SBT-M655 $3.00
	BUTTON HEAD M5-35mm	BBT-M535 $2.00
	BUTTON HEAD M8-15mm	BBT-M815 $1.50
	BUTTON HEAD M8-20mm	BBT-M820 $1.50
	BUTTON HEAD M8-30mm	BBT-M830 $2.00
	BUTTON HEAD M8-40mm	BBT-M840 $2.50
	NUT M5	NUT-5 $1.50
	JAM NUT M6	JNT-6 $1.75
	REVERSE JAM NUT M6	JNT-6L $2.50
	STUD M6 (For STD shift linkage)	STUD-M6 $2.50
	REVERSE STUD M6 (for OEM quick-shifter)	STUD-M6L $4.20
	SPLIT WASHER M8 (#35)	SWS-8 $1.20
	WASHER M6	WS-6 $1.00
	E-CLIP M6	ECP-6 $1.50
	LOCK NUT M6	LNT-6 $1.50
	M6 MALE REVERSE ROD END (for STD shift linkage)	RDED-M6L $12.50
	FEMALE ROD END M6 (for STD shift linkage)	RDED-F6 $15
	FEMALE ROD END 6-M8	RDED-F6-8 $25
	PULL SWITCH STAY 14	PSTAY-14 $9.50
	RETURN SPRING 8-25	RS-RSP8-25 $8.00

Parts for Reverse Shift Rear Sets for OEM quick-shifter part# H-65019RSR:

	REVERSE SHIFT PEDAL (#6)	SPD-CP023 $90
	SHIFT ROD 120 [BLACK] (#8)	SRD-120-B $39
	PEG BEARING COLLAR 10 [BLACK] (#16)	PEGBGCLR-10 $15.00
	PEG WASHER M8 (#17)	PWS-8 $1.00
	STUD BOLT M8-60mm (#23)	STBT-60 $4.50
	FLANGE NUT M8 (#38)	FNT-8 $1.50

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
