aprilia TUONO V4 R APRC ('12-'13)*
REAR SETS

SATO RACING Rear Sets for Aprilia Tuono V4 R APRC ('12-'13)* features a track-engineered design, with parts precision CNC-machined out of high strength anodized billet aluminum, with stainless steel bolts and hardware. These are true 'lowering' Rear Sets: The 5 adjustable Foot Peg positions provided by this set place your feet more forward and as much as 15mm lower compared to the stock pegs, for a less cramped leg position. Choice of Black, Silver (natural metal), or vivid Gold anodized finish.

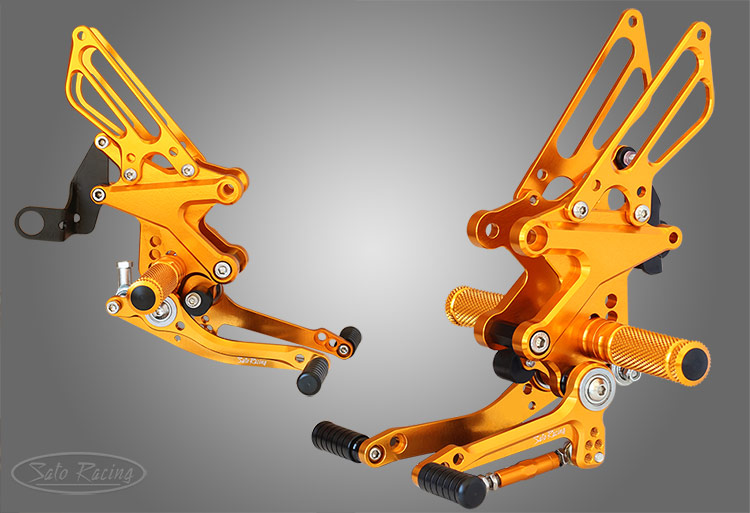

SATO RACING Aprilia Tuono V4 R APRC ('12-) Rear Sets in Gold

POSITIONS

1	42.5mm Forward	15mm Down
2	42.5mm Forward	5mm Down
3	30mm Forward	15mm Down
4	30mm Forward	5mm Down
5	30mm Forward	5mm Up

note: all measurements are in relation to stock position (0 mm).

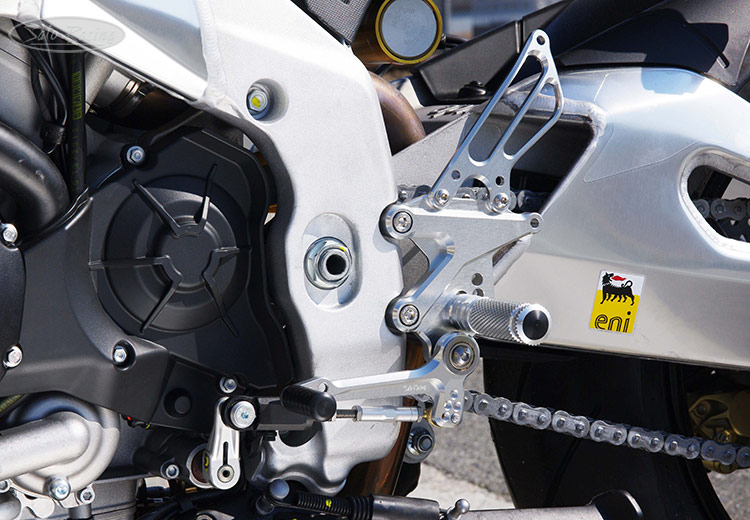

SATO RACING Aprilia Tuono V4 R APRC ('12-) Rear Sets [L]-side
The Shifter and Brake Pedal incorporate miniature double stainless bearings for smooth,
precise lever action with a solid, durable feel. The Foot Peg and Shifter attach at separate
mount points on the Step Plate for optimal leverage and a wide range of adjustability.

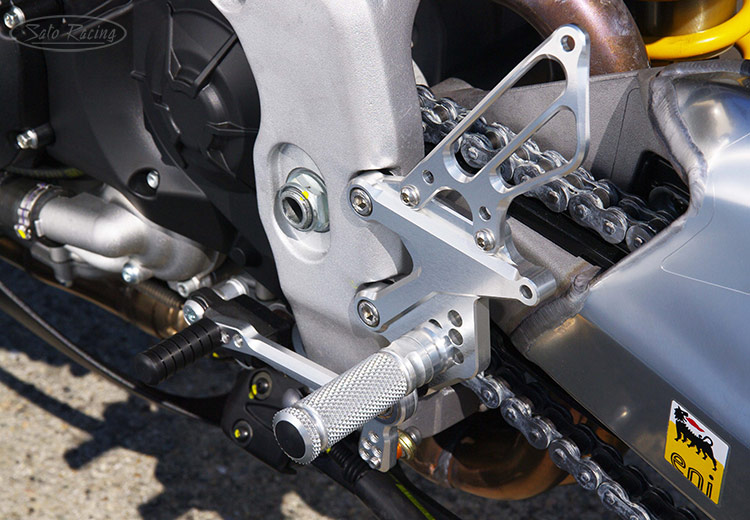

SATO RACING Aprilia Tuono V4 R APRC ('12-) Rear Sets [L]-side
The Shift controls are optimized for use with the OEM quickshifter.
NOTE: These Rear Sets provide a dedicated stock shifting pattern.
(Reverse / GP shift pattern is not an option for this model).

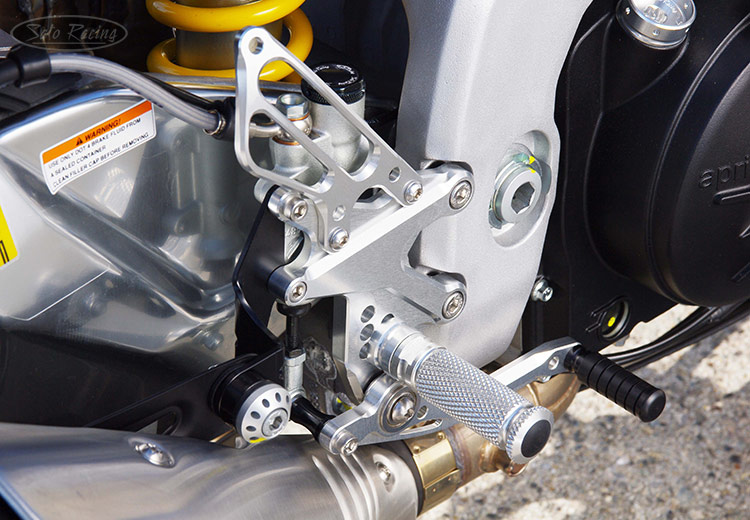

SATO RACING Aprilia Tuono V4 R APRC ('12-) Rear Sets [R]-side
Multiple adjustment holes let you change the mounting positions of the shift and brake side
Pedal Tips (toe pegs) and the Foot Pegs, so you can find the ideal setup for your riding style.

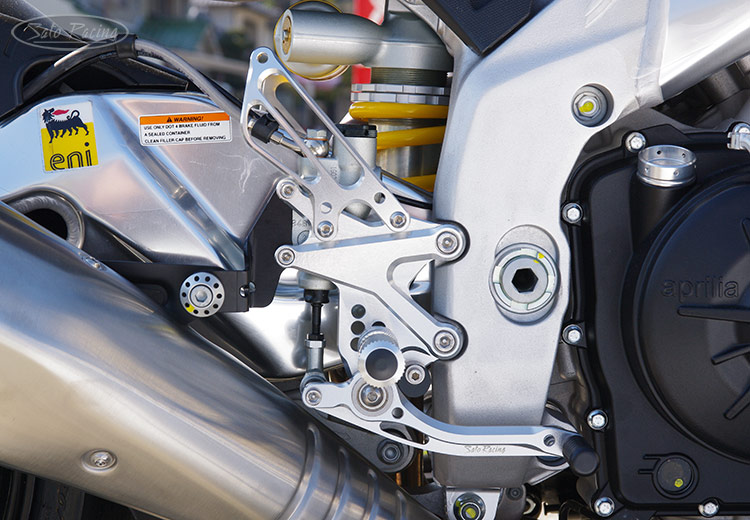

SATO RACING Aprilia Tuono V4 R APRC ('12-) Rear Sets [R]-side
NOTE: This kit now includes a stainless steel exhaust hanger with a natural metal finish.
The Black-finished aluminum hanger shown in these photos was an earlier design spec.

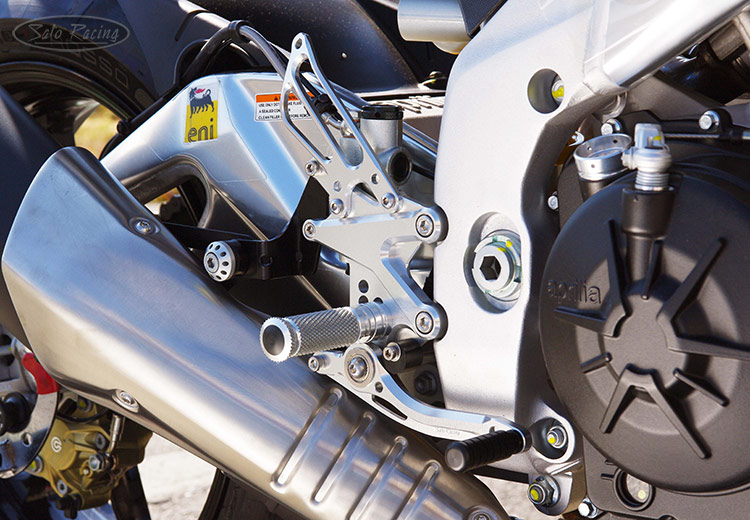

SATO RACING Aprilia Tuono V4 R APRC ('12-) Rear Sets [R]-side
The Foot Pegs are fixed (non-folding) and have a knurled pattern for excellent grip,
along with a comfortable, intuitive feel. Foot Peg positions are adjustable 5 ways.

* NOTE: These Rear Sets were originally designed for the 2012 V4 R APRC without ABS, but they can also be installed on the 2013-16 ABS-equipped V4 models. If you have an ABS model, let us know and we will include thicker base plate collars for the right side, recommended to provide some additional clearance for the ABS-specific master cylinder.

(NOTE: Unlike our standard 2013-16 RSV4/ V4R ABS Rear Sets, these Rear Sets are not compatible with the stock brake light switch on ABS models. A hydraulic brake light switch is included with these Rear Sets).

BLACK	A-V4RRS-BK $635
SILVER	A-V4RRS-SV ~~$635~~ $605
GOLD*	A-V4RRS-GD ~~$635~~ $605

(P-1.0 Brake Light Switch is included in kit)

* Click Here for important info about Sato GOLD-anodized parts.

OPTIONS

REAR BRAKE RESERVOIR CAP

This high-quality Brake Cap for the rear brake fluid reservoir is precision CNC-machined out of solid billet aluminum and features a finely knurled grip pattern around the rim, with white laser etched Sato Racing logo script on top. The holes around the rim can be used to attach a safety wire. Goes great with our Rear Sets!

SATO RACING Rear Brake Fluid Cap FC-B3-B on an Aprilia Tuono V4R
NOTE: This model is currently available in Black or Silver anodized finish.

Rear Brake Cap FC-B3

BLACK	FC-B3-B $47
SILVER	FC-B3-S $47

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
