aprilia RSV4 / Tuono V4 R ('13- '16)
REAR SETS
| SATO RACING
Rear Sets for ABS-equipped 2013-16 RSV4 R/ Factory and Tuono V4 R APRC are precision CNC-machined from high strength
billet aluminum, and anodized in your choice of Black, Silver (clear metal) or vivid Gold finish. This track-tested design provides 5 adjustable foot peg positions in a range that brings your feet progressively higher up and further back compared to stock, for a more aggressive riding position well-suited to the fast straights and steep lean angles encountered on the track. 'Street'-friendly design - compatible with the stock brake light switch. 2 versions of these Rear Sets are available: The standard Rear Sets have a stock shifting pattern, while the Reverse Shift Rear Sets provide a dedicated reverse (GP-style) shift pattern. |

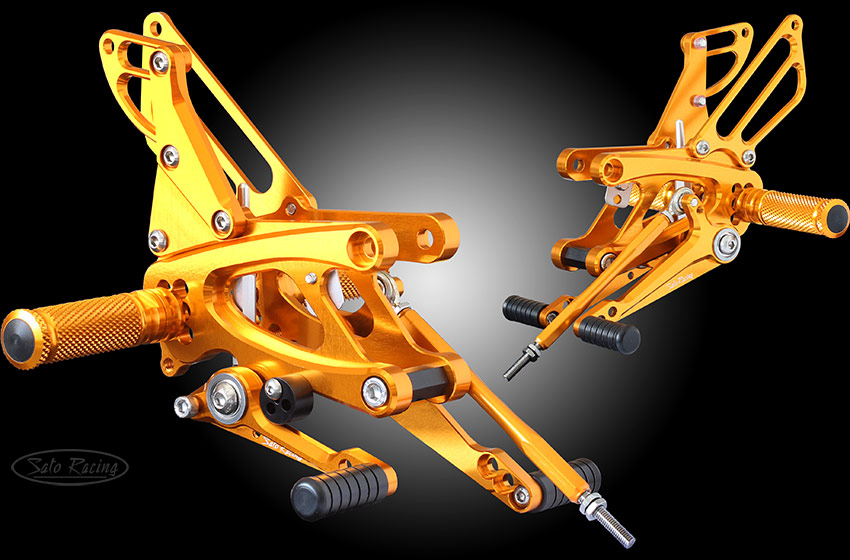

Reverse Shift Rear Sets shown. A black-anodized hanger bracket for the
stock exhaust canister (not pictured) is also included with these Rear Sets.
| 1 | 20mm Back | 15mm Up |
| 2 | 20mm Back | 25mm Up |
| 3 | 20mm Back | 35mm Up |
| 4 | 30mm Back | 25mm Up |
| 5 | 30mm Back | 35mm Up |
note: all measurements are in relation to stock position (0 mm).

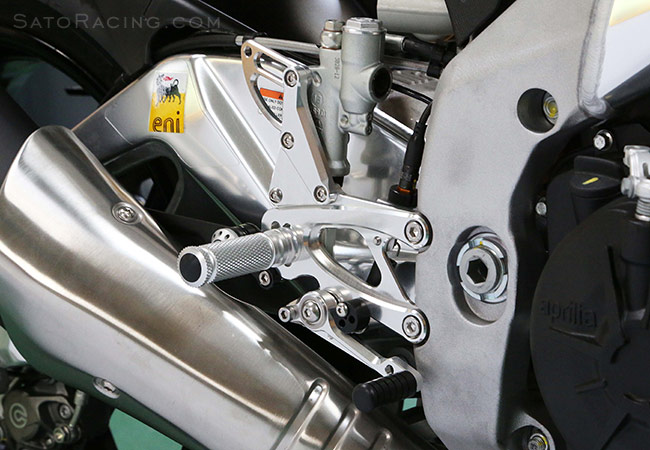

![SATO RACING Aprilia RSV4/ V4 R ABS ('13-'16) Rear Sets [R]-side](pics/apriliaRSV4_13_ABS_RS_R1.jpg "SATO RACING Aprilia RSV4/ V4 R ABS ('13-'16) Rear Sets [R]-side")
The shift and brake pedals use miniature double stainless bearings for smooth, precise lever action.

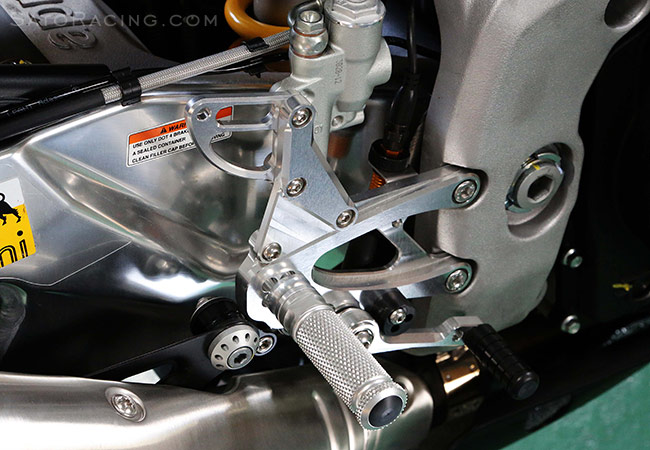

![SATO RACING Aprilia RSV4/ V4 R ABS ('13-'16) Rear Sets [R]-side](pics/apriliaRSV4_13_ABS_RS_R2.jpg "SATO RACING Aprilia RSV4/ V4 R ABS ('13-'16) Rear Sets [R]-side")
You can adjust the positions of the Foot Peg and the Pedal Tip. The Foot Pegs
have a knurled pattern for great grip, along with a comfortable, intuitive feel.

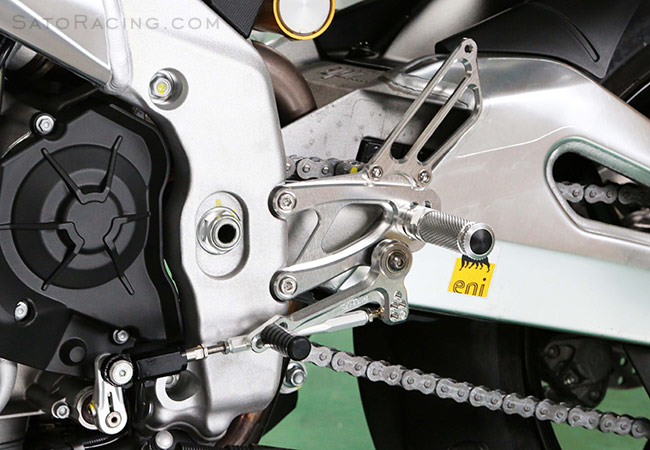

![SATO RACING Aprilia RSV4/ V4 R ABS ('13-'16) Rear Sets [L]-side](pics/apriliaRSV4_13_ABS_RS_L1.jpg "SATO RACING Aprilia RSV4/ V4 R ABS ('13-'16) Rear Sets [L]-side")
Stock Shift Rear Sets shown above. The shifter is optimized for use with the OEM quickshifter.

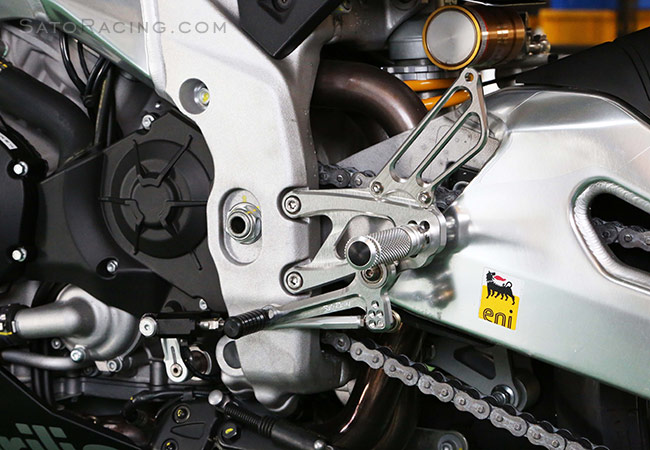

![SATO RACING Aprilia RSV4/ V4 R ABS ('13-'16) Rear Sets [L]-side](pics/apriliaRSV4_13_ABS_RS_L2.jpg "SATO RACING Aprilia RSV4/ V4 R ABS ('13-'16) Rear Sets [L]-side")
The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such as
folding-style aluminum Pedal Tips with rubber sleeves, are an available option: More Details

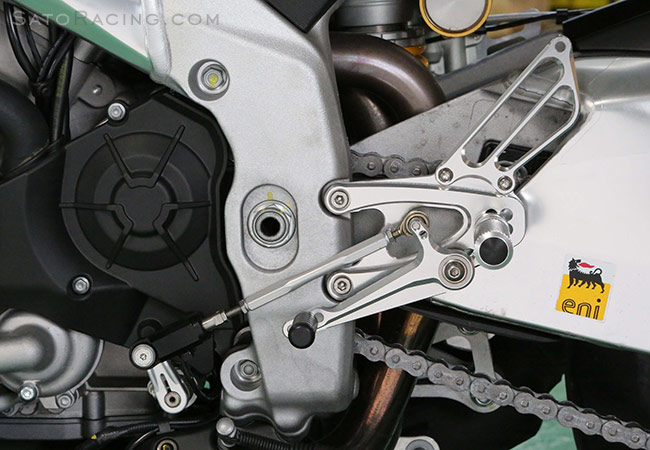

![SATO RACING Aprilia RSV4/ V4 R ABS ('13-'16) Reverse Shift Rear Sets [L]-side](pics/apriliaRSV4_13_ABS_RS_REV_L3.jpg "SATO RACING Aprilia RSV4/ V4 R ABS ('13-'16) Reverse Shift Rear Sets [L]")
Reverse Shift Rear Sets- provide a dedicated reverse (GP-style) shifting pattern
REAR SETS - Stock Shift Pattern
| BLACK | A-RSV413RS-BK $580 |
 |
| SILVER | A-RSV413RS-SV $580 |
|
| GOLD* | A-RSV413RS-GD $580 |
|
REAR SETS - Reverse Shift Pattern
| BLACK | A-RSV413RSR-BK $580 |
|
| SILVER | A-RSV413RSR-SV $580 |
|
| GOLD* | A-RSV413RSR-GD $580 |
|
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Rear Sets (standard shift) | Reverse Shift Rear Sets
Most replacement parts for these Rear Sets
can be purchased in our Online Store:
(Part numbers correspond to the STD Shift version unless otherwise noted.)
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (#21) |
PEGCLR-12 $15 |
|
 |
HEX HEAD M8-40mm (#33, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (#29, for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (#1) |
HG-2L $50 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (STD shift, #5) |
SPD-0912 $62.50 |
|
 |
SHIFT ROD 120 (BK/ SV/ GD) (#6) |
SRD-120 $39 |
|
 |
BRAKE PEDAL (BK/ SV/ GD) (#7) |
BPD-15 $66.50 |
|
 |
PEDAL STOPPER 12.5 (DELRIN) (#11) |
BPD-STOPPER $15.00 |
|
 |
BEARING COLLAR 5s [BLACK] (STD shift, #17) |
PEGBGCLR-5SB $10.00 |
|
 |
ROD END COLLAR 3 (STD shift, #18) |
RDED-CLR3 $6.00 |
|
 |
COLLAR 20-6 (#19) |
RDED-CLR20 $8.00 |
|
 |
SOCKET HEAD M5-40mm (#22) |
SBT-M540 $2.00 |
|
 |
SOCKET HEAD M6-10mm (#23) |
SBT-M610 $1.50 |
|
 |
SOCKET HEAD M6-20mm (STD shift, #24) |
SBT-M620 $1.50 |
|
 |
SOCKET HEAD M6-45mm (#25) |
SBT-M645 $2.00 |
|
 |
SOCKET HEAD M8-20mm (#26) |
SBT-M820 $1.50 |
|
 |
BUTTON HEAD M6-10mm (#28) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-25mm (#30) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-30mm (STD shift, #31) |
BBT-M830 $2.00 |
|
 |
HEX HEAD M5-8mm (#32) |
HBT-M58 $2.00 |
|
 |
STUD M6 (#34) |
STUD-M6 $2.50 |
|
 |
NUT M5 (#35) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#36) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#37) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (#38) |
LNT-6 $1.50 |
|
 |
SPLIT WASHER M8 (#39) |
SWS-8 $1.20 |
|
 |
PEG WASHER - M8 (#40) |
PWS-8 $1.00 |
|
 |
MALE ROD END M6 (#41) |
RDED-M6 $12.50 |
|
 |
REVERSE MALE ROD END M6 (#42) |
RDED-M6L $12.50 |
|
 |
BEARING COLLAR 10s [BLACK] (REV Shift #17) |
PEGBGCLR-10SB $10.00 |
|
|
BUTTON HEAD M6-18mm (REV Shift #24) |
BBT-M618 $2.00 |
|
 |
BUTTON HEAD M8-35mm (REV Shift #31) |
BBT-M835 $2.00 |
|
For replacement parts not listed on our website, contact Sato Racing for an estimate.)
