YAMAHA YZF-R3 ('15-'18)
Design v.2 (high brake pedal)
| SATO RACING 'Race Concept'-edition Rear Sets are pure, no-compromise racing rear sets designed for track-only bikes. Our 'Race Concept' Rear Sets (design v.2) for 2015+ Yamaha YZF-R3 (along with the non-US YZF-R25 and MT-03) are made especially for bikes that have a custom or aftermarket exhaust that is higher than stock, and could possibly interfere with brake actuation if installed with our original (design v.1) R3 Race Concept Rear Sets, so to solve this potential issue, these 'Version 2' Rear Sets have a brake pedal that is mounted inline with the foot peg, instead of mounted on a separate axis below it, as with the v.1 design. Other than that difference, these Rear Sets are identical in spec to our popular track-proven original design. Both models of Race Concept Rear Sets for the R3 are precision CNC-machined from high strength anodized billet aluminum (choice of Black with Gold accents, or Gold with Black base plates), and feature a modular design lets you select from 7 adjustable positions in an aggressive range that can bring your feet up to 85mm higher and 70mm further back compared to stock, to help you achieve the kind of riding position well-suited to the fast straights and steep lean angles you may encounter on the track. These Rear Sets can be set up for either stock shift pattern or reverse (GP style) shift pattern. NOTE: Not recommended for street use. Not compatible with stock brake light switch sensor. Recommended for the standard (non-ABS) model only. For more 'street'-friendly Rear Sets optimized for use with the stock ABS brakes on 2019+ R3, see our standard R3 Rear Sets. |
The shift and brake pedals utilize double stainless bearings for smooth, precise pedal movement.
Gold-anodized aluminum Pedal Tips with fluted rubber grips are standard with these Rear Sets.

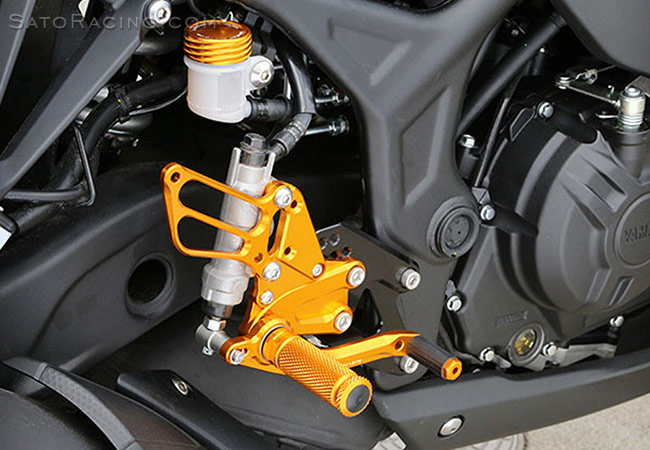

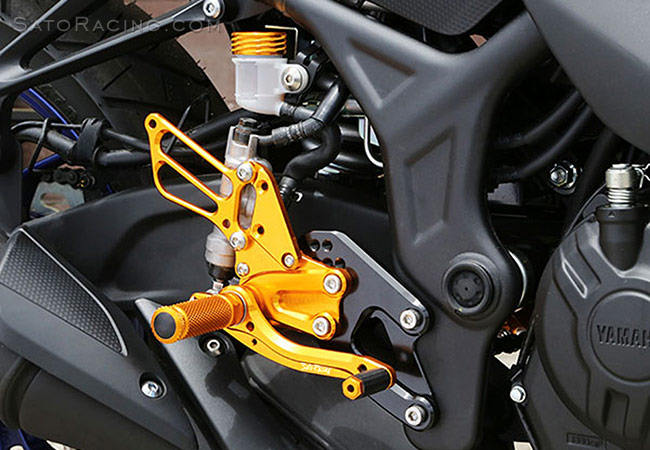

| The Brake Pedal is mounted on the same axis as the foot peg, which gives the pedal an additional inch of lower clearance compared to our 'version 1' R3 Race Concept Rear Sets. This can be useful in some situations, particularly if you have an aftermarket exhaust that comes up higher than stock and you want to use the lowest rearset position. |
| 1 | 50mm Back | 60mm Up |
| 2 | 60mm Back | 60mm Up |
| 3 | 50mm Back | 72.5mm Up |
| 4 | 60mm Back | 72.5mm Up |
| 5 | 70mm Back | 72.5mm Up |
| 6 | 60mm Back | 85mm Up |
| 7 | 70mm Back | 85mm Up |
note: all measurements are in relation to stock position (0 mm).
Modular design allows repositioning of the entire Rear Set assembly by moving the 2 bolts on

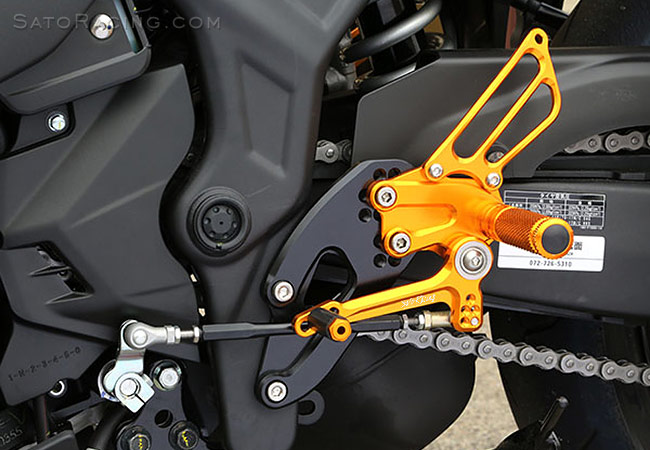

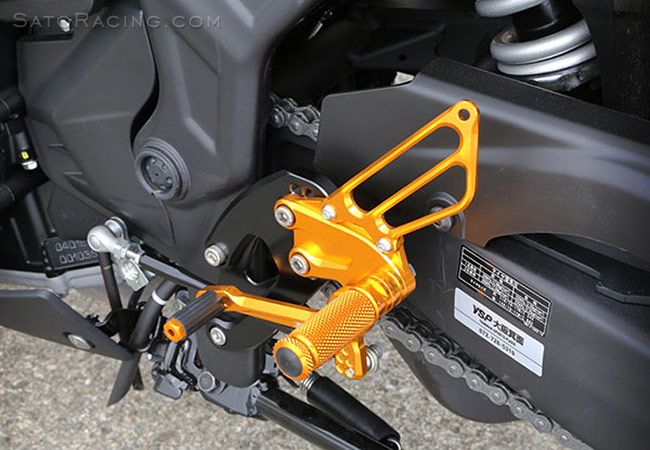

the base plate. The shift pedal has multiple adjustment points for fine-tuning the shifter feel.
Knurled Foot Pegs provide nice grip, along with a comfortable, intuitive feel.
For reverse (GP) shift pattern, flip the stock change arm the opposite direction.

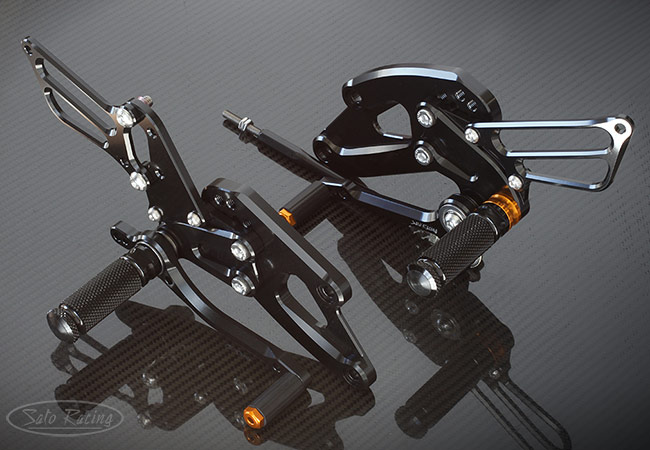

The Black anodized version of this set has Gold accents.
| BLACK w/ Gold accents |
Y-R3RCRS2-BK $610 |
 |
| GOLD * w/ Black base plates |
Y-R3RCRS2-GD $610 |
|
* Click Here for important info about Sato GOLD-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $65 |
|
 |
GOLD | RCPEG-GD $65 |
|
Click Here for important info about Sato color-anodized parts.
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $52 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF file: Parts List
