KAWASAKI NINJA 250R ('08-'12)
REAR SETS
| SATO RACING

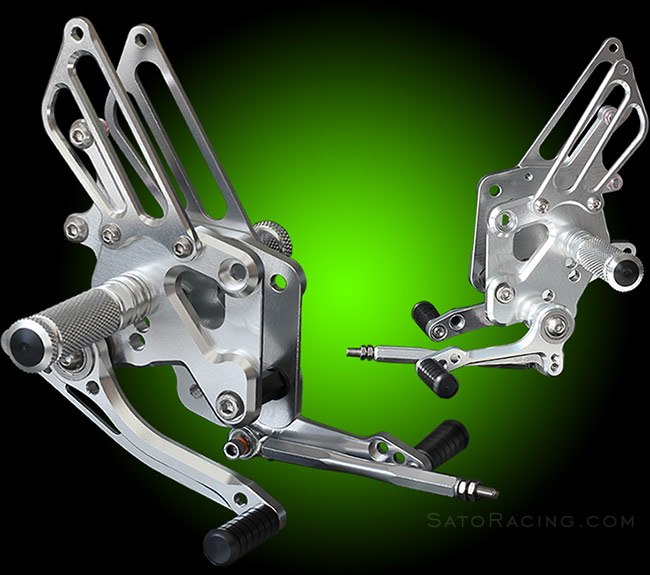

'08-'12 Ninja 250R Rear Sets feature components precision machined out of high strength anodized billet aluminum, with stainless steel bolts. Knurled footpegs provide optimal grip, along with a compfortable, intuitive feel. You can choose from 5 adjustable positions that bring your feet higher and further back compared to stock for a more aggressive riding position well ssuited to spirited riding. Choice of Black, Silver, or Gold anodized finish. An optional Reverse Shift Kit lets you set up these Rear Sets for reverse (race) shift pattern. |
| 1 | 30mm Back | 10mm Up |
| 2 | 30mm Back | 20mm Up |
| 3 | 40mm Back | 20mm Up |
| 4 | 40mm Back | 30mm Up |
| 5 | 50mm Back | 30mm Up |
note: all measurements are in relation to stock position (0 mm).

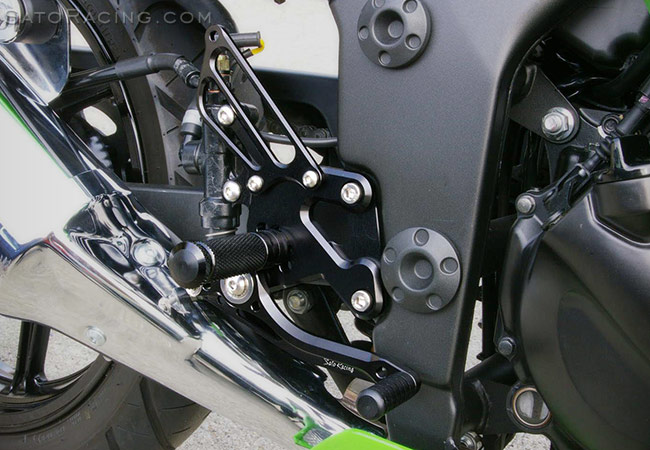

The shift and brake pedals utilize double stainless bearings for smooth, precise lever action.

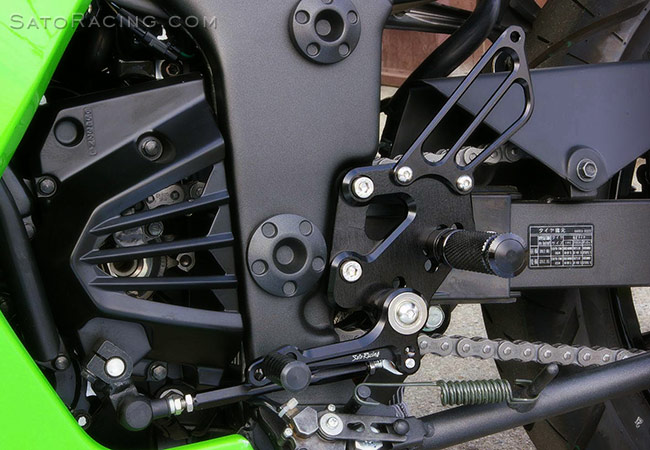

Foot Peg mount position is adjustable 5 ways. (Shown with optional Brake Return Spring)
For stock shifting pattern you can use the stock Kawasaki change arm.

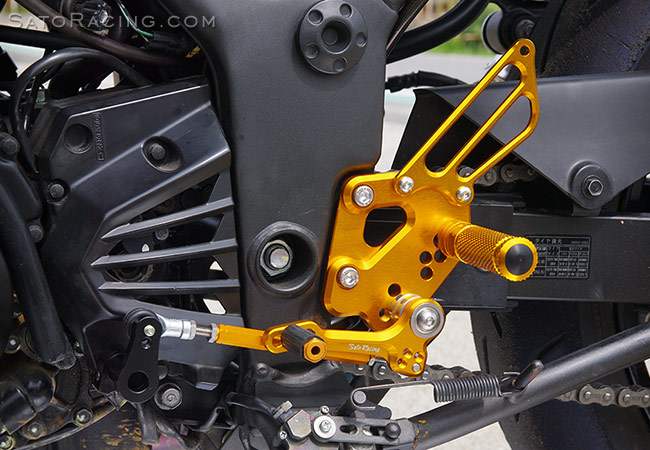

Rear Sets shown with optional Reverse Shift Kit
and Rubber Pedal Tip (Gold).
| BLACK | K-250RS-BK $445 |
 |
| SILVER | K-250RS-SV $445 |
|
| GOLD | K-250RS-GD $445 |
|
(BRAKE LIGHT SWITCH IS INCLUDED WITH KIT)
Click Here for important info about Sato color-anodized parts.
OPTIONS

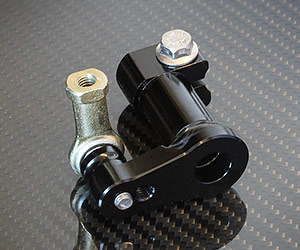

REVERSE SHIFT KIT
Precision machined out of high strength black anodized billet aluminum,
this specialized Shift Arm provides a reverse shift pattern when used with
SATO RACING Ninja 250R or Ninja 300R Rear Sets.
| REVERSE SHIFT KIT | K-250RS-CHAM-L $75 |
|
BRAKE RETURN SPRING
| SATO RACING Brake Return Spring quickens the pedal return and may make the brake feel firmer and more responsive compared to no spring. For use with specified SATO RACING Rear Sets. |
| BRAKE RETURN SPRING 40 | RS-RSP $8.00 |
|
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (#9) |
PEGCLR-12 $15 |
|
 |
HEX HEAD M8-45mm (Foot Peg bolt) |
HBT-M845 $2.00 |
|
 |
SPLIT WASHER M8 |
SWS-8 $1.20 |
|
 |
PEDAL TIP (DELRIN) |
ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #2) |
HG-2L $50 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (L-side #5) |
SPD-10 $62.50 |
|
 |
SHIFT ROD 110 (BK/ SV/ GD) (L-side #7) |
SRD-110 $39 |
|
 |
SOCKET HEAD M6-25mm (L-side #14) |
SBT-M625 $1.50 |
|
 |
ROD END COLLAR 6 (L-side #11) |
RDED-CLR6 $6.00 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (R-side #2) |
HG-2R $50 |
|
 |
BRAKE ROD M40 (R-side #7) |
BRD-M40 $13.50 |
|
 |
BEARING COLLAR SUS (R-side #8) |
BGCLR-SUS $6.50 |
|
 |
WASHER M6 (R-side #19) |
WS-6 $1.00 |
|
 |
E-CLIP M6 (R-side #20) |
ECP-6 $1.50 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
