DUCATI SS900 / SS1000
MH900e / Paul Smart 1000LE /
Sport1000 monoposto (non-tandem) models
REAR SETS

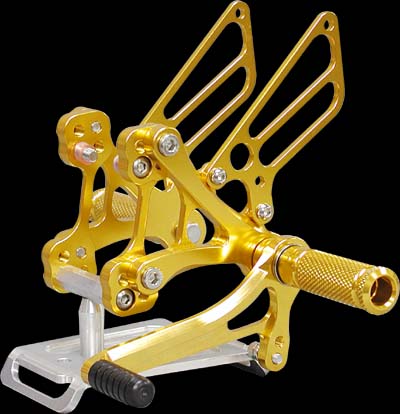

SATO RACING Rear Sets for Ducati SS900 / SS1000 (MH900e / Paul Smart 1000LE / Sport 1000 monoposto festures components precision CNC-machined out of light-weight, high strength billet aluminum and anodized in your choice of Black, Silver, or Gold finish. Double stainless bearings are used in the shift and brake pedals, for smooth, precise movement. Deeply knurled footpegs provide optimal grip along with a comfortable, intuitive feel.
2 versions of these Rear Sets are available: 'Type 1' Rear Sets are designed to utilize the stock brake pedal. 'Type 2' Rear Sets include an integrated brake pedal. With either setup, you can choose from 4 adjustable positions in a range that puts your feet higher and more forward compared to stock.

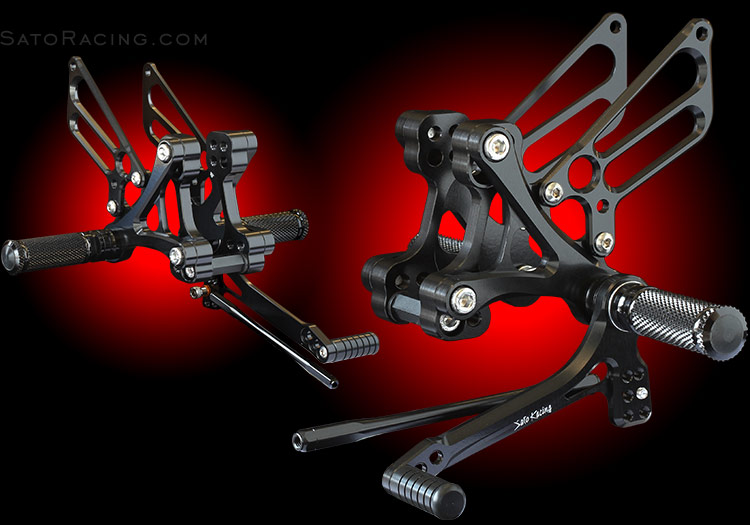

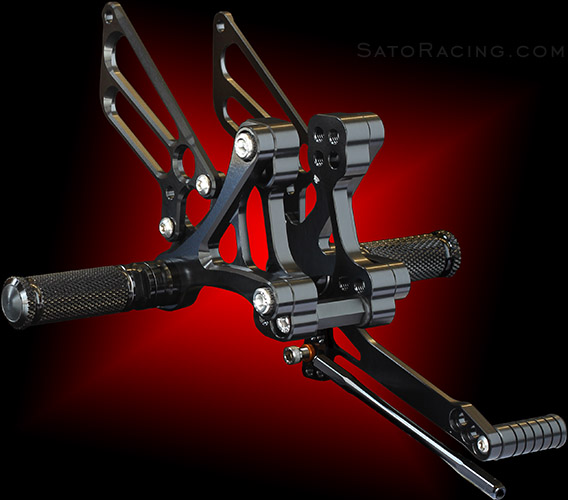

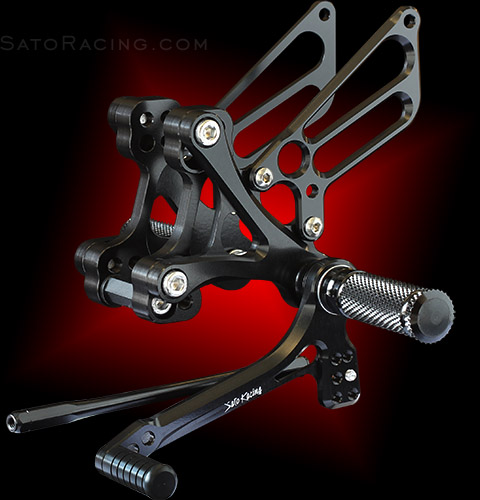

'Type 1' Rear Sets

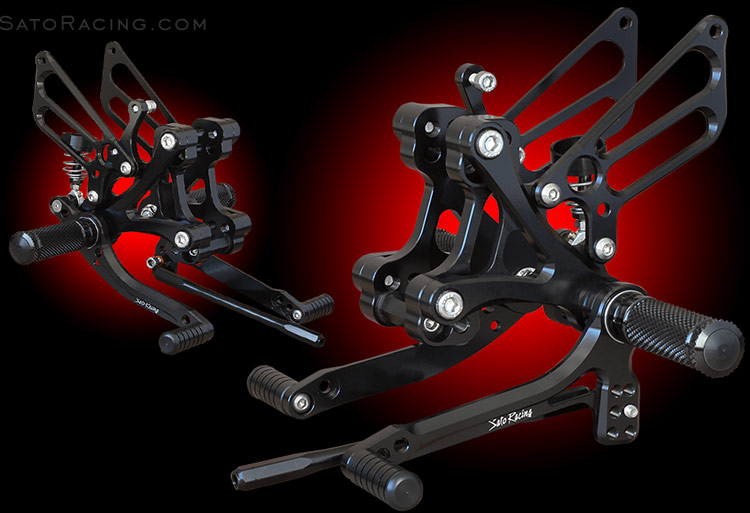

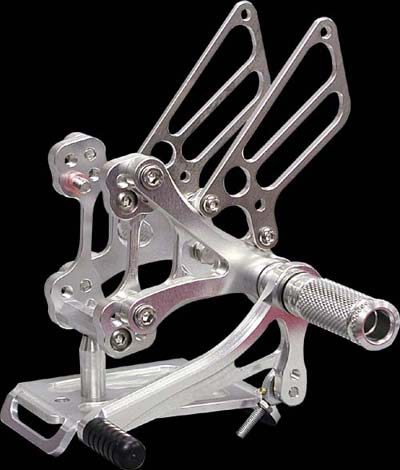

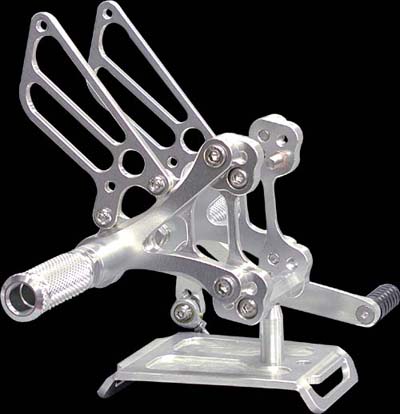

'Type 2' Rear Sets with integrated brake pedal
POSITIONS
| 1 | 15mm Forward | 15mm Up |
| 2 | 15mm Forward | 27mm Up |
| 3 | 27mm Forward | 27mm Up |
| 4 | 27mm Forward | 15mm Up |
note: all measurements are in relation to stock position (0 mm).

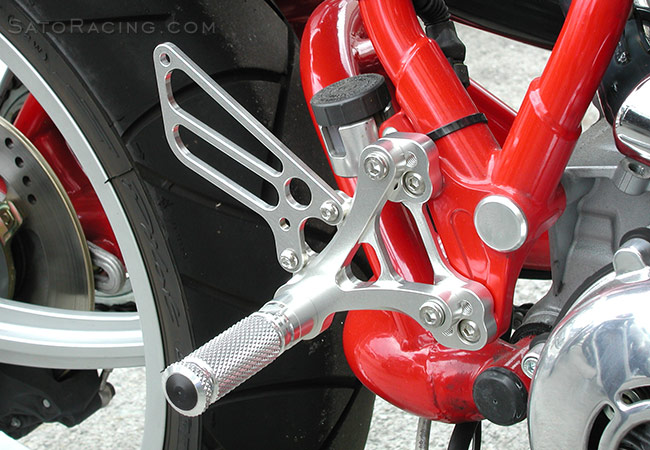

![SATO RACING Ducati MH900e/ SS900 Type 1 Rear Sets [R]-side](pics/mh900e_RStype1_SV_fit_R1.jpg "SATO RACING Ducati MH900e/ SS900 Type 1 Rear Sets [R]-side")
'Type 1' Rear Sets are designed for use with the stock rear brake pedal.

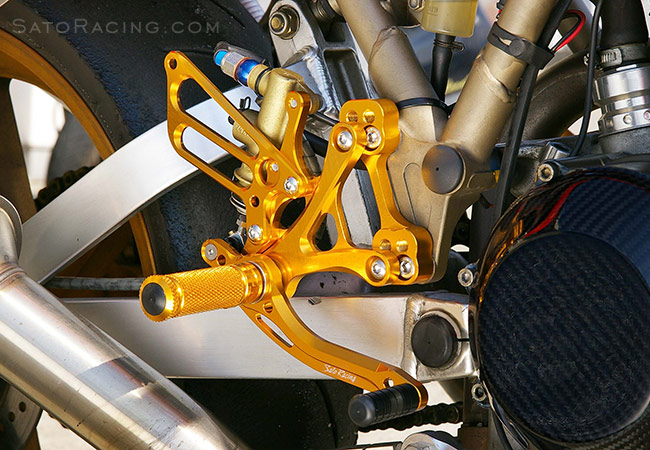

![Sato Racing Ducati MH900e/ SS900 Type 2 Rear Sets [R]-side](pics/rearsets_ducatiSS900_R.jpg "SATO RACING Ducati MH900e/ SS900 Type 2 Rear Sets [R]-side")

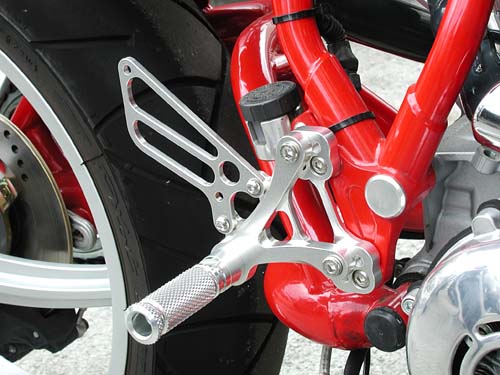

'Type 2' Rear Sets shown above. These include an integrated brake pedal that pivots off of
the foot peg mount. This setup also relocates the stock master cylinder up behind the heel guard.

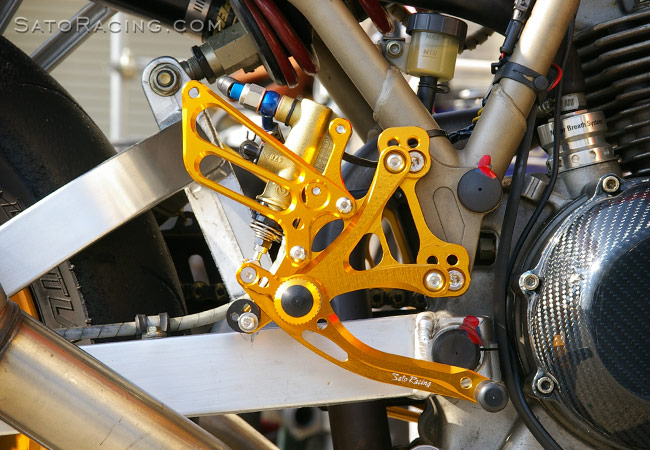

![SATO RACING Ducati MH900e/ SS900 Type 2 Rear Sets [R]-side](pics/rearsets_ducatiSS900_R2.jpg "SATO RACING Ducati MH900e/ SS900 Type 2 Rear Sets [R]-side")
Provides 4 adjustable foot peg positions so you can find the ideal position for your riding style.
('Type 2' Rear Sets shown)

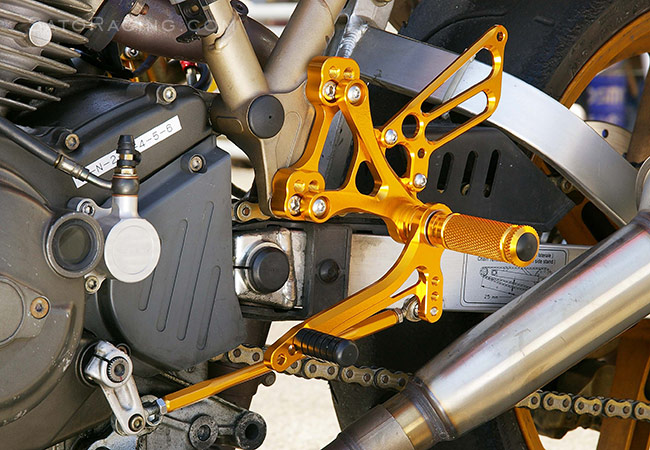

![SATO RACING Ducati MH900e/ SS900 Rear Sets [L]-side](pics/rearsets_ducatiSS900_L.jpg "SATO RACING Ducati MH900e/ SS900 Rear Sets [L]-side")
|

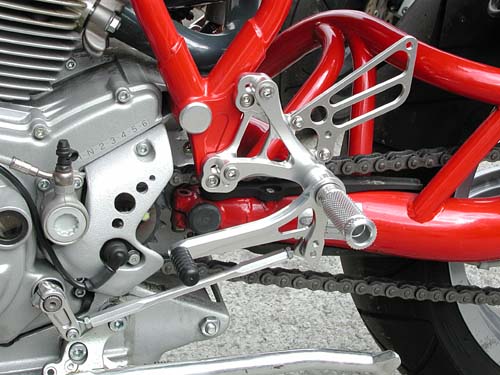

The different mounting positions for the shift rod at the base of the shift pedal let you change the length of the shift stroke to your preference. These Rear Sets are designed for use with the stock Ducati shift arm and rod ends. We also make a matching adjustable billet aluminum Shift Arm that looks great with these Rear Sets, and provides some additional options for adjustability. (NOTE: These Rear Sets are stock shift pattern only. Reverse/GP shift pattern is not an option on this model.) |
TYPE 1 Rear Sets
is sold out and not currently available.
(It may be offered again in the future.)
TYPE 2 Rear Sets (w/ brake pedal)
| BLACK | D-MH9RS2-BK $620 |
 |
| SILVER | D-MH9RS2-SV $620 |
|
| GOLD | D-MH9RS2-GD $620 |
|
(Type 2 Rear Sets include a brake light switch)
| NOTE: If installing on Sport 1000 'biposto' model which has the exhaust that hangs from the stock tandem brackets, you will need to get a set of our Universal Exhaust Hangers or similar aftermarket hangers to hang the exhaust. |
Click Here for important info about Sato color-anodized parts.
OPTIONS
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets, or view the PDF:
Type 1 Rear Sets | Type 2 Rear Sets
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
STUD BOLT M8-65mm (L-side peg bolt) |
STBT-L $4.50 |
|
 |
STUD BOLT M8x55mm (R-side peg bolt for Type 2 Rear Sets) |
STBT-S $4.50 |
|
 |
HEX HEAD M8-40mm (R-side peg bolt for Type 1 Rear Sets) |
HBT-M840 $2.00 |
|
 |
SPLIT WASHER M8 (R-side, for type 1 Rear Sets) |
SWS-8 $1.20 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
SHIFT ROD 180 (BK/ SV/ GD) (L-side #8) |
SRD-180 $39 |
|
 |
PEG BEARING COLLAR 10 (BK/ SV/ GD) (L-side #9) |
PEGBGCLR-10 $15.00 |
|
 |
ROD END COLLAR 3 (L-side #10) |
RDED-CLR3 $6.00 |
|
 |
SOCKET HEAD M6-20mm (L-side #11) |
SBT-M620 $1.50 |
|
 |
SOCKET HEAD M8-15mm (L-side #12 / R-side #14) |
SBT-M815 $1.50 |
|
 |
BUTTON HEAD M6-10mm (L-side #13) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-25mm (L-side #15 / R-side #17) |
BBT-M815 $1.50 |
|
 |
FLANGE NUT M8 (L-side #17 / R-side #23) |
FNT-8 $1.50 |
|
 |
PEG WASHER M8 (L-side #20 / R-side #21) |
PWS-8 $1.00 |
|
 |
SOCKET HEAD M8-30mm (L-side #23 / R-side #29) |
SBT-M830 $1.50 |
|
 |
PEDAL STOPPER (DELRIN) (R-side #9) |
BPD-STOPPER $15.00 |
|
 |
ROD END COLLAR 12 (R-side #10) |
RDED-CLR12 $8.00 |
|
 |
BEARING COLLAR SUS (R-side #11) |
BGCLR-SUS $6.50 |
|
 |
SOCKET HEAD M5-20mm (R-side #12) |
SBT-M520 $2.00 |
|
 |
SOCKET HEAD M6-15mm (R-side #13) |
SBT-M615 $1.50 |
|
 |
FLAT HEAD M5-35mm (R-side #18) |
FBT-M535 $2.00 |
|
 |
MALE ROD END M5 (R-side #24) |
RDED-M5 $15.00 |
|
 |
RETURN SPRING 20 (R-side #26) |
RS-RSP2 $8.00 |
|
 |
RETURN SPRING COLLAR 2 (R-side #27) |
RS-RSCLR2 $12.00 |
|
 |
BRAKE LIGHT SWITCH (P-1.0) (R-side #28) |
BSW-1 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
