SUZUKI GSX-R1000 ('00-'04)
GSX-R750/600 ('00-'05) / SV650/S ('99-'02 / '03-'12*)
REAR SETS

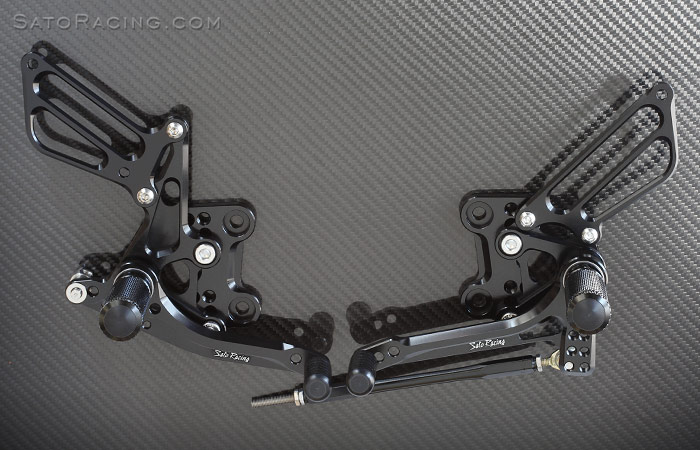

| SATO RACING Rear Sets
for SV650* and early Suzuki GSX-R models feature components precision CNC-machined out of high strength billet aluminum with a Black anodized finish. The shift and brake
pedals utilize miniature double stainless bearings for smooth, precise lever action.
Knurled footpegs provide optimal grip, along with a comfortable, intuitive feel. Modular adjustable design lets you choose from 5 positions in a range that brings
your feet higher up compared to stock. On the GSX-R1000, these
Rear Sets can be sset up for reverse / race shift pattern by flipping the stock change arm the opposite direction. Available options for these Rear Sets include a Brake Return Spring, and for GSX-R1000 ('00-'04) we now offer a matching billet aluminum Shift Arm that provides more adjustment range compared to the stock shift arm. * GSX-R1000 and gen1 SV650 require a P-1.0 brake light switch. 2003+ SV650 and most 2004+ GSXR600/750 requires a P-1.25 brake light switch. Please mention which type you need when ordering. |
Modular step plate design provides 5 adjustable positions
so you can find the ideal position for your riding style.

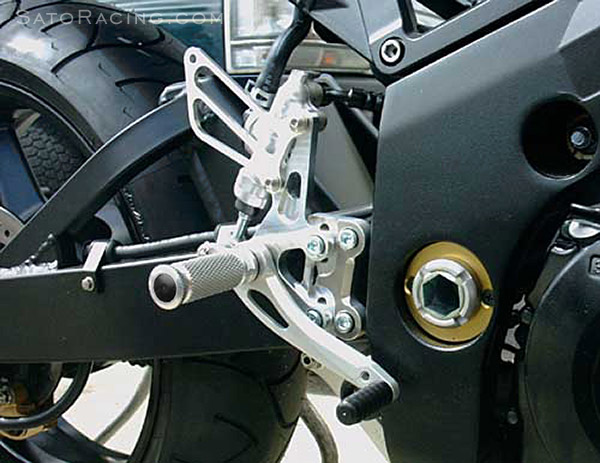

(NOTE: The Silver and Gold versions shown in some of the photos are now sold out.
This model is currently available in Black only.)
| 1 | 0 mm | 35mm Up |
| 2 | 0 mm | 25mm Up |
| 3 | 0 mm | 15mm Up |
| 4 | 10mm Back | 35mm Up |
| 5 | 10mm Back | 25mm Up |
note: all measurements are in relation to stock position
on a GSX-R1000 (0 mm).
| Fitment: | Brake Switch type |
| GSX-R1000 2000-04 | (P-1.0) |
| GSX-R600/ 750 2001-03 | (P-1.0) |
| GSX-R600/ 750 2004-05 | (P-1.25) |
| SV650 1999-02 | (P-1.0) |
| SV650 2003-12 | (P-1.25) |

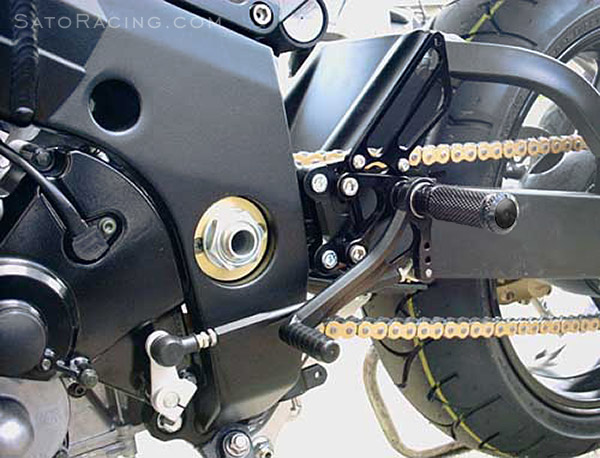

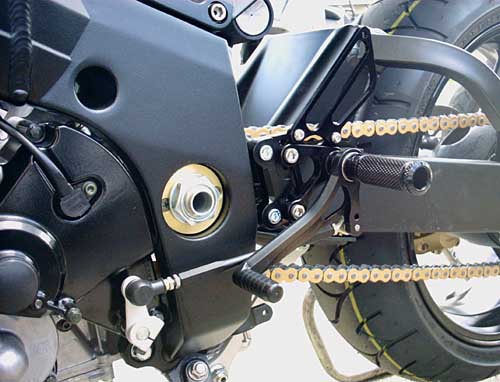

Note: The following photos show an earlier design version for these Rear Sets.

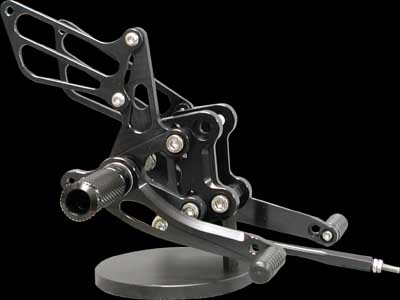

The latest version of these Rear Sets has an updated pedal design. (see photo above).
These Rear Sets are stock shift pattern only on the GSX-R750/600. On the
GSX-R1000 you can use it in reverse shift pattern by flipping the change arm.
| BLACK | S-GSXRS-BK $545 |
 |
| Note: A P-1.0 Brake light switch is normally included with this rear sets kit. If your master cylinder has a 1.25 thread pitch, let us know when placing your order, and we can include a P-1.25 switch in the kit instead. |
Click Here for important info about Sato color-anodized parts.
OPTIONAL PART
BRAKE RETURN SPRING
| SATO RACING Brake Return Spring quickens the pedal return and may make the pedal feel stiffer and more responsive compared to no spring. (For use with specified SATO RACING Rear Sets). |
| RS-RSP $8.00 |
|
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
STUD BOLT LONG (M8-65mm) (L-side peg bolt) |
STBT-L $4.50 |
|
 |
STUD BOLT SHORT (M8-55mm) (R-side peg bolt) |
STBT-S $4.50 |
|
 |
FLANGE NUT M8 | FNT-8 $1.50 |
|
 |
PEG WASHER - M8 (L-side #9 / R-side #16) |
PWS-8 $1.00 |
|
 |
BEARING COLLAR SUS (R-side #9) |
BGCLR-SUS $6.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
ROD END COLLAR 3 (L-side #13) |
RDED-CLR3 $6.00 |
|
 |
WASHER M6 (R-side #7) |
WS-6 $1.00 |
|
 |
E-CLIP M6 (R-side #8) |
ECP-6 $1.50 |
|
 |
BRAKE LIGHT SWITCH (P-1.0) |
BSW-1 $25 |
|
|
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
Some additional parts such as Shift Rod, Rod Ends and related hardware can be found HERE.
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
