YAMAHA YZF-R6 ('17-'20)
REAR SETS (for quick shifter)
| SATO RACING Rear Sets (standard version) for 2017-20 Yamaha YZF-R6 features components precision machined from light-weight, high strength anodized billet aluminum, with stainless steel bolts. You can choose from 8 adjustable peg positions, so you can find the ideal position for your riding style. These Rear Sets are designed for use with the Yamaha quick shifter, and can be set up for stock shift pattern or reverse (GP-style) shift patttern. 'Street'-friendly design - Compatible with the stock rear brake light switch and ABS. Choice of Black or Gold anodized finish. Also available from SATO RACING: R6 'Race Concept' Racing Rear Sets |
POSITIONS
| 1 | 0mm Back | 10mm Up |
| 2 | 0mm Back | 20mm Up |
| 3 | 0mm Back | 30mm Up |
| 4 | 10mm Back | 10mm Up |
| 5 | 10mm Back | 20mm Up |
| 6 | 10mm Back | 30mm Up |
| 7 | 20mm Back | 20mm Up |
| 8 | 20mm Back | 30mm Up |
note: all measurements are in relation to stock position (0 mm).

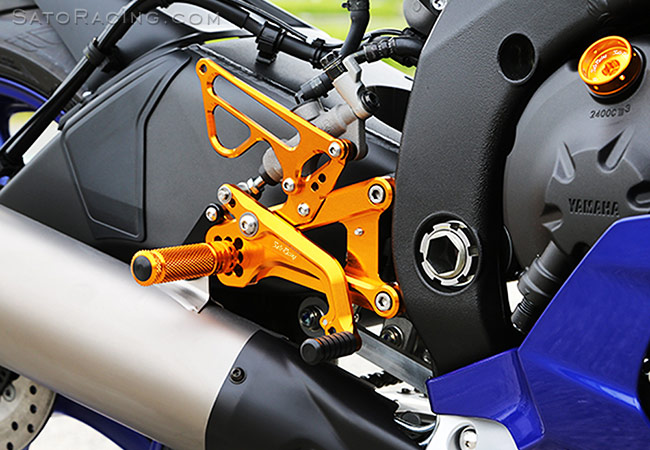

![SATO RACING Rear Sets [R]-side for Yamaha YZF-R6 '17-](pics/Y-R617RS-GD_fitR1.jpg "SATO RACING Rear Sets [R]-side for Yamaha YZF-R6 '17-")
The shift and brake pedals utilize double stainless bearings for smooth, precise pedal movement.
There are 8 possible mount positions for the Foot Peg. The Pedal Tip position is also adjustable.

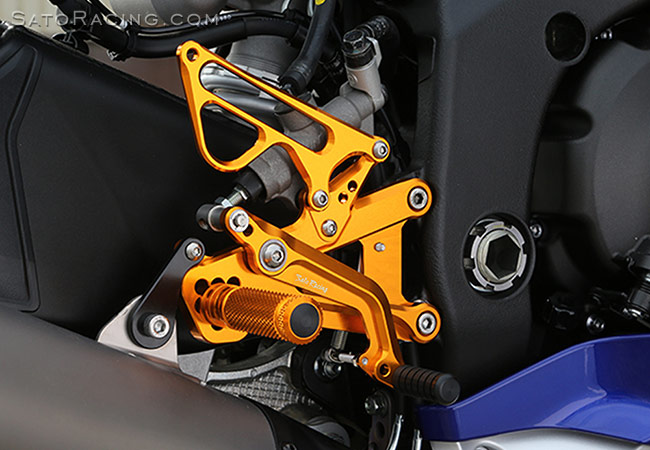

![SATO RACING Rear Sets [R]-side for Yamaha YZF-R6 '17-](pics/Y-R617RS-GD_fitR2.jpg "SATO RACING Rear Sets [R]-side for Yamaha YZF-R6 '17-")
These Rear Sets are fully compatible with the stock brake light pull switch and ABS.
Rear Sets kit includes hanger bracket hardware for attaching the stock exhaust canister.

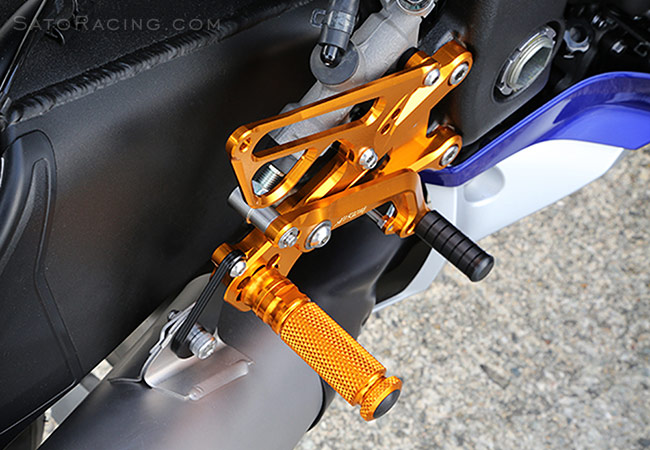

![SATO RACING Rear Sets [R]-side for Yamaha YZF-R6 '17-](pics/Y-R617RS-GD_fitR3.jpg "SATO RACING Rear Sets [R]-side for Yamaha YZF-R6 '17-")
The Foot Pegs have a finely knurled pattern for great grip and a comfortable, intuitive feel.

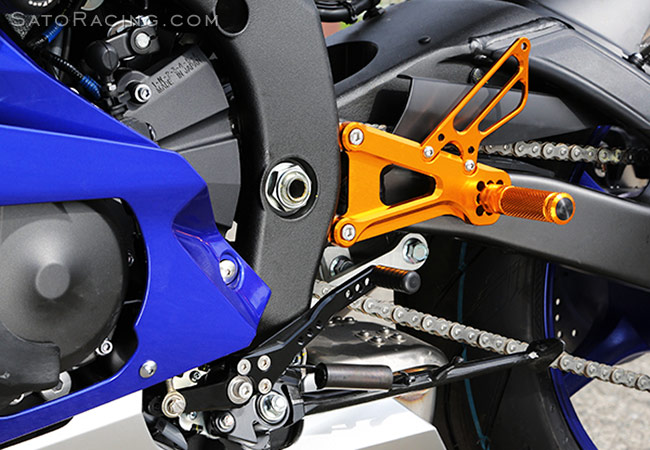

![SATO RACING Rear Sets [L]-side for Yamaha YZF-R6 '17-](pics/Y-R617RS-GD_fitL1.jpg "SATO RACING Rear Sets [L]-side for Yamaha YZF-R6 '17-")
The shift pedal has multiple adjustment points for fine-tuning the shifter feel.
(Shift pedal assembly comes in Black only)

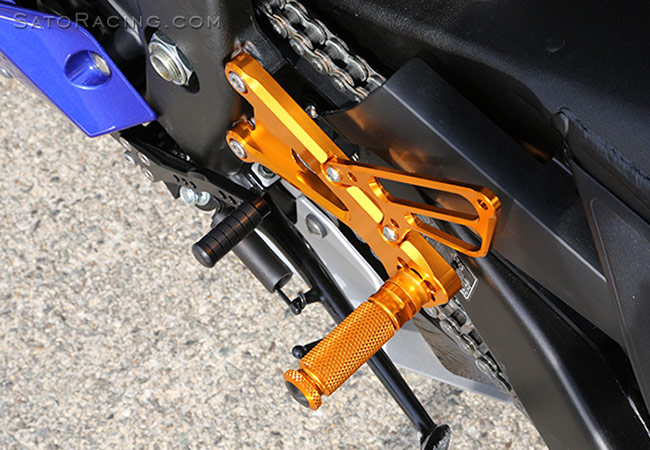

![SATO RACING Rear Sets [L]-side for Yamaha YZF-R6 '17-](pics/Y-R617RS-GD_fitL2.jpg "SATO RACING Rear Sets [L]-side for Yamaha YZF-R6 '17-")
The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles,
such as aluminum Pedal Tips with rubber sleeves, are an available option: More Details

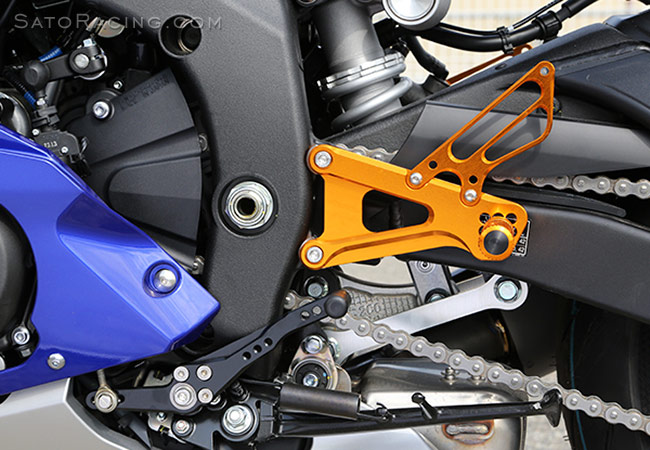

![SATO RACING Rear Sets [L]-side for Yamaha YZF-R6 '17-](pics/Y-R617RS-GD_fitL3.jpg "SATO RACING Rear Sets [L]-side for Yamaha YZF-R6 '17-")
| Our R6 Rear Sets can be set up for either stock or reverse (GP) shift pattern. Stock shift pattern is shown in the above photos. For reverse shift pattern, relocate the lower end of shift rod to a hole on the opposite end of the shift pedal and adjust the angle of the stock shift arm. |
| BLACK | Y-R617RS-BK $555 |
 |
| GOLD | Y-R617RS-GD $555 |
|
Click Here for important info about Sato color-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -

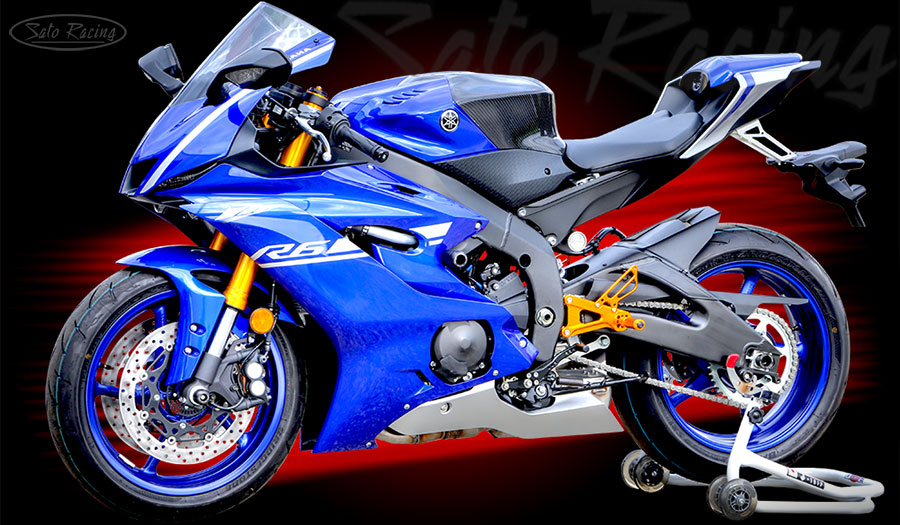

2017 R6 with SATO RACING Rear Sets, Frame Sliders, Axle Sliders and Spools
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
