YAMAHA YZF-R6 ('17-'20)
| SATO RACING 'Race Concept' Rear Sets are pure, no-compromise racing rear sets designed for track-only bikes. Our 'Race Concept' Rear Sets for 2017-20 Yamaha YZF-R6 features componentsprecision CNC-machined from high strength billet aluminum, with your choice of deep Black anodized finish with Gold accents, or Gold finish with Black shifter assembly. You can select from 8 adjustable peg positions that place your feet up to 50mm higher and 30mm further back compared to stock, ideal for the fast straights and steep lean angles encountered on the track. These race-spec Rear Sets are designed for use with the Yamaha quick shifter, and can be set up for stock shift pattern or reverse (GP-style) shift patttern. NOTE: Not for street use. Not compatible with the stock brake light switch. Th\is is intended for use with racing brake setups, so compatibility with the stock ABS brakes is not known (there may be error codes). For more 'street'-friendly Rear Sets, see our standard R6 Rear Sets. |
| 1 | 10mm Back | 30mm Up |
| 2 | 10mm Back | 40mm Up |
| 3 | 10mm Back | 50mm Up |
| 4 | 20mm Back | 30mm Up |
| 5 | 20mm Back | 40mm Up |
| 6 | 20mm Back | 50mm Up |
| 7 | 30mm Back | 40mm Up |
| 8 | 30mm Back | 50mm Up |
note: all measurements are in relation to stock position (0 mm).
![SATO RACING Yamaha YZF-R6 '17-'20 Race Concept Rear Sets [L]-side](pics/yamahaR6_17_raceconcept_rearsets_gold_fitR1.jpg "SATO RACING Yamaha YZF-R6 '17-'20 Race Concept Rear Sets [R]-side")
The shift and brake pedals utilize double stainless bearings for smooth, precise pedal movement.
Gold-anodized aluminum Pedal Tips with fluted rubber grips are standard with these Rear Sets.
![SATO RACING Yamaha YZF-R6 '17-'20 Race Concept Rear Sets [R]-side](pics/yamahaR6_17_raceconcept_rearsets_gold_fitR2.jpg "SATO RACING Yamaha YZF-R6 '17-'20 Race Concept Rear Sets [R]-side")

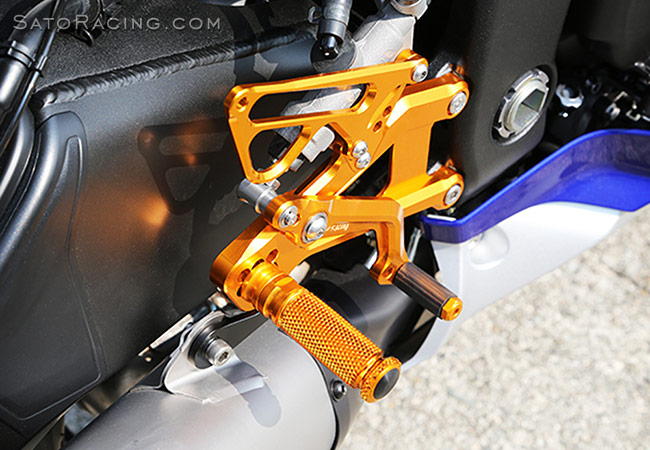

Deeply knurled footpegs provide great grip along with a comfortable, intuitive feel.
NOTE: These 'track-only' Rear Sets are not compatible with the stock brake light switch.
![SATO RACING Yamaha YZF-R6 '17-'20 Race Concept Rear Sets [L]-side](pics/yamahaR6_17_raceconcept_rearsets_gold_fitL1.jpg "SATO RACING Yamaha YZF-R6 '17-'20 Race Concept Rear Sets [L]-side")
The shift pedal has multiple adjustment points for fine-tuning the shifter feel.
![SATO RACING Yamaha YZF-R6 '17-'20 Race Concept Rear Sets [L]-side](pics/yamahaR6_17_raceconcept_rearsets_gold_fitL2.jpg "SATO RACING Yamaha YZF-R6 '17-'20 Race Concept Rear Sets [L]-side")

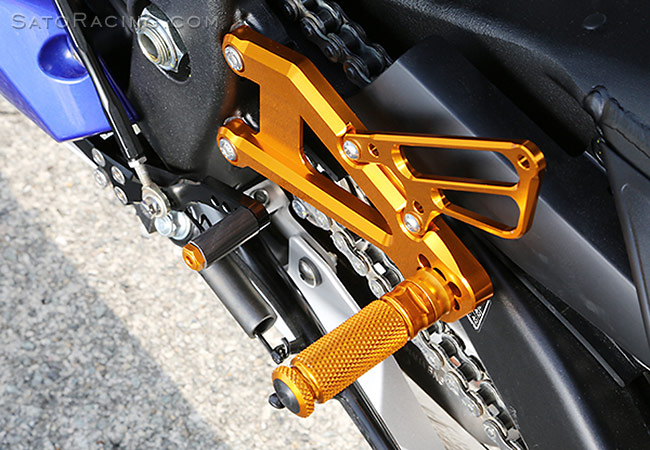

Reverse (GP) shift pattern shown above. For stock shift pattern, relocate the shift
rod to the forward end of the shift pedal and adjust the angle of the stock shift arm.
| BLACK w/ Gold accents |
Y-R617RCRS-BK $565 |
 |
| GOLD * w/ Black Shift Pedal |
Y-R617RCRS-GD $565 |
|
* Click Here for important info about Sato GOLD-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets.
