SUZUKI KATANA ('19-)
REAR SETS
| SATO RACING Rear Sets for 2019-24 Suzuki Katana (part# S-KATRS) features a track-engineered design, with components precision CNC-machined out of light-weight, high strength billet aluminum, with stainless steel hardware. Features an aggressive range of foot peg positions, bringing your feet up to 45mm to 57.5mm higher up and 12.5mm to 25mm further back compared to stock, for a more supersport-like riding position ideally suited for tackling the fast straights and steep lean angles encountered on the track. The higher positions are ideal if you are also using our Katana Handle Bars (part# S-KATHB). Choice of Black or Gold anodized finish. We also make a similar Rear Sets model that provides a lower range of peg positions, part# S-S1000RS. Click Here for details. |
| 1 | 12.5mm Back | 45mm Up |
| 2 | 25mm Back | 45mm Up |
| 3 | 12.5mm Back | 57.5mm Up |
| 4 | 25mm Back | 57.5mm Up |
Note: all measurements are in relation to stock position (0 mm).
| The foot peg position is adjustable 4 ways. A single-piece step plate design is utilized for maximum rigidity, along with full compatibility with the OEM brake light switch and ABS. |
| The Brake Pedal and Shifter incorporate dual miniature stainless bearings for smooth, precise lever actuation with a solid, high-quality feel. The Brake Pedal is mounted on a separate axis from the Foot Peg for optimal leverage and braking feel. Rear Sets kit includes a black anodized aluminum hanger bracket for the exhaust. |
| The Foot Pegs are the fixed type (non-folding), and have a finely knurled pattern for a comfortable, intuitive feel and superior grip. |

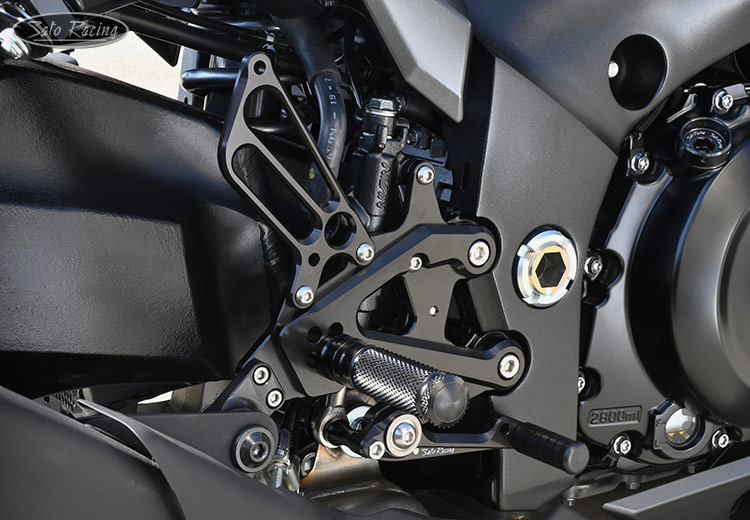

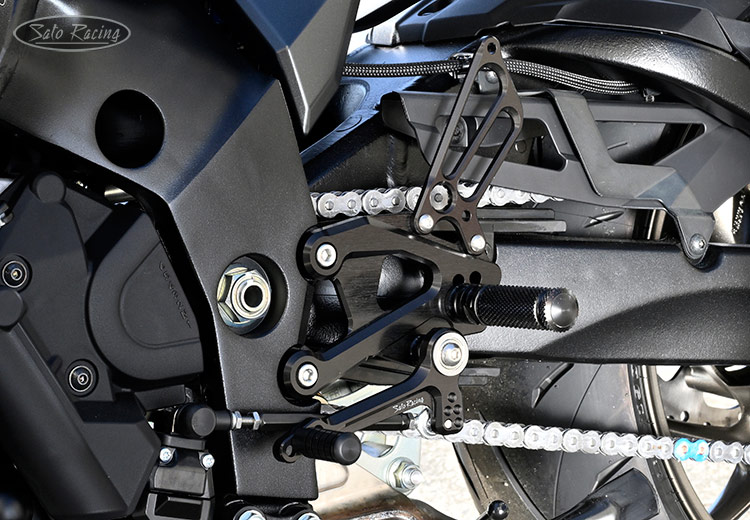

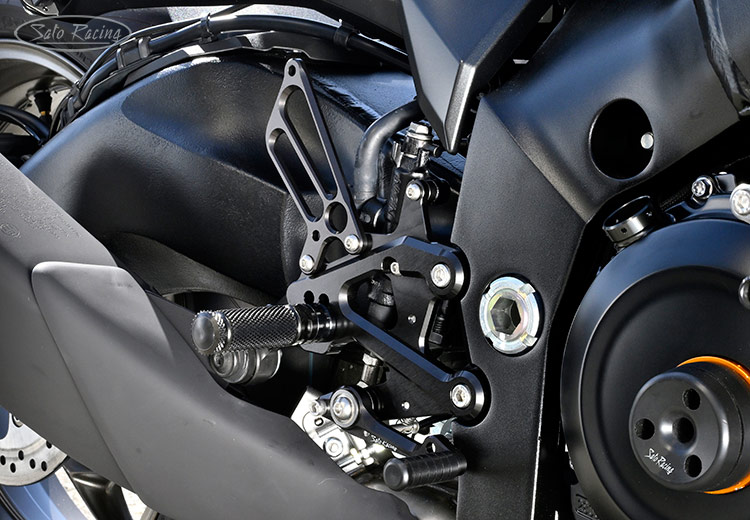

| Rear Sets shown installed on a 2023 Katana. This model provides a stock shift pattern, and is compatible with both the original-style stock change arm found on the 2019-2021 Katana and the updated spec seen on the 2022+ models. (For Reverse/GP shift pattern, get Reverse Shift Rear Sets Part# S-S1000RSR (for 2019-21 Katana) or Part# S-S100021RSR (for 2022+ Katana) |

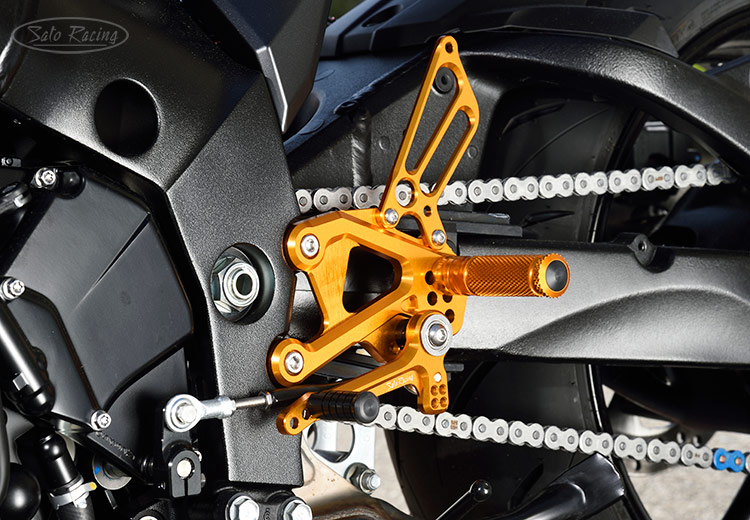

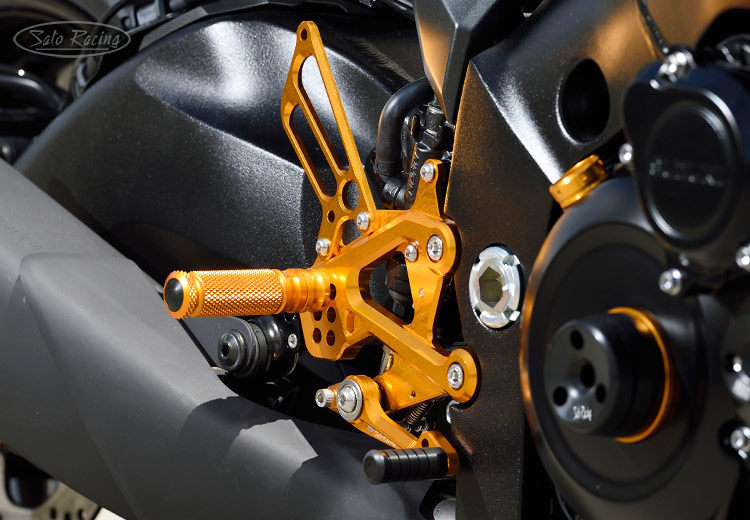

| Rear Sets in Gold anodized finish shown installed together with Shift Arm part# S-CA2, an optional part compatible with 2019-21 Katana. |
| BLACK | S-KATRS-BK $630 |
 |
| GOLD | S-KATRS-GD $630 |
|
Click Here for important info about Sato color-anodized parts.
2020 Suzuki Katana with SATO RACING Rear Sets and other parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
SATO RACING offers a full selection of Replacement Parts for all our Rear Sets models.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the
illustrated parts list included with your Sato Racing Rear Sets.
More Sato Racing items for Suzuki Katana
|
