SUZUKI GSX-S1000 / GT / KATANA
REAR SETS
| SATO RACING Rear Sets for 2015-24 Suzuki GSX-S1000 (F/Z/GT) and Katana features a track-engineered design, with components precision machined out of light-weight, high strength anodized billet aluminum, with stainless steel hardware. Features 5 adjustable foot peg positions in a useful range that can bring your feet up to 40mm higher and 25mm further back compared to stock, for a sportier, more aggressive position ideally suited for spirited riding. Compatible with the standard shift arm along with the OEM shifter switch found on 2021+ GSX-S1000. Available in 2 versions: Standard Rear Sets, which provide a stock shift pattern, and Reverse Shift Rear Sets, which feature a dedicated GP-style reverse shift pattern. Choice of Black, Silver or Gold anodized finish. |
| 1 | 12.5mm Back | 15mm Up |
| 2 | 25mm Back | 15mm Up |
| 3 | 12.5mm Back | 27.5mm Up |
| 4 | 25mm Back | 27.5mm Up |
| 5 | 25mm Back | 40mm Up |
note: all measurements are in relation to stock position (0 mm).

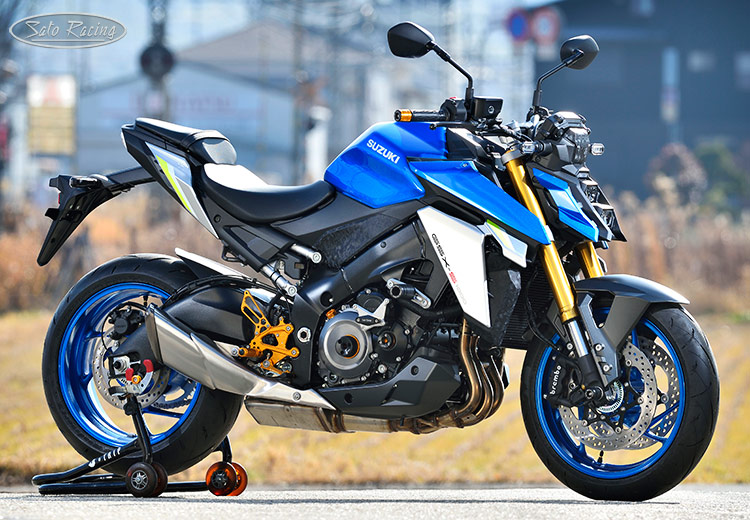

| The following photos show this model installed on a gen2 GSX-S1000 with the OEM quickshifter.
To see these Rear Sets on a gen1 GSX-S1000 or Katana, Click Here. For the Katana, we also make a similar Rear Sets model that provides a higher range of peg positions, part# S-KATRS. Click Here for details. |
![SATO RACING Suzuki GSX-S1000 '22 Rear Sets [R]-side in Gold](pics/S-S100021RS_fitR1.jpg "SATO RACING Suzuki GSX-S1000 '22 Rear Sets [R]-side")

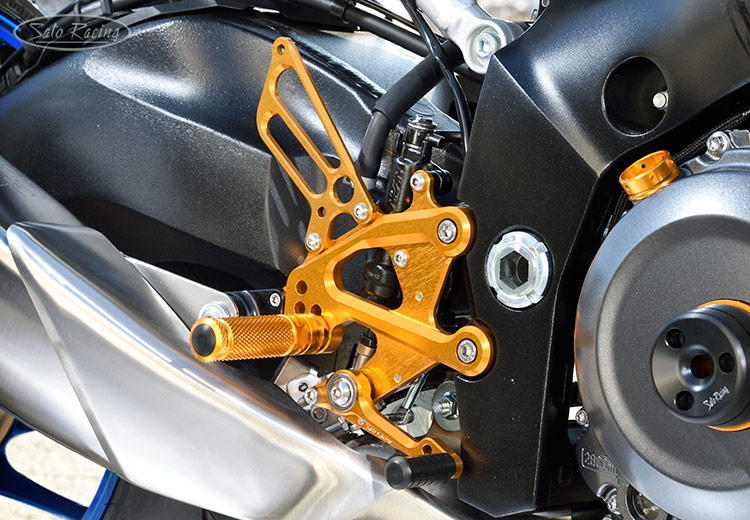

| The foot peg position is adjustable 5 ways. A single-piece step plate design is utilized for maximum rigidity, along with full compatibility with the OEM brake light switch and ABS. |
![SATO RACING Suzuki GSX-S1000 '22 Rear Sets [R]-side in Gold](pics/S-S100021RS_fitR2.jpg "SATO RACING Suzuki GSX-S1000 '22 Rear Sets [R]-side")

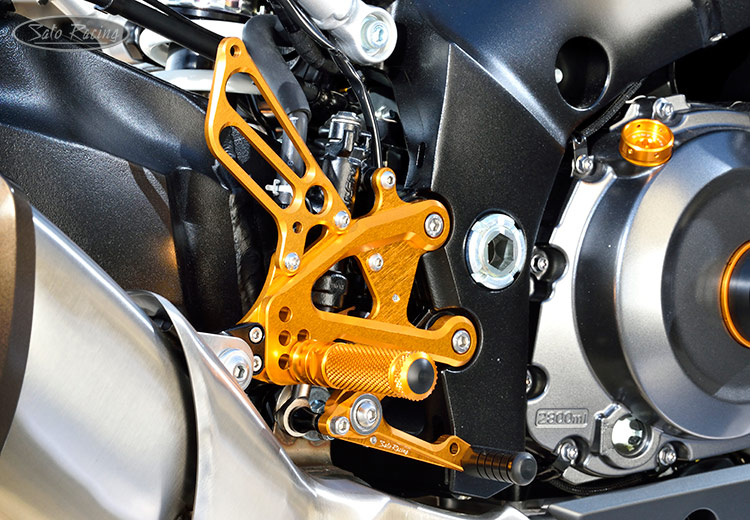

| The Brake Pedal and Shifter incorporate miniature double stainless bearings for smooth, precise lever actuation with a solid, high-quality feel. The Foot Pegs are the fixed type (non-folding), and have a finely knurled pattern for a comfortable, intuitive feel and superior grip. Rear Sets kit includes a black anodized aluminum hanger bracket for the exhaust. |
![SATO RACING Suzuki GSX-S1000 '22 Rear Sets [L]-side in Gold](pics/S-S100021RS_fitL1.jpg "SATO RACING Suzuki GSX-S1000 '22 Rear Sets [L]-side")

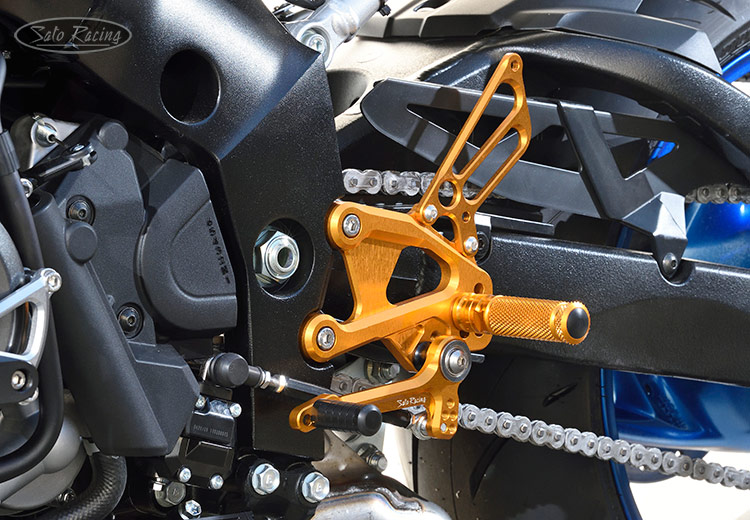

| Rear Sets (Standard Shift) has a stock shift pattern. |
![SATO RACING Suzuki GSX-S1000 '22 Rear Sets [L]-side in Gold](pics/S-S100021RS_fitL2.jpg "SATO RACING Suzuki GSX-S1000 '22 Rear Sets [L]-side")

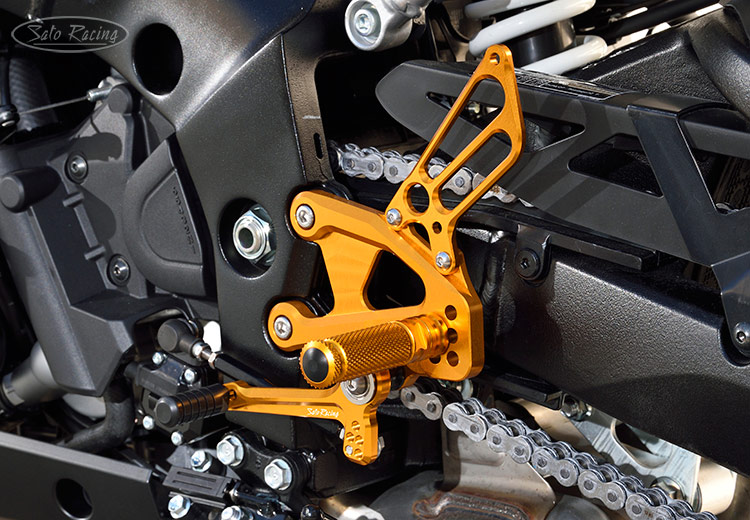

| Rear Sets (Standard Shift) |
![SATO RACING Suzuki GSX-S1000 '22 Reverse Shift Rear Sets [L]-side in Gold](pics/S-S100021RSR_fitL1.jpg "SATO RACING Suzuki GSX-S1000 '22 Reverse Shift Rear Sets [L]-side")

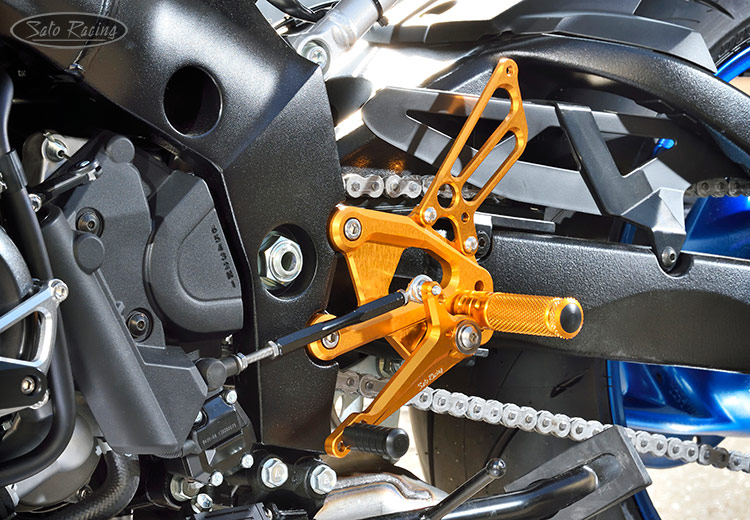

| 'Reverse Shift' Rear Sets provide a dedicated GP-style reverse shift pattern. |
![SATO RACING Suzuki GSX-S1000 '22 Reverse Shift Rear Sets [L]-side in Gold](pics/S-S100021RSR_fitL2.jpg "SATO RACING Suzuki GSX-S1000 '22 Reverse Shift Rear Sets [L]-side")

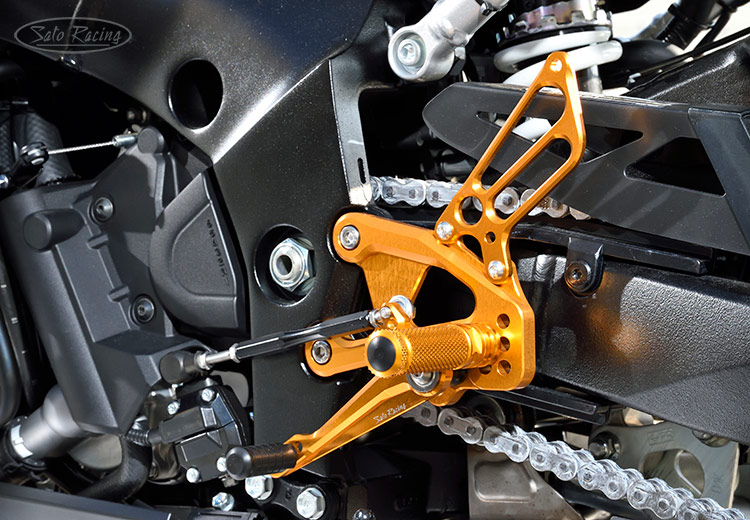

| Reverse Shift Rear Sets |
REAR SETS (Standard Shift)
| BLACK | S-S1000RS-BK $605 |
 |
| SILVER | S-S1000RS-SV $605 |
|
| GOLD | S-S1000RS-GD $605 |
|
REVERSE SHIFT REAR SETS
| BLACK | S-S100021RSR-BK $605 |
|
| SILVER | S-S100021RSR-SV $605 |
|
| GOLD | S-S100021RSR-GD $605 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
* Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for all our Rear Sets models.
To find out individual part names & numbers, see the illustrated parts list included
with your Sato Racing Rear Sets, or view the PDF parts list:
S-S1000RS (STD version) | S-S100021RSR (REV shift) - L-side | S-S100021RSR - R-side
Most replacement parts for these Rear Sets
can be purchased in our Online Store:
(Part numbers correspond to S-S1000RS unless otherwise specified)
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#17) |
PEGCLR-15 $15 |
|
 |
STUD BOLT M8-50mm (#29, Foot Peg bolt) |
STBT-50 $4.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (#25, for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (#1) |
HG-6L $60 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (#2) |
HG-6R $60 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (#5) |
SPD-0912 $62.50 |
|
 |
SHIFT ROD 90 (BK) (#6) |
SRD-90-B $39 |
|
 |
BRAKE PEDAL (BK/ SV/ GD) (#7) |
BPD-15 $66.50 |
|
 |
STAY (BK) (#9) |
STAY-6L45t6 $18.00 |
|
 |
BEARING COLLAR 13 [BLACK] (#13) |
PEGBGCLR-13SB $13.00 |
|
 |
ROD END COLLAR 3 (#14) |
RDED-CLR3 $6.00 |
|
 |
BASE PLATE COLLAR 2 (#16) |
BPCLR-2 $5.00 |
|
 |
SOCKET HEAD M5-10mm (#18) |
SBT-M510 $2.00 |
|
 |
SOCKET HEAD M5-40mm (#19) |
SBT-M540 $2.00 |
|
 |
SOCKET HEAD M6-20mm (#20) |
SBT-M620 $1.50 |
|
 |
SOCKET HEAD M6-50mm (#21) |
SBT-M650 $2.00 |
|
 |
SOCKET HEAD M8-20mm (#22) |
SBT-M820 $1.50 |
|
|
BUTTON HEAD M5-15mm #23) |
BBT-M515 $2.00 |
|
 |
BUTTON HEAD M6-10mm (#24) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-25mm (#26) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-35mm (#27) |
BBT-M835 $2.00 |
|
 |
HEX HEAD M5-6mm (#28) |
HBT-M56 $2.00 |
|
 |
STUD M6 (#30) |
STUD-M6 $2.50 |
|
 |
NUT M5 (#31) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#32) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#33) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (#34) |
LNT-6 $1.50 |
|
 |
FLANGE LOCK NUT M8S (#35, for Peg bolt) |
FLNT-8S $2.50 |
|
 |
REVERSE MALE ROD END M6 #36 |
RDED-M6L $12.50 |
|
 |
FEMALE ROD END 6-M8 (#37) |
RDED-F6-8 $25 |
|
 |
PULL SWITCH STAY 16 (#38) |
PSTAY-16 $9.50 |
|
|
SHIFT ROD 100 (BK) (REV shift, #6) |
SRD-100-B $39 |
|
 |
BUTTON HEAD M8-40mm (REV shift, #25) |
BBT-M840 $2.00 |
|
 |
LOW SOCKET HEAD M6-20mm (REV shift, #26) |
LSBT-M620 $4.00 |
|
 |
HEX HEAD M6-18mm (REV shift, #28) |
HBT-M618 $2.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
