SUZUKI HAYABUSA ('22- )
REAR SETS
| SATO RACING Rear Sets for 2022+ Suzuki Hayabusa features an extensively track-tested and competition-proven design, with components precision machined out of light-weight, high strength anodized billet aluminum. Features 5 adjustable foot peg positions that bring your feet up to 37mm higher and 31mm further back compared to stock, for a more performance-oriented riding position. Choice of deep Black or vivid Gold anodized finish. 2 versions are available: The standard Rear Sets provide a stock shifting pattern, while the Reverse Shift Rear Sets, have a reverse (GP-style) shift pattern. |
| 1 | 20mm Back | 15mm Up |
| 2 | 20mm Back | 26mm Up |
| 3 | 20mm Back | 37mm Up |
| 4 | 31mm Back | 26mm Up |
| 5 | 31mm Back | 37mm Up |
note: all measurements are in relation to stock position (0 mm).
![SATO RACING Suzuki Hayabusa 2022 Rear Sets [R]-side in Gold](pics/S-GSX1322RS-GD_fitR1_750x520.jpg "SATO RACING Suzuki Hayabusa 2022 Rear Sets [R]-side in Gold")
Our Hayabusa Rear Sets are fully compatible with the stock brake light switch and ABS.

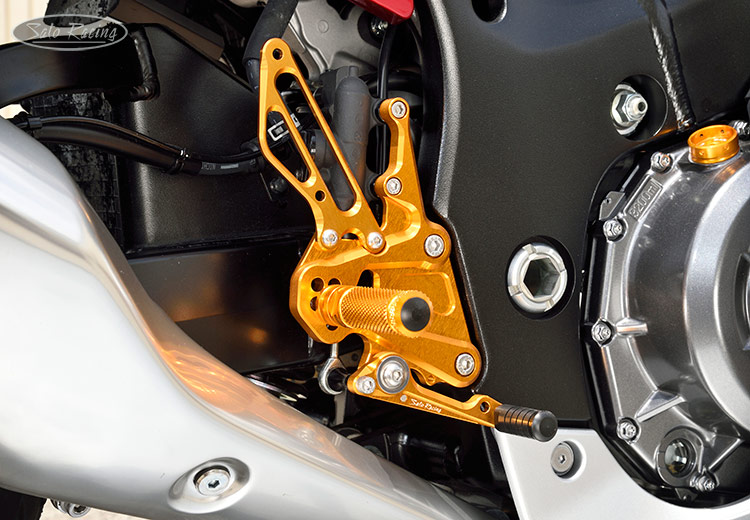

![SATO RACING Suzuki Hayabusa 2022 Rear Sets [R]-side in Gold](pics/S-GSX1322RS-GD_fitR2_750x520.jpg "SATO RACING Suzuki Hayabusa 2022 Rear Sets [R]-side in Gold")
The Foot Pegs have a finely knurled pattern for optimal grip along with a comfortable, intuitive feel.
The standard Pedal Tips are made of tough, abrasion-resistant Delrin. Other styles of Pedal Tips,
such as aluminum with fluted rubber grips, are also available. Click Here for details.

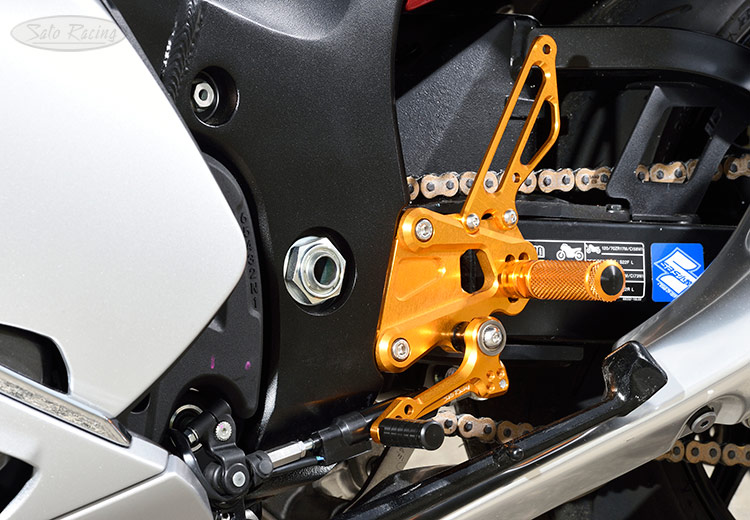

![SATO RACING Suzuki Hayabusa 2022 Rear Sets [L]-side in Gold](pics/S-GSX1322RS-GD_fitL1_750x520.jpg "SATO RACING Suzuki Hayabusa 2022 Rear Sets [L]-side in Gold")
The shift and brake pedals use miniature double stainless bearings for smooth, precise lever actuation
with a solid feel. The shift linkage is designed for use with the OEM quickshifter. (Standard version
Rear Sets are shown in these photos. The 'Reverse Shift' version includes some additional hardware.)

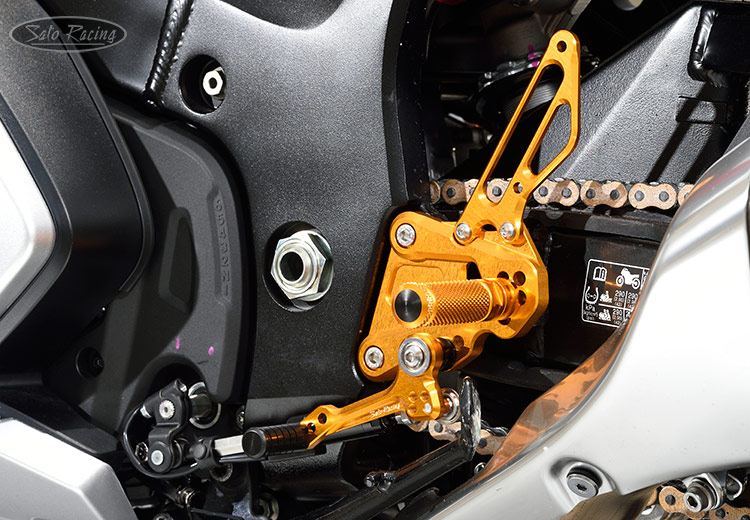

![SATO RACING Suzuki Hayabusa 2022 Rear Sets [L]-side in Gold](pics/S-GSX1322RS-GD_fitL2_750x520.jpg "SATO RACING Suzuki Hayabusa 2022 Rear Sets [L]-side in Gold")
Foot Peg position is adjustable 5 ways. Pedal Tip (toe peg) position is also adjustable.
Choice of Black or Gold anodized finish. (Reverse Shift Rear Sets shown above)
STANDARD REAR SETS (STOCK SHIFT)
| BLACK | S-GSX1322RS-BK $565 |
 |
| GOLD | S-GSX1322RS-GD $565 |
|

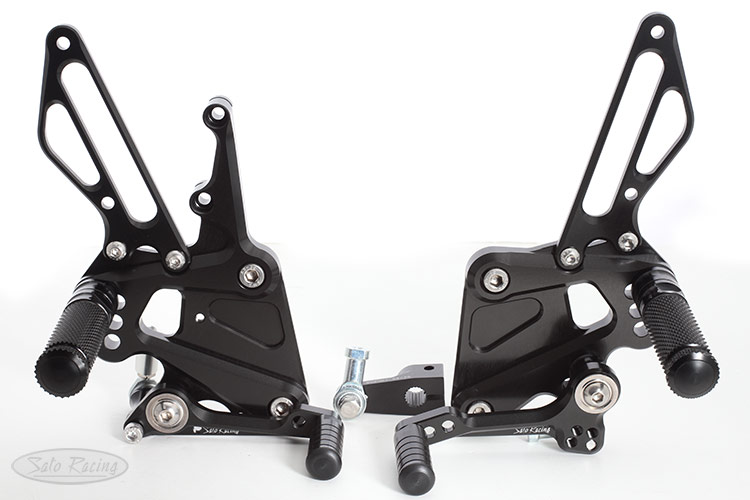

REVERSE SHIFT REAR SETS
| BLACK | S-GSX1322RSR-BK $640 |
|
| GOLD | S-GSX1322RSR-GD $640 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
* Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF parts list:
Standard version (stock shift) | Reverse Shift version
Most replacement parts for these Rear Sets
can be purchased in our online store:
(Part numbers correspond to the standard version rear sets unless otherwise noted.)
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#32) |
PEGCLR-15 $15 |
|
 |
STUD BOLT M8-50mm (#12, Foot Peg bolt) |
STBT-50 $4.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
LOW SOCKET HEAD M6-20mm (#19, for Pedal Tip) |
LSBT-M620 $4.00 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (L-side #5) |
SPD-10 $62.50 |
|
 |
BRAKE PEDAL (BK/ SV/ GD) (R-side #7) |
BPD-15 $66.50 |
|
 |
HEX HEAD M5-6mm (R-side, #12) |
HBT-M56 $2.00 |
|
 |
HEX HEAD M6-25mm (L-side #13) |
HBT-M625 $2.00 |
|
 |
SOCKET HEAD M5-15mm (R-side, #14) |
SBT-M515 $2.00 |
|
 |
SOCKET HEAD M5-40mm (R-side #15) |
SBT-M540 $2.00 |
|
 |
SOCKET HEAD M6-20mm (R-side, #16) |
SBT-M620 $1.50 |
|
 |
SOCKET HEAD M6-50mm (R-side, #17) |
SBT-M650 $2.00 |
|
 |
SOCKET HEAD M8-25mm (#18) |
SBT-M825 $1.50 |
|
 |
BUTTON HEAD M6-10mm (#20) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-25mm (R-side #21) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-45mm (L-side #22) |
BBT-M845 $2.50 |
|
 |
NUT M5 (R-side #23) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#24) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (L-side #25) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (R-side #26) |
LNT-6 $1.50 |
|
 |
FLANGE NUT M8 (#27) |
FNT-8 $1.50 |
|
 |
ROD END COLLAR 8 (GD) (L-side #28) |
RDED-CLR8 $7.00 |
|
 |
ROD END COLLAR 25 (R-side #29) |
RDED-CLR25 $12.00 |
|
 |
BASE PLATE COLLAR 6 (L-side #30) |
BPCLR-6 $8.00 |
|
 |
BASE PLATE COLLAR 8 (R-side, #31) |
BPCLR-8 $8.00 |
|
 |
BEARING COLLAR 15 [BLACK] (L-side #33) |
PEGBGCLR-15SB $10.00 |
|
 |
ROD ADAPTER M6-8 (R-side, #34) |
RDED-ADPTRM6-8 $8.00 |
|
 |
MALE ROD END M6 (R-side #35) |
RDED-M6 $12.50 |
|
 |
FEMALE ROD END M6 (L-side, #36) |
RDED-F6 $15 |
|
 |
PULL SWITCH STAY 16 (R-side, #37) |
PSTAY-16 $9.50 |
|
 |
CHANGE ARM (REV Shift - #6) |
S-CA2 $85 |
|
 |
HEX HEAD M6-18mm (REV Shift - #13) |
HBT-M618 $2.00 |
|
 |
ROD END COLLAR 10 (REV Shift - #28) |
RDED-CLR10 $8.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
