HONDA MONKEY ('22-'25)
REAR SETS

SATO RACING Rear Sets for 2022-25 Honda Monkey features a track-engineered design, with components precision machined out of light-weight, high strength anodized billet aluminum, with stainless steel bolts and hardware. Adjustable peg mount lets you select from 2 foot peg positions that bring your feet higher up and significantly further back compared to stock, for a more aggressive position well-suited for spirited riding. Works with non-ABS and ABS-equipped Monkey models.

2 versions of these Rear Sets are available: The standard version, which has a stock shift pattern, and Reverse Shift Rear Sets, which provides a dedicated GP-style reverse shift pattern. Both types are available in your choice of Black or Gold anodized finish.

We also offer an optional Shift Spindle Holder that works well with these Rear Sets, reducing play in the shift spindle for more precise shift action.


POSITIONS

1 87.5mm Back 37.5mm Up
2 100mm Back 37.5mm Up

note: all measurements are in relation to stock position (0 mm).

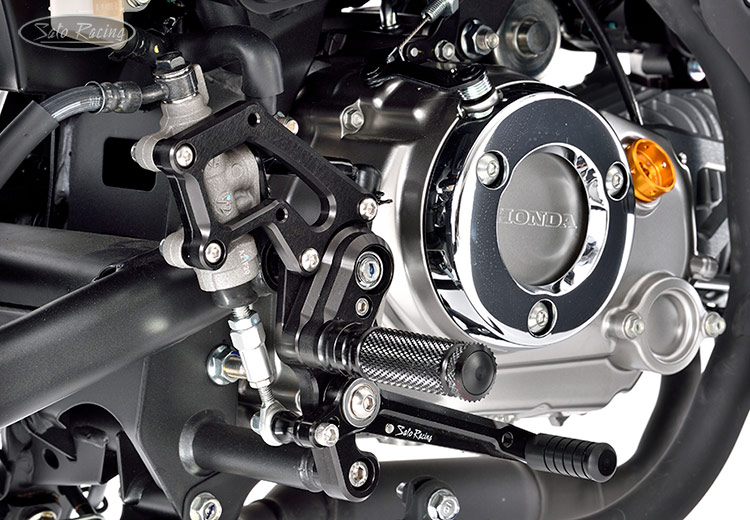

SATO RACING Honda Monkey '22- Rear Sets [R]-side
The shift and brake pedals utilize miniature double stainless bearings for smooth, precise lever action.

SATO RACING Honda Monkey '22- Rear Sets [R]-side
You can adjust the position of the Foot Pegs 2 ways. Peg position is located 87.5mm to 100mm
rearward and 37.5mm further up compared to stock.  The Pedal Tip position is also adjustable.
These 'street'-friendly Rear Sets are compatible with the stock brake light pull switch and ABS.

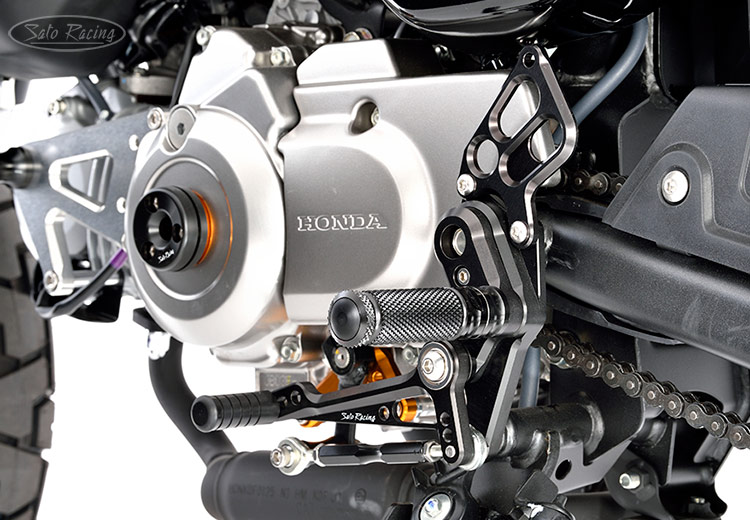

SATO RACING Honda Monkey '22- Rear Sets [L]-side
Rear Sets (standard version) - provides a stock shifting pattern.
(Shown installed together with our Shift Spindle Holder).

SATO RACING Honda Monkey '22- Rear Sets [L]-side
The Foot Pegs have a finely knurled pattern for nice grip, along with a comfortable, intuitive feel.

The standard Pedal Tips (toe pegs) are made of tough Delrin plastic. Additional Pedal Tip styles,
such as aluminum Pedal Tips with fluted rubber sleeves, are an available option:  More Details

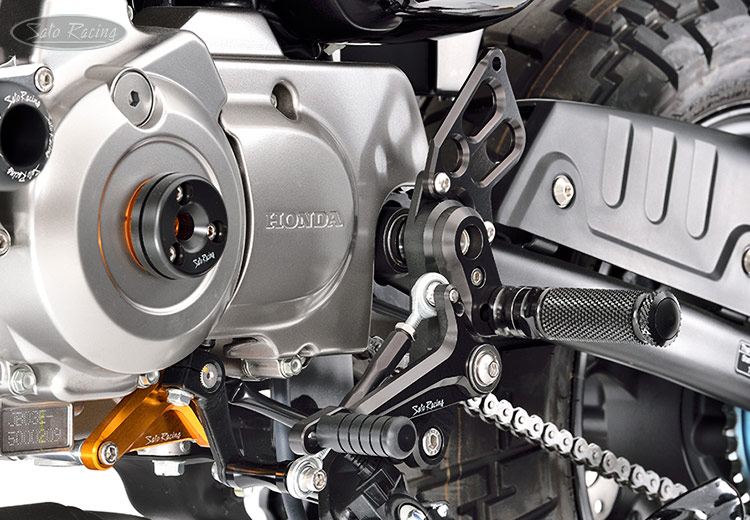

SATO RACING Honda Monkey '22- Reverse Shift Rear Sets [L]-side
Reverse Shift Rear Sets - provides a reverse (GP-style) shifting pattern.


SATO RACING Honda Monkey '18- Rear Sets
Monkey Rear Sets (standard shift)

SATO RACING Honda Monkey '18- Reverse Shift Rear Sets
Monkey Reverse Shift Rear Sets





REAR SETS (Standard Shift)

BLACK H-MKY22RS-BK
$465
GOLD H-MKY22RS-GD
$465


REVERSE SHIFT REAR SETS

BLACK H-MKY22RSR-BK
$465
GOLD H-MKY22RSR-GD
$465

Click Here for important info about Sato color-anodized parts.




________________________________________________________________________

OPTIONAL PARTS

________________________________________________________________________



HONDA GROM / MONKEY ('22- )
SHIFT SPINDLE HOLDER

SATO RACING Shift Spindle Holder for the 2022-25 Honda Monkey and Honda Grom (5sp) reinforces the shift linkage by reducing lateral play in the spindle shaft during shifts, for more consistent and precise shifting and extra durability in heavy-duty use. Gold anodized billet aluminum with a Teflon inner bushing.

SATO RACING Shift Spindle Holder for 2022 Honda GROM and Monkey
Shift Spindle Holder shown installed on a Honda Monkey.


GOLD H-GROM22RS-SHDR
$93




________________________________________________________________________


HONDA MONKEY (+ various)
REAR BRAKE RESERVOIR CAP

This premium Brake Cap for the rear brake fluid reservoir is precision CNC-machined out of solid billet aluminum and features a finely knurled grip pattern around the rim, with white laser etched Sato Racing logo script on top. Fits Nissin 32mm-type reservoirs. Available in Black, Silver or Gold anodized finish. Looks great with our Monkey Rear Sets*!

* NOTE: This cap may be a tight fit on some Monkeys.

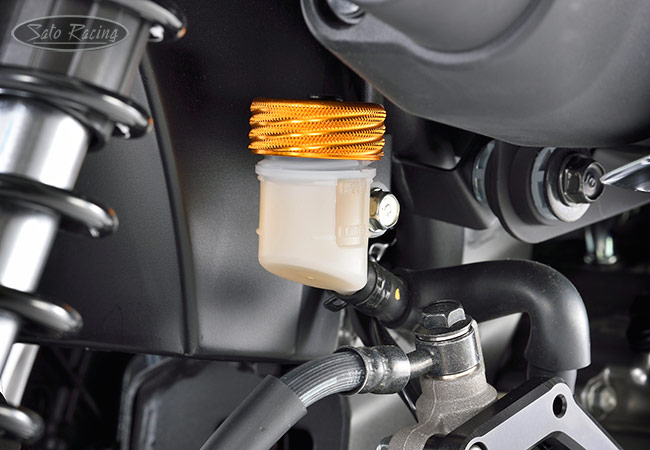

SATO RACING Rear Brake/Clutch Fluid Cap for Nissin 32mm Reservoir

SATO RACING Rear Brake/Clutch Fluid Cap for Nissin 32mm Reservoir


BLACK FC-N32-B
$40
SILVER FC-N32-S
$40
GOLD FC-N32-G
$40




________________________________________________________________________


HONDA MONKEY (+ various)
OIL FILLER CAP

SATO RACING Oil Filler Cap part# H-OFCAP-R makes a nice accent for our Monkey Rear Sets! It is precision machined out of billet aluminum alloy. Holes in the outer rim can be used to attach a safety wire. Choice of Black, Silver or Gold anodized finish. Fits both generations of Monkey 125, along with most other Honda models. (Use with the stock O-ring)

Options include a compact Quickwrench Tool for designed for this Oil Cap that you can keep on your keyring.

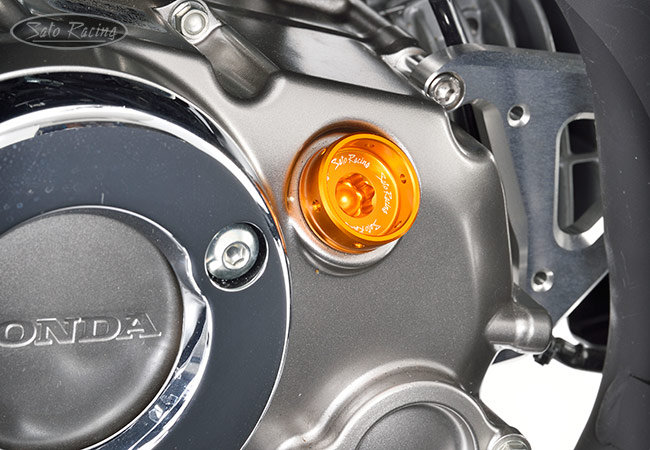

SATO Oil Filler Cap on a 2022 Honda Monkey

Oil Filler Caps for Honda - Choice of Black, Silver or Gold




BLACK BLACK H-OFCAP-RB
$50
SILVER SILVER H-OFCAP-RS
$50
GOLD GOLD H-OFCAP-RG
$50


OFCAP-TOOL QUICK-WRENCH
for SATO Oil Cap		 OFCAP-TOOL
$32




________________________________________________________________________



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$52
GOLD RCPEG-GD
$52

Click Here for important info about Sato color-anodized parts.




_______________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]		 TOOL-PEG
$45



Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



_____________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated parts list
included with your SATO RACING Rear Sets, or view the PDF parts list:
Std Shift version part# H-MKY22RS - L-side   |   R-side
Reverse Shift version part# H-MKY22RSR - L-side


Most replacement parts for these Rear Sets
can be purchased in our Online Store:
NOTE: The parts shown below correspond to the parts list for Rear Sets part# H-MKY22RS unless otherwise noted. Parts highlighted in YELLOW are parts specific to the Reverse Shift version.

FOOT PEG
(BK / GD)		 PEG
$48
PEGCLR-15 PEG COLLAR 15
(BK / GD) (#22)		 PEGCLR-15
$15
STBT-S STUD BOLT M8-55
(#28, Foot peg bolt)		 STBT-S
$4.50
ST-001D18 PEDAL TIP (DELRIN)
(#13)		 ST-001D18
$16.50
LSBT-M620 LOW SOCKET HEAD M6-20mm
(#34, for Pedal Tip)		 LSBT-M620
$4.00
SPD-14 SHIFT PEDAL
(BK / GD) (L-side #6)		 SPD-14
$85
SRD-80-B SHIFT ROD 80 [BLACK]
(L-side, #7)		 SRD-80-B
$39
RDED-ADPTRM6-8 ROD ADAPTER M6-8
(R-side, #14)		 RDED-ADPTRM6-8
$8.00
PEGBGCLR-5SB BEARING COLLAR 5
[BLACK]    (L-side, #15)		 PEGBGCLR-5SB
$10.00
RDED-CLR19 ROD END COLLAR 19
(R-side, #16)		 RDED-CLR19
$8.00
RDED-CLR29 ROD END COLLAR 29
(L-side #17)		 RDED-CLR29
$8.00
BPCLR-5 BASE PLATE COLLAR 5
(L-side #19)		 BPCLR-5
$8.00
SBT-M510 SOCKET HEAD M5-10mm
(#23)		 SBT-M510
$2.00
SBT-M645 SOCKET HEAD M6-45mm
(R-side #24)		 SBT-M645
$2.00
SBT-M655 SOCKET HEAD M6-55mm
(L-side #25)		 SBT-M655
$3.00
SBT-M820 SOCKET HEAD M8-20mm
(L-side #26)		 SBT-M820
$1.50
BBT-M530 BUTTON HEAD M5-30mm
(R-side #29)		 BBT-M530
$2.00
BBT-M610 BUTTON HEAD M6-10mm
(L-side #30)		 BBT-M610
$1.50
BBT-M615 BUTTON HEAD M6-15mm
(R-side #31)		 BBT-M615
$1.50
BBT-M630 BUTTON HEAD M6-30mm
(R-side #32)		 BBT-M630
$1.50
BBT-M830 BUTTON HEAD M8-30mm
(#33)		 BBT-M830
$2.00
HBT-M56 HEX HEAD M5-6mm
(R-side #35)		 HBT-M56
$2.00
HBT-M618 HEX HEAD M6-18mm
(L-side #36)		 HBT-M618
$2.00
WS-12 WASHER M12
(#37)		 WS-12
$1.50
NUT-5 NUT M5   (R-side, #38) NUT-5
$1.50
JNT-6 JAM NUT M6
(#40)		 JNT-6
$1.75
JNT-6L REVERSE JAM NUT M6
(L-side #41)		 JNT-6L
$2.50
LNT-6 LOCK NUT M6
(#42)		 LNT-6
$1.50
FNT-8 FLANGE NUT M8
(#43, for peg bolt)		 FNT-8
$1.50
RDED-M6 M6 MALE ROD END
(#44)		 RDED-M6
$12.50
M6 reverse male rod end (left-hand threaded) M6 MALE
REVERSE ROD END
(L-side #45)		 RDED-M6L
$12.50
PSTAY-14 PULL SWITCH STAY 14
(R-side #46)		 PSTAY-14
$9.50
SPD-SCP70 SHIFT PEDAL (BK / GD)
(REV Shift - #6)		 SPD-SCP70
$85
PEGBGCLR-10SB BEARING COLLAR 10s
[BLACK]    (REV Shift - #15)		 PEGBGCLR-10SB
$10.00
BBT-M835 BUTTON HEAD M8-35mm
(REV Shift - #34)		 BBT-M835
$2.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
