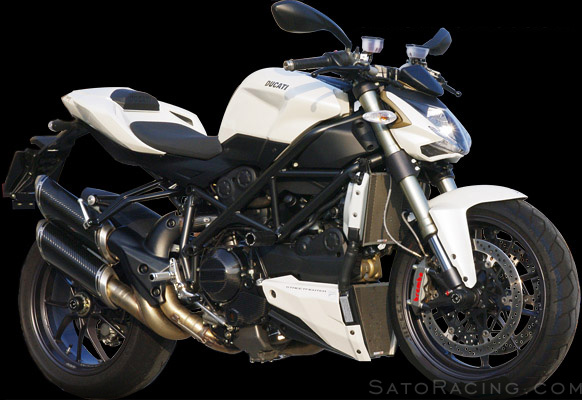

DUCATI STREETFIGHTER ('09-'14)

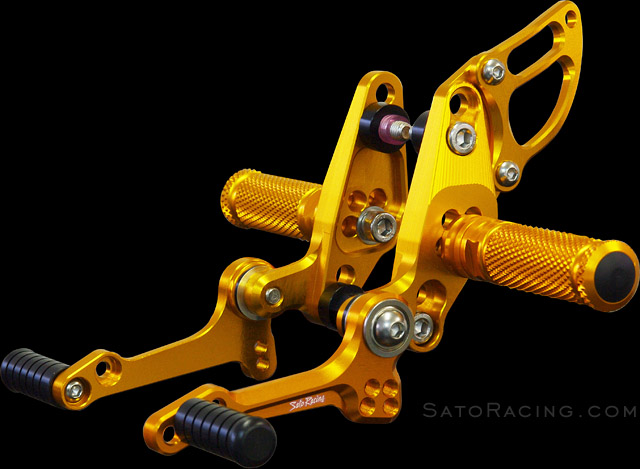

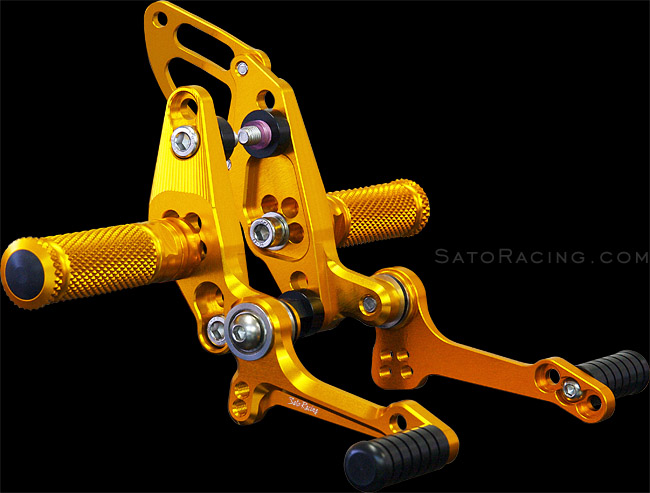

REAR SETS

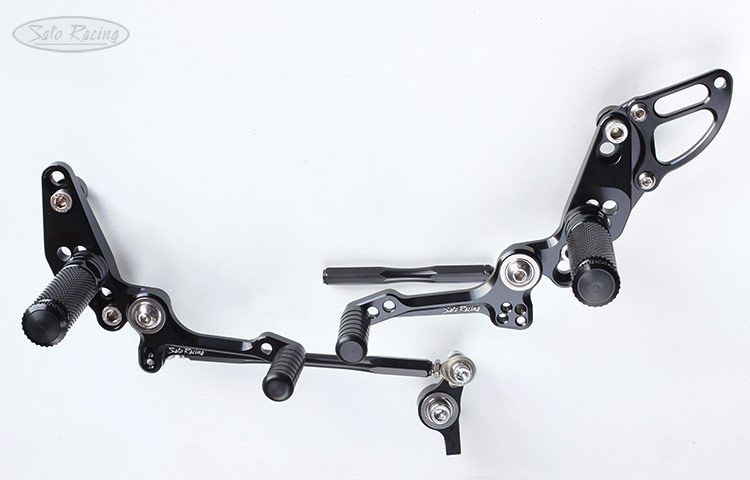

(Rear Sets kit also includes a shift rod and brake linkage hardware, not pictured)

POSITIONS

note: all measurements are in relation to stock position (0 mm).

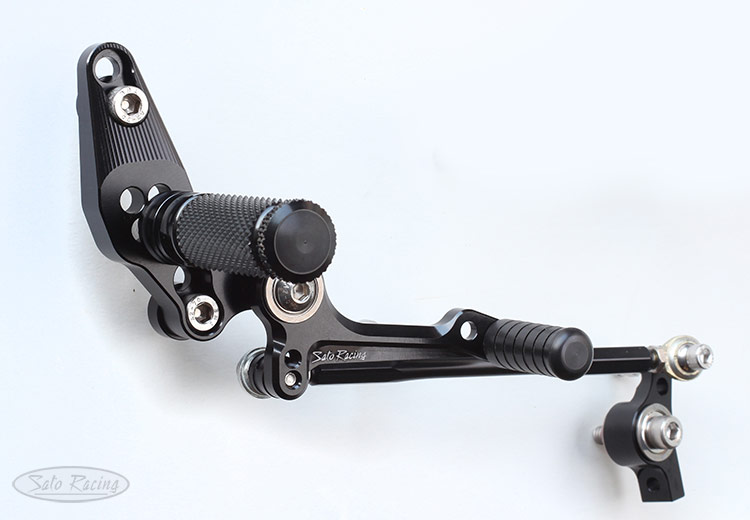

These Rear Sets feature a brake pedal that pivots from the step plate for excellent braking feel.
The brake and shift pedals use double miniature stainless bearings for smooth lever actuation.

Finely knurled Foot Pegs provide the ideal blend of great grip and a comfortable, intuitive feel. The
Pedal Tips (toe pegs) are made of tough Delrin. Additional styles of Pedal Tips are also available.

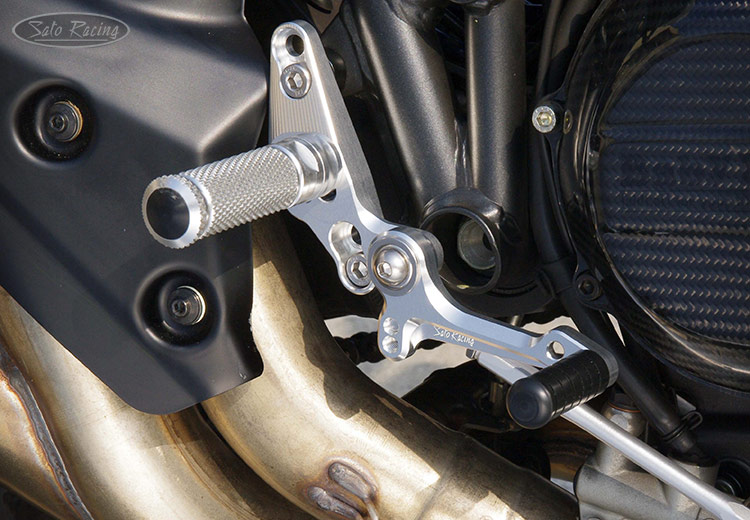

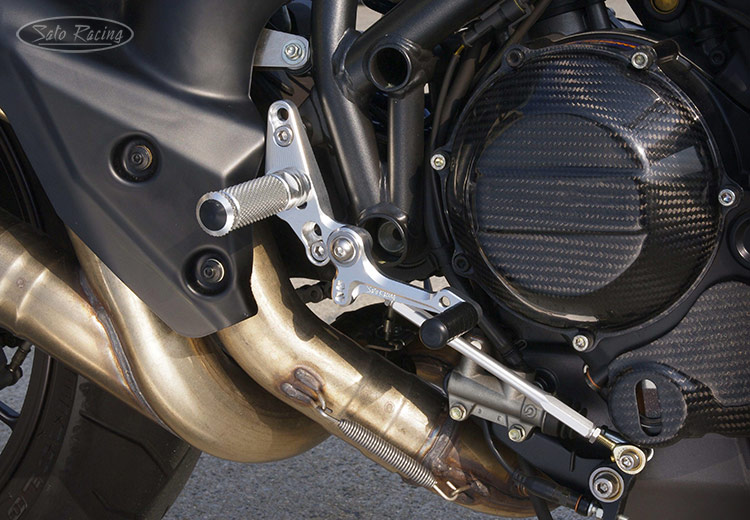

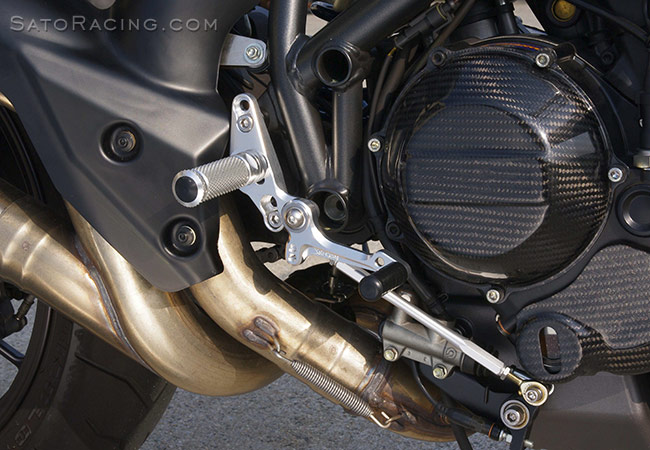

The brake linkage components integrate with the master cylinder at the
stock mount location. Brake Pedal works with the stock brake light switch.

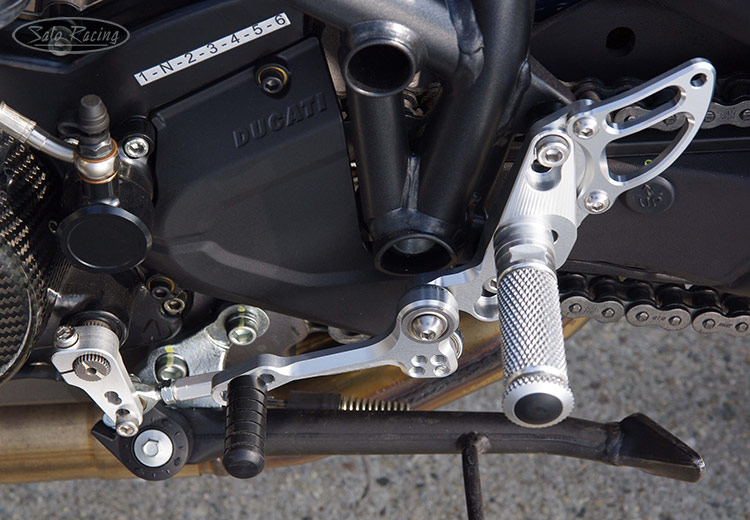

You can adjust the mounting positions of the Step Plate and the Foot Peg to your preference.

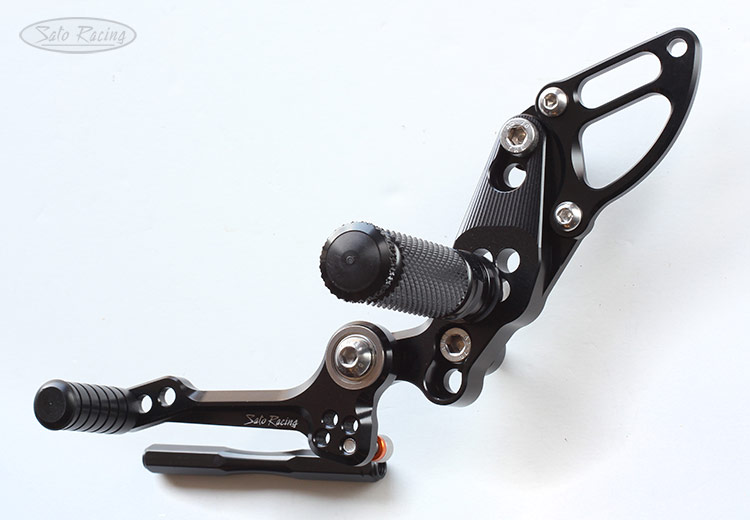

Pedal Tip position is also adjustable. ( Rear Sets shown with optional SATO Shift Arm )

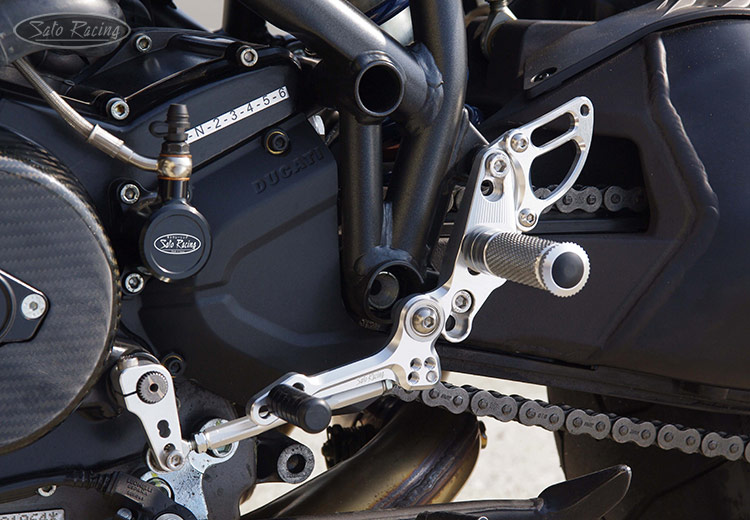

You can set it up stock shift or reverse shift pattern by flipping the shift arm the opposite direction.
( Rear Sets shown with optional SATO Shift Arm )

Choice of Black, Silver or Gold anodized finish.

* NOTE: These Rear Sets are not compatible with DQS (Ducati quick shifter),
due to interference issues. Other types of quick shifters may be compatible,
though a shorter shift rod than is provided in the kit might be required.

Online Special - Clearance sale on the GOLD anodized version of this kit! *

	BLACK	D-STRS-BK $680
	SILVER	D-STRS-SV $680
	GOLD	D-STRS-GD $680  $600

* (Clearance item pricing - no exchanges / returns)

Click Here for important info about Sato color-anodized parts.

OPTIONS

Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

FOOT PEG TOOL [GOLD]

TOOL-PEG $45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List

Some replacement parts for these Rear Sets
can be purchased in our online store:

	FOOT PEG (BK/ SV/ GD)	PEG $42
	PEG COLLAR 12 (BK/ SV/ GD) (#15)	PEGCLR-12 $15
	SOCKET HEAD M8-40mm (#18, Peg bolt)	SBT-M840 $2.00
	PEDAL TIP (DELRIN)	ST-001D18 $15
	SPRING HOOK NUT (R-side #10)	NUT-SH $7.50
	ROD END COLLAR 3 (L-side #11)	RDED-CLR3 $6.00
	ROD END COLLAR 6 (R-side #12)	RDED-CLR6 $6.00
	BASE PLATE COLLAR 8 (#14)	BPCLR-8 $8.00
	SHIFT ROD 100 (BK / SV / GD) (#16)	SRD-100 $39
	BRAKE ROD 145 [BLACK] (BK / SV / GD) (#17)	SRD-145B $39
	SOCKET HEAD M6-20mm (#19)	SBT-M620 $1.50
	SOCKET HEAD M6-25mm (#20)	SBT-M625 $1.50
	SOCKET HEAD M6-35mm (#21)	SBT-M635 $1.50
	SOCKET HEAD M8-25mm (#22)	SBT-M830 $2.00
	SOCKET HEAD M8-35mm (#23)	SBT-M835 $2.00
	BUTTON HEAD M6-10mm (#24)	BBT-M610 $1.50
	BUTTON HEAD M6-20mm (#25)	BBT-M620 $1.50
	BUTTON HEAD M8-25mm (#26)	BBT-M825 $1.50
	SPLIT WASHER M8 (#27)	SWS-8 $1.20
	PEG WASHER - M8 (#28)	PWS-8 $1.00
	JAM NUT M6 (#29)	JNT-6 $1.75
	REVERSE JAM NUT M6 (#30)	JNT-6L $2.50
	M6 MALE ROD END (#31)	RDED-M6 $12.50
	M6 MALE REVERSE ROD END (#32)	RDED-M6L $12.50

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
