SATO RACING | Rear Sets - DUCATI Monster 796/ ABS ('10-'14)

DUCATI Monster 796 ('10-'14)
REAR SETS

SATO RACING Rear Sets for Ducati Monster 796 features a well-engineered and thoroughly track-tested design, with all parts precision CNC-machined out of high strength anodized billet aluminum, with stainless steel bolts and hardware. Modular adjustable design lets you choose from 11 foot peg positions, ranging from near-stock equivalent to up to 40mm higher than stock. You can easily set it up for stock shift pattern or GP-style reverse shift pattern. ABS compatible. Choice of Black, Silver or vivid Gold anodized finish.

Available options include Tandem Brackets for attaching the stock passsenger pegs, and an adjustable billet aluminum Shift Arm.

POSITIONS

1	10mm Forward	5mm Up
2	10mm Forward	15mm Up
3	10mm Forward	25mm Up
4	10mm Forward	34mm Up
5	0 mm	15mm Up
6	0 mm	20mm Up
7	0 mm	25mm Up
8	0 mm	30mm Up
9	0 mm	40mm Up
10	10mm Back	30mm Up
11	10mm Back	40mm Up

note: all measurements are in relation to stock position (0 mm).

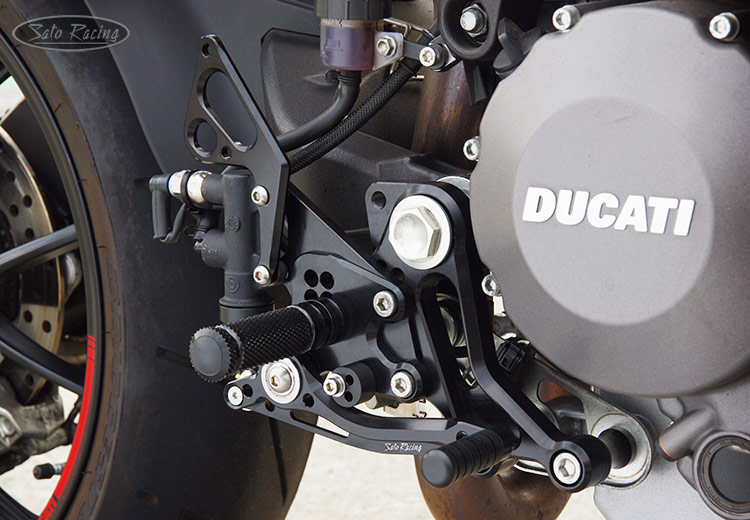

SATO RACING Ducati Monster 796 Rear Sets [R]-side

The brake and shift lever feature dual miniature stainless bearings for smooth, precise lever actuation with a solid feel. An adjustable Step Plate, along with multiple mount holes for the Foot Peg, gives you a choice of 11 unique foot positions, ensuring that you can find the ideal position for your height and riding style.

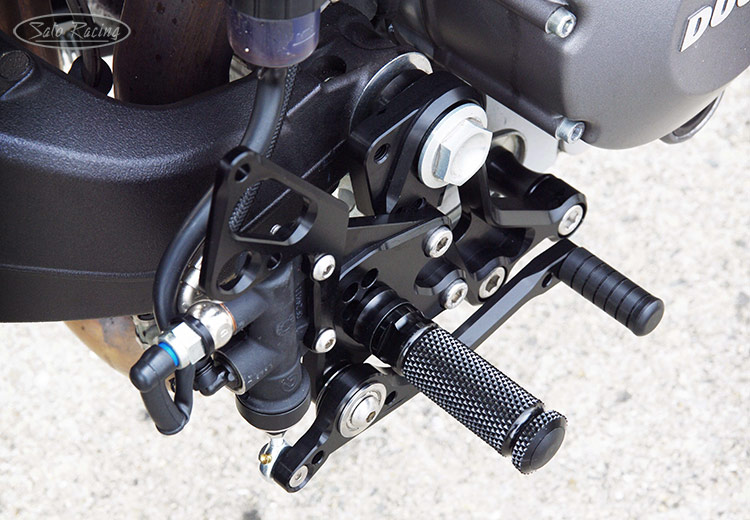

SATO RACING Ducati Monster 796 Rear Sets [R]-side
Rear Sets kit includes a brake light switch.
These Rear Sets are compatible with both ABS-equipped and non-ABS Monster 796 models.

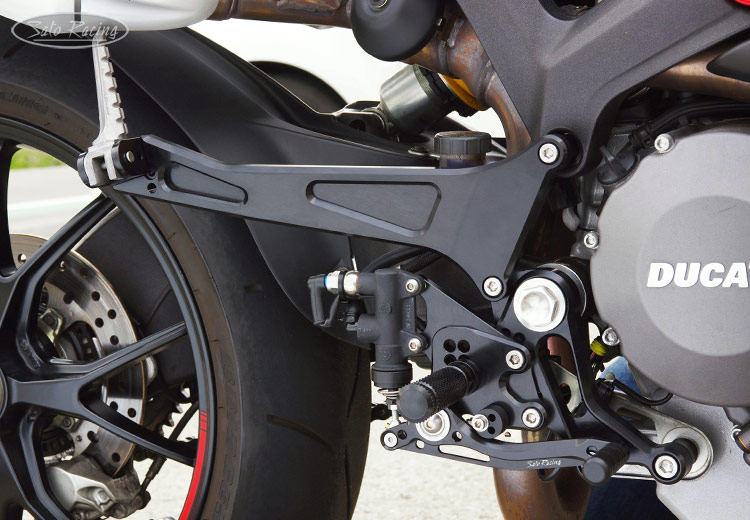

SATO RACING Ducati Monster 796 Rear Sets with optional Tandem Brackets

Monster 796 Rear Sets shown installed with the optional Tandem Brackets, which are designed for use with the stock Ducati passenger peg hardware. These Tandem Brackets are available in Black or Silver anodized finish.

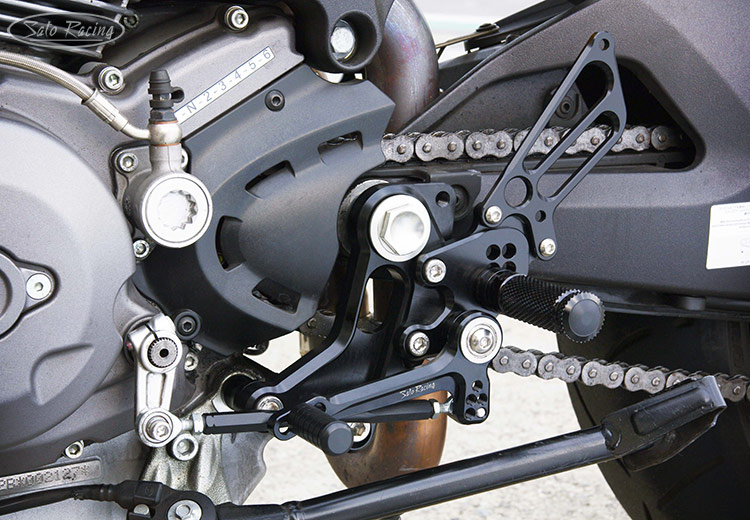

SATO RACING Ducati Monster 796 Rear Sets [L]-side

Stock shift pattern shown above. You can set up these Rear Sets for reverse shift pattern by flipping the stock shift arm to angle upward. We also make a billet aluminum Shift Arm for Ducati models that can be used with these Rear Sets instead of the stock shift arm, providing a wider adjustment range and a shorter throw than stock. Details

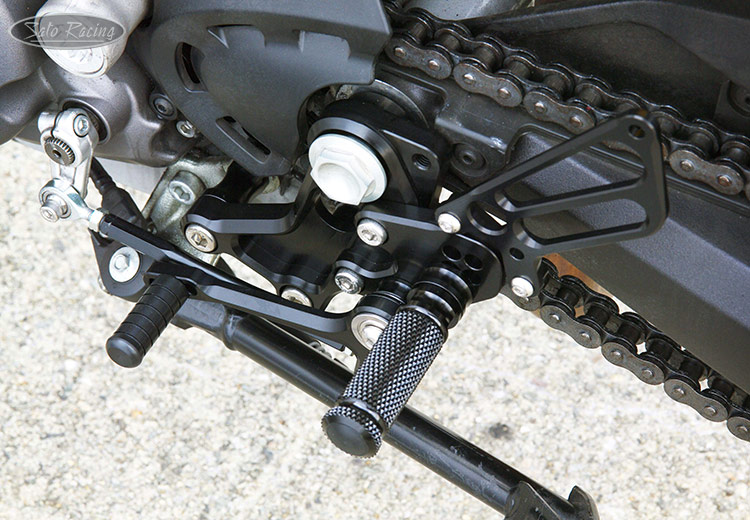

SATO RACING Ducati Monster 796 Rear Sets [L]-side

The standard Foot Pegs are fixed (non-folding), and feature a finely knurled pattern with optimal grip, along with a comfortable, intuitive feel. We also now make Cut-out style Racing Foot Pegs that are compatible with this model, available as an option. See below for Details.

The Pedal Tips (toe pegs) are made of tough, abrasion-resistant Delrin. Additional Pedal Tip styles, such as aluminum Pedal Tips with fluted rubber grips, are also available.

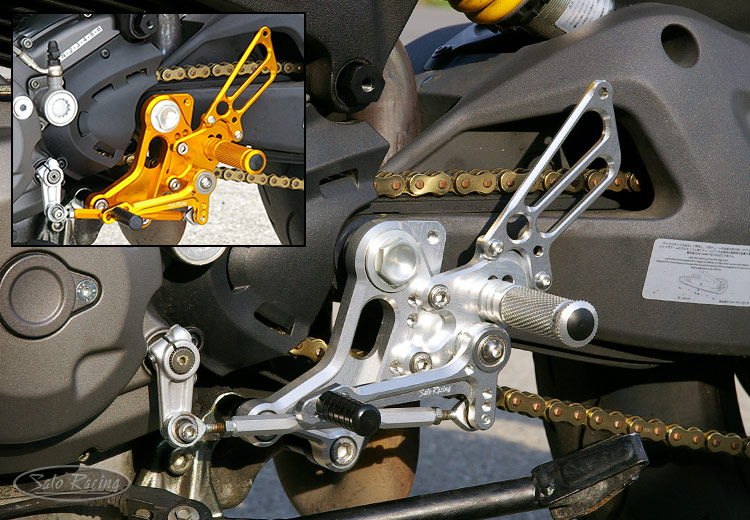

SATO RACING Ducati Monster 796 Rear Sets in Silver and Gold

Choice of Black, Silver (natural metal) or Gold anodized finish.

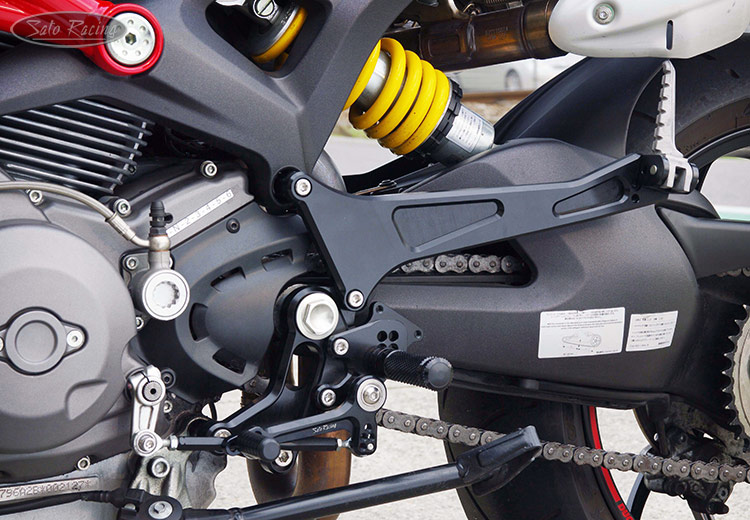

SATO RACING Ducati Monster 796 Rear Sets with optional Tandem Brackets
Monster 796 Rear Sets shown installed with the optional Tandem Brackets.
(The Heel Guards will need to be removed before attaching Tandem Brackets)

Rear Sets

	BLACK	D-M796RS-BK $715
	SILVER	D-M796RS-SV $715
	GOLD	D-M796RS-GD $715

Tandem Brackets
Anodized billet aluminum brackets with chrome molybdenum bolts.
Choice of Black or Silver. (Use with stock passenger pegs).

Sato Racing Tandem Brackets for Ducati Monster 796

BLACK	D-MTB-BK $395
SILVER	D-MTB-SV $395

ADDITIONAL OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

* Click Here for important info about Sato color-anodized parts.

Have questions or prefer to order by phone? You can call us to place an order -

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
M796 Rear Sets - [L]-side | M796 Rear Sets - [R]-side

Some replacement parts for these Rear Sets
can be purchased in our online store:

	FOOT PEG (BK/ SV/ GD)	PEG $42
	PEG COLLAR 12 (BK/ SV/ GD)	PEGCLR-12 $15
	HEX HEAD M8-40mm (Peg bolt)	HBT-M840 $2.00
	SPLIT WASHER M8 (for peg bolt)	SWS-8 $1.20
	PEDAL TIP (DELRIN)	ST-001D18 $15
	BUTTON HEAD M6-20mm (for Pedal Tip)	BBT-M620 $1.50
	[L] HEEL GUARD (BK/ SV/ GD) (L-side #3)	HG-6L $60
	SHIFT PEDAL (BK/ SV/ GD) (L-side #6)	SPD-0912 $62.50
	SHIFT ROD 180 (BK/ SV/ GD) (L-side #8)	SRD-130 $39
	BEARING COLLAR 10s [BLACK] (L-side #9)	PEGBGCLR-10SB $10.00
	ROD END COLLAR 3 (L-side #12)	RDED-CLR3 $6.00
	SOCKET HEAD M6-20mm (L-side #17)	SBT-M620 $1.50
	SOCKET HEAD M6-25mm (L-side #18)	SBT-M625 $1.50
	SOCKET HEAD M8-16mm (L-side #19 / R-side #17)	SBT-M816 $2.00
	BUTTON HEAD M6-10mm (L-side #21)	BBT-M610 $1.50
	BUTTON HEAD M8-35mm (L-side #23)	BBT-M835 $2.00
	SOCKET HEAD M10-65mm (P-1.5) (L-side #20)	SBT-M1065-15 6.00
	PEDAL STOPPER (DELRIN) (R-side #8)	BPD-STOPPER $15.00
	SOCKET HEAD M5-20mm (R-side #12)	SBT-M520 $2.00
	SOCKET HEAD M6-15mm (R-side #13)	SBT-M615 $1.50
	MALE ROD END M5 (R-side #14)	RDED-M5 $15.00
	SOCKET HEAD M5-25mm (R-side #16)	SBT-M525 $2.00
	SOCKET HEAD M10-60mm (P-1.5) (R-side #18)	SBT-M1060-15 6.00
	BUTTON HEAD M8-25mm (R-side #20)	BBT-M825 $1.50
	FLAT HEAD M5-20mm (R-side #21)	FBT-M520 $2.00
	WASHER M5 (R-side #22)	WS-5 $1.00
	PEG WASHER M8 (R-side #23)	PWS-8 $1.00
	NUT M5 (R-side #26)	NUT-5 $1.50
	RETURN SPRING COLLAR (R-side #27)	RS-RSCLR $12.00
	RETURN SPRING 20 (R-side #28)	RS-RSP2 $8.00
	BRAKE LIGHT SWITCH (P-1.0) (R-side #29)	BSW-1 $25
	SOCKET HEAD M6-10mm (R-side #30)	SBT-M610 $1.50
	BRACKET M6 x 25mm [BLACK] (R-side #31)	UB-M625-B $8.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
