DUCATI Monster 1100 / S ('09-'10)
REAR SETS
| SATO RACING Rear Setsv for 2009-10 Ducati Monster 1100 / 1100S features a race-engineered and track-ready design, with components made of light-weight, high strength anodized billet aluminum, with stainless steel bolts. The shift and brake pedals feature miniature double stainless bearings for smooth, solid-feeling lever action. Finely knurled footpegs provide optimal grip, along with a comfortable, intuitive feel. Modular step plate design lets you choose from 11 adjustable positions. Choice of Black, Silver or Gold anodized finish. Available options include a Tandem Brackets set that goes well with the Rear Sets, and a matching adjustable Shift Arm. |
| 1 | 10mm Forward | 5mm Up |
| 2 | 10mm Forward | 15mm Up |
| 3 | 10mm Forward | 25mm Up |
| 4 | 10mm Forward | 34mm Up |
| 5 | 0 mm | 15mm Up |
| 6 | 0 mm | 20mm Up |
| 7 | 0 mm | 25mm Up |
| 8 | 0 mm | 30mm Up |
| 9 | 0 mm | 40mm Up |
| 10 | 10mm Back | 30mm Up |
| 11 | 10mm Back | 40mm Up |
Note: all measurements are in relation to stock position (0 mm).

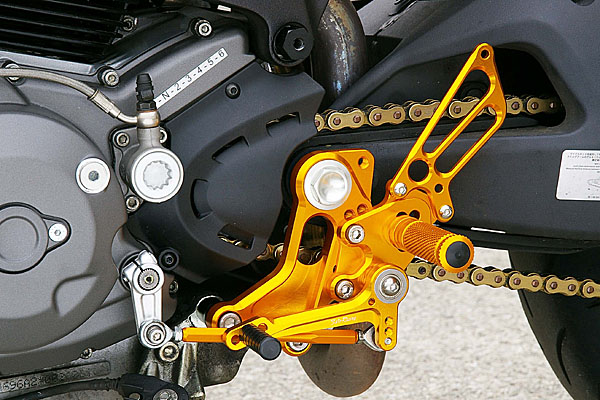

Note: Some of the following photos show our Rear Sets for Monster 696.
The Rear Sets model for 2009-10 Monster 1100/S looks similar.

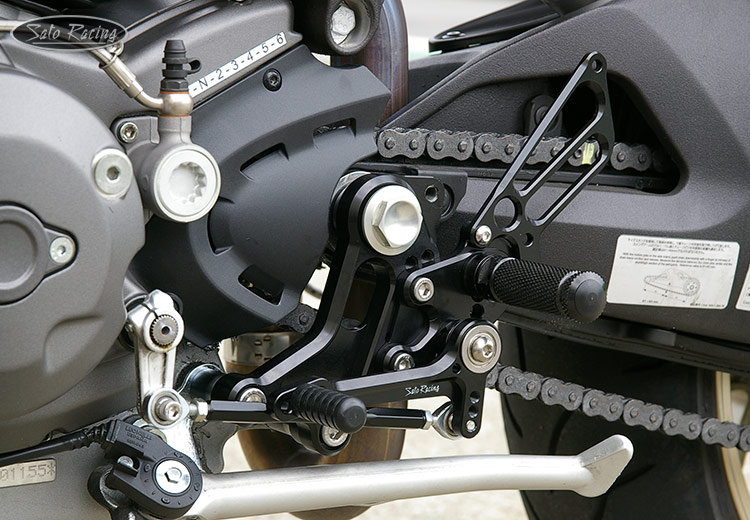

| Stock shift pattern shown above. You can set up these Rear Sets for reverse shift pattern by flipping the stock shift arm to angle upward. We also make a matching billet aluminum Shift Arm that can be used with these Rear Sets instead of the stock shift arm, providing a wider adjustment range and a shorter throw compared to stock. Details |

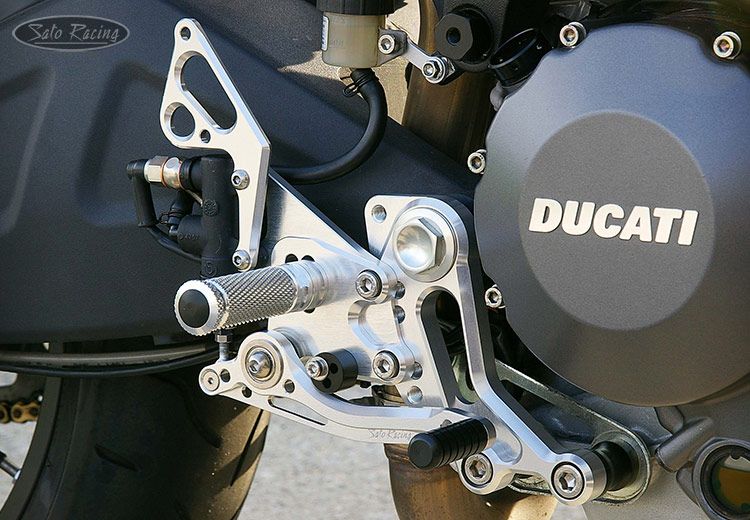

| Choice of Black, Silver (natural metal) or Gold anodized finish. |
|

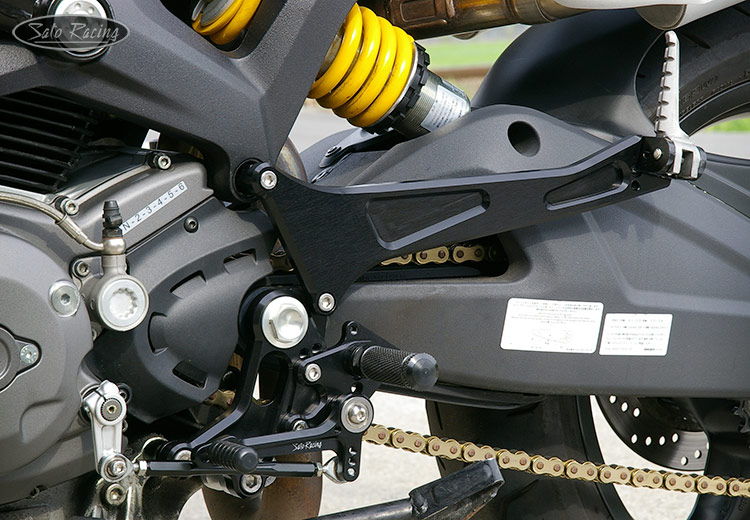

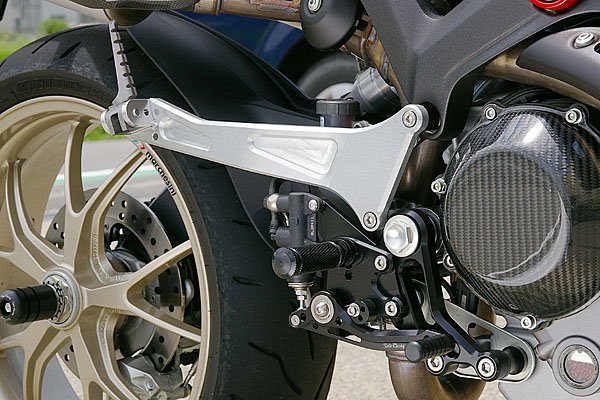

Rear Sets shown installed with optional Tandem Brackets, which let you attach the stock passenger pegs. Tandem Brackets are available in Black or Silver anodized finish. (Remove Heel Guards when attaching the Tandem Brackets.) |

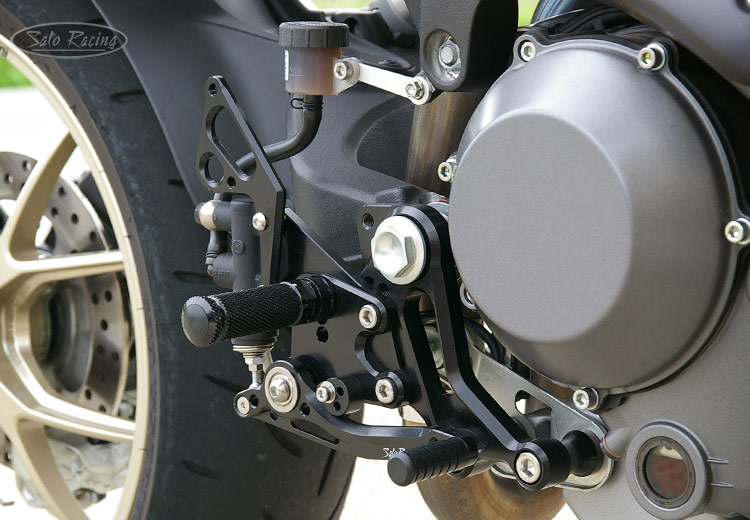

| The shift and brake pedals utilize double miniature stainless bearings for smooth, precise lever action. These Rear Sets are designed to integrate with the OEM (Brembo) master cylinder. Kit includes a pressure-actuated brake light switch that attaches to the master cylinder. |
|
The Foot Pegs feature a finely knurled pattern with excellent grip characteristics, along with a comfortable, intuitive feel. The Foot Pegs have protective end caps made of abrasion-resistant black Delrin. The standard Pedal Tips are also made of Delrin. Additional Pedal Tip styles, such aluminum Pedal Tips with fluted rubber grips, are available separately. |

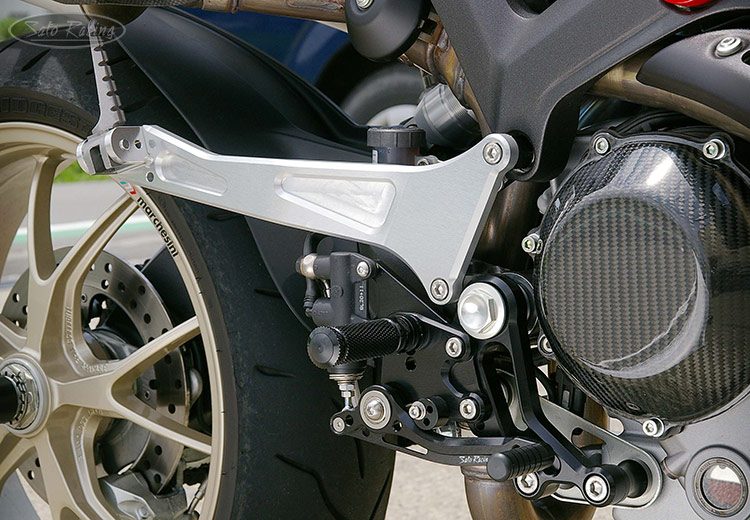

Black Rear Sets with optional Silver Tandem Brackets

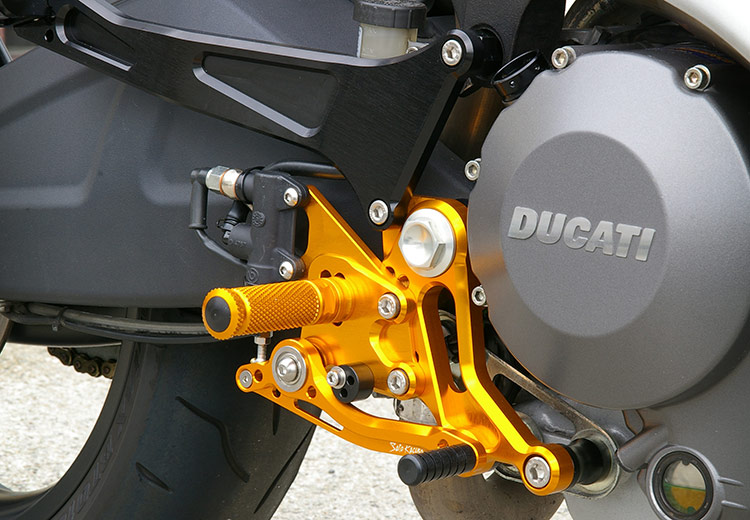

| Gold Tandem Brackets are not available, but the Gold Rear Sets look good fitted with the Black Tandem Brackets. |
REAR SETS
| BLACK | D-M1100RS-BK $715 |
 |
| SILVER | D-M1100RS-SV $715 |
|
| GOLD | D-M1100RS-GD $715 |
|
TANDEM BRACKETS
Anodized billet aluminum brackets with chrome molybdenum bolts,
for attaching the stock passenger pegs. Choice of Black or Silver.
| BLACK | D-MTB-BK $395 |
|
| SILVER | D-MTB-SV $395 |
|
Click Here for important info about Sato color-anodized parts.

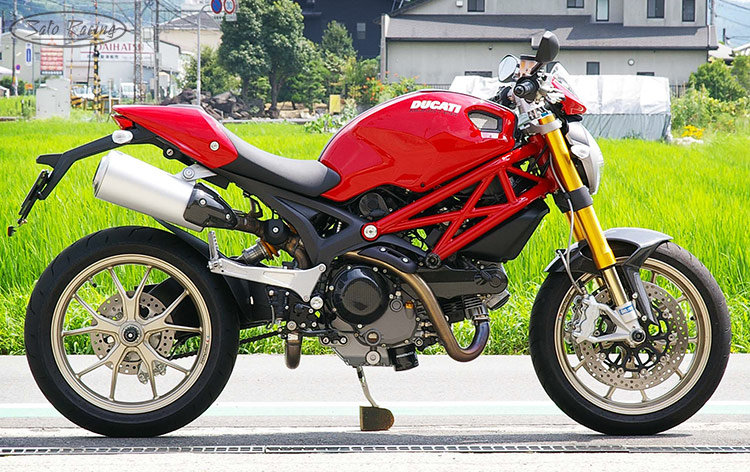

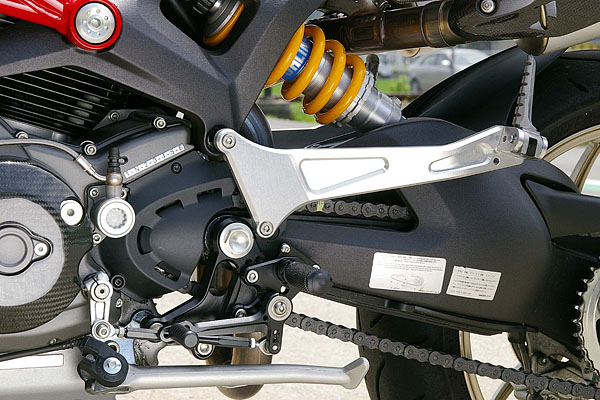

Monster 1100 with SATO RACING Rear Sets + Tandem Brackets,
Oil Filler Cap, Frame Sliders, and Front and Rear Axle Sliders.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) |
PEGCLR-12 $15 |
|
 |
HEX HEAD M8-40mm (Peg bolt) |
HBT-M840 $2.00 |
|
 |
SPLIT WASHER M8 (for peg bolt) |
SWS-8 $1.20 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #3) |
HG-6L $60 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (L-side #6) |
SPD-0912 $62.50 |
|
 |
SHIFT ROD 130 (BK/ SV/ GD) (L-side #8) |
SRD-130 $39 |
|
 |
BEARING COLLAR 10 (BK/ SV/ GD) (L-side #9) |
PEGBGCLR-10 $15.00 |
|
 |
ROD END COLLAR 3 (L-side #12) |
RDED-CLR3 $6.00 |
|
 |
SOCKET HEAD M6-20mm (L-side #17) |
SBT-M620 $1.50 |
|
|
SOCKET HEAD M6-25mm (L-side #18) |
SBT-M625 $1.50 |
|
 |
SOCKET HEAD M8-15mm (L-side #19 / R-side #17) |
SBT-M815 $2.00 |
|
 |
SOCKET HEAD M10-65mm (P-1.5) (L-side #20 / R-side #31) |
SBT-M1065-15 6.00 |
|
 |
BUTTON HEAD M6-10mm (L-side #21) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-35mm (L-side #23) |
BBT-M835 $2.00 |
|
 |
PEDAL STOPPER (DELRIN) (R-side #8) |
BPD-STOPPER $15.00 |
|
 |
SOCKET HEAD M5-20mm (R-side #12) |
SBT-M520 $2.00 |
|
 |
SOCKET HEAD M6-15mm (R-side #13) |
SBT-M615 $1.50 |
|
 |
MALE ROD END M5 (R-side #14) |
RDED-M5 $15.00 |
|
 |
SOCKET HEAD M5-25mm (R-side #16) |
SBT-M525 $2.00 |
|
 |
SOCKET HEAD M10-55mm (P-1.5) (R-side #18) |
SBT-M1055-15 6.00 |
|
 |
BUTTON HEAD M8-25mm (R-side #20) |
BBT-M825 $1.50 |
|
 |
FLAT HEAD M5-20mm (R-side #21) |
FBT-M520 $2.00 |
|
 |
WASHER M5 (R-side #22) |
WS-5 $1.00 |
|
 |
PEG WASHER M8 (R-side #23) |
PWS-8 $1.00 |
|
 |
NUT M5 (R-side #25) | NUT-5 $1.50 |
|
 |
RETURN SPRING COLLAR (R-side #26) |
RS-RSCLR $12.00 |
|
 |
RETURN SPRING 20 (R-side #27) |
RS-RSP2 $8.00 |
|
 |
BRAKE LIGHT SWITCH (P-1.0) (R-side #28) |
BSW-1 $25 |
|
 |
SOCKET HEAD M6-10mm (R-side #29) |
SBT-M610 $1.50 |
|
 |
BRACKET M6 x 50mm [BLACK] (R-side #30) |
UB-M650-B $10.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
