DUCATI SCRAMBLER ('15-'22) / Monster 797 ('17- )
REAR SETS

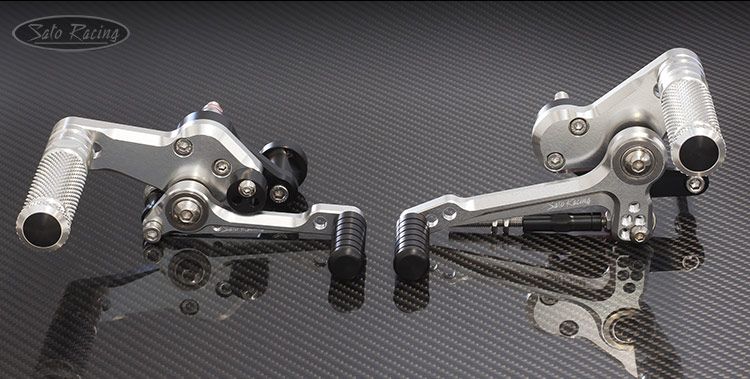

| SATO RACING Rear Sets for 2015-22 Scrambler Ducati (400/800) and Monster 797 feature a flat track racer-inspired design made from high strength billet aluminum and anodized in your choice of all-Black, or Silver or Gold anodized finish with contrasting Black base plates. The foot peg position is adjustable, providing a range of positions that bring your feet higher up and significantly further back compared to the stock foot rests, for a sportier, less upright riding position well-suited for spirited riding. |
| 1 | 52.5mm Back (2.1" Back) |
17.5mm Up (0.7" Up) |
| 2 | 62.5mm Back (2.5" Back) |
22mm Up (0.9" Up) |
note: all measurements are in relation to stock position (0 mm).

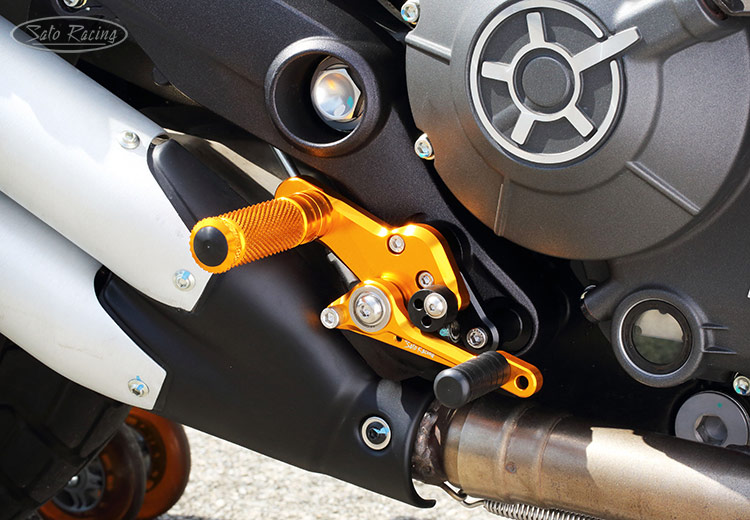

![SATO RACING Ducati Scrambler Rear Sets [R]-side](pics/DucatiScrambler_RearSets_GD_Fit_R1.jpg "SATO RACING Ducati Scrambler Rear Sets [R]-side")
The shift and brake pedals use double miniature stainless bearings for smooth, precise lever actuation.

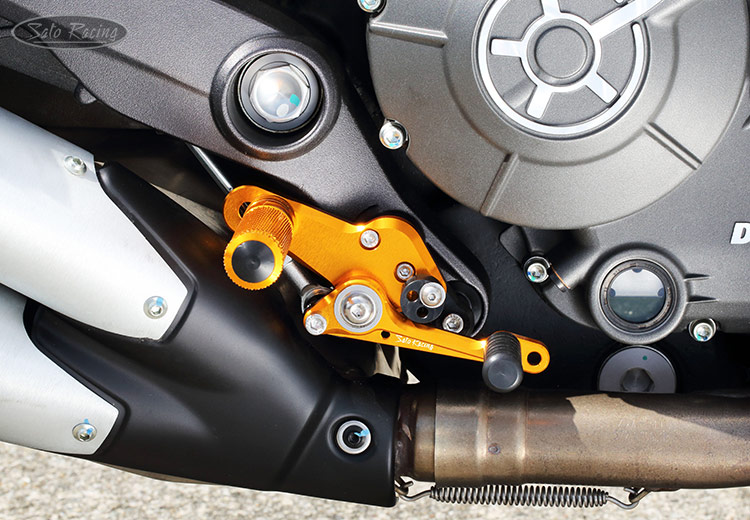

![SATO RACING Ducati Scrambler Rear Sets [R]-side](pics/DucatiScrambler_RearSets_GD_Fit_R2.jpg "SATO RACING Ducati Scrambler Rear Sets [R]-side")
Both the Foot Peg and Pedal Tip mounting positions can be adjusted,
so you can find the best position to suit your foot size and riding style.

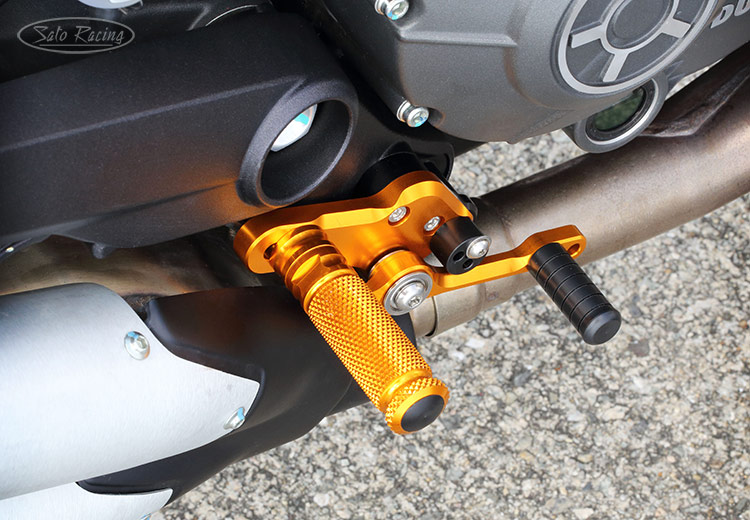

![SATO RACING Ducati Scrambler Rear Sets [R]-side](pics/DucatiScrambler_RearSets_GD_Fit_R3.jpg "SATO RACING Ducati Scrambler Rear Sets [R]-side")
The Foot Pegs feature a finely knurled pattern for excellent grip and feel. The foot peg
end caps and the Pedal Tips (toe pegs) are made of tough, abrasion-resistant black Delrin.

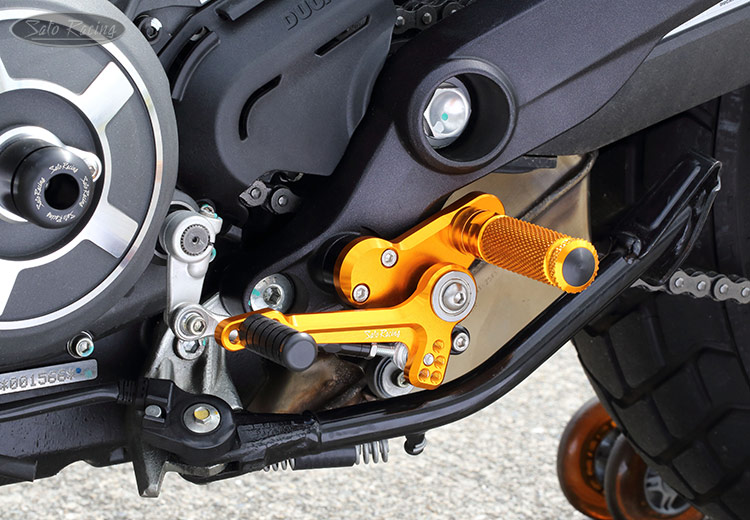

![SATO RACING Ducati Scrambler Rear Sets [L]-side](pics/DucatiScrambler_RearSets_GD_Fit_L1.jpg "SATO RACING Ducati Scrambler Rear Sets [L]-side")
The base of the shift pedal has multiple adjustment holes for fine-tuning the shift stroke.
A matching billet aluminum Shift Arm kit is an available option for this model.

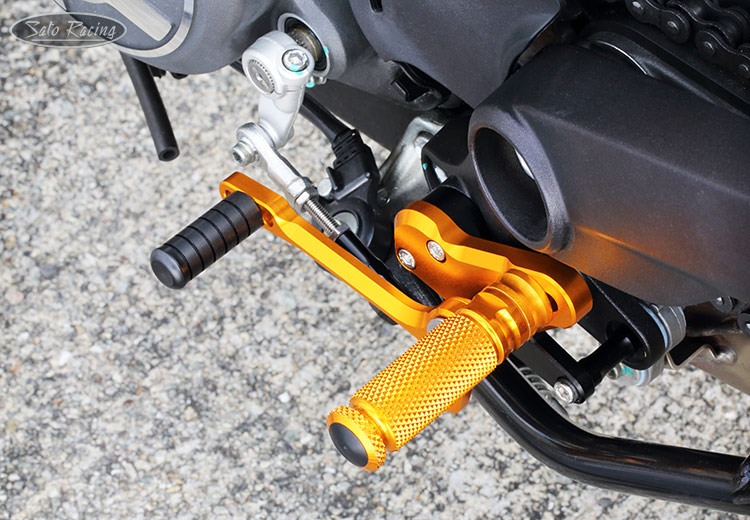

![SATO RACING Ducati Scrambler Rear Sets [L]-side](pics/DucatiScrambler_RearSets_GD_Fit_L3.jpg "SATO RACING Ducati Scrambler Rear Sets [L]-side")
These Rear Sets provide a stock shifting pattern.

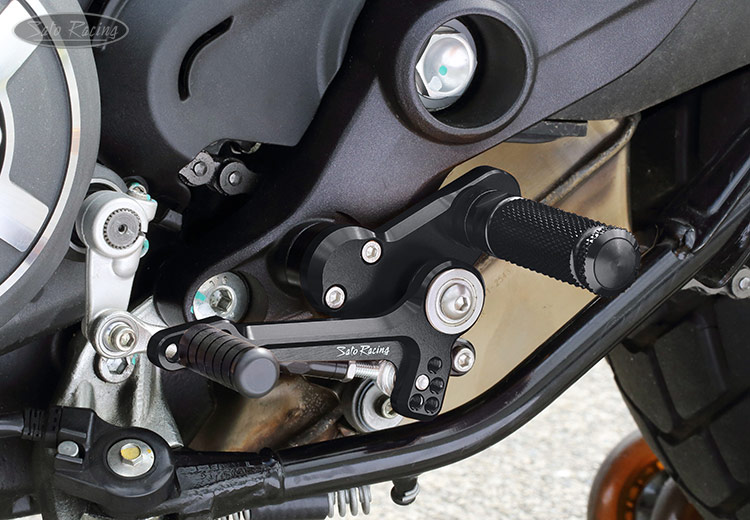

![SATO RACING Ducati Scrambler Rear Sets [L]-side](pics/DucatiScrambler_RearSets_BK_Fit_L1.jpg "SATO RACING Ducati Scrambler Rear Sets [L]-side")
Choice of Black, Silver or Gold anodized finish.
| BLACK | D-SCRAMRS-BK $535 |
 |
| SILVER | D-SCRAMRS-SV $535 |
|
| GOLD | D-SCRAMRS-GD $535 |
|
Click Here for important info about Sato color-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $52 |
|
 |
SILVER | RCPEG-SV $52 |
|
 |
GOLD | RCPEG-GD $52 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 5 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $48 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#18) |
PEGCLR-15 $15 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $16.50 |
|
 |
SHIFT ROD 40 [BLACK] (#6) |
SRD-40-B $35 |
|
 |
BEARING COLLAR 5s [BLACK] (#17) |
PEGBGCLR-5SB $10.00 |
|
 |
SOCKET HEAD M6-15mm (#20) |
SBT-M615 $1.50 |
|
 |
SOCKET HEAD M6-40mm (#21) |
SBT-M640 $2.00 |
|
 |
SOCKET HEAD M6-60mm (#22) |
SBT-M660 $3.00 |
|
 |
SOCKET HEAD M6-45mm (#23) |
SBT-M645 $2.00 |
|
 |
BUTTON HEAD M5-20mm (#24) |
BBT-M520 $2.00 |
|
 |
BUTTON HEAD M6-20mm (#25) |
BBT-M620 $1.50 |
|
|
BUTTON HEAD M6-25mm (#26) |
BBT-M625 $1.50 |
|
 |
BUTTON HEAD M8-35mm (#27) |
BBT-M835 $2.00 |
|
 |
BUTTON HEAD M8-40mm (#28) |
BBT-M840 $2.00 |
|
 |
STUD M6 x 45mm (#29) | STUD-M6 $2.50 |
|
 |
FLAT HEAD M8-45mm (#30, Foot Peg bolt) |
FBT-M845 $2.50 |
|
 |
PEG WASHER - M8 (#31) |
PWS-8 $1.00 |
|
 |
JAM NUT M6 (#32) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#33) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (#34) |
LNT-6 $1.50 |
|
 |
M6 MALE REVERSE ROD END (#35) |
RDED-M6L $12.50 |
|
 |
FEMALE ROD END M6 (#36) |
RDED-F6 $15 |
|
 |
BRAKE LIGHT SWITCH (P-1.0) |
BSW-1 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
