DUCATI MONSTER 1200/S / 821 ( '14-'16)
REAR SETS

SATO RACING Rear Sets for 2014-16* Ducati Monster 1200/S and 2015-17 Monster 821 features a heavy-duty, track-engineered design, with all components precision machined out of high strength anodized billet aluminum, and fastened together with stainless steel bolts. Modular adjustable design provides 4 unique Foot Peg positions, so you can find the ideal position for your riding style. This premium Rear Sets kit includes a set of black anodized billet aluminum mounting plates to replace the stock pivot cover hardware. Choice of all Black anodized finish, or vivid Gold anodized finish with contrasting Black mounting plates and exhaust hanger.

* For 2016 Monster 1200R Rear Sets, Click Here.

POSITIONS

1	12.5mm Forward (0.5" Forward)	15mm Up (0.6" Up)
2	0mm (stock position)	15mm Up (0.6" Up)
3	5mm Forward (0.2" Forward)	27mm Up (1.1" Up)
4	7.5mm Back (0.3" Back)	27mm Up (1.1" Up)

note: all measurements are in relation to stock foot peg position (0 mm).

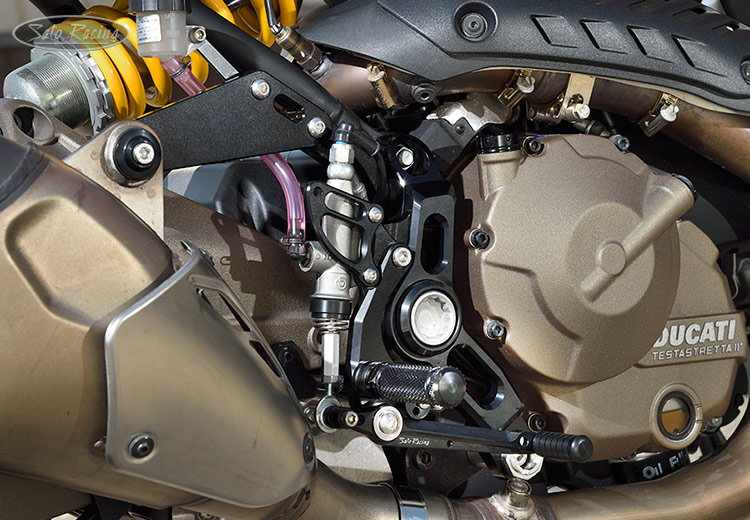

SATO RACING Ducati Monster 1200 821 2014-16 Rear Sets [R]-side in Black

The Foot Peg position can be adjusted horizontally 2 ways on the Step Plate. Additionally, the Step Plate position can also be adjusted diagonally where it attaches to the Base Plate, for a total of 4 positions, bringing your feet higher up compared to stock.

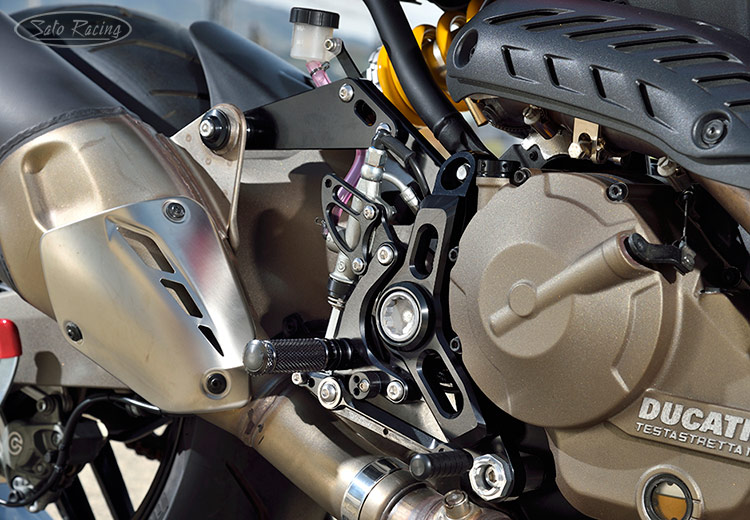

SATO RACING Ducati Monster 1200 821 2014-16 Rear Sets [R]-side in Black

Rear Sets include an integrated hanger bracket for the muffler.
NOTE: The passenger pegs are deleted when installng this kit.

Rear Sets kit includes a pressure-type brake light switch.

SATO RACING Ducati Monster 1200 R Rear Sets [L]-side in Gold

Provides a dedicated stock shifting pattern. Reverse / GP shift pattern is not an option for this model. The Gold version has black anodized base plates and exhaust hanger. NOTE: The above photo shows our Rear Sets for 2016 Monster 1200R. The version for the 2014-16 Monster 1200/ 821 is similar on the shifter side.

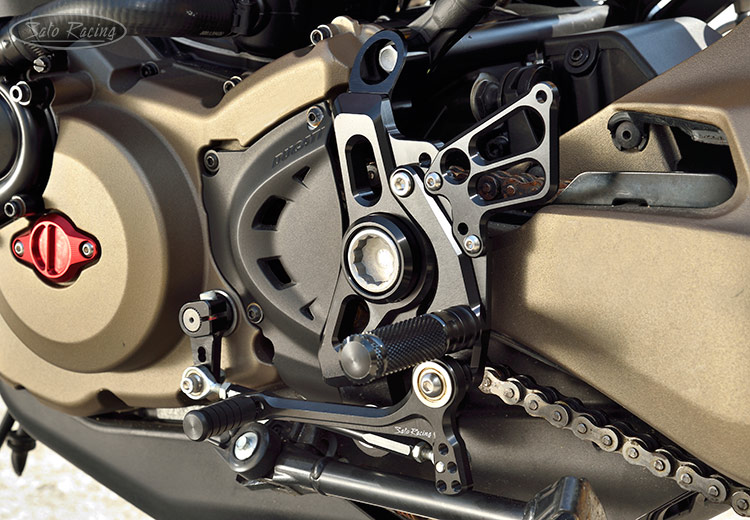

SATO RACING Ducati Monster 1200 R Rear Sets [L]-side in Black

Our Rear Sets are designed to use the OEM shift arm / rod ends (as seen in the photo of the Gold Rear Sets above). We also make a matching Shift Arm made of Black, Silver or Gold anodized billet aluminum (The Black one is shown in the above photo) that can be used with these Rear Sets instead of the stock shift arm, providing a wider adjustment range and a shorter throw compared to stock. Details

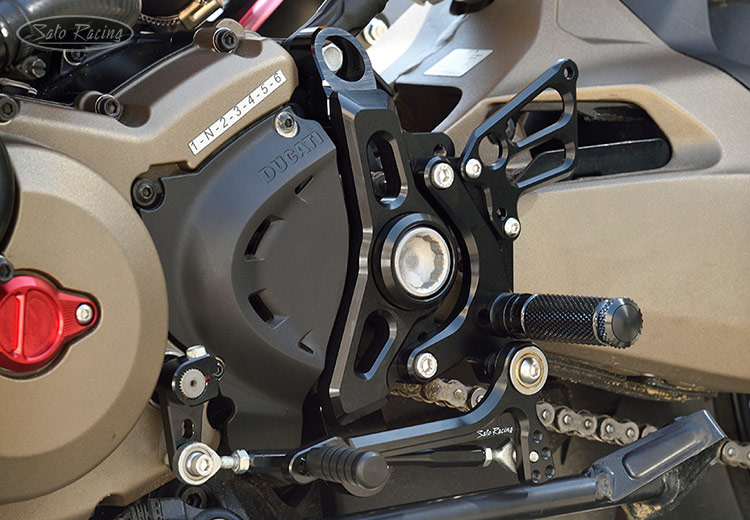

SATO RACING Ducati Monster 1200 821 2014-16 Rear Sets [L]-side in Black

The Foot Pegs have a finely knurled pattern with excellent grip characteristics, along with a comfortable, intuitive feel. The shift and brake pedals use double miniature stainless bearings for smooth, precise lever actuation. The mounting points for the pedals are on a separate axis from the foot pegs for optimal control and leverage.

The standard Pedal Tips (toe pegs) are made of tough, abrasion-resistant black Delrin. Additional Pedal Tip styles, such as aluminum Pedal Tips with fluted rubber grips, are available options.

BLACK	D-M1214RS-BK $1250
GOLD w/ Black Base Plates/ Exhaust Hanger	D-M1214RS-GD $1250

Click Here for important info about Sato color-anodized parts.

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

Have questions or prefer to order by phone? You can call us to place an order -

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list diagram included with your SATO RACING Rear Sets.

Some replacement parts for these Rear Sets
can be purchased in our online store:

	FOOT PEG (BK/ GD)	PEG $42
	HEX HEAD M8-40mm (Foot Peg bolt)	HBT-M840 $2.00
	PEDAL TIP (DELRIN)	ST-001D18 $15
	LOW SOCKET HEAD M6-20mm (for Pedal Tip)	BBT-M620 $1.50

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
