DUCATI  Monster 1200 R '16-'19 /
Monster 1200/S / 821
'17-'21
REAR SETS

SATO RACING Rear Sets for Ducati Monster 1200 R and Monster 1200/S / 821 feature a thoroughly track-engineered design, with all components precision CNC-machined out of high strength anodized billet aluminum, and securely fastened together with stainless steel bolts. Modular adjustable design provides 4 unique Foot Peg positions, so you can find the ideal position for your riding style. This premium Rear Sets kit includes a set of heavy-duty black anodized billet aluminum mounting plates to replace the stock pivot cover hardware. Choice of all Black anodized finish, or vivid Gold anodized finish with contrasting Black mounting plates.

3 versions of these Rear Sets are now available:
Part# D-M1216RS fits 2016-19 Monster 1200 R
Part# D-M1217RS fits 2017-21 Monster 1200/S and 2018-21 Monster 821 with the standard shifter.
Part# D-M1217RSQ fits 2017-21 Monster 1200/ S and 2018-21 Monster 821 with DQS (Ducati quickshifter).

For 2014-16 Monster 1200/S and 2015-17 Monster 821, Click Here.

The following photos show Rear Sets part# D-M1216RS for 2016-19 Monster 1200R. The models for 2017+ Monster 1200/S/821 look the same but include some different mounting hardware.

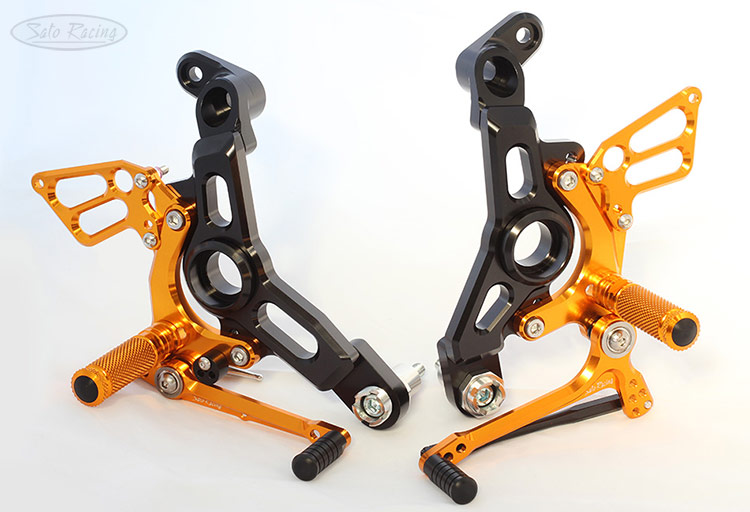

SATO RACING Rear Sets in Gold for Ducati Monster 1200 R


POSITIONS

1 12.5mm Forward
(0.5" Forward)
15mm Up
(0.6" Up)
2 0mm
(stock position)
15mm Up
(0.6" Up)
3 5mm Forward
(0.2" Forward)
27mm Up
(1.1" Up)
4 7.5mm Back
(0.3" Back)
27mm Up
(1.1" Up)

note: all measurements are in relation to stock foot peg position (0 mm).

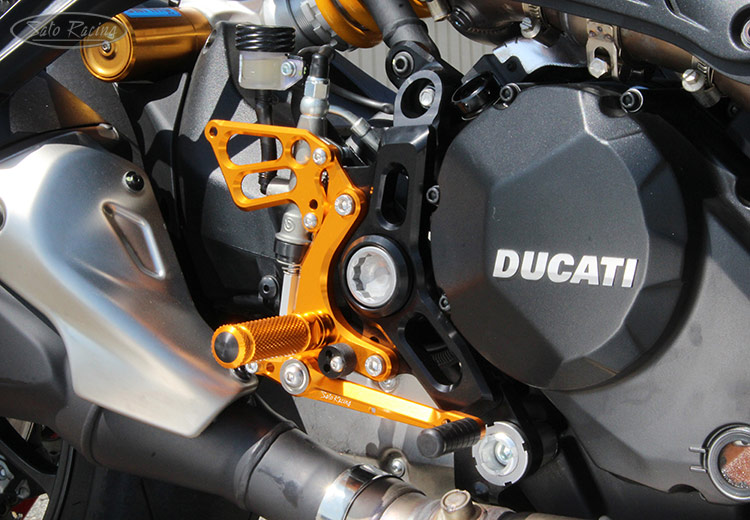

SATO RACING Ducati Monster 1200 R Rear Sets [R]-side

Our Foot Pegs have a finely knurled pattern with excellent grip characteristics, along with a comfortable, intuitive feel. The Foot Peg position can be adjusted horizontally 2 ways on the Step Plate. Additionally, the Step Plate position can also be adjusted diagonally where it attaches to the Base Plate, for a total of 4 positions, bringing your feet higher up compared to stock.

SATO RACING Ducati Monster 1200 R Rear Sets [R]-side in Gold

The shift and brake pedals utilize miniature double stainless bearings for smooth, precise lever action. For optimal control and leverage, the mounting points for the pedals are on a separate axis from the foot pegs.

The standard Pedal Tips are also adjustable, and are made of tough, abrasion-resistant black Delrin. Additional Pedal Tip styles, such as aluminum Pedal Tips with fluted rubber grips, are available separately.

Rear Sets kit includes a pressure-type brake light switch.

SATO RACING Ducati Monster 1200 R Rear Sets [L]-side in Gold

Provides a dedicated stock shifting pattern. (Reverse / GP shift pattern is not an option for these models.

NOTE: Part# D-M1216RS and D-M1217RS are not compatible with aftermarket quick shifters that are designed specifically to be used with the stock Ducati shift lever.

SATO RACING Ducati Monster 1200 R Rear Sets [L]-side in Black

Rear Sets part# D-M1216RS and D-M1217RS are designed to use the OEM shift arm / rod ends (as seen in the photo of the Gold Rear Sets above). We also make a matching Shift Arm made of Black, Silver or Gold anodized billet aluminum (The Black one is shown in the above photo) that can be used with these Rear Sets instead of the stock shift arm, providing a wider adjustment range and a shorter throw compared to stock.  Details

SATO RACING Ducati Monster 1200/S / 821 Rear Sets for DQS in Black
Part# D-M1217RSQ-BK - Includes a shift rod compatible with Ducati Quick Shifter (DQS).




Monster 1200 R 2016-19

SATO RACING Ducati Monster 1200 R Rear Sets in Black BLACK D-M1216RS-BK
$1150
SATO RACING Ducati Monster 1200 R Rear Sets in Black GOLD
w/ Black Base Plates
D-M1216RS-GD
$1150


Monster 1200/S / 821 (2017-21, for standard shifter)

SATO RACING Ducati Monster 1200 Rear Sets in Black BLACK D-M1217RS-BK
$1150
SATO RACING Ducati Monster 1200 Rear Sets in Black GOLD
w/ Black Base Plates
D-M1217RS-GD
$1150


Monster 1200/S / 821 (2017-21, for Ducati quickshifter)

Rear Sets in Black for DQS BLACK D-M1217RSQ-BK
$1150
Rear Sets in Gold for DQS GOLD
w/ Black Base Plates
D-M1217RSQ-GD
$1150


Click Here for important info about Sato color-anodized parts.





_____________________________________________________________________________

OPTIONS

_____________________________________________________________________________




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.




_____________________________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)




_________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list diagram included with your SATO RACING Rear Sets.

Some replacement parts for these Rear Sets models
can be purchased in our online store:

FOOT PEG
(BK/ SV/ GD)
PEG
$42
HEX HEAD M8-40mm
(Foot Peg bolt)
HBT-M840
$2.00
PEDAL TIP (DELRIN) ST-001D18
$15
LSBT-M620 LOW SOCKET HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
