KAWASAKI Z125 PRO ('17- )

SATO RACING Rear Sets (standard version) for Kawasaki Z125 Pro features components precision CNC-machined out of light-weight, high strength billet aluminum and anodized in your choice of deep Black or vivid Gold finish. These Rear Sets are brake light switch-compatible, and are ideal for either street or track use. Featuring 2 adjustable peg positions, bringing your feet either 77.5mm or 90mm rearward compared to the stock foot rests, for a less upright, more aggressive riding position. Provides a stock shift pattern.


1 77.5mm Back 0mm Up
2 90mm Back 0mm Up

note: all measurements are in relation to stock position (0 mm).

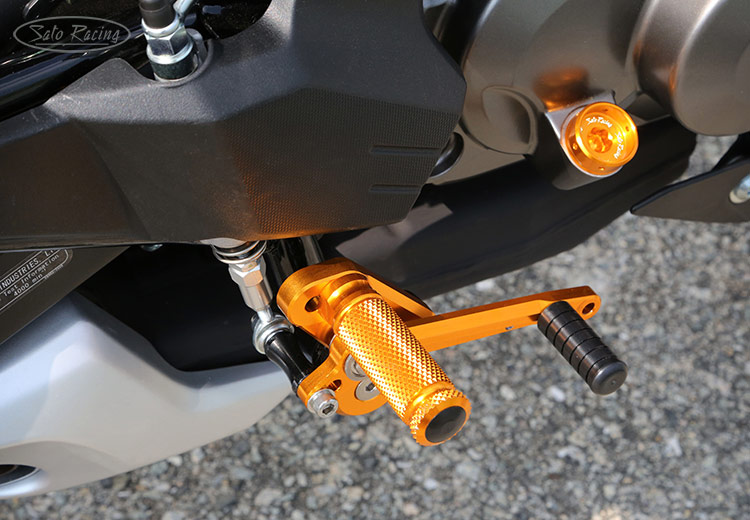

SATO RACING Z125 Pro Rear Sets [R]-side
The Foot Peg is adjustable horizontally 2 ways. The Pedal Tip position is also adjustable. The Shifter and
Brake Pedal use double miniature stainless bearings for smooth, precise lever actuation with a solid feel.

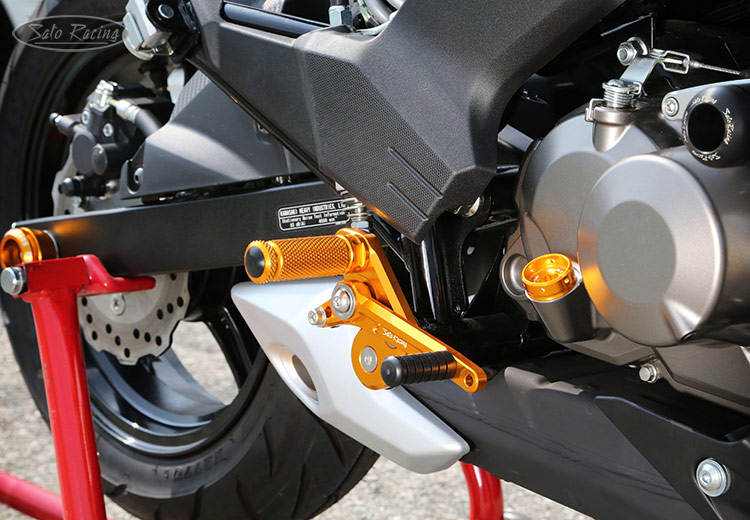

SATO RACING Z125 Pro Rear Sets [R]-side
The Rear Sets kit includes a brake light switch.

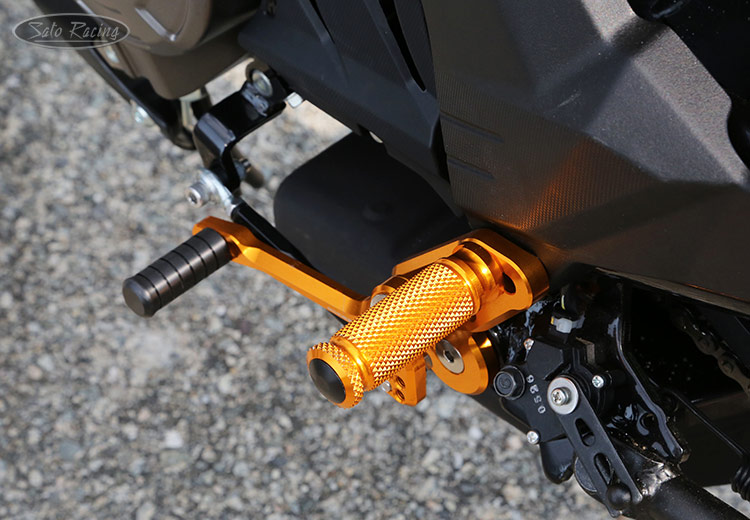

SATO RACING Z125 Pro Rear Sets [L]-side
The shift stroke can be fine-tuned by changing the mount position of the Shift Rod on the Shift Pedal.

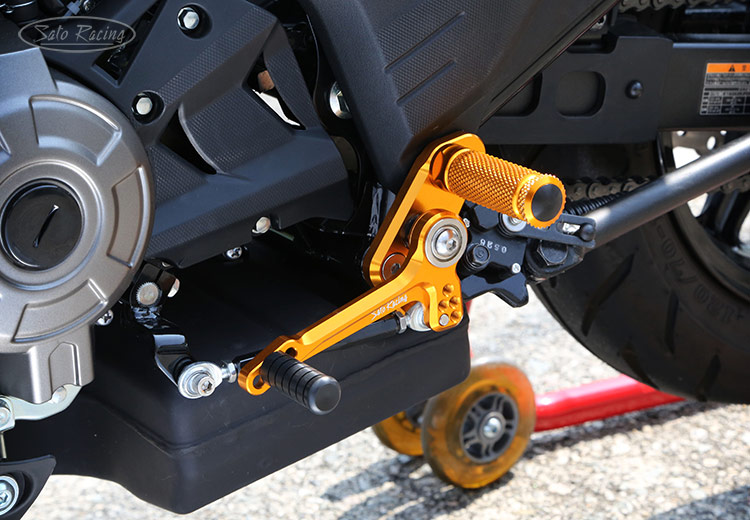

SATO RACING Z125 Pro Rear Sets [L]-side
The Foot Pegs have a finely knurled pattern for nice grip, along with a comfortable, intuitive feel..


Click Here for important info about Sato color-anodized parts.


Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)


Click Here for important info about Sato color-anodized parts.


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)


SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List
