KAWASAKI Z125 PRO ('16- )

SATO RACING 'Race Concept' Rear Sets for Kawasaki Z125 Pro feature components precision CNC-machined from light-weight, high strength billet aluminum and anodized in a vivid Gold finish. These racing Rear Sets feature 4 adjustable peg positions that bring your feet significantly rearward compared to the stock foot rests, for a less upright, more aggressive riding position well-suited to the track.

2 versions of these Rear Sets are available - Stock Shift Rear Sets, which has a stock shifting pattern, and Reverse Shift Rear Sets, which has a dedicated GP-style reverse shift pattern.

NOTE: Not recommended for street use - Not brake light switch-compatible.
(For more street-friendly Rear Sets that are compatible with the stock rear brake light switch, see our standard version Rear Sets for Z125 Pro).

POSITIONS

1 125.5mm Back 10mm Up
2 137.5mm Back 10mm Up
3 125.5mm Back 22mm Up
4 137.5mm Back 22mm Up

note: all measurements are in relation to stock position (0 mm).

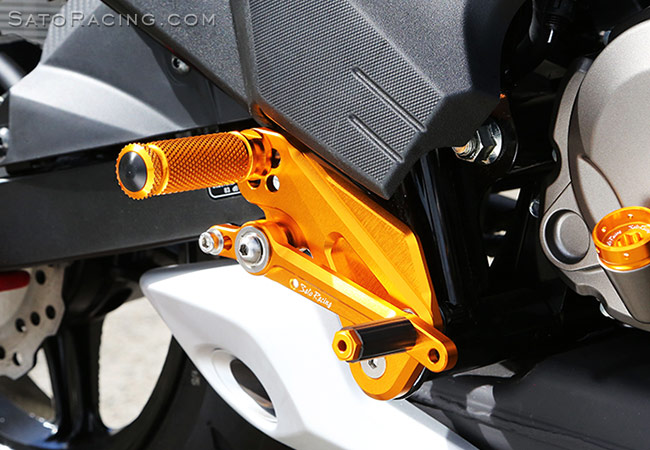

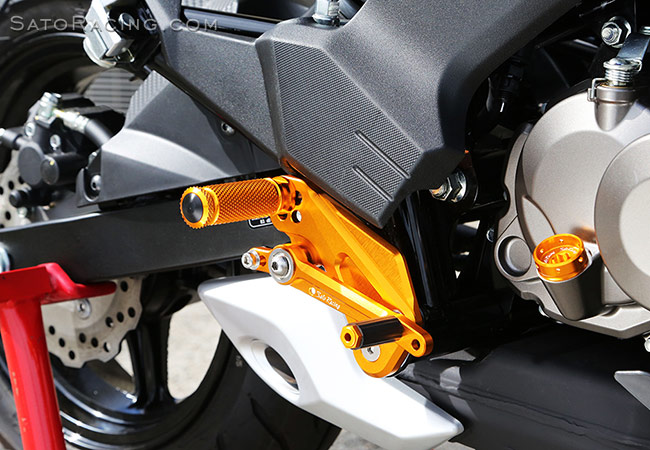

SATO RACING Race Concept Rear Sets for Z125 Pro [R]-side
The position of the Foot Peg is adjustable 4 ways. The Pedal Tip position is also adjustable.

SATO RACING Race Concept Rear Sets for Z125 Pro [R]-side
The shift and brake pedals utilize double stainless bearings for smooth, precise movement.

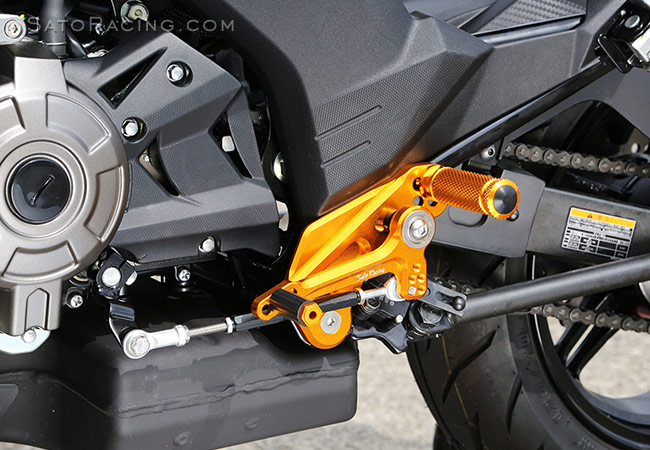

SATO RACING Race Concept Rear Sets for Z125 Pro [L]-side
The clean, angular design of our Rear Sets fits well with the styling of the Z125 Pro.
(Stock Shift Rear Sets shown)

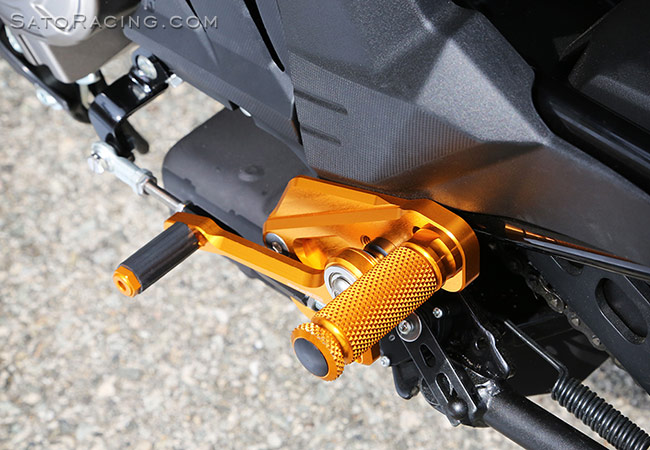

SATO RACING Race Concept Rear Sets for Z125 Pro [L]-side

The foot pegs feature a finely knurled pattern for excellent grip characteristics.
NOTE: Although full-size Foot Pegs and Pedal Tips are shown in these photos, the Rear Sets kit now includes slightly lower-profile 'Short'-style Foot Pegs and Pedal Tips that are more ideally suited to the bike's proportions. (See photo of the Rear Sets kit below).

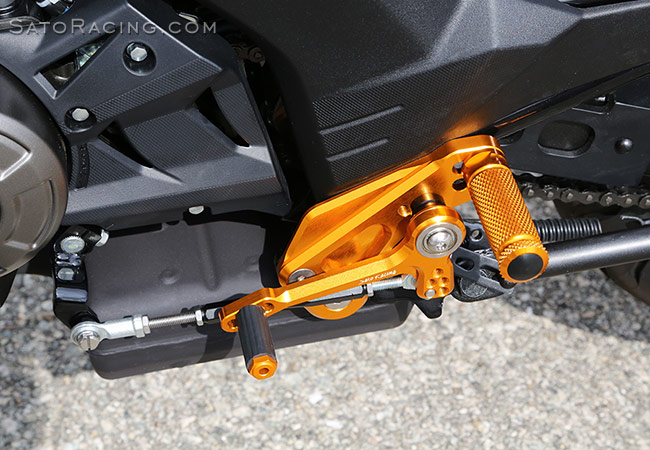

SATO RACING Race Concept Rear Sets for Z125 Pro [L]-side
The shift stroke can be fine-tuned by changing the mount position of the shift rod on the shift pedal.
(Stock Shift Rear Sets shown)

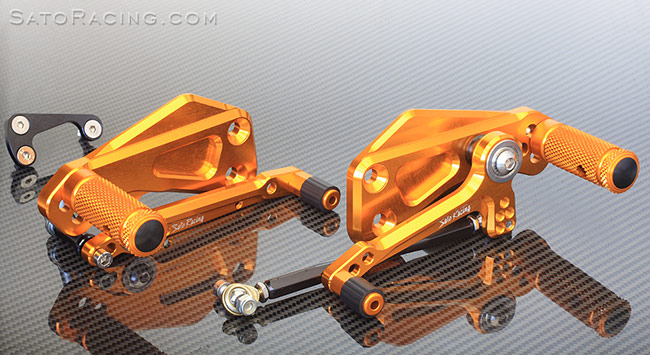

Stock Shift Rear Sets

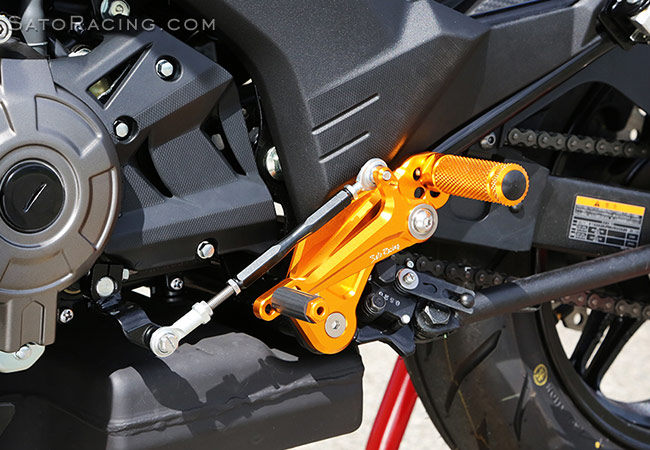

SATO RACING Race Concept Reverse Shift Rear Sets for Z125 Pro [L]-side
Reverse Shift Rear Sets provide a dedicated reverse shifting pattern

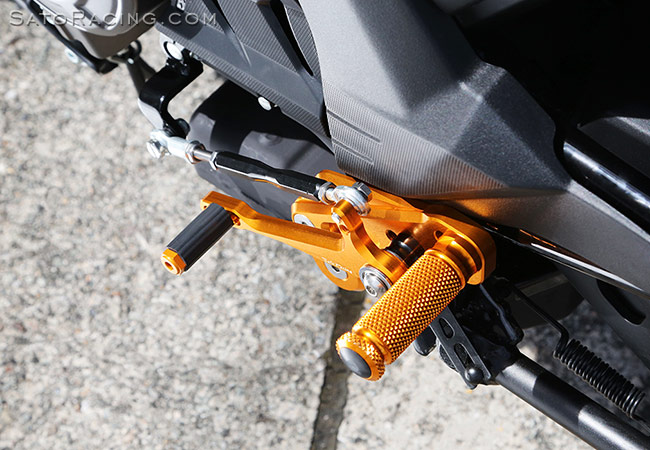

SATO RACING Race Concept Reverse Shift Rear Sets for Z125 Pro [L]-side

SATO RACING Race Concept Reverse Shift Rear Sets for Z125 Pro

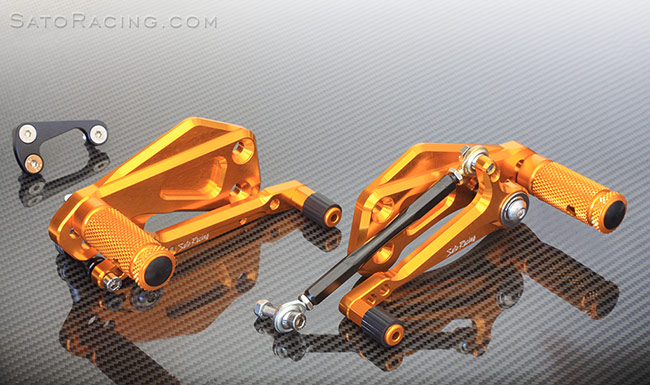

Reverse Shift Rear Sets



STOCK SHIFT
[GOLD]
K-Z125RCRS-GD
$425
REVERSE SHIFT
[GOLD]
K-Z125RCRSR-GD
$425


* Click Here for important info about Sato GOLD-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)
