KAWASAKI NINJA 650 / Z650 ('17- )
REAR SETS

SATO RACING Rear Sets for 2017-24 Kawasaki Ninja 650 and Z650 features a track-engineered, competition-ready design. Adjustable mounts provide 6 foot peg positions, bringing your feet significantly higher up and further back compared to stock for a more aggressive riding position well-suited to the fast straights and steep lean angles encountered on the track. These high quality Rear Sets are precision machined from light-weight, high strength billet aluminum with your choice all-Black anodized finish, or vivid Gold anodized finish with contrasting Black base plates.

Choice of the standard Rear Sets, which provides a stock shifting pattern, and new Reverse Shift Rear Sets, which provide a reverse (GP-style) shift pattern.

POSITIONS

1	70mm Back	50mm Up
2	70mm Back	62.5mm Up
3	85mm Back	50mm Up
4	85mm Back	62.5mm Up
5	80mm Back	62.5mm Up
6	90mm Back	62.5mm Up

note: all measurements are in relation to stock position (0 mm).

NOTE: If you want peg positions more forward than the positions provided by this kit,
check out our Z650RS Rear Sets, which will also fit the Ninja 650 and Z650.

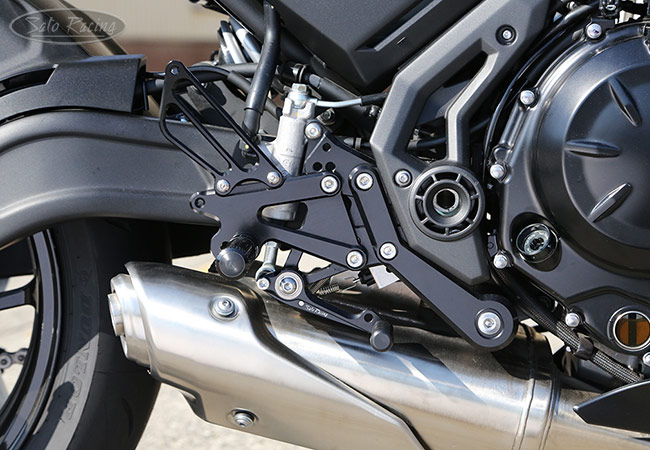

SATO RACING Ninja 650 '17- Rear Sets [R]-side
The brake pedal utilizes miniature double stainless bearings for smooth, precise braking feel.
These Rear Sets are fully compatible with the stock brake light pull switch and ABS.

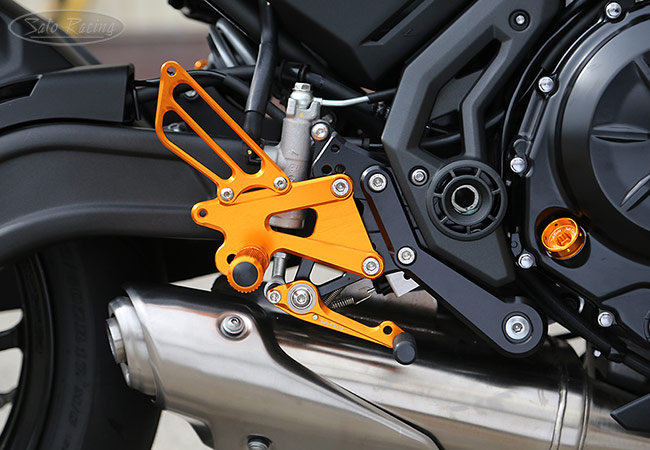

SATO RACING Ninja 650 '17- Rear Sets [R]-side

The positions of the Step Plate and the Foot Peg can be independently adjusted so you can find the ideal position for your riding style. The range of positions is set far back compared to stock to make it easier to maintain a 'full tuck' body position. The high foot position is ideal for corner carving, since you can go lower without scraping the pegs.

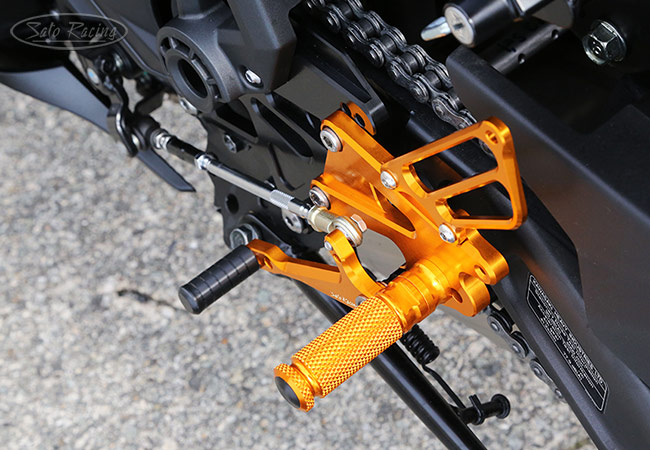

SATO RACING Ninja 650 '17- / Z650 Rear Sets [R]-side
Knurled Foot Pegs provide a comfortable, intuitive feel, and nice grip even in wet conditions.

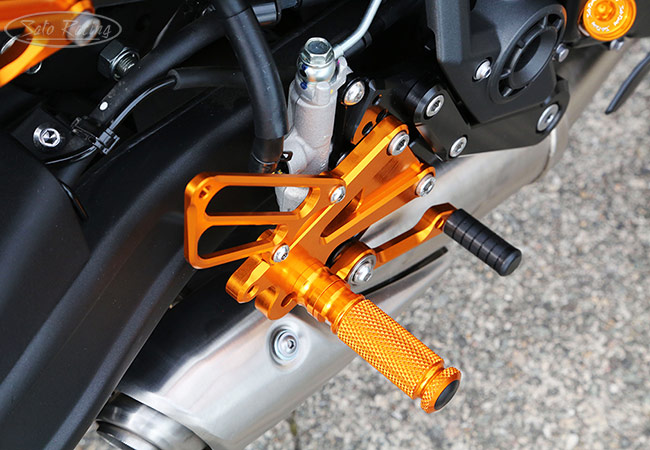

SATO RACING Ninja 650 '17- / Z650 Rear Sets [R]-side
Choice of Black or Gold anodized finish.

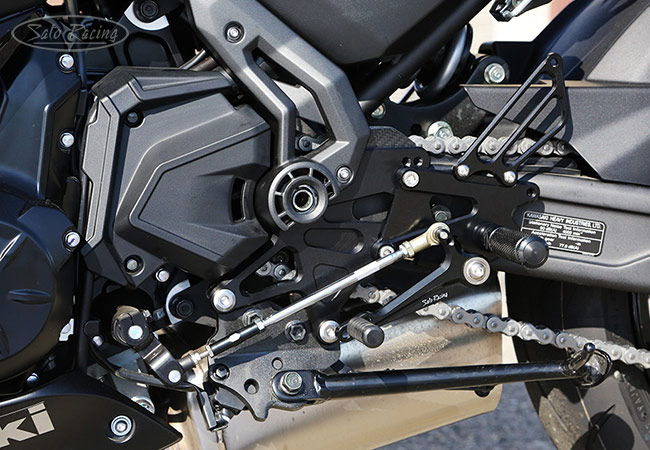

SATO RACING Ninja 650 '17- / Z650 Rear Sets [L]-side

SATO RACING Ninja 650 '17- / Z650 Rear Sets [R]-side
The shift linkage utilizes the stock shift arm and shift rod. The Base Plates come in a
satin Black anodized finish and are styled to blend well with the stock Kawasaki parts.
(Stock shift version shown above)

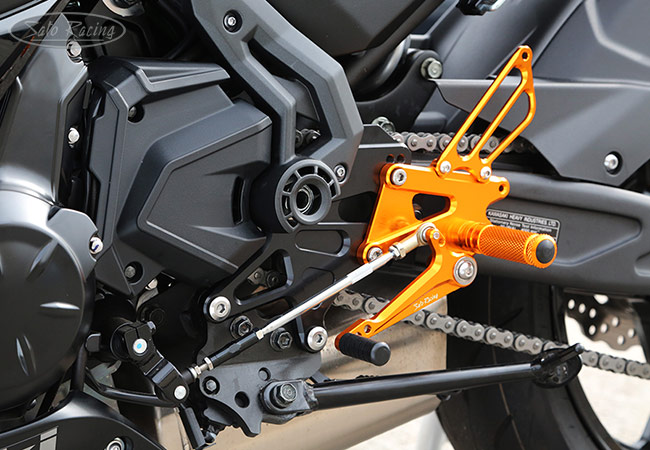

SATO RACING Ninja 650 '17- / Z650 Rear Sets [L]-side

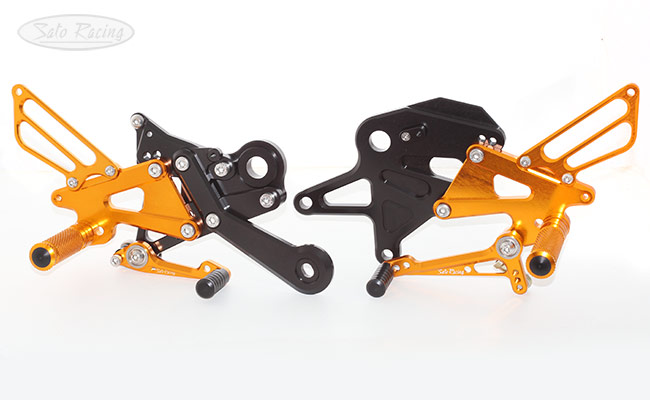

SATO RACING Ninja 650 '17- / Z650 Reverse Shift Rear Sets
Reverse Shift Rear Sets - provides a dedicated reverse shift pattern.

STOCK SHIFT

BLACK	K-65017RS-BK $665
GOLD	K-65017RS-GD $665

REVERSE SHIFT

BLACK	K-65017RSR-BK $665
GOLD	K-65017RSR-GD $665

Click Here for important info about Sato color-anodized parts.

2018 Z650 with SATO RACING Rear Sets, Frame Sliders, Frame Plugs, Racing Hooks, Swingarm Spools and other parts
2018 Kawasaki Z650 with SATO Rear Sets and other parts.

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF Parts List:
Parts List - Std Shift version | Reverse Shift version

Some replacement parts for these Rear Sets
can be purchased in our online store
(Part numbers refer to the parts list for K-65017RS unless otherwise specified:

	FOOT PEG (BK / SV/ GD)	PEG $42
	PEDAL TIP (DELRIN)	ST-001D18 $15
	[L] HEEL GUARD (BK/ SV/ GD) (#1)	HG-2L $60
	[R] HEEL GUARD (BK/ SV/ GD) (#2)	HG-2R $60
	SHIFT ROD 40 [BLACK] (#11)	SRD-40-B $35
	ROD END COLLAR 15 (#17)	RDED-CLR15 $8.00
	PEG COLLAR 15 (BK / SV/ GD) (#18)	PEGCLR-15 $15
	BEARING COLLAR 13 [BLACK] (#19)	PEGBGCLR-13SB $13.00
	HEX HEAD M5-8mm (#20)	HBT-M58 $2.00
	HEX HEAD M6-18mm (#21)	HBT-M618 $2.00
	HEX HEAD M8-40mm (#22 Peg bolt)	HBT-M840 $2.00
	SOCKET HEAD M5-10mm (#23)	SBT-M510 $2.00
	SOCKET HEAD M5-15mm (#24)	SBT-M515 $2.00
	SOCKET HEAD M5-35mm (#25)	SBT-M535 $2.00
	SOCKET HEAD M6-40mm (#26)	SBT-M640 $2.00
	SOCKET HEAD M8-15mm (#27)	SBT-M815 $1.50
	SOCKET HEAD M8-20mm (#28)	SBT-M820 $1.50
	BUTTON HEAD M6-10mm (#29)	BBT-M610 $1.50
	BUTTON HEAD M6-20mm (#30)	BBT-M620 $1.50
	BUTTON HEAD M8-15mm (#31)	BBT-M815 $1.50
	BUTTON HEAD M8-25mm (#32)	BBT-M825 $1.50
	BUTTON HEAD M8-40mm (#33)	BBT-M840 $2.00
	REVERSE STUD M6 (#34)	STUD-M6L $4.20
	NUT M5 (#35)	NUT-5 $1.50
	REVERSE JAM NUT M6 (#36)	JNT-6L $2.50
	LOCK NUT M6 (#37)	LNT-6 $1.50
	SPLIT WASHER M8 (#38)	SWS-8 $1.20
	PULL SWITCH STAY 16 (#40)	PSTAY-16 $9.50
	REVERSE FEMALE ROD END M6 (#41)	RDED-F6L $15.00
	FEMALE ROD END 6-M8 (#42)	RDED-F6-8 $25
