KAWASAKI Z650RS ('22- )
REAR SETS

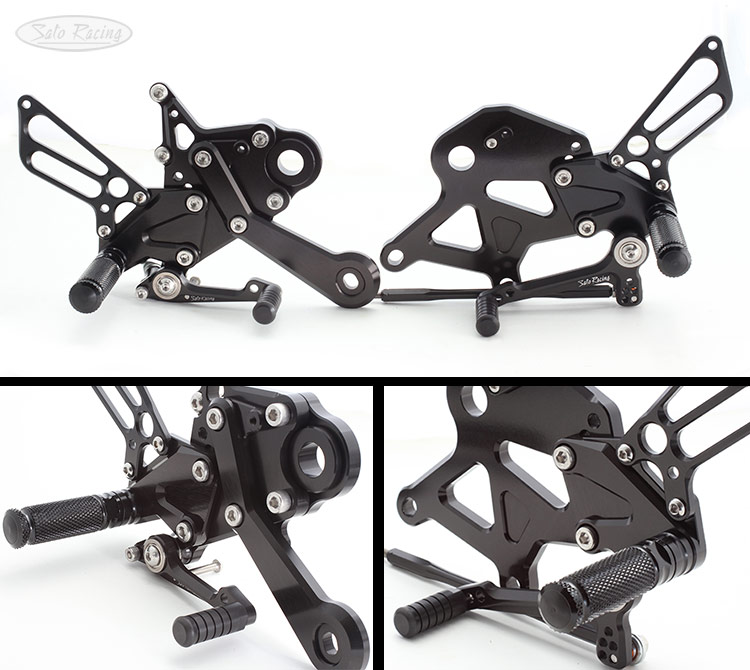

| SATO RACING Rear Sets for 2022-24 Kawasaki Z650RS
* features a track-engineered, competition-ready design. Adjustable mounts provide 3 foot peg positions that bring your feet significantly higher up and further back compared to stock, for a more sport-focused riding position ideally suited for spirited riding. These premium quality foot controls are precision machined from light-weight, high strength
billet aluminum with your choice all-Black anodized finish, or Silver or Gold anodized finish with contrasting Black anodized base plates. *Although optimized for the Z650RS, this rear sets model will also fit 2017+ Ninja 650 and Z650, providing a range of peg positions a bit less aggressive and more forward than our standard Rear Sets for those models. |
| 1 | 60mm Back | 30mm Up |
| 2 | 70mm Back | 42.5mm Up |
| 3 | 80mm Back | 55mm Up |
Note: All measurements are in relation to the stock foot position on a Z650RS.
If installing on a Ninja 650, the peg positions will be closer to the stock position.
![SATO RACING Kawasaki Z650RS '22- Rear Sets [R]-side](pics/K-Z650RSRS-GD_fitR1.jpg "SATO RACING Kawasaki Z650RS '22- Rear Sets [R]-side")

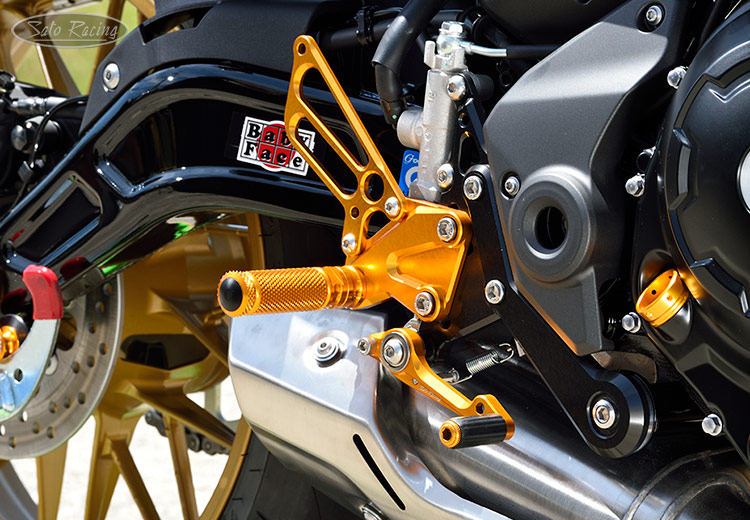

The brake pedal utilizes double miniature stainless bearings for smooth, precise braking feel.
These Rear Sets are fully compatible with the stock brake light pull switch and ABS.
(Brake Pedal shown with optional aluminum Pedal Tip with fluted rubber grip part# ST-001RG.)
![SATO RACING Kawasaki Z650RS '22- Rear Sets [R]-side](pics/K-Z650RSRS-GD_fitR2.jpg "SATO RACING Kawasaki Z650RS '22- Rear Sets [R]-side")

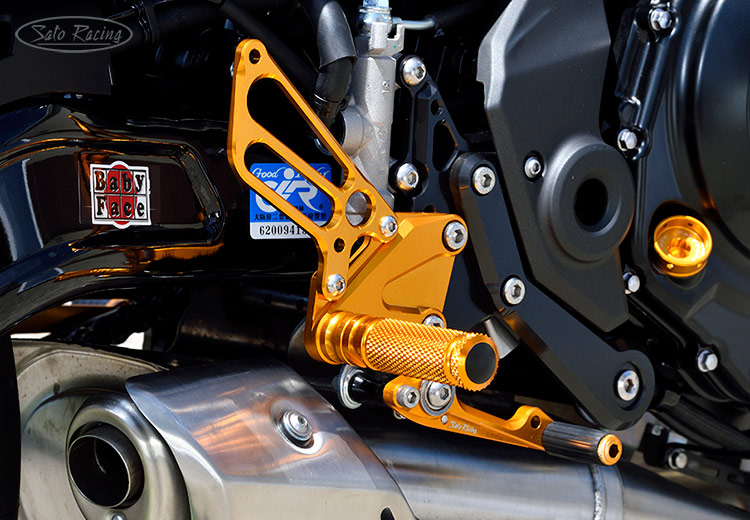

| The mounting position of the Step Plate on the Base Plate can be adjusted so you can find the ideal position for your riding style. The range of positions is set far back compared to stock to make it easier to maintain a 'full tuck' body position. The high foot position is ideal for corner carving, since you can go lower without scraping the pegs. |
![SATO RACING Ninja 650 '17- / Z650 Rear Sets [L]-side](pics/K-Z650RSRS-GD_fitL1.jpg "SATO RACING Kawasaki Z650RS '22- Rear Sets [L]-side")

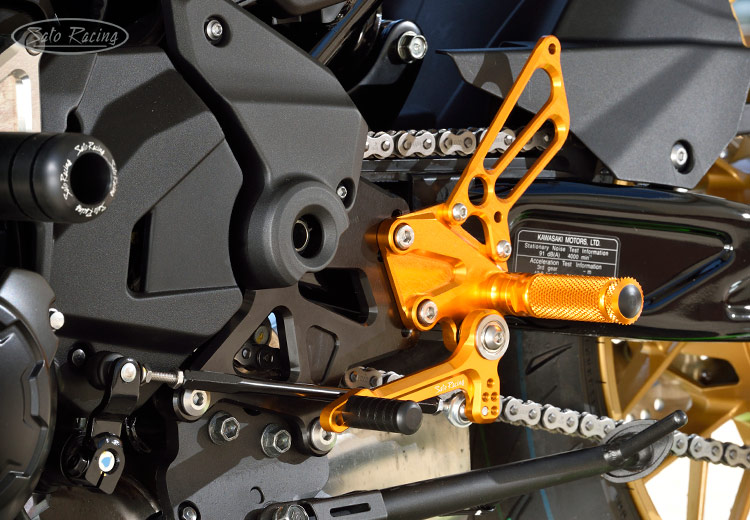

The shift linkage utilizes the stock shift arm, providing a stock shift pattern.
![SATO RACING Kawasaki Z650RS '22- Rear Sets [L]-side](pics/K-Z650RSRS-GD_fitL2.jpg "SATO RACING Kawasaki Z650RS '22- Rear Sets [L]-side")

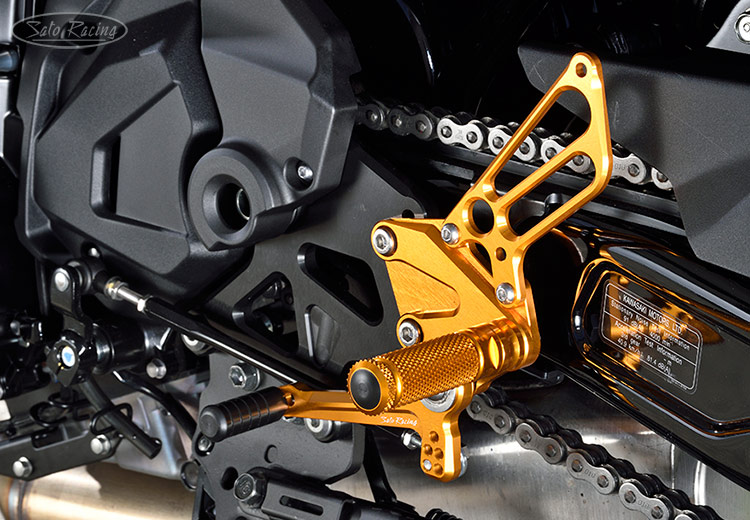

Knurled Foot Pegs provide a comfortable, intuitive feel, and nice grip even in wet conditions.
| BLACK | K-Z650RSRS-BK $665 |
 |
| SILVER | K-Z650RSRS-SV $665 |
|
| GOLD | K-Z650RSRS-GD $665 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
* Click Here for important info about Sato color-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
