KTM RC8 / RC8R
REAR SETS
|
SATO RACING Rear Sets (original version) for KTM RC8 and RC8R are made from high strength billet aluminum with a deep Black anodized finish. Modular design lets you choose from 18 adjustable positions, ranging from lower-than-stock positions to more agressive positions that bring your feet higher up and further back compared to stock. If you prefer a reverse shifting pattern, there's an optional Reverse Shift Plate that does the trick. We also have a Shift Spindle Holder that works great with the Rear Sets to provide an even sturdier, more sure-footed shift feel. (Recommended with the Reverse Shift Plate). |
POSITIONS
| 1 | 5mm Back | 9mm Down |
| 2 | 5mm Back | 1mm Up |
| 3 | 5mm Back | 11mm |
| 4 | 15mm Back | 1mm Up |
| 5 | 15mm Back | 11mm Up |
| 6 | 25mm Back | 11mm Up |
| 7 | 13.5mm Back | 12mm Up |
| 8 | 13.5mm Back | 22mm Up |
| 9 | 13.5mm Back | 32mm Up |
| 10 | 23.5mm Back | 22mm Up |
| 11 | 23.5mm Back | 32mm Up |
| 12 | 23.5mm Back | 32mm Up |
| 13 | 22.5mm Back | 32.5mm Up |
| 14 | 22.5mm Back | 42.5mm Up |
| 15 | 22.5mm Back | 52.5mm Up |
| 16 | 32.5mm Back | 42.5mm Up |
| 17 | 32.5mm Back | 52.5mm Up |
| 18 | 42.5mm Back | 52.5mm Up |
Note: all measurements are in relation to stock position (0 mm).

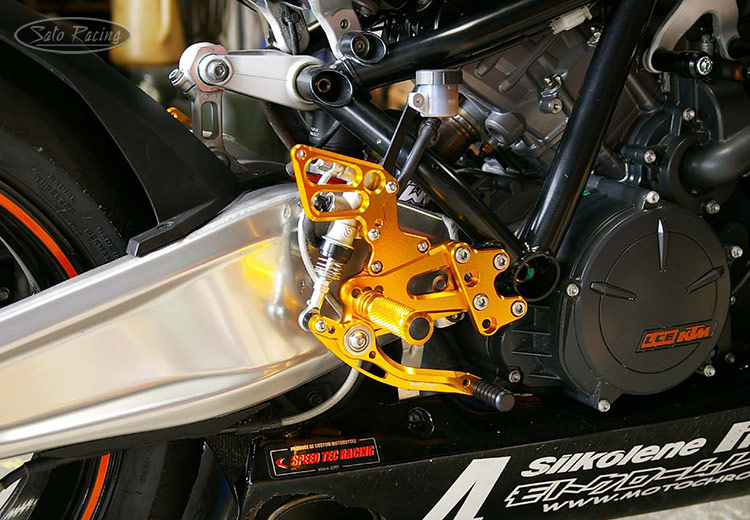

![SATO RACING KTM RC8 Rear Sets [R]-side](pics/KTM-RC8RS-GD_fitR2_750x520.jpg "SATO RACING KTM RC8 Rear Sets [R]-side")

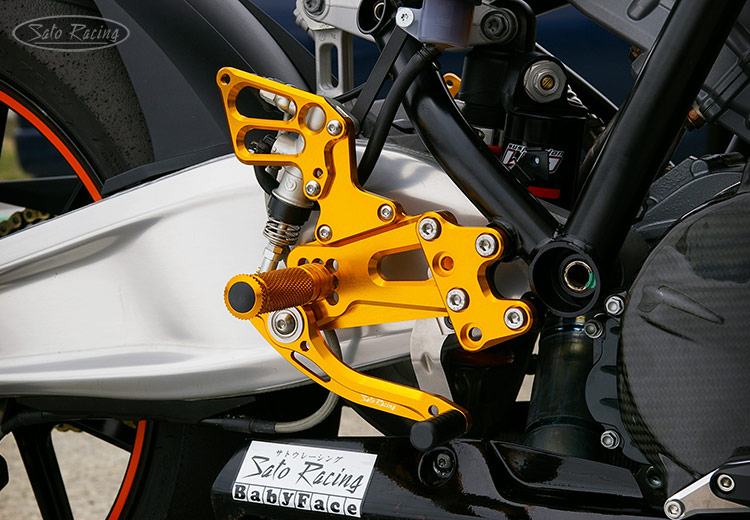

![SATO RACING KTM RC8 Rear Sets [R]-side](pics/KTM-RC8RS-GD_fitR1_750x520.jpg "SATO RACING KTM RC8 Rear Sets [R]-side")
| NOTE: The silver lower fairing support bracket seen in these photos is a KTM Powerparts item, part# 69005283060. We make a Fairing Stay that goes behind the brake side that can be used to hang this bracket, part# KTM-RC8RS-FS. See Below for details. |

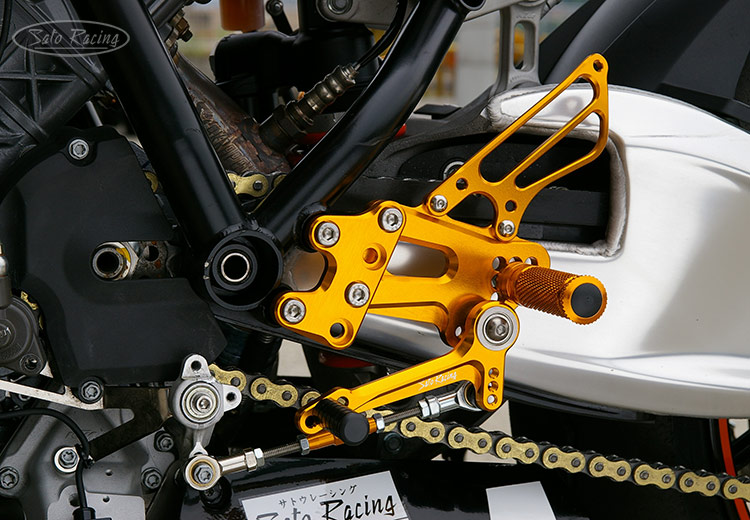

![SATO RACING KTM RC8 Rear Sets [L]-side](pics/KTM-RC8RS-GD_fitL1_750x520.jpg "SATO RACING KTM RC8 Rear Sets [L]-side")
NOTE: These Rear Sets were originally designed for '08 to early-'11 RC8/R that use
female rod ends for the stock shift rod (seen in the above photo). Most 2011 and later
RC8 R's use M8-size male rod ends instead. For those later RC8 R, you will need
M6 Female Rod Ends - See below)

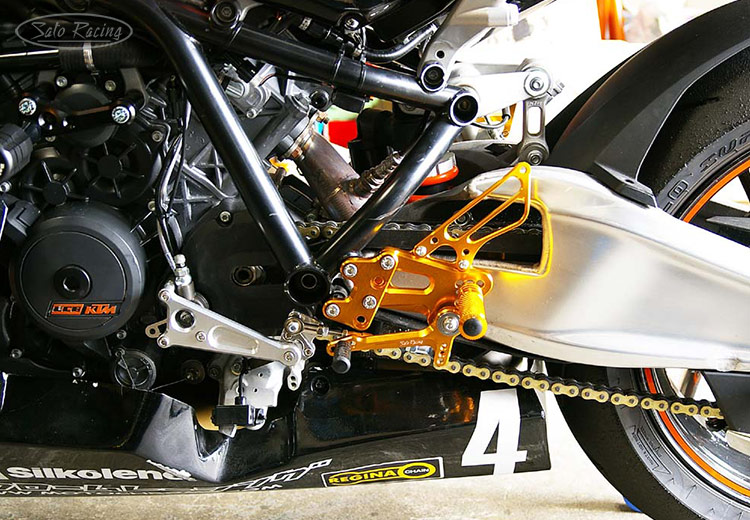

![Sato Racing KTM RC8 Rear Sets [L] with optional Reverse Shift Plate and Shift Spindle Holder](pics/KTM-RC8RS-GD_fitL2_750x520.jpg "Sato Racing KTM RC8 Rear Sets [L] with optional Reverse Shift Plate and Shift Spindle Holder")
Rear Sets shown with optional Reverse Shift Plate and Shift Spindle Holder

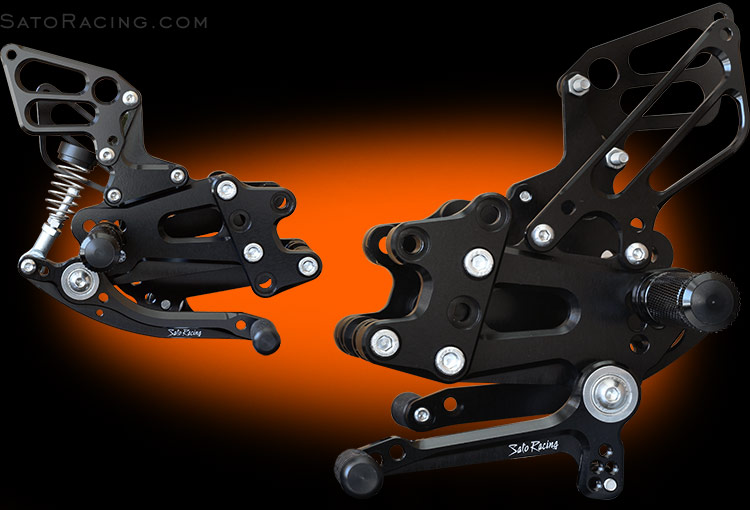

REAR SETS
| BLACK | KTM-RC8RS-BK $635 |
 |
Click Here for important info about Sato color-anodized parts.
NOTE: The GOLD anodized model shown in the photos above is now sold out, but the similar
'Racing version' Rear Sets (part# KTM-RC8RARS) is still available to order in GOLD.
Check out our RC8 'Racing version' Rear Sets. Compared
to our original RC8 Rear Sets,
the Racing Version has different base plates that give you a higher overall range of positions.
OPTIONAL PARTS
M6 FEMALE ROD ENDS
|
If you have a 2011 and later RC8 R that uses M8-size male rod ends
for the stock shift rod, you will need the following M6-size Female
Rod Ends to use the shift rod included with our RC8 Rear Sets. |
| M6 FEMALE ROD END | RDED-F6 $15 |
|
| M6 REVERSE FEMALE ROD END |
RDED-F6L $15 |
|
KTM RC8/ R

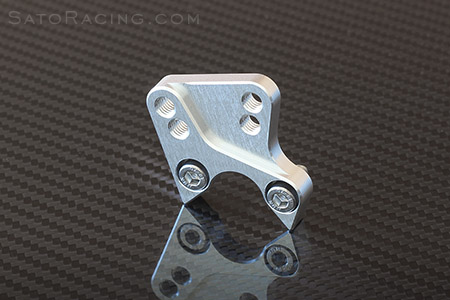

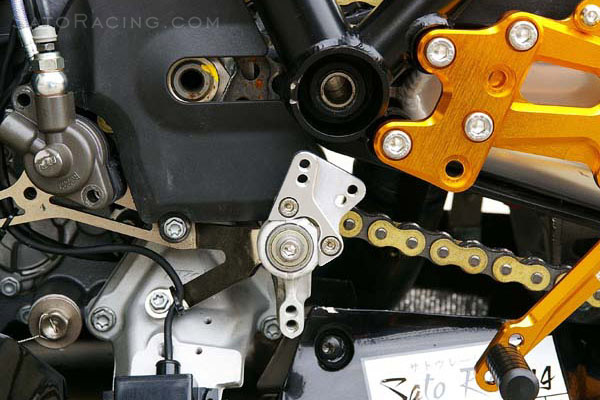

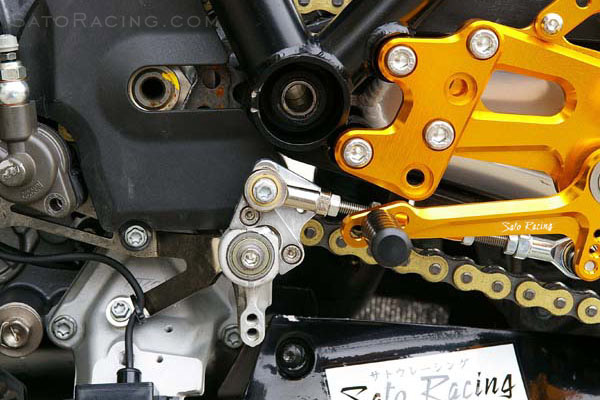

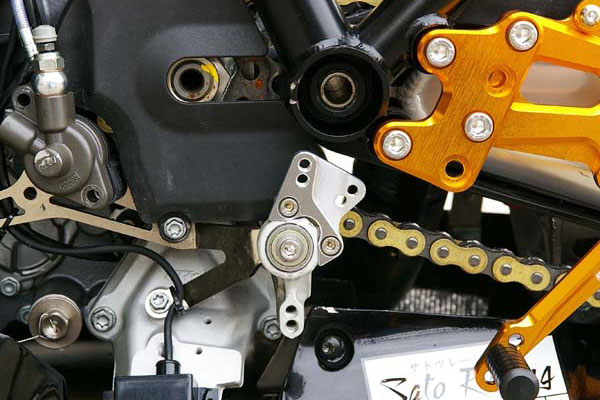

REVERSE SHIFT PLATE
This adjustable REVERSE SHIFT PLATE gives Sato Racing KTM RC8 Rear Sets
a reverse shift pattern. Anodized billlet aluminum with stainless steel bolts.
| SILVER | KTM-RC8RS-RSP $60 |
|
We recommend installing our Shift Spindle Holder (see below)
along with the Reverse Shift Plate.
KTM RC8/ R

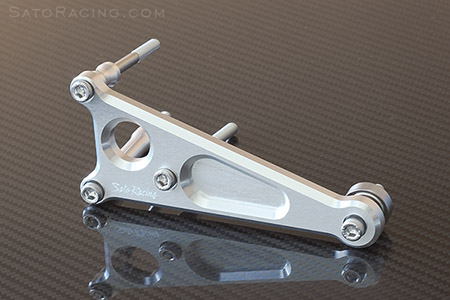

SHIFT SPINDLE HOLDER
| This Shift Spindle Holder adds strength and rigidity to the RC8's shift rod linkage for smoother operation. Includes internal bearings ideal for holding the shift shaft steady during heavy-duty use. Recommended if using our Reverse Shift Plate. Anodized billet aluminum bracket and collars, with stainless steel bolts. |

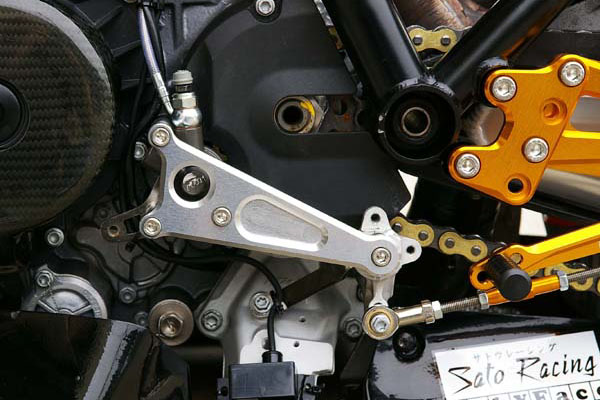

![Sato Racing KTM RC8 Rear Sets [L] with Shift Spindle Holder](pics/rc8shiftspindleholder.jpg "Sato Racing KTM RC8 Rear Sets [L] with Shift Spindle Holder")

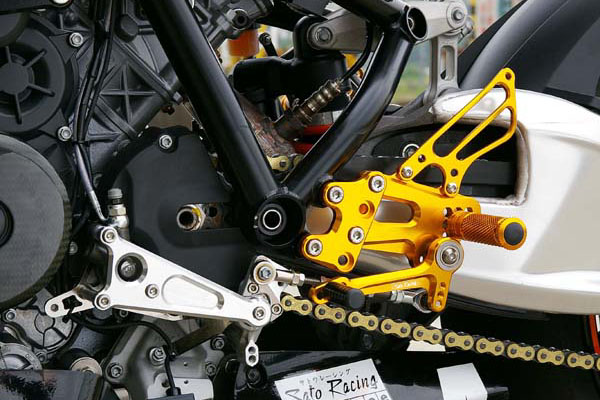

![Sato Racing KTM RC8 Rear Sets [L] with optional Reverse Shift Plate and Shift Spindle Holder](pics/rc8bsgdlfullkitfit.jpg "Sato Racing KTM RC8 Rear Sets [L] with optional Reverse Shift Plate and Shift Spindle Holder")
Shift Spindle Holder shown with Reverse Shift Plate (sold separately)
| SILVER | KTM-RC8RS-SHDR $115 |
|

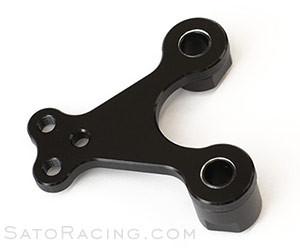

FAIRING STAY
For RC8 Akrapovic full system
| This black-anodized billet aluminum Fairing Stay is needed if installing Sato RC8 Rear Sets on RC8 and early RC8R with an Akrapovic full exhaust system. Replaces the base plate collars (10, 11) on the brake side. For use with KTM Powerparts item, part# 69005283060 'Fitting Assembly'. |
| FAIRING STAY | KTM-RC8RS-FS $75 |
|
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your SATO RACING Rear Sets, or view the PDF parts list:
Parts List - L-side | Parts List - R-side
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (#17) |
PEGCLR-12 $15 |
|
 |
HEX HEAD M8-40mm (Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
SPLIT WASHER M8 (L-side #15 / R-side #14) |
SWS-8 $1.20 |
|
 |
PEG WASHER - M8 (R-side #13) |
PWS-8 $1.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
SHIFT ROD 40 (BK/ SV/ GD) (#8) |
SRD-40 $35 |
|
 |
COLLAR 10-6 [BLACK] (L-side #9 / R-side #9) |
HGCLR-10 $8.00 |
|
 |
BASE PLATE COLLAR 8 (L-side #11 / R-side #10) |
BPCLR-8 $8.00 |
|
 |
BEARING COLLAR 8s (L-side #14) |
PEGBGCLR-8SB $10.00 |
|
 |
FLANGE HEAD M6-25mm (L-side #17) |
FGBT-M625 $2.00 |
|
 |
SOCKET HEAD M8-15mm (L-side #18 / R-side #16) |
SBT-M815 $1.50 |
|
 |
SOCKET HEAD M8-35mm (L-side #19 / R-side #17) |
SBT-M835 $1.50 |
|
 |
SOCKET HEAD M8-45mm (L-side #20 / R-side #18) |
SBT-M845 $2.00 |
|
 |
BUTTON HEAD M6-10mm (L-side #21 / R-side #19) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-35mm (R-side #22) |
BBT-M635 $1.50 |
|
 |
BUTTON HEAD M8-25mm (R-side #23) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-35mm (L-side #23) |
BBT-M835 $1.50 |
|
 |
LOCK NUT M6 (R-side #25) |
LNT-6 $1.50 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
