KAWASAKI Ninja 650 / ER-6f/n 2012-16 (non-ABS)
REAR SETS
|
SATO RACING Rear Sets for 2012-16* Ninja 650 and ER-6n with standard brakes features a track-engineered design, with parts precision CNC-machined out of high strength billet aluminum and anodized in your choice of Black, or Silver or Gold finish with Black-anodized base plates. Modular adjustable design lets you choose from 6 foot peg positions with a range of adjustment that brings your feet progressively higher up and further back compared to stock, for a sportier riding position well-suited to the fast straights and steep lean angles encountered on the track. An optional Tandem Bracket Set is also available, allowing you to retain the stock passenger pegs. * Also fits the non-US 2014-17 Ninja 400. Not recommended for 2013-16 ABS-equipped Ninja 650/ ER-6n. |
| 1 | 0mm | 10mm Up |
| 2 | 15mm Back | 10mm Up |
| 3 | 7.5mm Back | 20mm Up |
| 4 | 22.5mm Back | 20mm Up |
| 5 | 15mm Back | 30mm Up |
| 6 | 30mm Back | 30mm Up |
note: all measurements are in relation to stock position (0 mm).
![SATO RACING Ninja 650 / ER-6n '12-'16 Rear Sets [R]-side](pics/12Ninja650RS_R1_650x450.jpg "SATO RACING Ninja 650 / ER-6n '12-'16 Rear Sets [R]-side")
The shift and brake pedals use double miniature stainless bearings for smooth, precise lever actuation.
Provides 6 adjustable positions: The Step Plate mounts at 3 diagonally adjustable positions on the
Base Plate, and the Foot Peg mounting position can be adjusted horizontally on the Step Plate.
![SATO RACING Ninja 650 / ER-6n '12-'16 Rear Sets [R]-side](pics/12Ninja650RS_R2_650x450.jpg "SATO RACING Ninja 650 / ER-6n '12-'16 Rear Sets [R]-side")

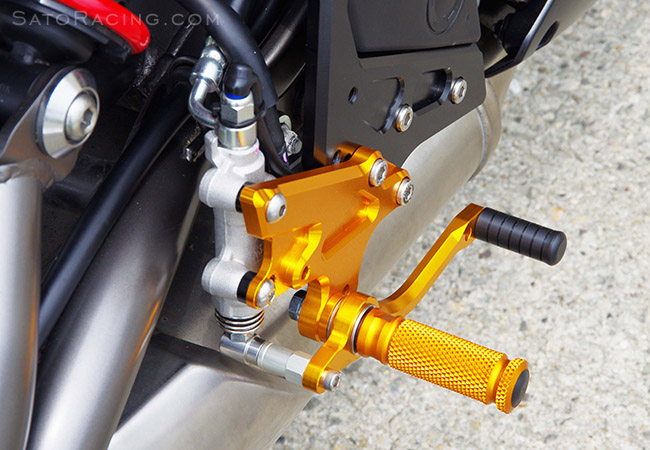

Foot Pegs are finely knurled for excellent grip characteristics and a comfortable, intuitive feel.
The standard Pedal Tips are made of tough black Delrin plastic. Additional Pedal Tip styles,
such as aluminum Pedal Tips with fluted rubber sleeves, are an available option: Details
(A brake light switch, shown attached to the master cylinder, is included with the Rear Sets kit)
![SATO RACING Ninja 650 / ER-6n '12- Rear Sets with optional Tandem Bracket [R]-side](pics/12Ninja650RS_R1tandem_650x450.jpg "SATO RACING Ninja 650 / ER-6n '12- Rear Sets with optional Tandem Bracket [R]-side")

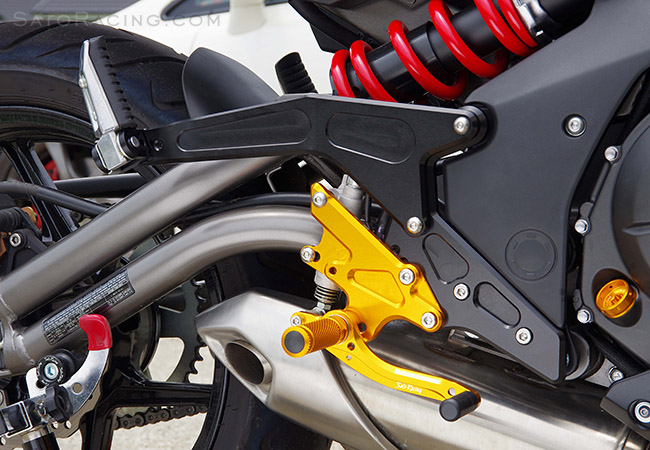

Rear Sets shown with optional Tandem Brackets installed, for use the stock passenger pegs.
The clean, angular design of our Rear Sets blends seamlessly with the styling of the Ninja 650.
![SATO RACING Ninja 650 / ER-6n '12-'16 Rear Sets with Tandem Brackets [L]-side](pics/12Ninja650RS_L1tandem_650x450.jpg "SATO RACING Ninja 650 / ER-6n '12-'16 Rear Sets with Tandem Brackets [L]-side")
Rear Sets shown with optional Tandem Brackets. The Tandem Brackets,
like the Rear Sets, are available in your choice of Black, Silver or Gold.
![SATO RACING Kawasaki Ninja 650 / ER-6n '12-'16 Rear Sets [L]-side](pics/12Ninja650RS_L1close_650x450.jpg "SATO RACING Kawasaki Ninja 650 / ER-6n '12-'16 Rear Sets [L]-side")
Multiple adjustment holes at the base of the shift pedal let you fine-tune the shift stroke.
Rear Sets
| BLACK | K-65012RS-BK $650 |
 |
| SILVER | K-65012RS-SV $650 |
|
| GOLD | K-65012RS-GD $650 |
|
Tandem Bracket set
Use with stock passenger pegs
| BLACK | K-65012TB-BK $298 |
SOLD OUT |
| SILVER | K-65012TB-SV $298 |
SOLD OUT |
| GOLD | K-65012TB-GD $298 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your SATO Rear Sets, or view the PDF parts list: Rear Sets | Tandem Brackets
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#18) |
PEGCLR-15 $15 |
|
 |
HEX HEAD M8-40mm (#30, L Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
STUD BOLT SHORT (M8x55) (#31, R Peg bolt) |
STBT-S $4.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (For Pedal Tip) |
BBT-M620 $1.50 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (L-side #5) |
SPD-0912 $62.50 |
|
 |
SHIFT ROD 180 (BK/ SV/ GD) (#8) |
SRD-180 $39 |
|
 |
BEARING COLLAR 10 [BLACK] (#12) |
PEGBGCLR-10SB $13.00 |
|
 |
ROD END COLLAR 3 (GD) (#14) |
RDED-CLR3 $6.00 |
|
 |
BASE PLATE COLLAR 8 (#16) |
BPCLR-8 $8.00 |
|
 |
STUD M6 (#19) |
STUD-M6 $2.50 |
|
 |
SOCKET HEAD M6-15mm (#20) |
SBT-M615 $1.50 |
|
 |
SOCKET HEAD M6-20mm (#21) |
SBT-M620 $1.50 |
|
 |
SOCKET HEAD M8-15mm (#22) |
SBT-M815 $1.50 |
|
 |
SOCKET HEAD M8-30mm (#23) |
SBT-M830 $2.00 |
|
 |
BUTTON HEAD M8-35mm (#28) |
BBT-M835 $2.00 |
|
 |
FLANGE HEAD M6-20mm (#29) |
FGBT-M620 $2.00 |
|
 |
JAM NUT M6 (#32) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#33) |
JNT-6L $2.50 |
|
 |
FLANGE NUT M8 (#34) |
FNT-8 $1.50 |
|
 |
PEG WASHER - M8 (#35) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 (#36) |
SWS-8 $1.20 |
|
 |
MALE ROD END M6 (#37) |
RDED-M6 $12.50 |
|
 |
FEMALE ROD END M6 (#38) |
RDED-F6 $12.50 |
|
 |
RETURN SPRING 40 (#40) |
RS-RSP $8.00 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
