DUCATI 848/ 1098/ 1198
'Type2' REAR SETS (with Brake Pedal)

SATO RACING 'Type 2' Rear Sets for 2007-13 Ducati 848 / 1098 / 1198 feature compomnents made of light-weight, high strength anodized billet aluminum, with stainless steel hardware. Modular step plate design lets you choose from 10 adjustable peg positions, ranging from stock-equivalent position to higher and more forward positions. Choice of Black, Silver or Gold anodized finish. You can also choose from several Heel Guard styles (Details below).

Options include an anodized billet aluminum Shift Arm that matches the Rear Sets.

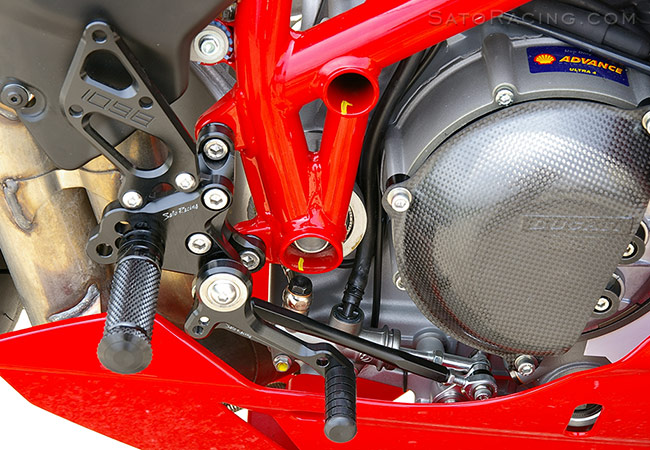

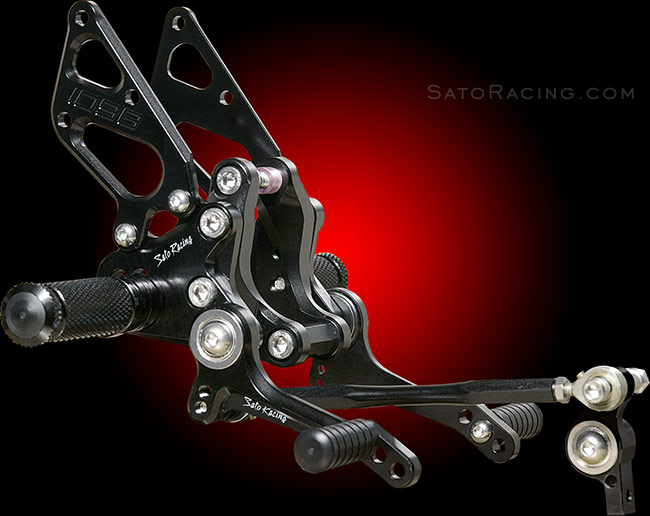

SATO RACING 'Type 2' Rear Sets in Black for Ducati 848 / 1098 / 1198

POSITIONS

1	0mm	0mm
2	5mm Forward	15mm Up
3	10mm Forward	5mm Up
4	10mm Forward	15mm Up
5	15mm Forward	20mm Up
6	15mm Forward	30mm Up
7	20mm Forward	5mm Up
8	20mm Forward	15mm Up
9	25mm Forward	20mm Up
10	25mm Forward	30mm Up

note: all measurements are in relation to stock position (0 mm).

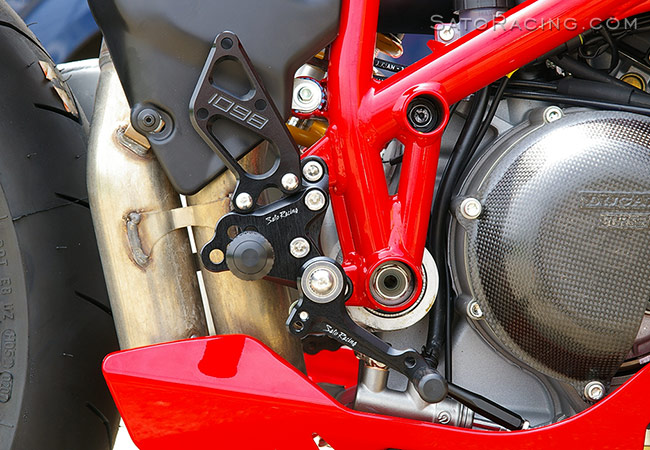

SATO RACING Ducati 848 / 1098 / 1198 Rear Sets type 2

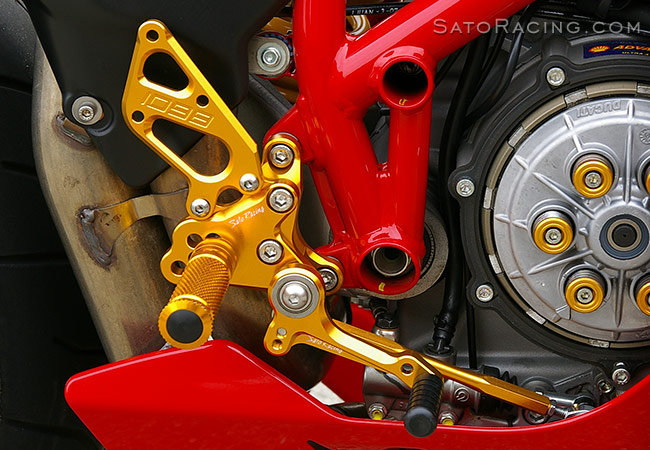

Brake Pedal and Brake Link use miniature double stainless bearings for smooth, precise
movement. Brake Pedal pivots off a separate axis from the foot peg for optimal leverage.

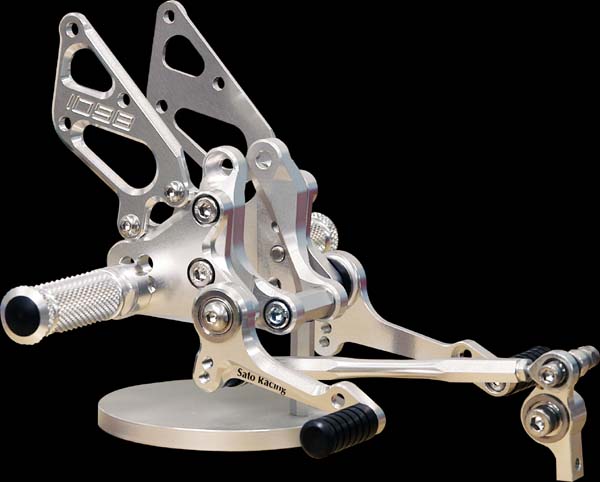

SATO RACING Ducati 848 / 1098 / 1198 Rear Sets type 2

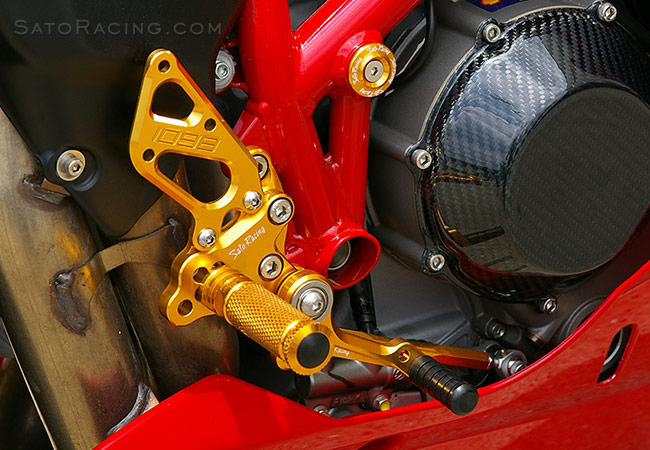

Knurled Foot Pegs keep your feet firmly planted even in wet conditions.
Pedal Tips (toe pegs) are made of tough, abrasion-resistant black Delrin.

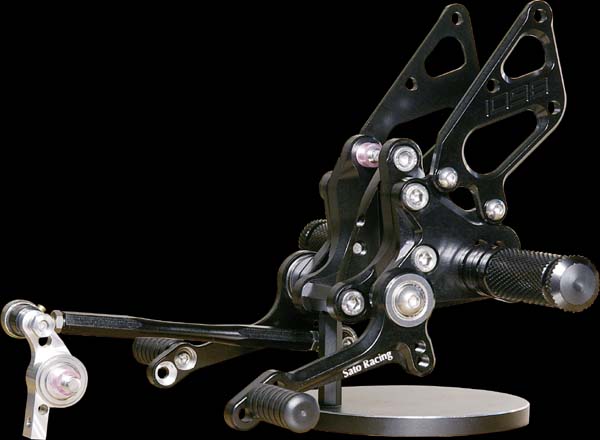

SATO RACING Ducati 848 / 1098 / 1198 Rear Sets type 2

SATO RACING Ducati 848 / 1098 / 1198 Rear Sets type 2

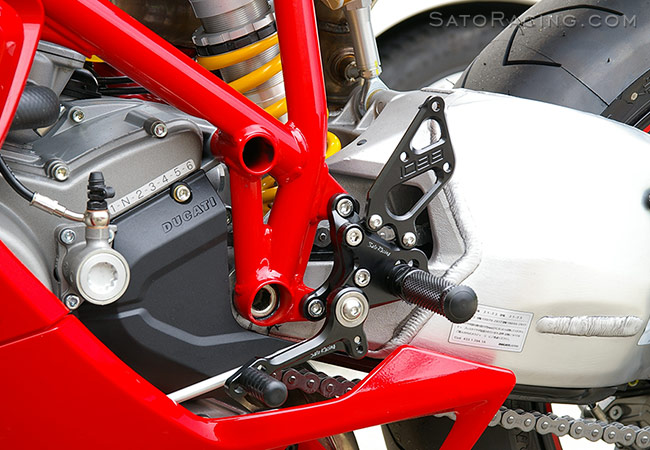

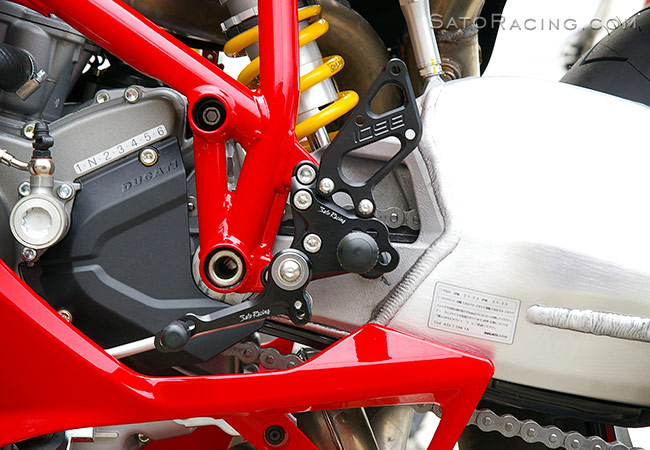

The positions of both the Step Plates and the Foot Pegs can be adjusted
several ways, so you can find the perfect postion for your riding style.

SATO RACING Ducati 848 / 1098 / 1198 Rear Sets type 2

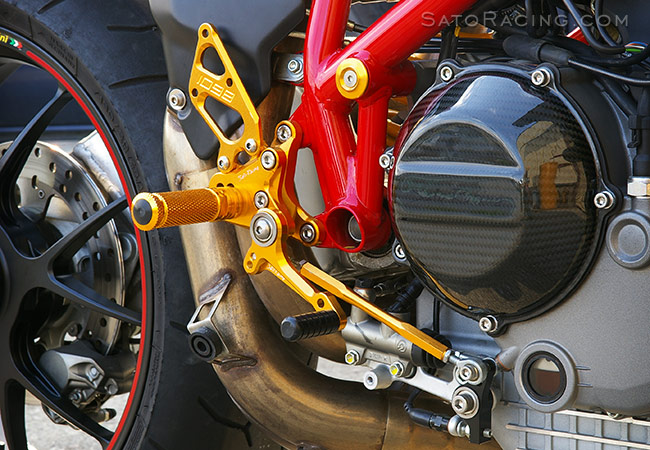

Pedal Tip position and Shift Rod mounting position are also adjustable, letting you fine-tune the shift stroke. Note: these photos depict an earlier design version of these Rear Sets. The latest version features an updated shift pedal design with more position adjustment holes. A color-matched Shift Rod (not pictured) is also included in the kit. Use with the stock rod ends.

SATO RACING Ducati 848 / 1098 / 1198 Rear Sets type 2

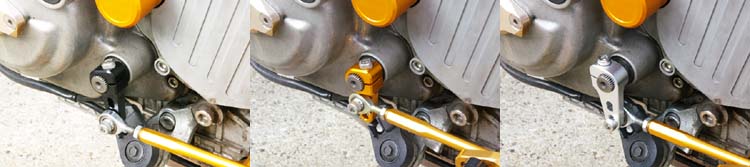

Switch from stock shift to reverse (GP-style) shift pattern
by flipping the stock change arm the opposite direction.
NOTE: If installing with DQS / Ducabike quickshifter, it is stock shift pattern only.

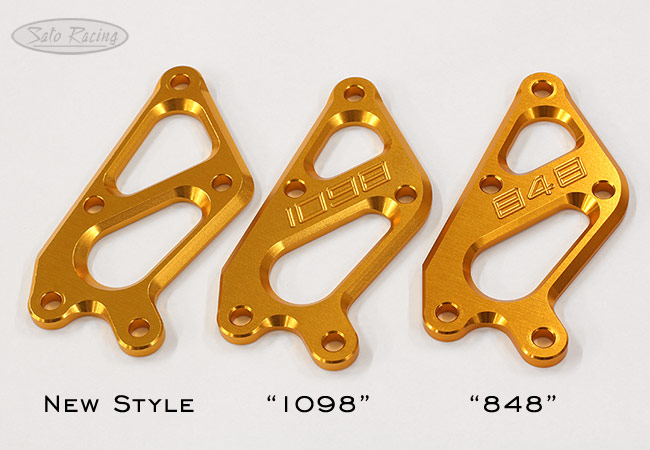

Heel Guard options for SATO RACING Ducati 848 / 1098 / 1198 'Type 1' Rear Sets

Choose from several styles of Heel Guards: 'New style' with no etched model number, or original style with '1098' or '848' etched in it. '1198'-etched Heel Guards (not pictured) are also available, in Black only. (Select Heel Guard style during checkout).

BLACK	D-1098RS2-BK $735
SILVER	D-1098RS2-SV $735
GOLD	D-1098RS2-GD $735

Also available: 1098 Type 1 Rear Sets (Uses stock brake pedal)

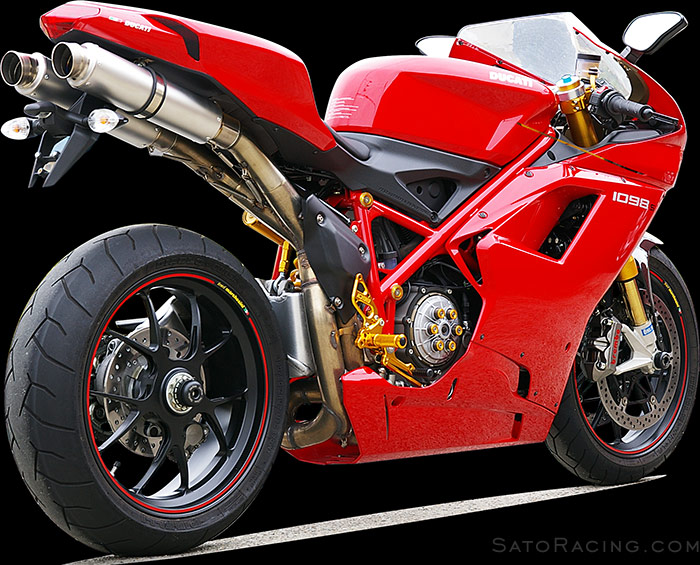

Ducati 1098 with SATO RACING type 2 Rear Sets

OPTIONAL PARTS

SHIFT ARM

Reversible Shift Arm with 4 mounting positions*. Anodized billet aluminum in your choice of Black, Silver or Gold. Fits most recent Ducati models. Works with both standard and reverse (GP style) shift pattern setups. Can be used with SATO RACING Rear Sets or the stock Ducati rear sets.

The optional Sato Rod End is necessary if you want to use the mount position closest to the spindle.

Click here for more photos and details: Ducati Shift Arm

Kit includes bolt to attach rod end to shift arm. (use with stock lock nut)

SHIFT ARM

	BLACK	D-CA-BK $75
	SILVER	D-CA-SV $75
	GOLD	D-CA-GD $75

ROD END (optional)

M6 MALE REVERSE
ROD END

RDED-M6L
$12.50

Related hardware for use with SATO ROD END (optional)

	REVERSE JAM NUT M6	JNT-6L $2.50
	LOCK NUT M6	LNT-6 $1.50

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List

Some replacement parts for these Rear Sets
can be purchased in our online store:

	FOOT PEG (BK/ SV/ GD)	PEG $42
	PEG COLLAR 12 (BK/ SV/ GD) (L-side #11, R-side #9)	PEGCLR-12 $15
	HEX HEAD M8-45mm (#1, Foot Peg bolt)	HBT-M845 $2.00
	PEDAL TIP (DELRIN) (L-side #16, R-side# 27)	ST-001D18 $15
	BUTTON HEAD M6-20mm (for Pedal Tip)	BBT-M620 $1.50
	[L] STEP PLATE (BK/ SV/ GD) (L-side #8)	D-1098SP-L $80.00
	SOCKET HEAD M8-15mm (#2)	SBT-M815 $1.50
	BUTTON HEAD M6-10mm (L-side #3, R-side #4)	BBT-M610 $1.50
	BUTTON HEAD M8-25mm (L-side #4, R-side# 29)	BBT-M825 $1.50
	SOCKET HEAD M6-25mm (L-side #6)	SBT-M625 $1.50
	SPLIT WASHER M8 (L-side #10, R-side #8)	SWS-8 $1.20
	PEG WASHER M8 (L-side #14)	PWS-8 $1.20
	SHIFT PEDAL (BK/ SV/ GD) (L-side #15)	SPD-10 $62.50
	ROD END COLLAR 10 (L-side #17)	RDED-CLR10 $8.00
	SHIFT ROD 150 (BK/ SV/ GD) (L-side #18)	SRD-150 $39
	SOCKET HEAD M8-25mm (R-side #3, option for race exhaust)	SBT-M825 $1.50
	BASE PLATE COLLAR 10 (R-side #3, option for race exhaust)	BPCLR-10 $8.00
	[R] STEP PLATE (BK/ SV/ GD) (R-side #6)	D-1098SP2-R $80.00
	BRAKE PEDAL (BK/ SV/ GD) (R-side #12)	BPD-10 $62.50
	BASE PLATE COLLAR 2 (R-side #13)	BPCLR-2 $5.00
	BRAKE PEDAL COLLAR 3 (BK) (R-side #14)	CLR3-8 $6.00
	BRAKE ROD COLLAR 15 (R-side #15)	RDED-CLR15 $8.00
	SOCKET HEAD M6-30mm (R-side #16)	SBT-M630 $1.50
	M6 MALE REVERSE ROD END (R-side #17)	RDED-M6L $12.50
	REVERSE JAM NUT M6 (R-side #18)	JNT-6L $2.50
	MALE ROD END M6 (R-side #19)	RDED-M6 $12.50
	JAM NUT M6 (R-side #20)	JNT-6 $1.75
	ROD END COLLAR 6 (R-side #21)	RDED-CLR6 $6.00
	SPRING HOOK NUT (R-side #22)	NUT-SH $7.50
	SOCKET HEAD M8-35mm (R-side #23)	SBT-M835 $2.00
	BRAKE ROD 130 (BK/ SV/ GD) (R-side #28)	SRD-130 $39

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
