SUZUKI GSX1300R HAYABUSA ('99-'12)
REAR SETS
| SATO RACING
Rear Sets for 1999-2012 Suzuki GSX1300R Hayabusa (non-ABS) features a competition-proven design, with components precision CNC-machined out of light-weight, high strength anodized billet aluminum,
with stainless steel bolts. Modular adjustable desgn provides 6 unique foot peg positions in a range that brings your feet progressively higher up and further back compared to stock, for enhanced control and improved handling at the limit. Choice of Black, Silver, or Gold anodized finish. The standard Rear Sets provide a stock shift pattern. A Reverse Shift version of these Rear Sets is also available, for riders who prefer a reverse (GP-style) shifting pattern. |
| 1 | 5mm Up | 10mm Back |
| 2 | 15mm Up | 10mm Back |
| 3 | 15mm Up | 20mm Back |
| 4 | 25mm Up | 20mm Back |
| 5 | 25mm Up | 30mm Back |
| 6 | 35mm Up | 30mm Back |
Note: all measurements are in relation to the stock
foot peg position on a 2008 Hayabusa (0 mm).

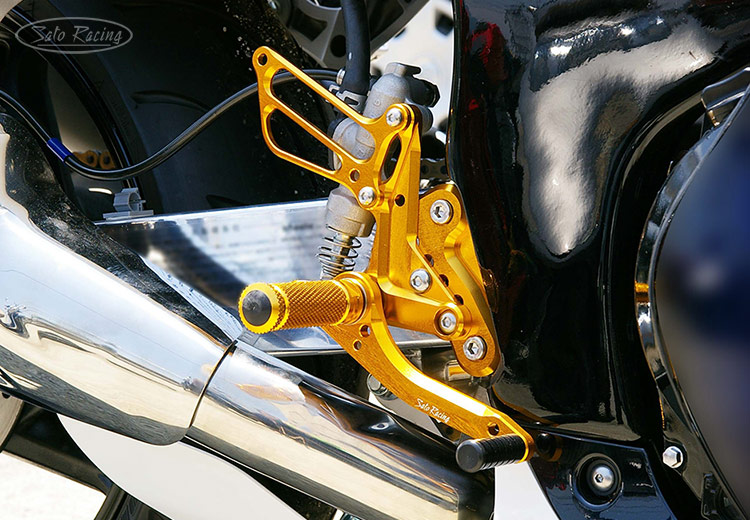

![Sato Racing Hayabusa Rear Sets [R] with optional Return Spring](pics/08hayabusarcgdfitr1.jpg "Sato Racing Hayabusa Rear Sets [R] with optional Return Spring")
The shift and brake pedals use
double miniature stainless bearings for smooth, precise lever
actuation.
(Rear Sets shown with optional BRAKE RETURN SPRING)

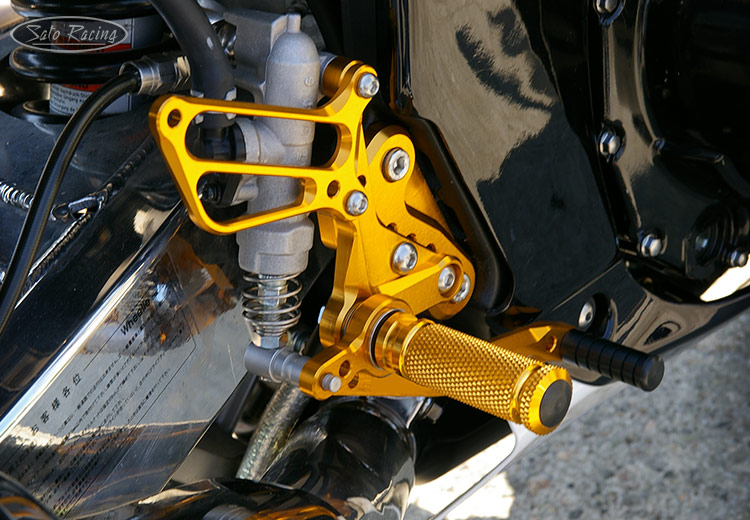

![SATO RACING Hayabusa Rear Sets [R] with optional Return Spring](pics/08hayabusarcgdfitr3.jpg "SATO RACING Hayabusa Rear Sets [R] with optional Return Spring")
Finely knurled footpegs provide nice grip, along with a comfortable, intuitive feel.
(Shown with optional BRAKE RETURN SPRING)

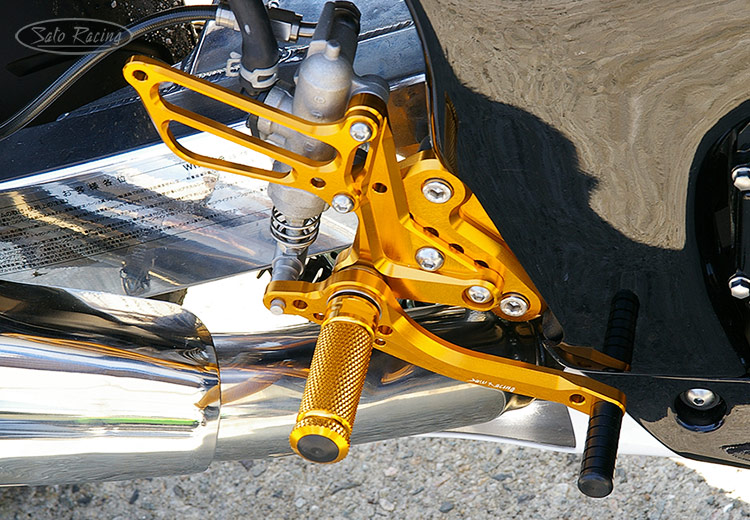

![SATO RACING Hayabusa Rear Sets [R] with optional Return Spring](pics/08hayabusarcgdfitr4.jpg "SATO RACING Hayabusa Rear Sets [R] with optional Return Spring")

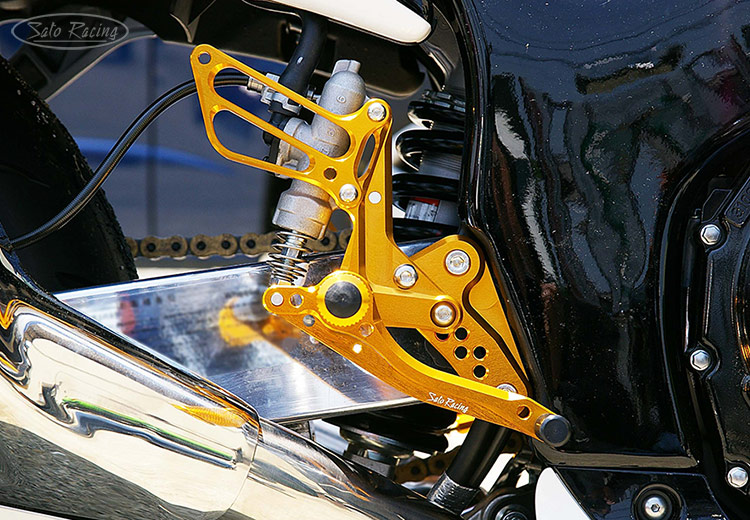

![SATO RACING Hayabusa Rear Sets [R] with optional Return Spring](pics/08hayabusarcgdfitr2.jpg "SATO RACING Hayabusa Rear Sets [R] with optional Return Spring")
Rear Sets shown set at the highest position - 35mm higher up and 30mm back compared to stock.
The lowest position setting is similar to stock foot peg height and 10mm further back.

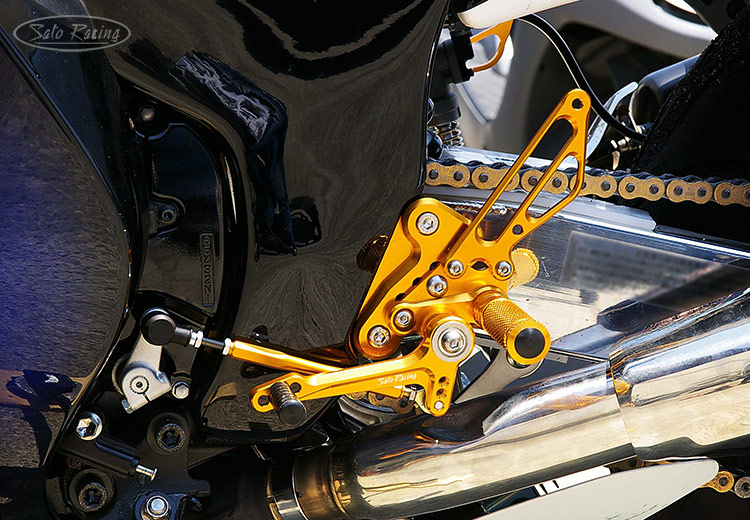

![SATO RACING Hayabusa Rear Sets [L]-side](pics/08hayabusarcgdfitl1.jpg "SATO RACING Hayabusa Rear Sets [L]-side")
|
The shift pedal has multiple attachment points for the shift rod, useful for fine-tuning the shift stroke.
Pedal Tip position is also adjustable. ( Stock Shift version Rear Sets shown above ) These Rear Sets are designed for use with the stock Suzuki shift arm and rod end, as seen in these photos. We now also make an adjustable black anodized billet aluminum Shift Arm (part# S-CA2) that works well with our Hayabusa Rear Sets, providing additional adjustment options for the shift linkage. |

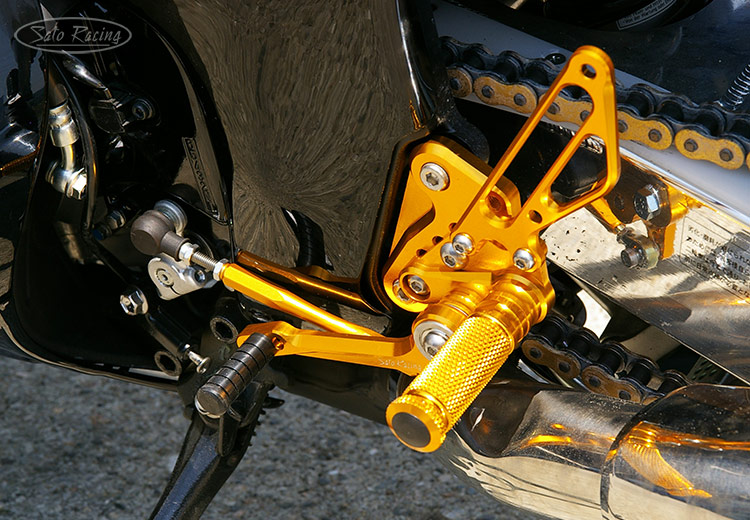

![SATO RACING Hayabusa Rear Sets [L]-side](pics/08hayabusaRS_fitL2.jpg "SATO RACING Hayabusa Rear Sets [L]-side")
The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such as
aluminum Pedal Tips with fluted rubber sleeves, are an available option: More Details

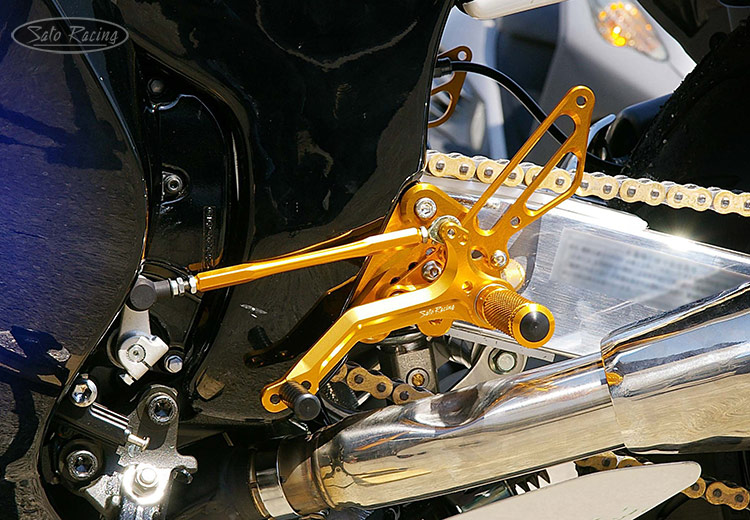

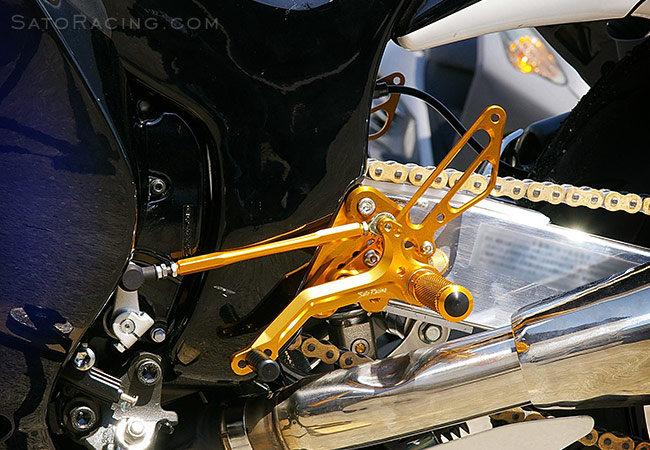

![SATO RACING Hayabusa Reverse Shift Rear Sets [L]-side](pics/08hayabusarcrevgdfitl1.jpg "SATO RACING Hayabusa Reverse Shift Rear Sets [L]-side")
REVERSE SHIFT REAR SETS include a GP-style
shift pedal that provides a dedicated a reverse shift pattern.
![SATO RACING Hayabusa Reverse Shift Rear Sets [L]-side](pics/08hayabusaRSR_fitL2.jpg "SATO RACING Hayabusa Reverse Shift Rear Sets [L]-side")
REVERSE SHIFT REAR SETS

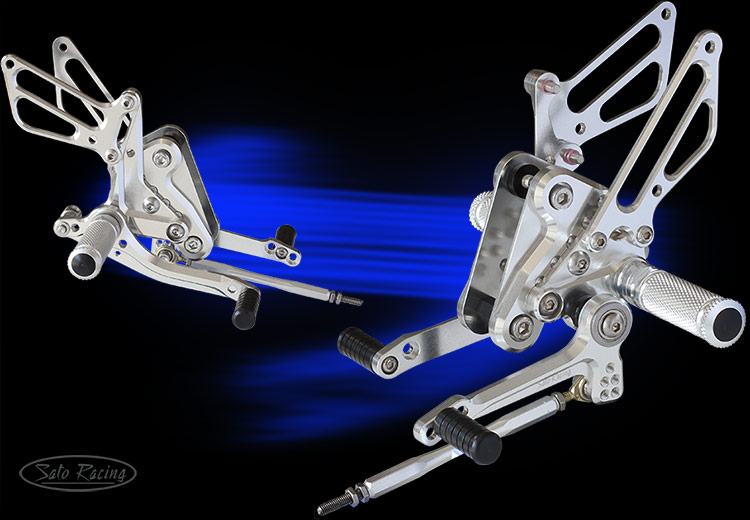

Standard version (stock shift pattern) in brilliant Silver (natural metal) anodized finish.
REAR SETS (Stock Shift pattern)
| BLACK | S-GSX1308RS-BK $570 |
 |
| SILVER | S-GSX1308RS-SV $570 |
|
| GOLD | S-GSX1308RS-GD $570 |
|
REVERSE SHIFT REAR SETS
(NOTE: Reverse Shift Rear Sets have ended production
and we are now down to a few sets left, in Gold.
| GOLD | S-GSX1308RSR-GD $570 |
|
(P1.0 Brake light switch is included in kit.)
Click Here for important info about Sato color-anodized parts.
OPTIONS
BRAKE RETURN SPRING
| SATO RACING Brake Return Spring quickens the pedal return and may make the pedal feel more responsive compared to no spring. (For use with specified SATO RACING Rear Sets). |
 |
RS-RSP $8.00 |
|
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Hayabusa Rear Sets.
To find out individual part names & numbers, see the illustrated parts list included with
your Sato Racing Rear Sets, or view the PDF: Standard Shift | Reverse Shift
Most replacement parts for these Rear Sets
can be purchased in our Online Store:
NOTE: Part numbers correspond to the STD shift version unless otherwise noted.
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (L-side #19) |
PEGCLR-12 $15 |
|
 |
HEX HEAD M8-45mm (L-side peg bolt for STD shift rear sets) |
HBT-M845 $2.00 |
|
 |
SPLIT WASHER M8 (STD shift, L-side #6) |
SWS-8 $1.20 |
|
 |
STUD BOLT M8-65mm (Reverse Shift, L-side #1) |
STBT-L $4.50 |
|
 |
STUD BOLT M8-55mm (R-side #18) |
STBT-S $4.50 |
|
 |
FLANGE NUT M8 (R-side #6) |
FNT-8 $1.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
REVERSE JAM NUT M6 (L-side #8) |
JNT-6L $2.50 |
|
|
JAM NUT M6 (L-side #9) |
JNT-6 $1.75 |
|
 |
SOCKET HEAD M6-20mm (STD shift, L-side #10) |
SBT-M620 $1.50 |
|
 |
SOCKET HEAD M8-25mm (L-side #11 / R-side #9) |
SBT-M825 $1.50 |
|
 |
SHIFT ROD 120 (BK/ SV/ GD) (L-side #12) |
SRD-120 $39 |
|
 |
ROD END COLLAR 3 (GD) (STD shift, L-side #16) |
RDED-CLR3 $6.00 |
|
 |
BASE PLATE COLLAR 5 (L-side #17 / R-side #12) |
BPCLR-5 $8.00 |
|
 |
M6 MALE REVERSE ROD END (L-side #18) |
RDED-M6L $12.50 |
|
 |
BUTTON HEAD M6-10mm (L-side #21) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-15mm (L-side #23 / R-side #17) |
BBT-M815 $1.50 |
|
 |
BUTTON HEAD M8-35mm (L-side #24) |
BBT-M835 $2.00 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (R-side #3) |
HG-1R $50 |
|
 |
E-CLIP M6 (R-side #5) |
ECP-6 $1.50 |
|
 |
WASHER M6 (R-side #7) |
WS-6 $1.00 |
|
 |
PEG WASHER - M8 (R-side #8) |
PWS-8 $1.00 |
|
 |
BRAKE ROD M40 (R-side #13) |
BRD-M40 $13.50 |
|
 |
BUTTON HEAD M6-25mm (R-side #16) |
BBT-M625 $1.50 |
|
 |
BEARING COLLAR SUS (R-side #19) |
BGCLR-SUS $6.50 |
|
 |
BRAKE LIGHT SWITCH (P-1.0) |
BSW-1 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
Do you have one of our earlier Rear Sets models for Hayabusa?
Here are the links to the parts lists for those models:
Rear Sets for 99-07 Hayabusa (original model) | Hayabusa Drag style Rear Sets
