HONDA CBR1000RR ('08-'16, non-ABS)
REAR SETS

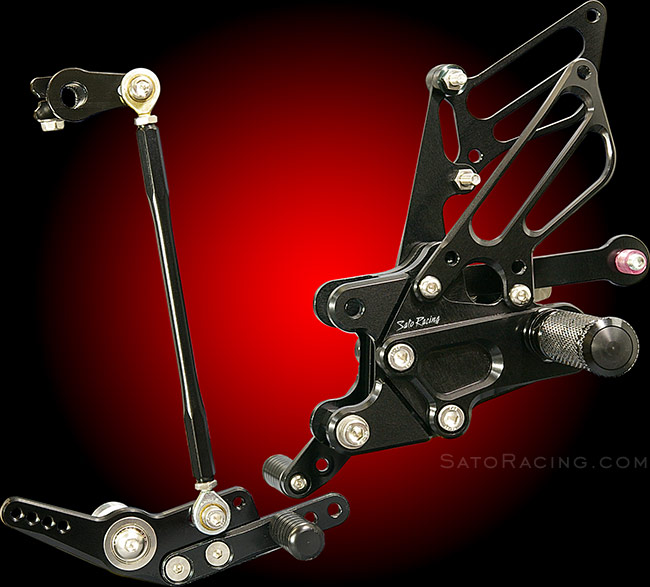

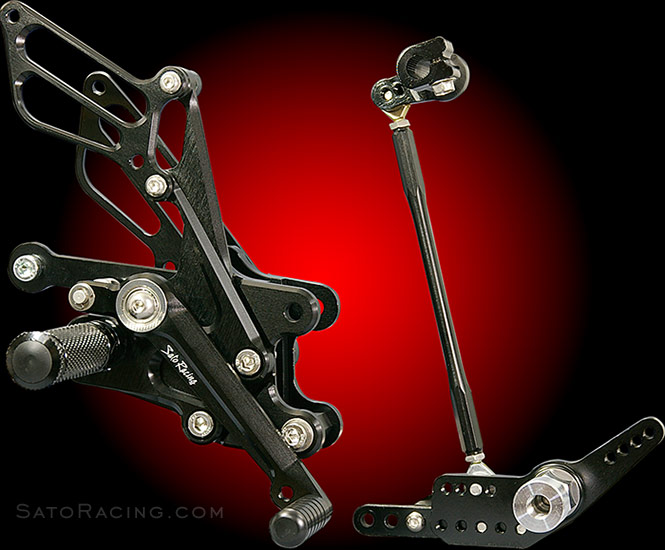

| SATO RACING Rear Sets for 2008-16 Honda CBR1000RR (non-ABS models) features an extensively track-proven design, with components precision CNC-machined out of high strength billet aluminum and anodized in your choice of a deep Black finish, or Silver or Gold anodized finish with a contrasting Black shift pedal. Modular adjustable design lets you select from 12 foot positions, ranging from stock-equivalent position to more aggressive positions that bring your feet higher and further back. Easily switch to reverse shift pattern too. We also offer a Shift Spindle Holder that works well with these Rear Sets, reducing play in the shift spindle for more precise shift action. |
| 1 | 0mm (stock position) |
0mm (stock position) |
| 2 | 0mm (stock position) |
10mm Up (0.4" Up) |
| 3 | 10mm Back (0.4" Back) |
0mm (stock position) |
| 4 | 10mm Back (0.4" Back) |
10mm Up (0.4" Up) |
| 5 | 15mm Back (0.6" Back) |
20mm Up (0.8" Up) |
| 6 | 15mm Back (0.6" Back) |
30mm Up (1.2" Up) |
| 7 | 25mm Back (1" Back) |
20mm Up (0.8" Up) |
| 8 | 25mm Back (1" Back) |
30mm Up (1.2" Up) |
| 9 | 30mm Back (1.2" Back) |
40mm Up (1.6" Up) |
| 10 | 30mm Back (1.2" Back) |
50mm Up (2" Up) |
| 11 | 40mm Back (1.6" Back) |
40mm Up (1.6" Up) |
| 12 | 40mm Back (1.6" Back) |
50mm Up (2" Up) |
note: all measurements are in relation to stock position (0 mm).
The shift and brake pedals use miniature double stainless bearings for smooth, precise lever actuation.

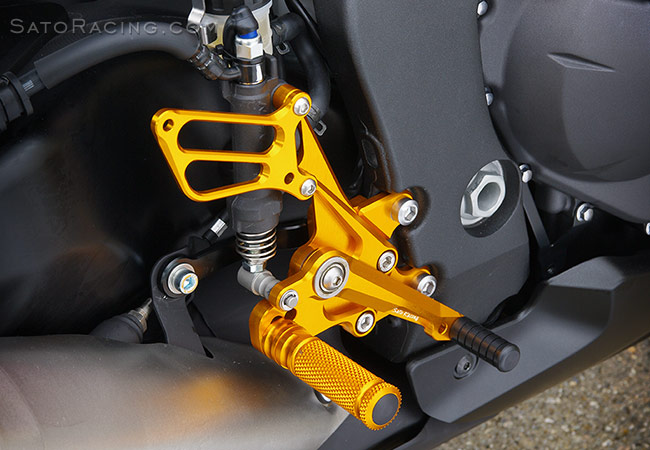

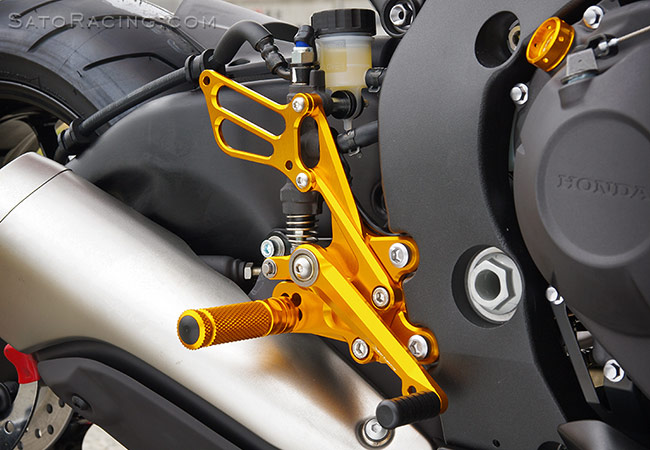

| Our Foot Pegs have a finely knurled pattern for excellent grip and a comfortable feel. Rear Sets kit includes a brake light switch which attaches at the top of the master cylinder. ( Rear Sets shown with optional Return Spring ) |

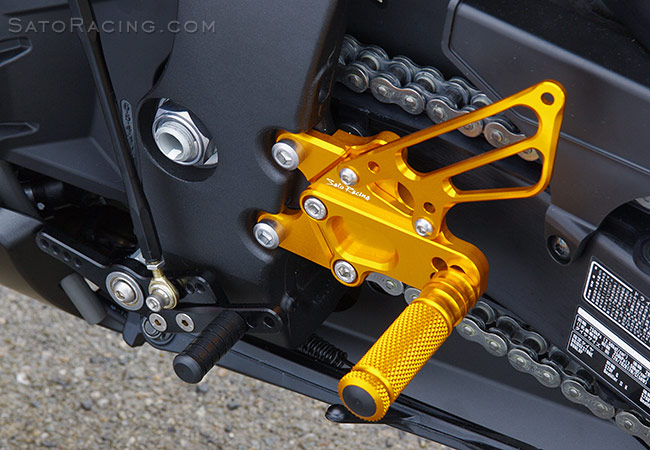

| The shift stroke can be adjusted by changing the mounting position of the shift rod. Stock shift pattern is shown in these photos. For reverse (GP-style) shift pattern, relocate the shift rod to the forward end of the pedal. ( Rear Sets shown with optional Shift Spindle Holder ) |
| Modular design lets you adjust the mount postion of the Step Plate and the Foot Peg to your liking. Pedal Tip (toe peg) position is also adjustable. |

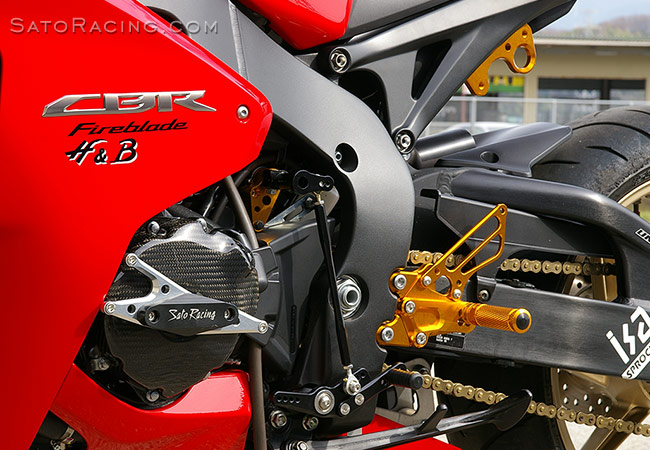

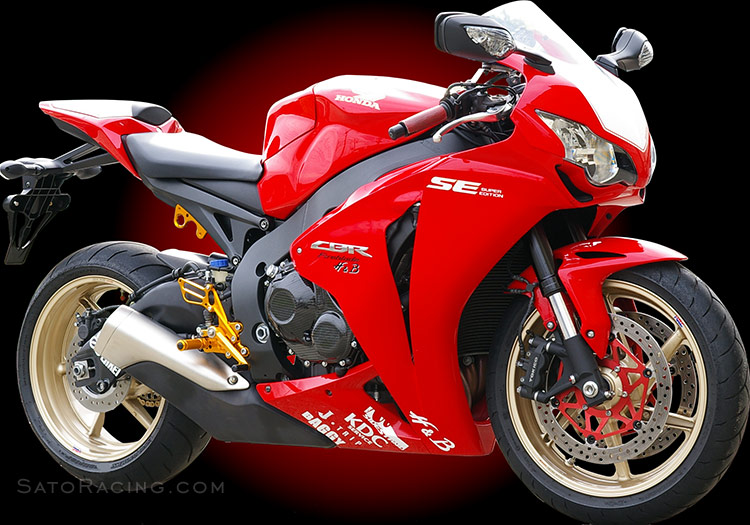

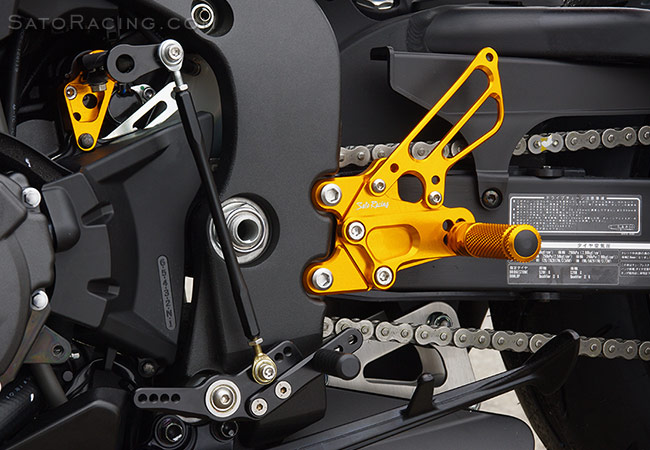

CBR1000RR with Sato Rear Sets, Shift Spindle Holder, Street Hooks, and Engine Sliders.
You can change the shifting pattern by relocating
the SATO SHIFT ROD to the front or back hole.
Note: These Rear Sets are designed for '08-'16 models with standard brakes.
They will NOT work with '09 - later models that have the optional ABS.
( CLICK HERE for ABS-compatible CBR1000RR Rear Sets )
| BLACK | H-CBR108RS-BK $610 |
 |
| SILVER w/ BLACK Shift Pedal Assembly |
H-CBR108RS-SV $610 |
|
| GOLD * w/ BLACK Shift Pedal Assembly |
H-CBR108RS-GD $610 |
|
* Click Here for important info about Sato GOLD-anodized parts.

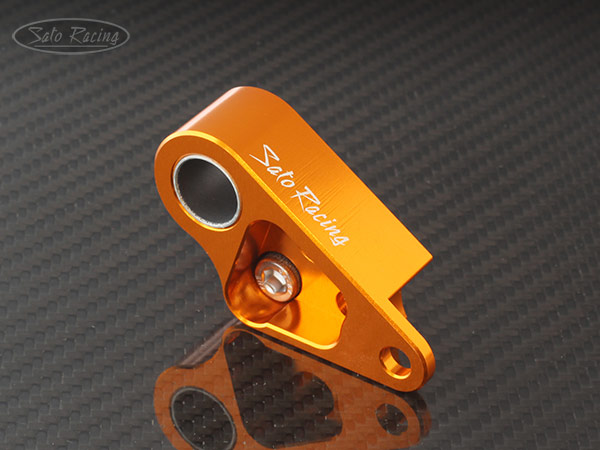

SHIFT SPINDLE HOLDER

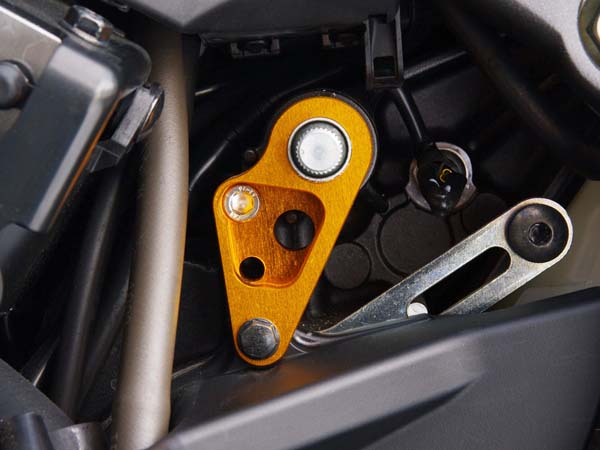

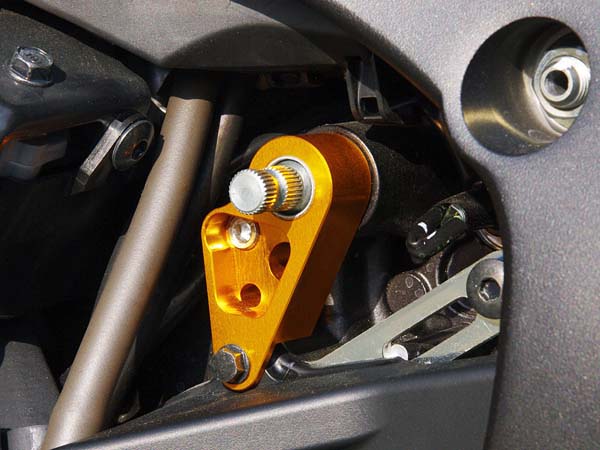

| Our CBR1000RR Shift Spindle Holder adds reinforcement to the shift spindle shaft, reducing excessive lateral play for smoother, more precise shifting and extra durability during heavy-duty use. This part can be especially helpful if you are using a non-standard shifter setup. Gold anodized billet aluminum with a Teflon inner bushing. Fits all CBR1000RR models 2008-19. |
| GOLD | H-CBR108RS-SHDR $105 |
|
BRAKE RETURN SPRING
| SATO RACING Brake Return Spring quickens the brake pedal return and may make the pedal feel heavier and more responsive compared to no spring. (For use with specified SATO RACING Rear Sets). |
 |
RS-RSP $8.00 |
|
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find indvidual part names and numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some common replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (L-side #9) |
PEGCLR-12 $15 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #1) |
HG-14L $50 |
|
 |
SHIFT PEDAL SPD8 [BLACK] (L-side #4) |
SPD-8B $30 |
|
 |
SHIFT PEDAL SPD13 (L-side #5) |
SPD-13 $75 |
|
 |
SHIFT BASE (L-side #6) |
SB-46SUS $50 |
|
 |
SHIFT ROD 170 [BLACK] (L-side #11) |
SRD-170-B $39 |
|
 |
CHANGE ARM L (L-side #12) |
CA-1 $50 |
|
 |
HEX HEAD M8-40mm (L-side #13 / R-side #15) |
HBT-M840 $2.00 |
|
 |
SOCKET HEAD M8 x 15mm (L-side #14/ R-side #17) |
SBT-M815 $1.50 |
|
 |
BUTTON HEAD M8-30mm (L-side #15) |
BBT-M830 $2.00 |
|
 |
BUTTON HEAD M6-10mm (L-side #16) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-20mm (L-side #17, R-side #19) |
BBT-M620 $1.50 |
|
 |
SOCKET HEAD M6-18mm (L-side #18 / #19) |
SBT-M618 $1.50 |
|
 |
FLANGE HEAD M6-20mm (L-side #20) |
FGBT-M620 $1.50 |
|
 |
FLAT HEAD M6-10mm (L-side #21) |
FBT-M610 $1.50 |
|
 |
M6 MALE REVERSE ROD END (L-side #22) |
RDED-M6L $12.50 |
|
 |
M6 MALE ROD END (L-side #23) |
RDED-M6 $12.50 |
|
 |
REVERSE JAM NUT M6 (L-side #24) |
JNT-6L $2.50 |
|
|
JAM NUT M6 (L-side #25) |
JNT-6 $1.75 |
|
 |
ROD END COLLAR 3 (L-side #26) |
RDED-CLR3 $6.00 |
|
 |
SPLIT WASHER M8 (L-side #27, R-side #8) |
SWS-8 $1.20 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (R-side #1) |
HG-13R $55 |
|
 |
PEG WASHER - M8 (R-side #6) |
PWS-8 $1.00 |
|
 |
E-CLIP M6 (R-side #7) |
ECP-6 $1.50 |
|
 |
WASHER M6 (R-side #9) |
WS-6 $1.00 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (R-side #12) |
PEGCLR-15 $15 |
|
 |
SOCKET HEAD M8-20mm (R-side #16) |
SBT-M820 $1.50 |
|
 |
BUTTON HEAD M6-35mm (#R-side #20) |
BBT-M635 $1.75 |
|
 |
BUTTON HEAD M6-70mm (R-side #21) |
BBT-M670 $3.50 |
|
 |
BUTTON HEAD M8-25mm (R-side #22) |
BBT-M825 $1.50 |
|
 |
BRAKE ROD M40 (R-side #23) |
BRD-M40 $13.50 |
|
|
RETURN SPRING 40 (Option) |
RS-RSP $8.00 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
