SATO RACING 'Race Concept' Rear Sets (Design v.1) for 2016+ Kawasaki ZX-10R are pure, no-compromise race-spec Rear Sets, designed for track-only bikes. CNC-machined out of high strength billet aluminum, these heavy-duty Rear Sets feature a modular base plate / step plate design that provides 9 adjustable positions in a useful range for the track, bringing your feet significantly higher up and further back compared to stock. Heavy duty multi-link shift linkage works well with the stock quick shifter, providing a dedicated reverse shift pattern. Choose from anodized Black finish with Gold accents, or Gold finish with Black base plates and shift assembly.

Also check out our ZX-10R Race Concept Rear Sets (design v.2), which features an alternate base plate design with a different range of positions, including a version that provides stock shift pattern.


NOTE: Race Concept Rear Sets are not for street bikes - No brake light switch hardware is included. Snce this is intended for use with racing brake setups, full compatibility with the stock ABS brake system is not guaranteed (There might be error codes, etc).
(For more street-friendly Rear Sets, see our standard ZX-10R '16-'20 Rear Sets ).



POSITIONS

1 17.5mm Back 32.5mm Up
2 17.5mm Back 42.5mm Up
3 17.5mm Back 52.5mm Up
4 27.5mm Back 32.5mm Up
5 27.5mm Back 42.5mm Up
6 27.5mm Back 52.5mm Up
7 37.5mm Back 32.5mm Up
8 37.5mm Back 42.5mm Up
9 37.5mm Back 52.5mm Up

note: all measurements are in relation to stock position (0 mm).

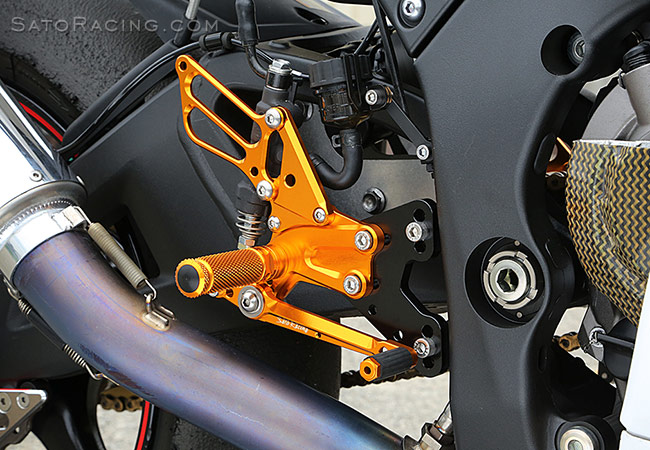

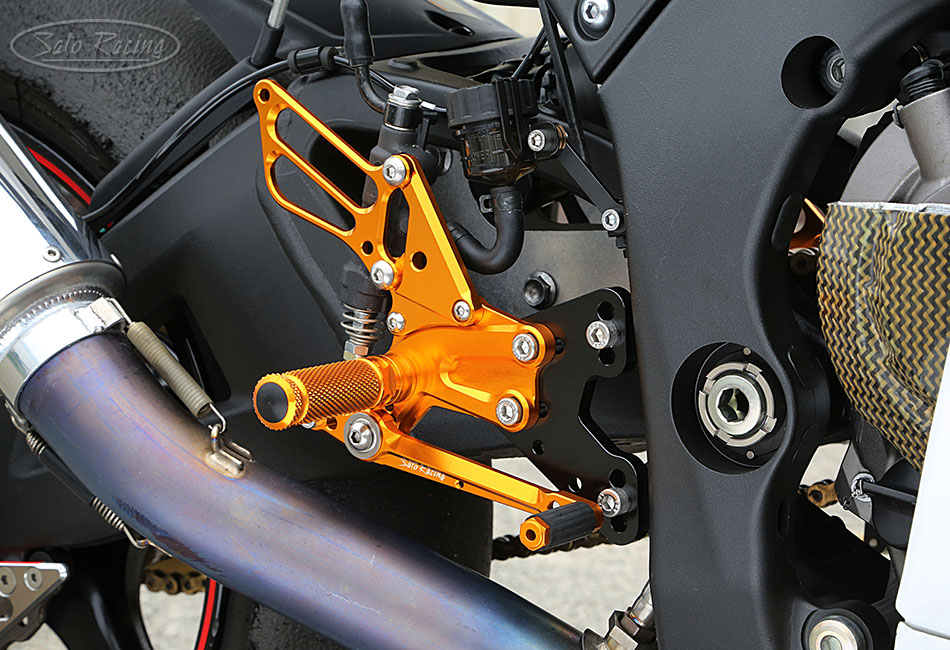

SATO RACING 'Race Concept' Rear Sets (R-side) for 2016-20 Kawasaki ZX-10R
Modular design lets you separately adjust the positions of the Base Plate and Step Plate so you can
easily achieve the ideal position for your riding style. The Pedal Tip position is also adjustable.

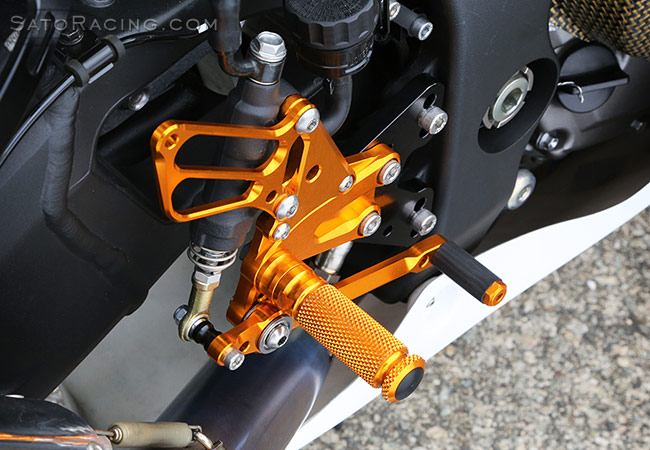

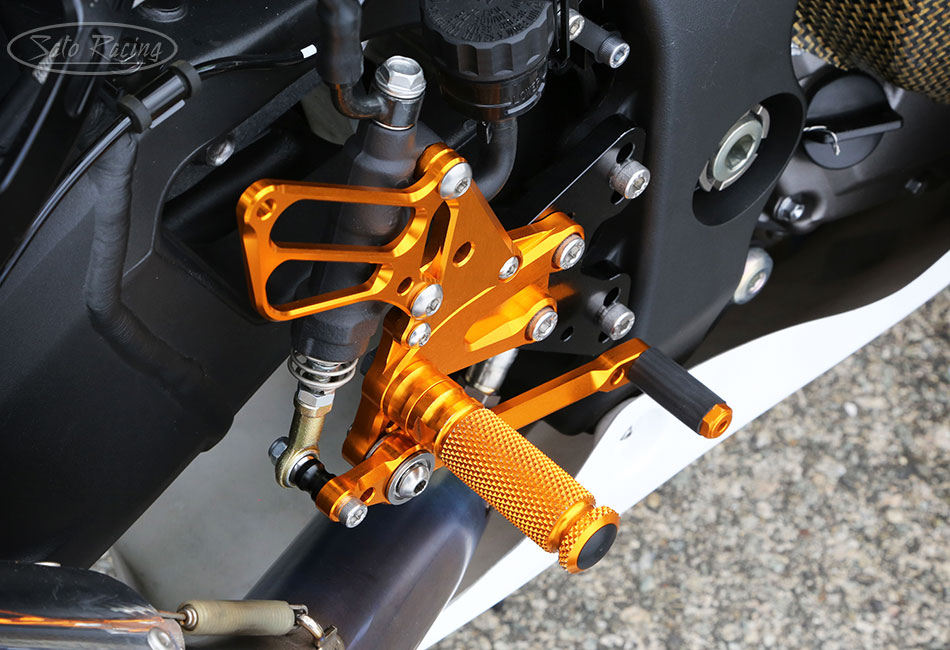

SATO RACING 'Race Concept'  Rear Sets (R-side) for 2016-20 Kawasaki ZX-10R
The Foot Pegs are finely knurled for superior grip and comfort. The Pedal Tips are gold-anodized
aluminum, with replaceable fluted rubber grips.   Additional Pedal Tip styles are also available.

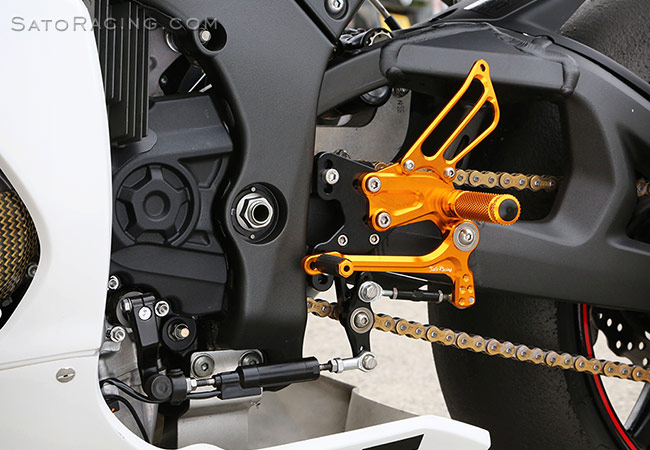

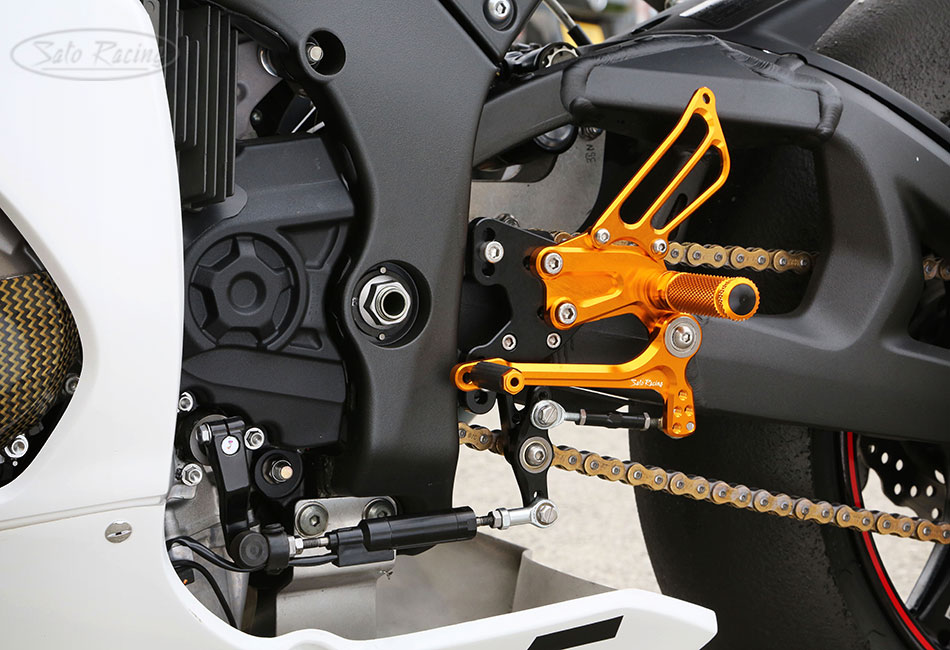

SATO RACING 'Race Concept' Rear Sets (L-side) for 2016-20 Kawasaki ZX-10R
These Rear Sets are designed to work seamlessly with the stock quick shifter. The Shift linkage and
brake pedal utilize double stainless bearings for smooth, precise pedal movement with a solid feel.

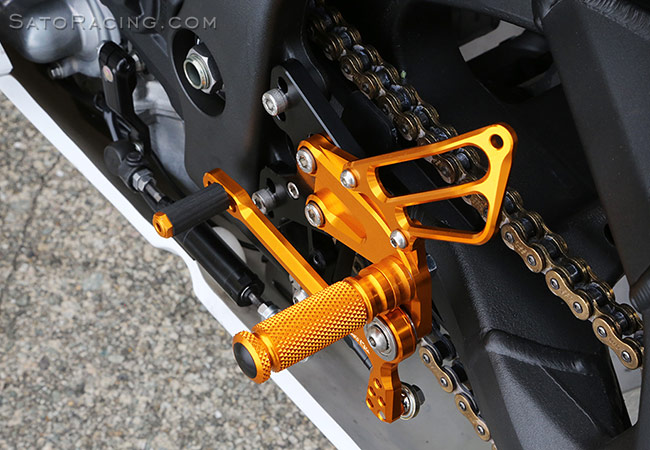

SATO RACING 'Race Concept' Rear Sets (L-side) for 2016-20 Kawasaki ZX-10R
Multi-link shift linkage design provides a dedicated reverse (GP style) shifting pattern.

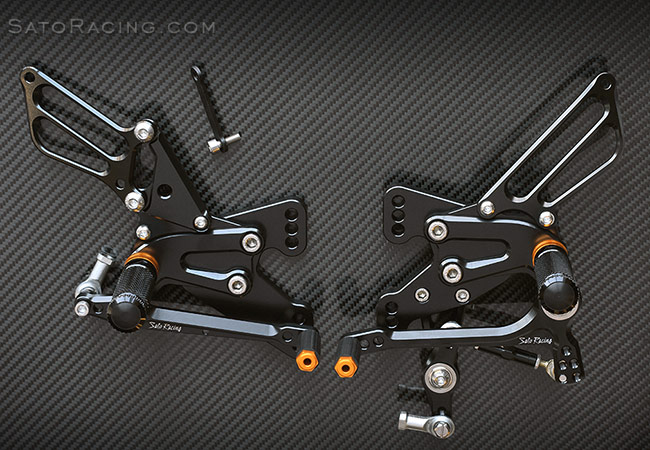

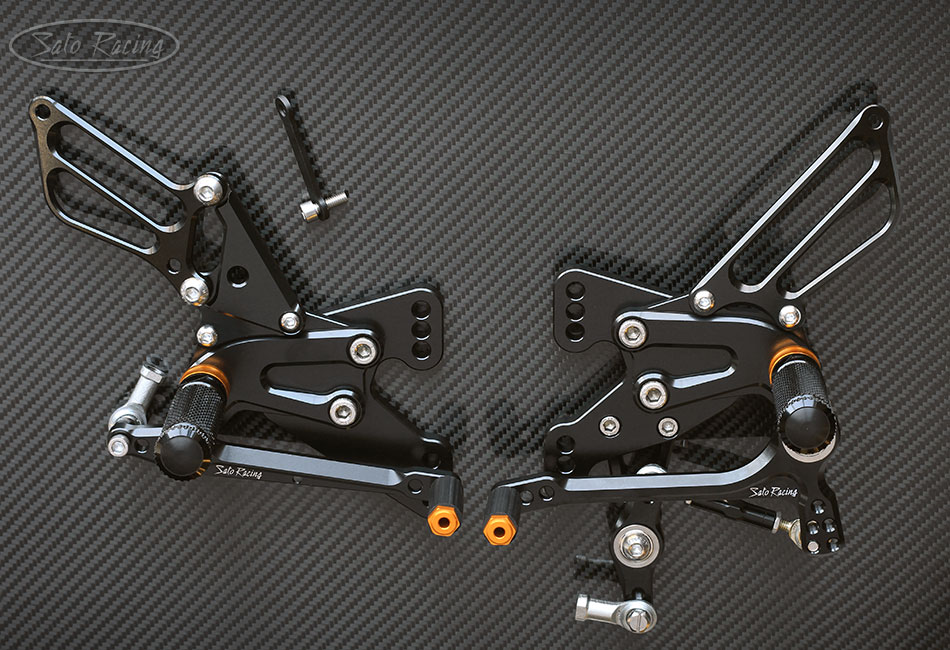

BLACK
w/ GOLD accents
K-ZX1016RCRS-BK
$600
SOLD OUT
GOLD
w/ BLACK base plates
K-ZX1016RCRS-GD
$600





'Refurbished' model
Returned item - Like new, but some parts may show
minor nicks or scuffs from handling or an attempted install.
It has been repackaged and verified to be complete.

GOLD
w/ BLACK base plates
(REFURBISHED)
K-ZX1016RCRS-GD-RFB
$480

Click Here for important info about Sato color-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)




_______________________________________________________________________

OPTIONS

_______________________________________________________________________


BRAKE RETURN SPRING

SATO RACING Brake Return Spring quickens the pedal return and may make the pedal feel more responsive compared to no spring. Compatible with specified models of SATO RACING Rear Sets.



BRAKE RETURN SPRING 40 RS-RSP
$8.00




_______________________________________________________________________




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD * RCPEG-GD
$48

* Click Here for important info about Sato GOLD-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)




_______________________________________________________________________

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the
illustrated parts list included with your Sato Rear Sets.
