KAWASAKI ZX-10R / RR ('16-'20)
REAR SETS ( STANDARD + REVERSE SHIFT )
| SATO RACING

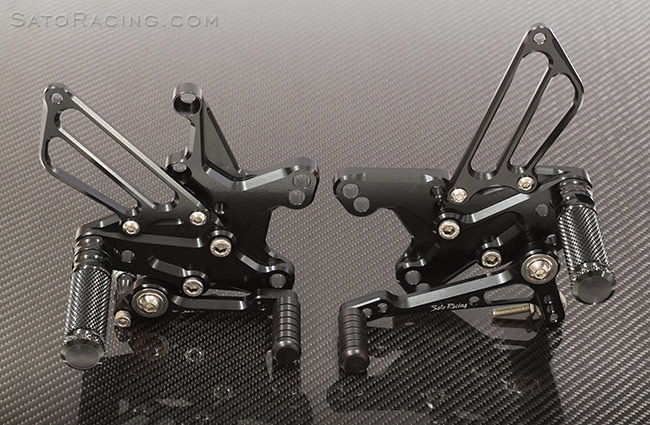

Rear Sets for 2016-20 Kawasaki ZX-10R and ZX-10RR features components precision machined out of high strength anodized billet aluminum, with stainless steel bolts. These adjustable Rear Sets feature a modular step plate design for a wide range of positions. 2 versions of these Rear Sets are available: The standard version, which has a stock shift pattern, and Reverse Shift Rear Sets, which provides a dedicated GP-style reverse shift pattern. Both types are available in your choice of Black, Silver or Gold anodized finish. |
REAR SETS (STANDARD VERSION)
| 1 | 5mm Back | 5.5mm Up |
| 2 | 15mm Back | 5.5mm Up |
| 3 | 25mm Back | 5.5mm Up |
| 4 | 7.5mm Back | 15.5mm Up |
| 5 | 17.5mm Back | 15.5mm Up |
| 6 | 27.5mm Back | 15.5mm Up |
| 7 | 10mm Back | 25.5mm Up |
| 8 | 20mm Back | 25.5mm Up |
| 9 | 30mm Back | 25.5mm Up |
| 10 | 5mm Back | 17.5mm Up |
| 11 | 15mm Back | 17.5mm Up |
| 12 | 25mm Back | 17.5mm Up |
| 13 | 7.5mm Back | 27.5mm Up |
| 14 | 17.5mm Back | 27.5mm Up |
| 15 | 27.5mm Back | 27.5mm Up |
| 16 | 10mm Back | 37.5mm Up |
| 17 | 20mm Back | 37.5mm Up |
| 18 | 30mm Back | 37.5mm Up |
note: all measurements are in relation to stock position (0 mm).

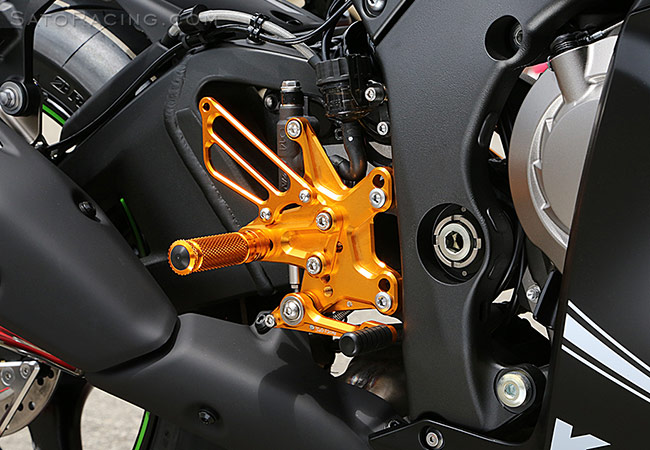

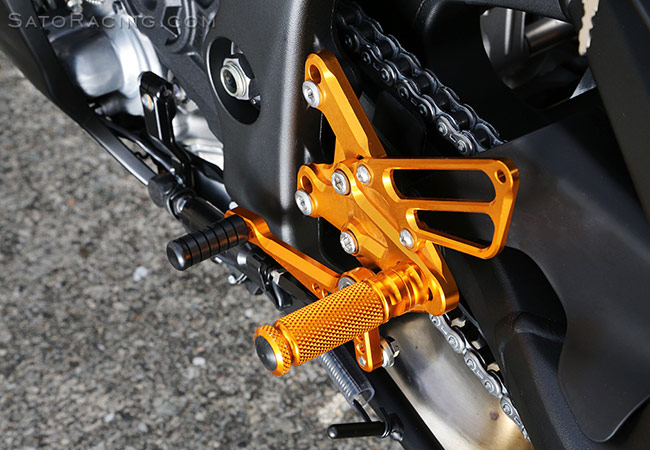

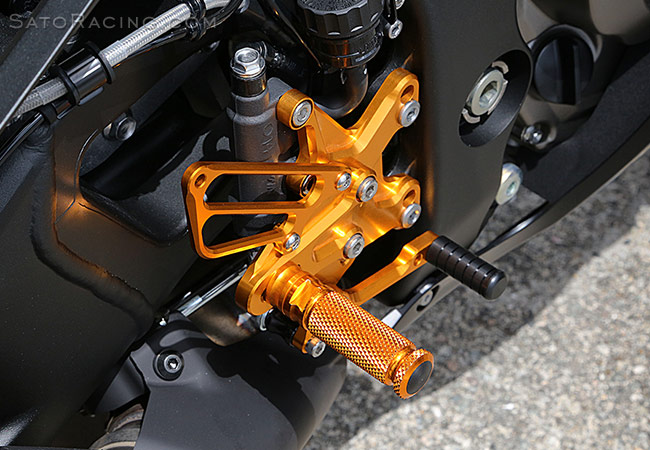

Modular design lets you separately adjust the positions of the Base Plate, Step Plate and the
Foot Peg, So you can easily achieve your ideal riding position. The Pedal Tip position is also
adjustable. These Rear Sets are fully compatible with the stock rear brake light pull switch.
Foot pegs have a finely knurled pattern for superior grip and feel. The standard Pedal Tips are made of
dense, abrasion-resistant Delrin. Other styles of Pedal Tips are also available. Click Here for details.
These Rear Sets are designed to work seamlessly with the stock quick shifter. The Shift and brake pedal
components utilize miniature double stainless bearings for smooth, precise lever action with a solid feel.

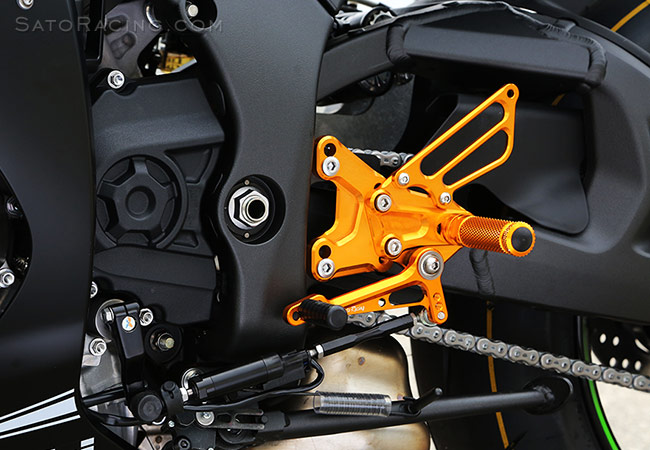

Standard version Rear Sets shown above provides a stock shifting pattern.

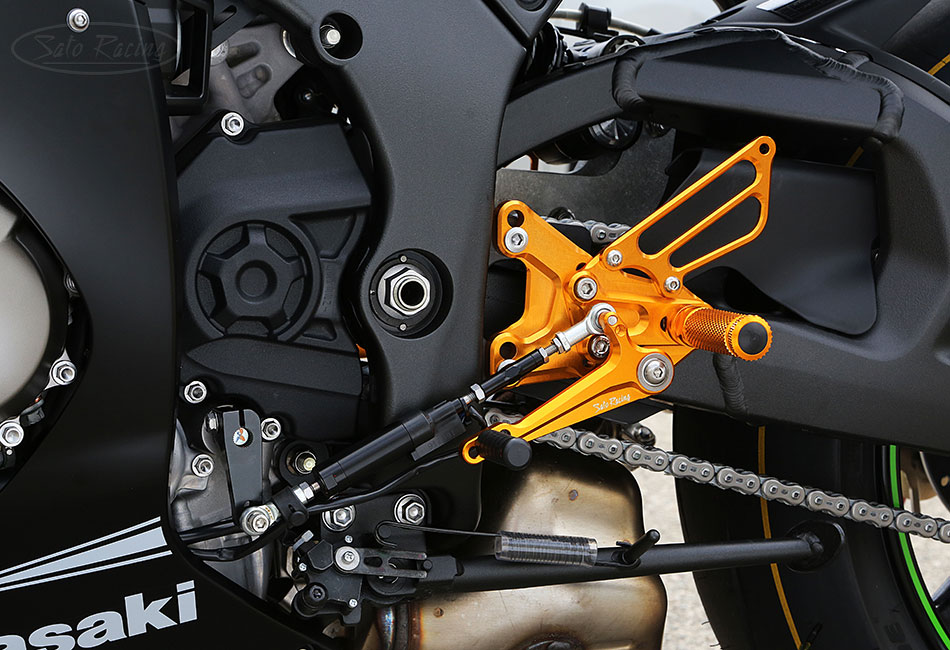

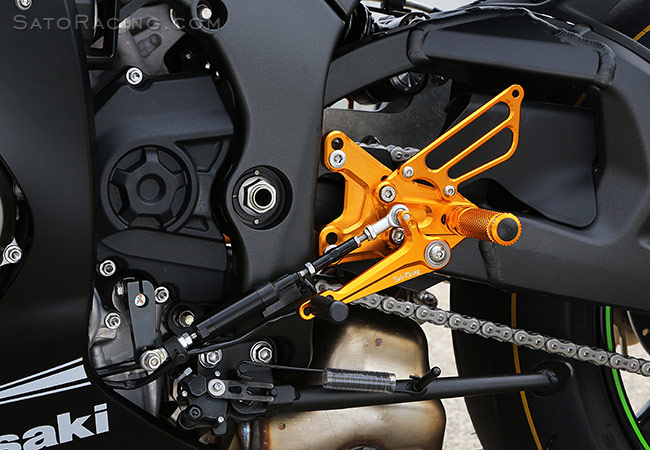

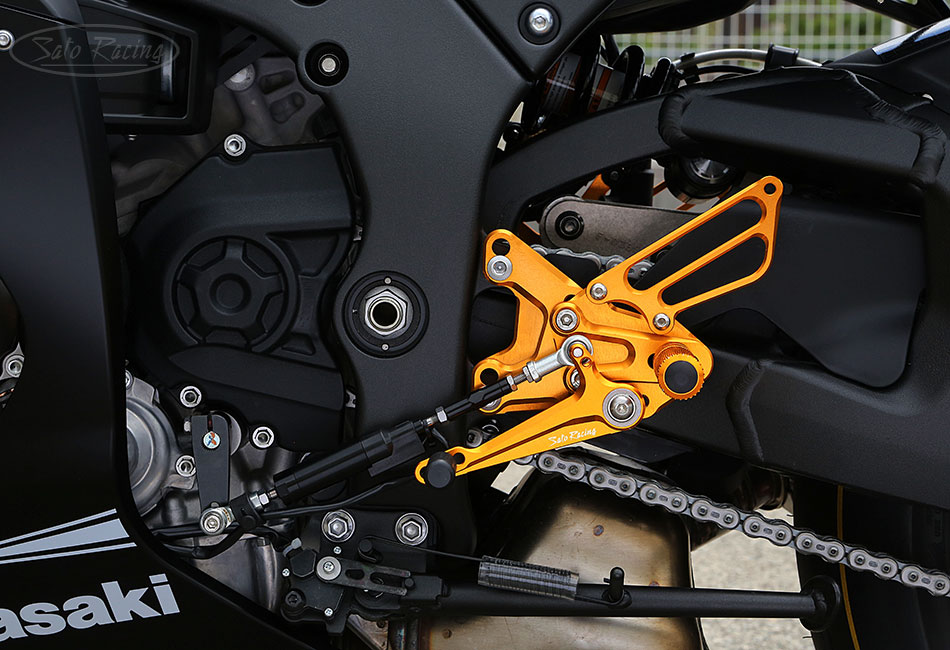

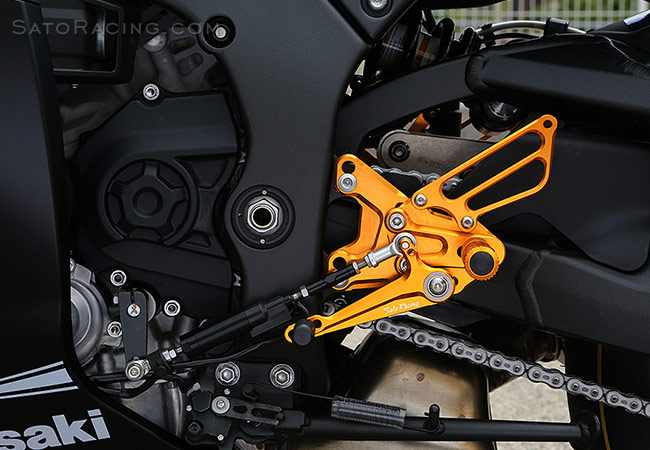

REVERSE SHIFT REAR SETS

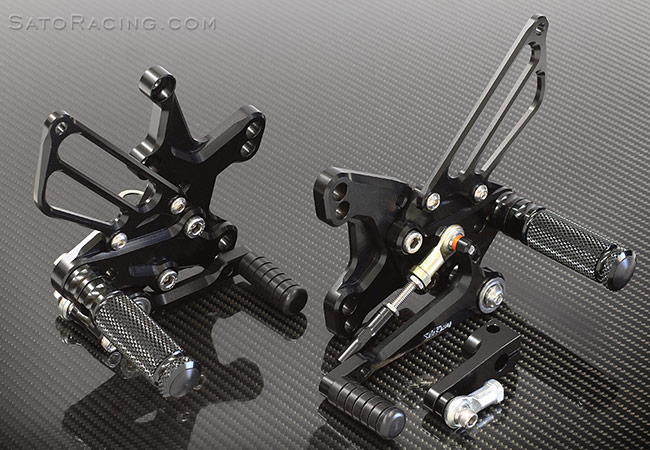

| SATO RACING Reverse Shift Rear Sets for 2016-20 Kawasaki ZX-10R and ZX-10RR has a different shift pedal and shift linkage design than our standard version Rear Sets, providing a dedicated reverse shift pattern. Modular step plate design lets you choose from 16 adjustable positions. Choice of Black, Silver or Gold anodized finish. |
| 1 | 25mm Back | 5.5mm Up |
| 2 | 7.5mm Back | 15.5mm Up |
| 3 | 17.5mm Back | 15.5mm Up |
| 4 | 27.5mm Back | 15.5mm Up |
| 5 | 10mm Back | 25.5mm Up |
| 6 | 20mm Back | 25.5mm Up |
| 7 | 30mm Back | 25.5mm Up |
| 8 | 5mm Back | 17.5mm Up |
| 9 | 15mm Back | 17.5mm Up |
| 10 | 25mm Back | 17.5mm Up |
| 11 | 7.5mm Back | 27.5mm Up |
| 12 | 17.5mm Back | 27.5mm Up |
| 13 | 27.5mm Back | 27.5mm Up |
| 14 | 10mm Back | 37.5mm Up |
| 15 | 20mm Back | 37.5mm Up |
| 16 | 30mm Back | 37.5mm Up |
note: all measurements are in relation to stock position (0 mm).
Reverse Shift Rear Sets provide a reverse (GP-style) shift pattern.
REAR SETS (standard version)
| BLACK | ZX1016RS-BK $585 |
 |
| SILVER | ZX1016RS-SV $585 |
|
| GOLD | ZX1016RS-GD $585 |
|
REVERSE SHIFT REAR SETS
| BLACK | K-ZX1016RSR-BK $650 |
|
| SILVER | K-ZX1016RSR-SV $650 |
|
| GOLD | K-ZX1016RSR-GD $650 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list included with your
Sato Racing Rear Sets, or view the PDF: Rear Sets (Standard version) | Reverse Shift Rear Sets
Some replacement parts for these Rear Sets
can be purchased in our online store:
(Part numbers correspond to the STD Shift version unless otherwise noted.)
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#16) |
PEGCLR-12 $15 |
|
 |
STUD BOLT M8-45mm (#17) |
STBT-45 $4.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (#1) |
HG-2L $50 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (#2) |
HG-2R $50 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (#7) |
SPD-14 $62.50 |
|
 |
ROD ADAPTER M6-8 (#9) |
RDED-ADPTRM6-8 $8.00 |
|
 |
BEARING COLLAR 3 [BLACK] (#13) |
PEGBGCLR-3 $10.00 |
|
 |
BEARING COLLAR 5 [BLACK] (#14) |
PEGBGCLR-5SB $10.00 |
|
 |
ROD END COLLAR 20 (#15) |
RDED-CLR20 $8.00 |
|
 |
HEX HEAD M5-8mm (#18) |
HBT-M58 $2.00 |
|
 |
HEX HEAD M6-18mm (#19) |
HBT-M618 $2.00 |
|
 |
SOCKET HEAD M6-45mm (#22) |
SBT-M645 $2.00 |
|
 |
SOCKET HEAD M8-15mm (#23) |
SBT-M815 $1.50 |
|
 |
BUTTON HEAD M6-10mm (#24) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-30mm (#26) |
BBT-M830 $2.00 |
|
 |
NUT M5 (#27) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#28) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#29) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (#30) |
LNT-6 $1.50 |
|
 |
FLANGE NUT M8 (#31) |
FNT-8 $1.50 |
|
 |
MALE ROD END M6 (#32) |
RDED-M6 $12.50 |
|
 |
REVERSE MALE ROD END M6 (#33) |
RDED-M6L $12.50 |
|
 |
PULL SWITCH STAY 16 (#34) |
PSTAY-16 $9.50 |
|
 |
SOCKET HEAD M6-15mm (for relocating reservoir) |
SBT-M615 $1.50 |
|
 |
UNIVERSAL STAY M6-25mm [BLACK] (for relocating reservoir) |
UB-M625-B $8.00 |
|
 |
SHIFT ROD 40 (BK) (REV Shift #9) |
SRD-40 $35 |
|
 |
ROD END COLLAR 3 (REV Shift #17) |
RDED-CLR3 $6.00 |
|
 |
COLLAR 5-6 (REV Shift #19) |
HGCLR-5 $8.00 |
|
|
HEX HEAD M6-20mm (REV Shift #22) |
HBT-M620 $2.00 |
|
 |
SOCKET HEAD M6-22mm (REV Shift #25) |
SBT-M622 $2.00 |
|
 |
STUD M6-45mm (REV Shift #33) |
STUD-M6 $2.50 |
|
 |
REVERSE FEMALE ROD END M6 (REV Shift - #40) |
RDED-F6L $15.00 |
|
|
FEMALE ROD END M6 (REV Shift - #41) |
RDED-F6 $15 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
