SATO RACING | Handle Bar Ends + Lever Guards

HANDLE BAR ENDS
+ LEVER GUARDS

SATO RACING Handle Bar Ends are a great way to protect your handle bars and grips, while also giving your bike a premium custom look. We make Bar Ends to fit most sportbike models. You can choose from many styles and colors!

Lever Guards are an available option with most models of our Handle Bar Ends, providing additional protection at the track. See the Handle Bar Ends links below to find the Lever Guard models that are compatible with your bike.

Sato Racing SHORT-style Handle Bar Ends ands Lever Guard on a Ducati Streetfighter V4

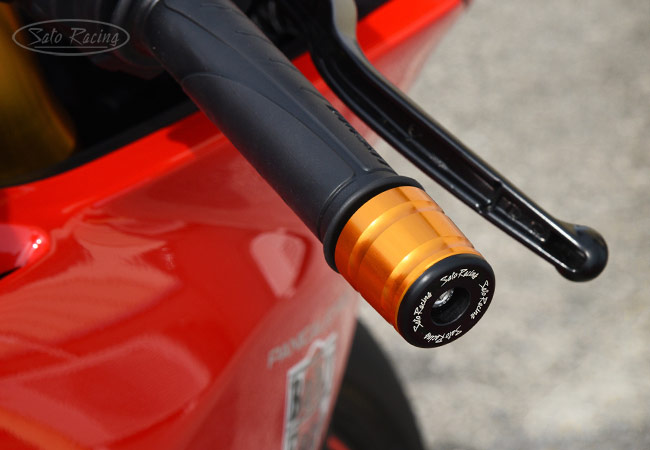

SATO RACING full-size slider-style Handle Bar Ends on a Ducati Panigale V4

SATO RACING Handle Bar Ends - Choose from many styles and colors

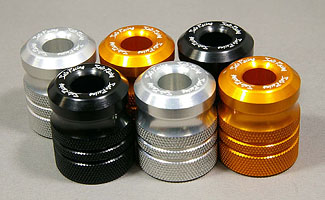

Our Bar Ends come in several distinctive styles, including new Full-size slider-type Bar Ends, and for each style you get a choice of anodized billet aluminum (Black, Silver, Gold, Red, Blue, Green and/or Gunmetal), or heavier Stainless Steel.

SATO RACING Handle Bar Ends

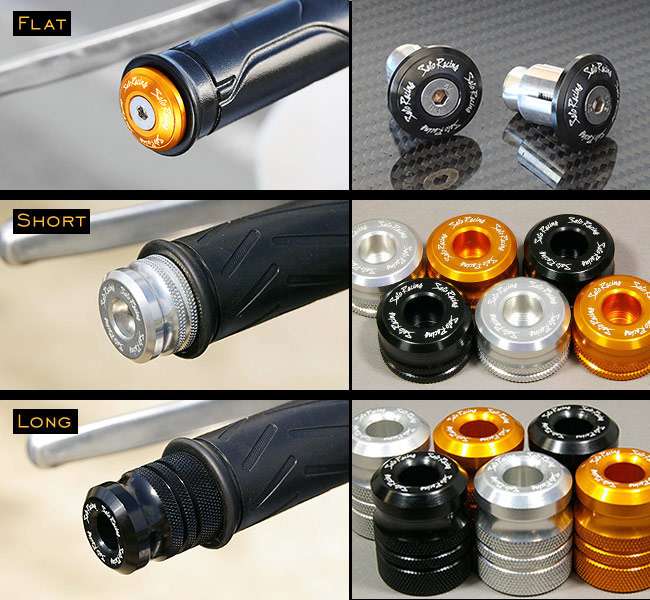

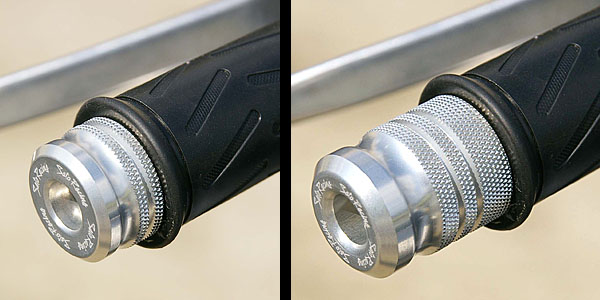

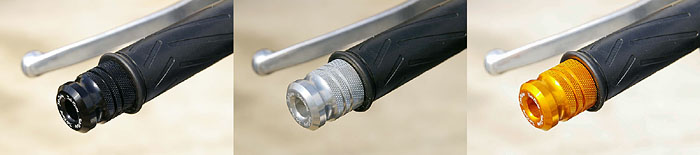

with our standard-size (30mm diameter) Handle Bar Ends, you can choose from 3 lengths:
LONG style, SHORT style, and FLAT style.

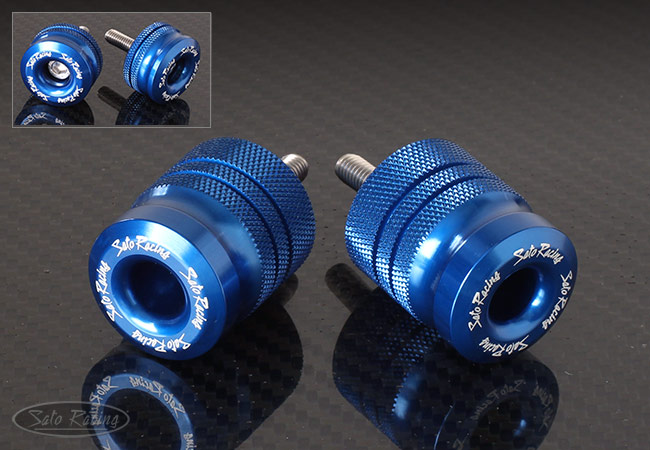

SATO RACING SHORT and LONG-style Handle Bar Ends [Blue] for M6-threaded handle bars (Suzuki, Yamaha etc.)

New BLUE anodized Handle Bar Ends - Now available in Full-size, SHORT, LONG and Compact (22mm) styles for most bike models. Shown in the above photo is Part# BE-M6S-BU and BE-M6L-BU for M6-threaded Handle Bars (Suzuki, Yamaha etc.).

SATO RACING full-size Handle Bar Ends

SATO RACING Full size (35mm diameter) Handle Bar Ends double as sliders, utilizing end caps made of high-density, abrasion-resistant Delrin to help protect your bars and bar-mointed controls and accessories from scrapes or more serious damage if you lay it down. Choice of anodized billet aluminum (Black, Silver, Gold, Red, Blue or Green), or Stainless Steel.

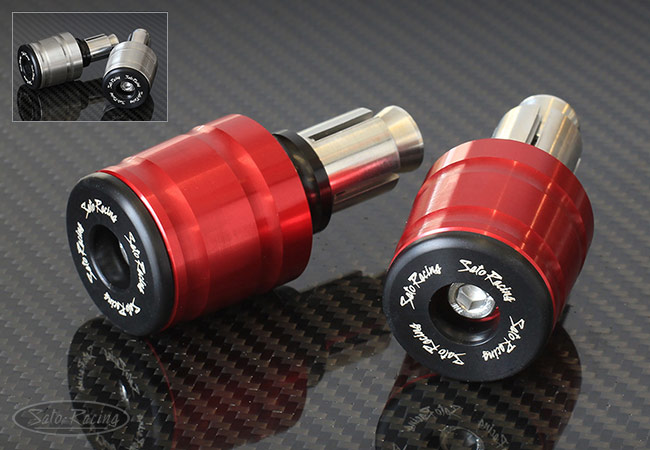

(Honda-type Bar Ends part# BE35-3-RD and BE35-3-SUS shown above)

SATO RACING Stainless Steel Handle Bar Ends

Our Stainless Steel Handle Bar Ends are quite heavy, around twice the weight of our aluminum Bar Ends of the same size. That extra weight at the ends could help to suppress handle bar vibrations.

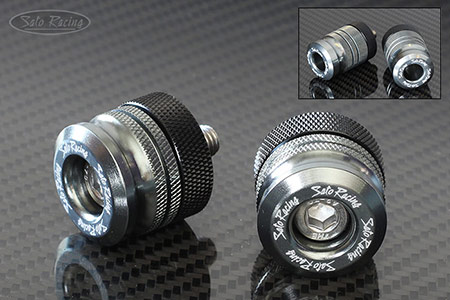

(Size M8 Kawasaki-type Bar Ends part# BE35-M8K-SUS and BE-M8LK-SUS shown above)

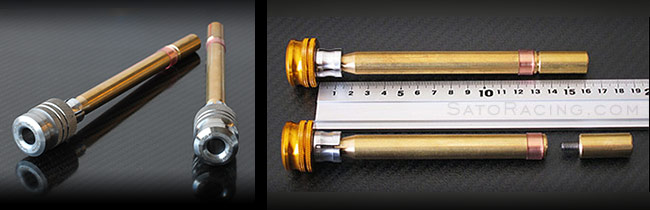

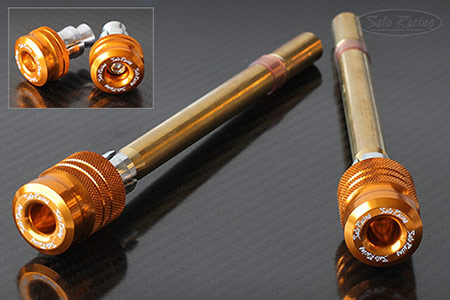

SATO RACING Handle Bar Ends + Long Inner Weights

SATO Bar End models for hollow bars offer the option of Inner Weights
for the handlebars, for even more effective vibration suppression:

Handle Bar Ends + 14-16mm/ 18-19mm Inserts (for Ducati / KTM, etc)
Handle Bar Ends + Inserts + Spacer Collars (for Honda / Yamaha R3 + various)

HANDLE BAR ENDS + INSERTS, w/ optional INNER BAR WEIGHTS
for Hollow Bars (DUCATI / KTM, etc. )

These Handle Bar Ends for bike models with hollow bar openings feature 2-piece layered aluminum stretch sleeve inserts that can be expanded to fit bars with either 18-19mm internal diameter, or can fit in 14-16mm bars if the outer stretch sleeve ia removed. This Bar End type is available with or without Inner Weights. The Inner Weights can be useful for suppressing handle bar vibration in compatible models.

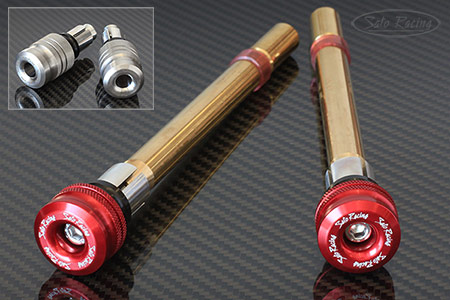

SATO RACING Handle Bar Ends + 14-16mm/18-19mm Inserts
w/ optional Inner Bar Weights

Compatibility list:
- DUCATI (Fits most models. Will not fit Multistrada 1100S)
- KTM 690/790 Duke / 990/1290 SuperDukeR/GT/ RC8/R
- APRILIA RSV4 '09+ / Tuono V4 R / 1100 '12+
- HUSQVARNA Vitpilen 401/ Svartpilen 401 '18-'19
- MV AGUSTA Brutale 1090/675/800 / F4
- TRIUMPH Daytona 675R '06-'17
- SUZUKI SV650 ABS / GSX-S1000/ Katana / Hayabusa '22
- KAWASAKI Ninja H2 '15-
- EBR 1190RX
- SATO RACING 'Race Concept' Handle Bars
- Aftermarket handle bars/ clip-ons (if I.D. is between 14mm and 19mm)

PRODUCT DETAILS

HANDLE BAR ENDS + INSERTS + COLLARS, w/ optional INNER BAR WEIGHTS
for HONDA (most models) / YAMAHA R3 '15- / KAWASAKI NINJA 650 '17- / H2 SX

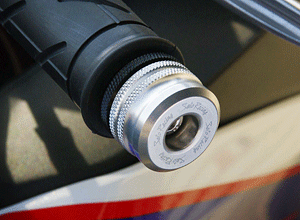

Our Honda-compatible Bar Ends utilize 2-piece layered aluminum stretch sleeve inserts that can be expanded to fit hollow bars with either 18-19mm internal diameter, or can fit in 14-16mm bars if the outer stretch sleeve is removed. Includes black-anodized aluminum Spacer Collars designed to fit in OEM bars with wide bar openings that step down to a smaller internal diameter around 1cm inside the bars, including most Honda models if the OEM weighted bar inserts have been removed. Also recommended for Triumph Daytona 765, MV Agusta F3, Yamaha R3 and 2017+ Kawasaki Ninja 650 and H2 SX.

This Bar End type is available with or without Inner Bar Weights. These Inner Weights can be useful for suppressing handle bar vibration in compatible models. (NOTE: The Weights are not compatible with all Honda bars).

PRODUCT DETAILS

HANDLE BAR ENDS - Size M6
for SUZUKI / YAMAHA, etc.

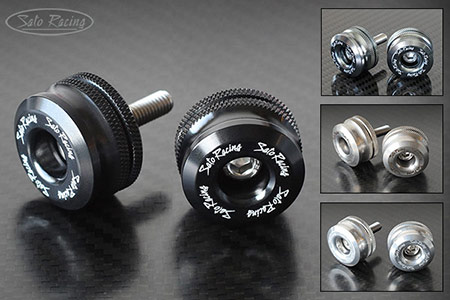

These M6-type Handle Bar Ends fit various Aprilia, Suzuki, Triumph and Yamaha models with M6-threaded handle bar openings. Available in many sizes and styles.

Compatibility list:
- APRILIA RSV1000 / Tuono/V4 (-'11) / Mana / Shiver
- SUZUKI GSX-R600/750 (all)/ GSX-R1000 ( -'16) / GSR400-750 /
     GSX-S750 '15-'18 / Hayabusa ( -'20) / SV-series ( -'16) / GSF-series
- TRIUMPH Street Triple 675/765 '13-'17 / Street Twin '16
- YAMAHA YZF-R1 (all years) / R6 '06-'20 / R7 '22- / MT-09 '21-'23 /
   FZ8 / FZS600 ( -'03) / FJR1300 / VMAX 1700

     PRODUCT DETAILS

HANDLE BAR ENDS - Size M6
for 2018+ TRIUMPH models

We now have M6-size Bar End Caps to fit various Triumph models with the OEM bar end mirrors. We also have standard Bar Ends with adapter collars to fit 2018+ Triumph handlebars without the bar end mirrors in place.

SATO RACING Handle Bar Ends - Size M6 for Triumph

Compatibility list:
- TRIUMPH Street Triple 765 '18- / Speed Twin '19-
Thruxton R/RS/TFC '18- / Speed Triple '18- / Trident 660 '21-

PRODUCT DETAILS

HANDLE BAR ENDS - Size M8
for KAWASAKI / BMW, etc.

Our M8-type Handle Bar Ends fit various Kawasaki, BMW, Triumph and Yamaha models with M8-threaded handle bar openings. Available in many sizes and styles. Optional black-anodized aluminum Adapter Collars hide the protruding grip ends on Kawasaki models. Includes M8-sized stainless steel bolts.

Compatibility list:
- KAWASAKI ZH2 '21- / ZX-10R '09- / ZX-6R / ZX-9R / ZX-12R / ZX-14R /
ER-4n/6n / Z650RS / Z900/ RS / Z1000 ('10- ) / Ninja250-1000 /
GPZ900R / ZRX1100/1200 / ZEP1100 / ZZR400/1100
NOT compatible with:
Kawasaki Ninja H2 '15-'20 / H2SX SE / ZX-10R ('04-'05, '08) /
Z1000 '07-'09/ Ninja 650 '17-'23

- YAMAHA MT-09 '24-

- BMW S1000RR '19- / G310R / K1200/1300S/R / R1100S / R1200S/ F800S

- TRIUMPH Speed Triple (-'07, '11-'15) / Street Triple ( -'12) /
Daytona675 (non-R) *

* Fits Triumph models that have M5-threaded bar inserts if the stock threaded sleeves are modified/removed so they fit M8 bolt size. The optional adapter collars are recommended if installing on Daytona 675. Not compatible with all years and versions of the listed models, so check your bars for compatibility before ordering.

PRODUCT DETAILS

HANDLE BAR ENDS - YAMAHA type
for FZ / MT-series, etc.

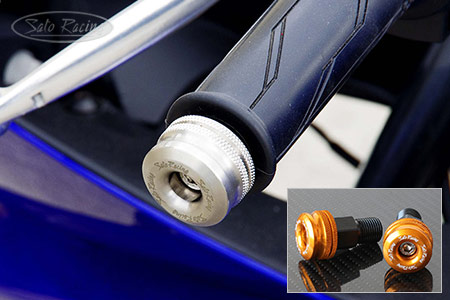

SATO RACING Handle Bar Ends - compact 22mm style - Yamaha type

SATO RACING 'Yamaha-type' Bar Ends include special screw-in adapters made of anodized billet aluminum that fit Yamaha models with large diameter threaded openings in the bars. Available in a wide range of bar end styles and colors.

Compatibility list:
YAMAHA FZ-07 / MT-07 '14- / FZ-09 / MT-09 '14-'20 /
XSR900 '16-'20 / FZ10 / MT-10 '17- / MT-01 '05-'12 /
FZ1 '06-'15 / FZ6 '04-'07 / XJ-6 / XJR400-1300 /
YZF-R125 '08-

PRODUCT DETAILS

NEW HANDLE BAR ENDS - Size M10
for BMW S1000R '21- / F900R '20-

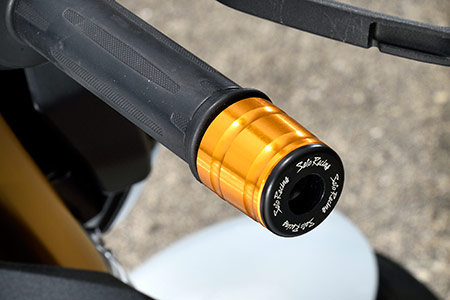

SATO RACING Handle Bar Ends - size M10 for BMW

SATO RACING Handle Bar Ends for M10-threaded BMW models are a new addition to our lineup, and are available in Full size (35mm diameter) slider-type Bar Ends made of billet aluminum with your choice of Black, Red, Blue or Gold anodized finish. This size fits 2021+ BMW S1000R (US 2022), 2020+ BMW F900R and other BMW models with 10mm threaded holes in the handle bars.

PRODUCT DETAILS

HANDLE BAR ENDS - Size M12
for BMW S1000RR '10-'18/ S1000R '14-'20 / R NineT '14-'21 /
SUZUKI GSX-8S / R '23-

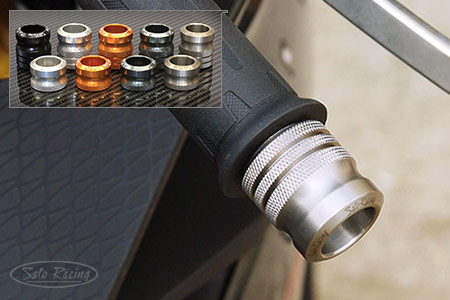

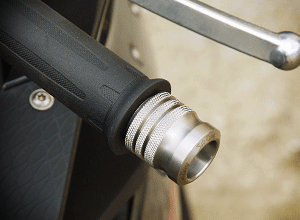

SATO RACING Handle Bar Ends - size M12 for BMW

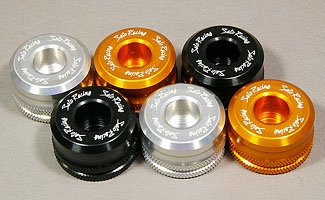

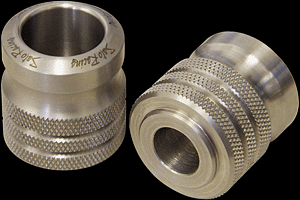

SATO RACING Handle Bar Ends for M12-threaded BMW models are available in SHORT style, LONG style, and new Full size (35mm diameter) slider-type Bar Ends. All models are available in your choice of Stainless Steel, or billet aluminum anodized in Black, Silver, or Gold finish. Gunmetal and/ or Red anodized finish is also an option for some sizes. Our standard-type Bar Ends (SHORT and LONG styles) are designed for use with stock BMW bar end bolts, while the Full size Bar Ends include M12 bolts. Fits 2010-18 S1000RR/ HP4, 2014-20 S1000R, and 2014-21 R NineT.

PRODUCT DETAILS

HANDLE BAR ENDS - Size M12
for SUZUKI GSX-R1000/R '17- / HAYABUSA '22- / GSX-8S / R '23-

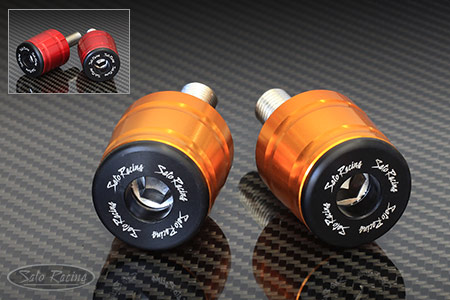

SATO RACING Handle Bar Ends - size M12 for Suzuki

SATO RACING Handle Bar Ends for 2017+ Suzuki GSX-R1000 and 2022+ Hayabusa are Full size (35mm diameter) slider-type Bar Ends, featuring integrated Delrin end caps to help protect the bars and bar-mounted components from scrapes or other damage if you lay it down. Choice of heavy Stainless Steel, or billet aluminum anodized in Black, Silver, Gold or Red finish. Includes black anodized aluminum spacers and M12-size bolts.

PRODUCT DETAILS
