SATO RACING | Rear Sets - Honda Monkey ('18-'21)

HONDA MONKEY 125 ('18-'21)
REAR SETS

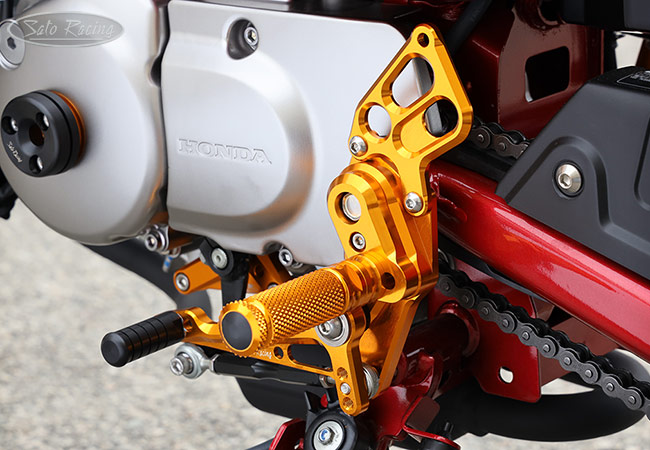

Honda Monkey 125 with SATO RACING Rear Sets and other parts

SATO RACING Rear Sets for 2018-21 Honda Monkey 125 (4sp) features a thoroughly track-tested design, with components precision machined out of light-weight, high strength anodized billet aluminum, with stainless steel bolts and hardware. Adjustable peg mount lets you select from 2 foot peg positions that bring your feet higher up and significantly further back compared to stock, for a more aggressive position well-suited for spirited riding. Works with non-ABS and ABS-equipped Monkey models.

2 versions of these Rear Sets are available: The standard version, which has a stock shift pattern, and Reverse Shift Rear Sets, which provides a dedicated GP-style reverse shift pattern. Both types are available in your choice of Black or Gold anodized finish.

We also offer an optional Shift Spindle Holder that works well with these Rear Sets, reducing play in the shift spindle for more precise shift action.

NOTE: This model fits the 2018-21 Monkey (4sp). For Rear Sets for 2022-25 Monkey (5sp), Click Here.

POSITIONS

1	87.5mm Back	37.5mm Up
2	100mm Back	37.5mm Up

note: all measurements are in relation to stock position (0 mm).

SATO RACING Honda Monkey '18- Rear Sets [R]-side
The shift and brake pedals utilize miniature double stainless bearings for smooth, precise lever action.

SATO RACING Honda Monkey '18- Rear Sets [R]-side
You can adjust the position of the Foot Pegs 2 ways. The Pedal Tip position is also adjustable.
These 'street'-friendly Rear Sets are compatible with the stock brake light pull switch.

SATO RACING Honda Monkey '18- Rear Sets [R]-side
Peg position is located 87.5mm to 100mm rearward and 37.5mm further up compared to stock.

SATO RACING Honda Monkey '18- Rear Sets [L]-side
Rear Sets (standard version) - provides a stock shifting pattern.
(Shown installed together with our Shift Spindle Holder).

SATO RACING Honda Monkey '18- Rear Sets [L]-side

The Foot Pegs have a finely knurled pattern for nice grip, along with a comfortable, intuitive feel.

The standard Pedal Tips (toe pegs) are made of tough black Delrin. Additional Pedal Tip styles, such as aluminum Pedal Tips with fluted rubber sleeves, are an available option: More Details

SATO RACING Honda Monkey '18- Reverse Shift Rear Sets
Reverse Shift Rear Sets - provides a reverse / 'race' shifting pattern.

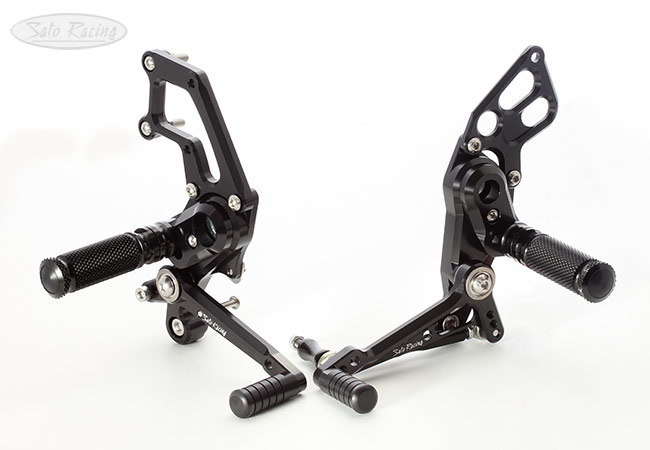

SATO RACING Honda Monkey '18- Rear Sets
Rear Sets (standard shift) in BLACK

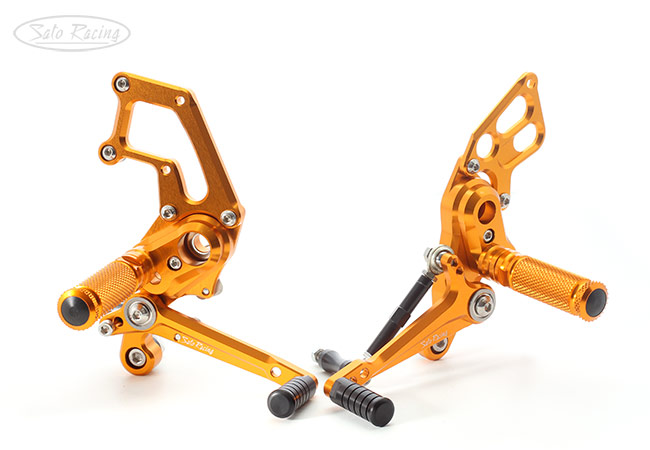

SATO RACING Honda Monkey '18- Reverse Shift Rear Sets
Reverse Shift Rear Sets

REAR SETS (Standard Shift)

BLACK	H-MKYRS-BK $450
GOLD	H-MKYRS-GD $450

REVERSE SHIFT REAR SETS

BLACK	H-MKYRSR-BK $450
GOLD	H-MKYRSR-GD $450

Click Here for important info about Sato color-anodized parts.

OPTIONS

HONDA GROM / MONKEY 125 ('13-'21)
SHIFT SPINDLE HOLDER

SATO RACING Shift Spindle Holder for the 2018-21 Monkey 125 and 2013-20 Honda Grom / MSX125 reinforces the shift linkage by reducing lateral play in the spindle shaft during shifts, for more consistent and precise shifting and extra durability in heavy-duty use. Gold anodized billet aluminum with a Teflon inner bushing.

SATO RACING Shift Spindle Holder for Honda GROM and Monkey 125

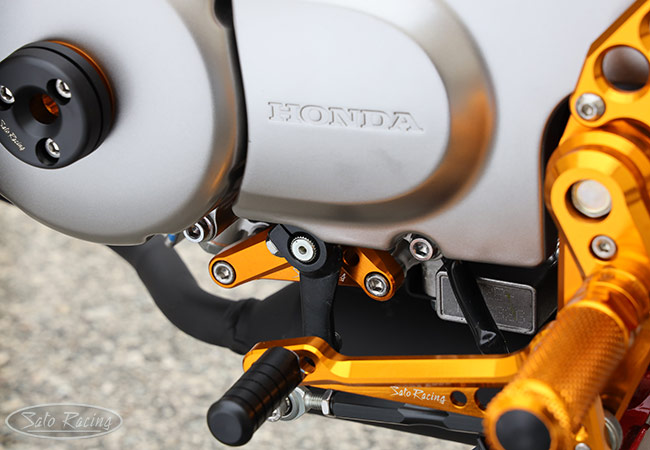

Shift Spindle Holder shown installed on a Honda Monkey.

SATO RACING Shift Spindle Holder for Honda GROM and Monkey 125

GOLD

H-GROMRS-SHDR
$85

HONDA MONKEY (+ various)
REAR BRAKE RESERVOIR CAP

This premium Brake Cap for the rear brake fluid reservoir is precision CNC-machined out of solid billet aluminum and features a finely knurled grip pattern around the rim, with white laser etched Sato Racing logo script on top. Fits Nissin 32mm-type reservoirs. Available in Black, Silver or Gold anodized finish. Looks great with our Monkey Rear Sets*!

* NOTE: This cap may be a tight fit on some Monkeys.

SATO RACING Rear Brake/Clutch Fluid Cap for Nissin 32mm Reservoir

BLACK	FC-N32-B $40
SILVER	FC-N32-S $40
GOLD	FC-N32-G $40

HONDA MONKEY (+ various)
OIL FILLER CAP

SATO RACING Oil Filler Cap part# H-OFCAP-R is a great match for our Monkey Rear Sets! It is precision machined out of billet aluminum alloy. Holes in the outer rim can be used to attach a safety wire. Choice of Black, Silver or Gold anodized finish. Fits Monkey, GROM and most other Honda models. (Use with the stock O-ring)

We also make an optional Quick-Wrench Tool for this Oil Cap that you can keep on your keyring.

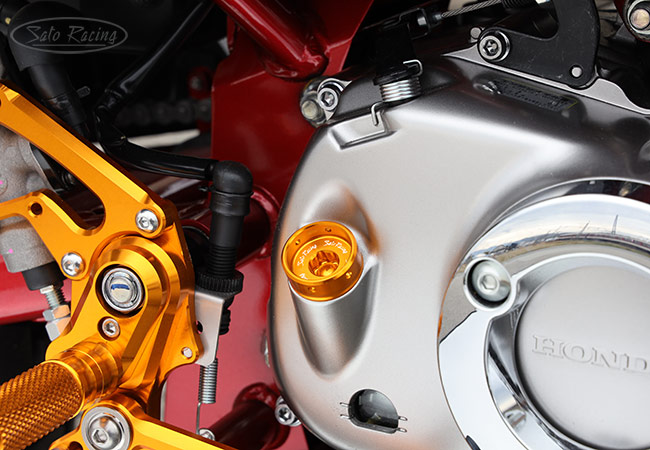

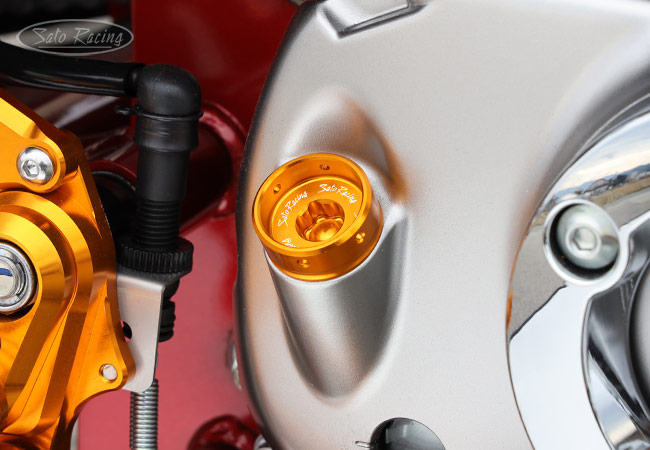

SATO Oil Filler Cap on a Honda Monkey

Oil Filler Caps for Honda - Choice of Black, Silver or Gold

	BLACK	H-OFCAP-RB $50
	SILVER	H-OFCAP-RS $50
	GOLD	H-OFCAP-RG $50

QUICK-WRENCH
for SATO Oil Cap

OFCAP-TOOL
$32

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $52
	GOLD	RCPEG-GD $52

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of replacement parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated parts list
included with your SATO RACING Rear Sets, or view the PDF parts list:
Std Shift version part# H-MKYRS - L-side | R-side
Reverse Shift version part# H-MKYRSR - L-side

Most replacement parts for these Rear Sets
can be purchased in our Online Store:
NOTE: The parts shown below correspond to the parts list for Rear Sets part# H-MKYRS unless otherwise noted. Parts highlighted in YELLOW are parts specific to the Reverse Shift version.

	FOOT PEG (BK / GD)	PEG $48
	PEG COLLAR 15 (BK / GD) (#22)	PEGCLR-15 $15
	SOCKET HEAD M8-45mm (#28, Foot peg bolt)	SBT-M845 $2.00
	PEDAL TIP (DELRIN) (#13)	ST-001D18 $16.50
	LOW SOCKET HEAD M6-20mm (#32, for Pedal Tip)	LSBT-M620 $4.00
	SHIFT PEDAL (BK / GD) (L-side #6)	SPD-14 $85
	SHIFT ROD 80 [BLACK] (L-side, #7)	SRD-80-B $39
	ROD ADAPTER M6-8 (R-side, #14)	RDED-ADPTRM6-8 $8.00
	BEARING COLLAR 5 [BLACK] (L-side, #15)	PEGBGCLR-5SB $10.00
	ROD END COLLAR 19 (R-side, #16)	RDED-CLR19 $8.00
	ROD END COLLAR 29 (L-side #17)	RDED-CLR29 $8.00
	SOCKET HEAD M5-10mm (#23)	SBT-M510 $2.00
	SOCKET HEAD M6-45mm (R-side #24)	SBT-M645 $2.00
	SOCKET HEAD M6-55mm (L-side #25)	SBT-M655 $3.00
	SOCKET HEAD M8-20mm (#27)	SBT-M820 $1.50
	BUTTON HEAD M5-30mm (R-side #29)	BBT-M530 $2.00
	BUTTON HEAD M6-10mm (L-side #30)	BBT-M610 $1.50
	BUTTON HEAD M6-15mm (R-side #31)	BBT-M615 $1.50
	BUTTON HEAD M6-30mm (R-side #33)	BBT-M630 $1.50
	BUTTON HEAD M8-30mm (#34)	BBT-M830 $2.00
	HEX HEAD M5-6mm (R-side #35)	HBT-M56 $2.00
	HEX HEAD M6-18mm (L-side #36)	HBT-M618 $2.00
	WASHER M12 (#37)	WS-12 $1.50
	NUT M5 (R-side, #38)	NUT-5 $1.50
	NUT M6 (R-side #39)	NUT-6 $1.50
	JAM NUT M6 (#40)	JNT-6 $1.75
	REVERSE JAM NUT M6 (L-side #41)	JNT-6L $2.50
	LOCK NUT M6 (R-side #42)	LNT-6 $1.50
	M6 MALE ROD END (#43)	RDED-M6 $12.50
	M6 MALE REVERSE ROD END (L-side #44)	RDED-M6L $12.50
	PULL SWITCH STAY 14 (R-side #45)	PSTAY-14 $9.50
	SHIFT PEDAL (BK / GD) (REV Shift - #6)	SPD-SCP70 $85
	SHIFT ROD 60 [BLACK] (REV Shift - #7)	SRD-60-B $39
	BEARING COLLAR 10s [BLACK] (REV Shift - #15)	PEGBGCLR-10SB $10.00
	BUTTON HEAD M8-35mm (REV Shift - #34)	BBT-M835 $2.00
