SWINGARM SPOOLS
+ RACE STAND HOOKS / AXLE CAPS

SATO RACING Swingarm Spools attach to the swingarm, for use with a hook-type rear stand. Our standard spools are made of tough, abrasion-resistant Delrin plastic, with stainless steel bolts, and are avalable in sizes to fit most sportbike models. For select bike models, we also make anodized billet aluminum-type spools with Delrin backers. (L/R Set of 2)

An alternative to traditional spools is our Race Stand Hooks. These racing-spec rear stand hooks install below the swingarm, for use with paddock stands with spools on them. Available for select sportbike models.

For smaler displacement sportbike models, we also make Axle Caps made of anodized billet aluminum that attach to the ends of the axles. These cup-style caps have a deep groove around the edge that can be used to lift the bike onto a hook-type stand.

SWINGARM SPOOLS

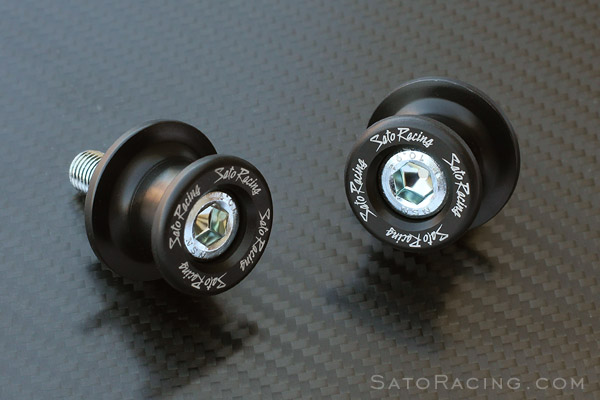

SATO RACING Swingarm Spools - 6mm - 8mm - 10mm

SATO RACING Swingarm Spools on a 2013 ZX-6R

SATO RACING Swingarm Spools - 8mm - on a Bimota DB6

MAKE / MODEL	SPOOL TYPE	THREAD SIZE	PART# / PRICE
APRILIA TRIUMPH (earlier models) YAMAHA (most models)	DELRIN	6mm	SPL-6 $29.95
HONDA (most models) KAWASAKI (some models) SUZUKI (most models) KTM RC8 TRIUMPH 675 / 765 ('11-) Details	DELRIN	8mm	SPL-8 $29.95
SUZUKI B-KING	DELRIN	8mm	SPL-KING $34.95
YAMAHA YZF-R6 '17-'20	DELRIN	6mm	SPL-YR617 $34.95
BMW S1000RR / S1000R	DELRIN	8mm	SPL-BMW $34.95
DUCATI 899/ 959 PANIGALE	DELRIN	6mm	SPL-D899 $34.95
DUCATI SCRAMBLER / MONSTER 797/ 939	DELRIN	-	SPL-DSCRAM $50
HUSQVARNA VITPILEN 401 SVARTPILEN 401	DELRIN	10mm	SPL-K1035 $29.95
KTM 990 SUPERDUKE	DELRIN	10mm	SPL-KTM $34.95
KTM DUKE 690 / 790 / SMC + various (P-1.5)	DELRIN	10mm	SPL-KTM2 $29.95
KTM RC125 / RC200 / RC390 125/200/390 DUKE '12-'17 (P-1.25)	DELRIN	10mm	SPL-K1035 $29.95

'Type 2' Aluminum Spools (Size: M6)	ALUMINUM	6mm	SPL2-M6 $58	Details
'Type 2' Aluminum Spools (Size: M8)	ALUMINUM	8mm	SPL2-M8 $58	Details

KAWASAKI	SIZE	PRICE
Z1000 '14- / Ninja 1000 '14- / Ninja 650 / Z650 '17-	8mm	SPL2-M8 $58	Details
Z900RS / CAFE '18-	8mm	SPL-Z9RS $65	Details
ZX-10R '11- / ZX-6R '13- Ninja 400 '18- / Z400 Ninja 650 '17- / Z650/RS	8mm	SPL-8 $29.95
ZX-10R '08-'10 / ZX-6R '09-'12 Ninja 650R / ER-6f/n '09-'11	10mm	SPL-K1035 $29.95
ZX-10R '04-'07 / ZX-14/R ZX-6R '03-'06 / ZRX1100/1200 Ninja 250R/ 300 / Ninja 650 '12-'16	10mm	SPL-K1040-5 $34.95
ZX-6R '07-'08	10mm	SPL-ZX607 $34.95

RACE STAND HOOKS
These anodized billet aluminum Race Stand Hooks allow
quick mounting onto a spool-type stand. (L/R Set of 2)

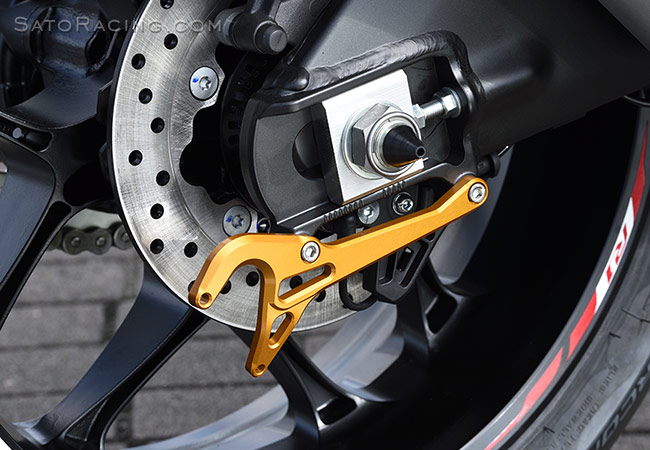

SATO RACING Stand Hooks for 2015 Yamaha R1

	HONDA GROM '16-'20	H-GROM16RC-RSH $130
	KAWASAKI Z1000 '10-'13 / Ninja 300 '13- / NINJA 1000 '11-'13	K-Z1010RSH $115
	KAWASAKI ZX-10R '16- / Z900RS Z-H2 / NINJA 1000SX '20-	K-ZX1016RSH $115
	SUZUKI GSX-R1000/R '17-	S-GSX117RC-RSH $130
	YZF-R1 '15- / R6 '17- / R7 '22 / FZ-10 / MT-10 '17-'21	Y-R115RSH $100
	FZ-09 / MT-09 / XSR900 '14-'20 YZF-R1 '09-'14	Y-MT09RSH $115
	YAMAHA MT-09/ SP '21-	Y-MT0921RSH $100

AXLE CAPS

SATO RACING Axle Caps are cup-style caps made out of high strength anodized billet aluminum, and feature deep grooves along the edge that can be used to lift the bike onto a hook-type stand, ideal for bikes that do not have a place to attach standard spools. The standoff these Axle Caps provide should also help protect the swingarm or fork area from damage in a fallover or crash. Choice of Gold or Red anodized finish. (Set of 2)

SATO RACING Axle Caps for Honda CB300R / CB250R
AXLE CAPS Part# AXCAP17 on a 2019 Honda CB300R

	AXLE CAPS - 10mm-12mm HONDA GROM / MONKEY 125 KAWASAKI Z125 Pro	AXCAP12 $39
	AXLE CAPS - 15mm SUZUKI GSX-R125/ 150 (Rear) YAMAHA YZF-R3/ R25/ R15 (Front)	AXCAP15 $40
	AXLE CAPS - 17mm HONDA CB300R/ CB250R (Rear) YAMAHA YZF-R3/ R25 (Rear)	AXCAP17 $50
	AXLE CAPS - 17mm (+ Axle Nut) KAWASAKI NINJA 400 '18- Z400 / ZX-25R '20- / ZX-4R/RR '23	AXCAPK25018 $55
