HONDA CBR929RR/ CBR954RR
REAR SETS
| SATO RACING

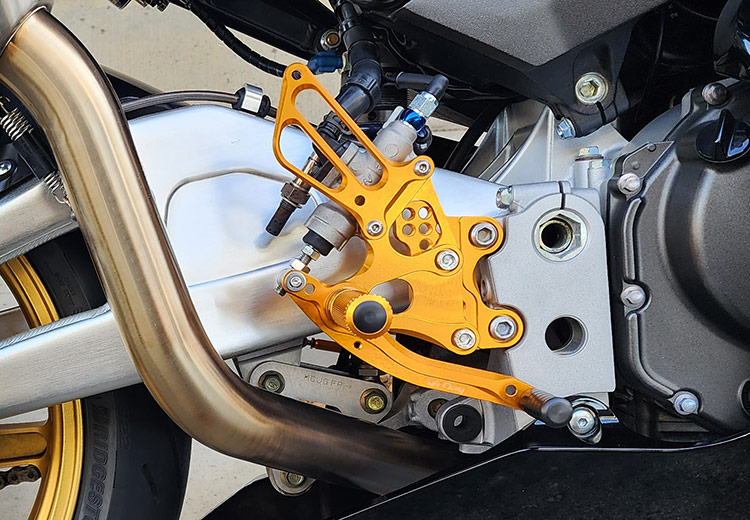

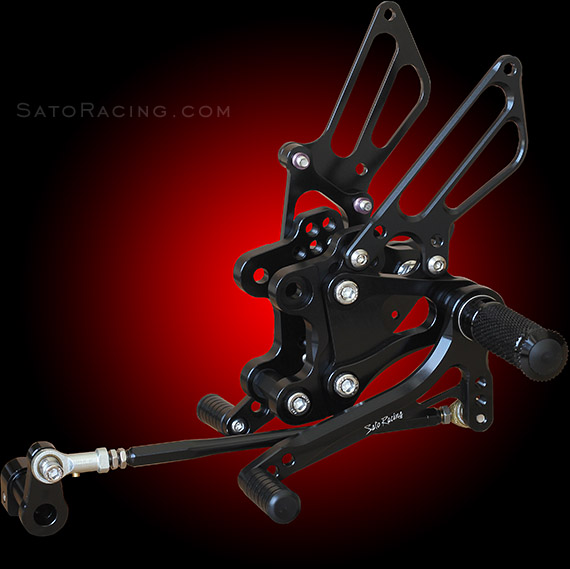

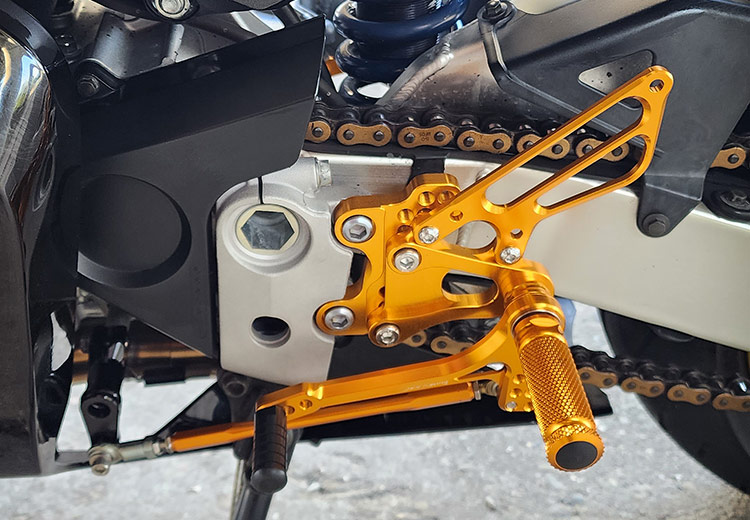

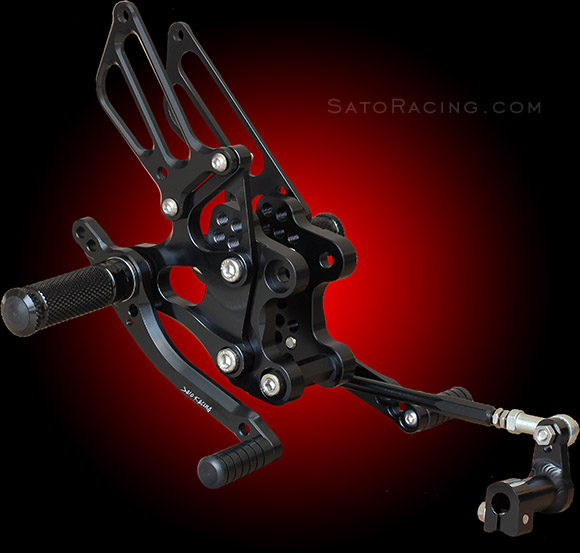

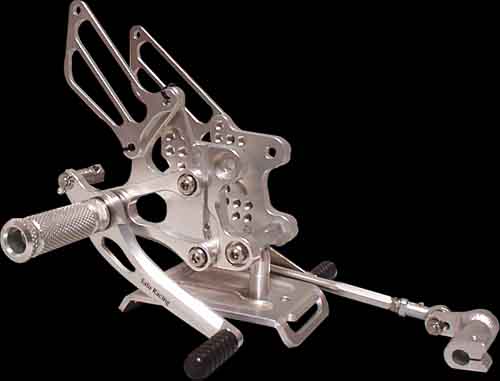

Rear Sets for CBR929RR and CBR954RR are CNC-machined from
billet aluminum anodized in your choice of Black, Silver, or Gold finish, with stainless steel hardware. Modular step plate designs lets you select from
7 adjustable positions, ranging from stock-equivalent position to more agressive positions that move your feet higher up and further back compared to stock. These Rear Sets can be set up for stock shift or GP-style reverse shift pattern. |
The shift and brake pedals have double stainless bearings for smooth, precise movement.
Deeply knurled footpegs provide excellent grip and feel even in wet conditions.
| 1 | 0 mm (stock position) |
0 mm (stock position) |
| 2 | 0 mm (stock position) |
10mm Up (0.4" Up) |
| 3 | 0 mm (stock position) |
20mm Up (0.8" Up) |
| 4 | 10mm Back (0.4" Back) |
10mm Up (0.4" Up) |
| 5 | 10mm Back (0.4" Back) |
20mm Up (0.8" Up) |
| 6 | 20mm Back (0.8" Back) |
20mm Up (0.8" Up) |
| 7 | 20mm Back (0.8" Back) |
30mm Up (1.2" Up) |
note: all measurements are in relation to stock position (0 mm).

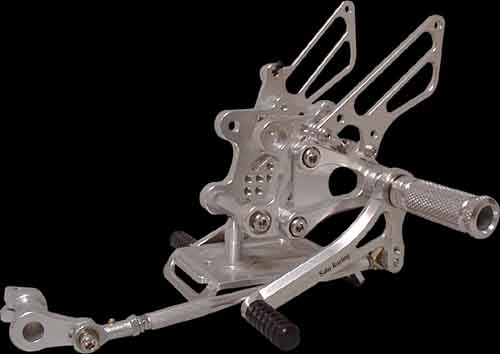

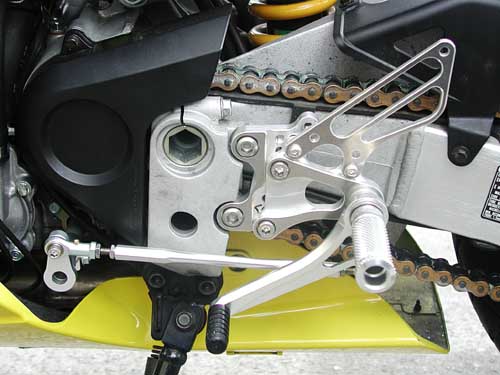

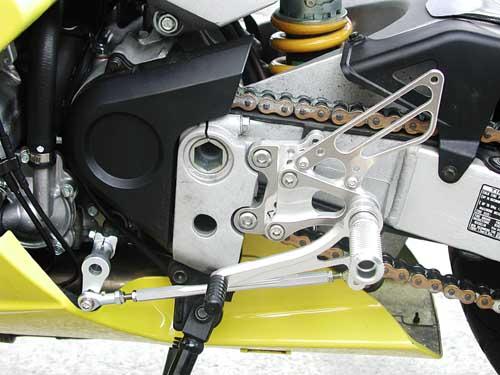

Note: The following install photos show an earlier version of our
CBR929/954RR Rear Sets. Our latest CBR929/954RR Rear Sets
have a different pedal design and a few other cosmetic differences.
(See photos at top of page for the current design).
Rear Sets shown installed without the heel guard. A rear brake
light switch, not pictured, is also included with these Rear Sets.
You can switch from stock shift to reverse shift pattern
by changing the mount direction of the provided change arm.
| BLACK | H-954RS-BK $520 |
 |
| SILVER | H-954RS-SV $520 |
|
| GOLD * | H-954RS-GD $520 |
|
* Click Here for important info about Sato GOLD-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
| SATO RACING wants your CBR929/954RR rear sets photos! As you may notice, the only 'install' photos we have of these fantastic rear sets are outdated and not very good, so if you already have Sato Rear Sets on your CBR, and have some camera skills, we would like some photos we can use for our website, especially if your rear sets are fairly new looking and not too dirty or scuffed up. We can even give you credit on our website (photo courtesy of... ), so feel free to e-mail us your rear sets photos to info@satoracing.com. (Even if they aren't the greatest photos, we would still love to see them). |
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG [BLACK] | PEG-BK $38 |
|
 |
FOOT PEG [SILVER] | PEG-SV $38 |
|
 |
FOOT PEG [GOLD] | PEG-GD $38 |
|
 |
STUD BOLT LONG (M8-65mm) (L-side peg bolt) |
STBT-L $4.50 |
|
 |
STUD BOLT SHORT (M8x55mm) (R-side peg bolt) |
STBT-S $4.50 |
|
 |
FLANGE NUT M8 (for peg bolt) |
FNT-8 $1.50 |
|
 |
SOCKET HEAD M8 x 15mm (#2) |
SBT-M815 $1.50 |
|
 |
BEARING COLLAR SUS (R-side #8) |
BGCLR-SUS $6.50 |
|
 |
PEG BEARING COLLAR 10 [BLACK] (L-side #7) |
PEGBGCLR-10B $15 |
|
 |
PEG BEARING COLLAR 10 [SILVER] (L-side #7) |
PEGBGCLR-10S $15 |
|
 |
PEG WASHER - M8 (L-side #19 / R-side #18) |
PWS-8 $1.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
BUTTON HEAD M6-10mm (L-side #4) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-25mm (R-side #14) |
BBT-M625 $1.50 |
|
 |
BRAKE ROD M40 (R-side #6) |
BRD-M40 $13.50 |
|
 |
WASHER M6 (L-side #24 / R-side #9) |
WS-6 $1.00 |
|
 |
E-CLIP M6 (R-side #10) |
ECP-6 $1.50 |
|
 |
PLAIN WASHER M8 (R-side #17) |
WS-8 $1.00 |
|
 |
SHIFT ROD 170 [BLACK] (L-side #6) |
SRD-170-B $35 |
|
 |
SHIFT ROD 170 [SILVER] (L-side #6) |
SRD-170-S $35 |
|
 |
SHIFT ROD 170 [GOLD] (L-side #6) |
SRD-170-G $35 |
|
 |
ROD END COLLAR 3 (L-side #14) |
RDED-CLR3 $6.00 |
|
 |
FEMALE ROD END M6 (L-side #16) |
RDED-F6 $15 |
|
 |
FLANGE HEAD M6-20mm (L-side #18) |
FGBT-M620 $2.00 |
|
 |
REVERSE JAM NUT M6 (L-side #21) |
JNT-6L $2.50 |
|
|
JAM NUT M6 (L-side #22) |
JNT-6 $1.75 |
|
 |
STUD M6 (L-side #23) |
STUD-M6 $2.50 |
|
 |
PLAIN NUT M6 (L-side #26) |
NUT-6 $1.00 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
