KAWASAKI ZX-6R / ABS (ZX636) ('13-'17)
REAR SETS
| SATO RACING Rear Sets for 2013-17 Kawasaki ZX-6R (ZX636) feature a thoroughly engineered and track-tested design, with all parts precision CNC-machined out of lightweight and high strength anodized billet aluminum, with stainless steel bolts. Modular step plate design lets you choose from 8 foot peg positions * in a wide adjustment range, bringing your feet as much as 20mm rearward and 40mm higher up compared to the stock foot peg position, helping you maintain a riding position well-suited for the fast straights and steep lean angles encountered on the track. These Rear Sets can be set up for either stock or reverse shift pattern. |
![SATO RACING ZX-6R/636 '13-'17 Rear Sets [R]-side](pics/ZX6R_13-_rearsets_Silver_750x529.jpg "SATO RACING ZX-6R/636 '13-'17 Rear Sets [R]-side")
| 1 | 0mm Back | 20mm Up |
| 2 | 10mm Back | 20mm Up |
| 3 | 10mm Back | 30mm Up |
| 4 | 20mm Back | 30mm Up |
| 5 | 20mm Back | 40mm Up |
| 6* | 0mm Back | 30mm Up |
| 7* | 0mm Back | 40mm Up |
| 8* | 10mm Back | 40mm Up |
| note: all measurements are in relation to stock position (0 mm). * Positions 1-5 can be used with the stock brake light pull switch, but if you want to set it to positions 6-8, the stock switch cannot be used, so a hydraulic brake switch (sold separately) will be necessary. |

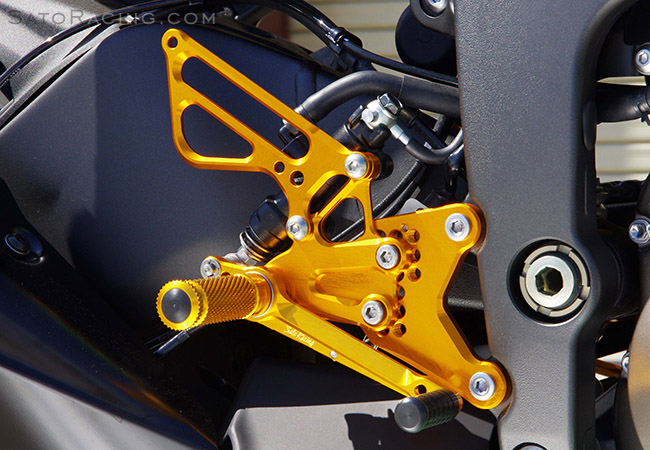

The shift and brake pedals utilize double stainless bearings for smooth, precise pedal movement.
The foot pegs feature a finely knurled pattern for excellent grip characteristics.
The shift stroke can be fine-tuned by changing the mount position of the shift rod on the shift pedal.

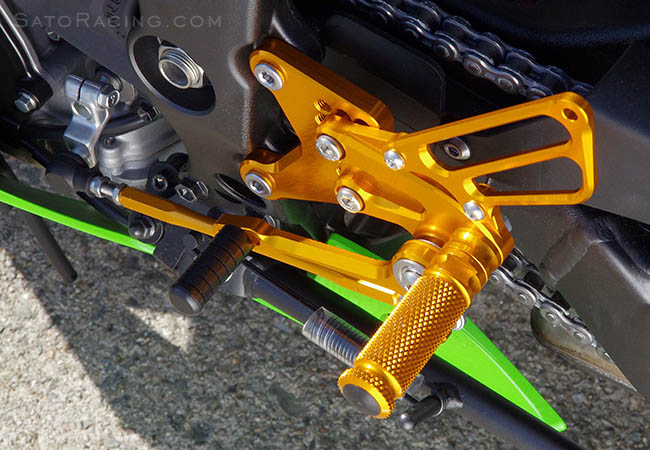

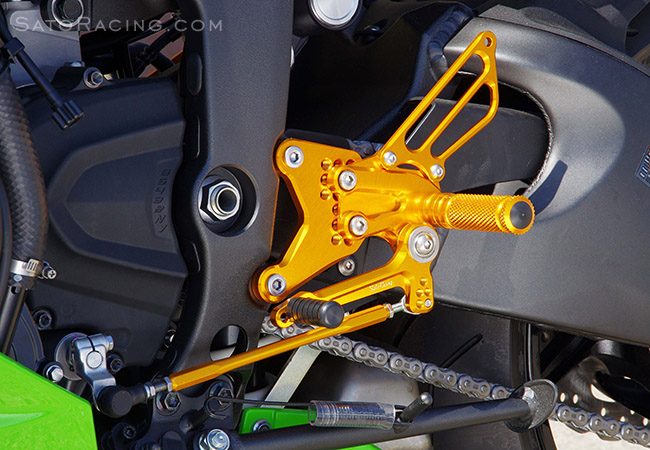

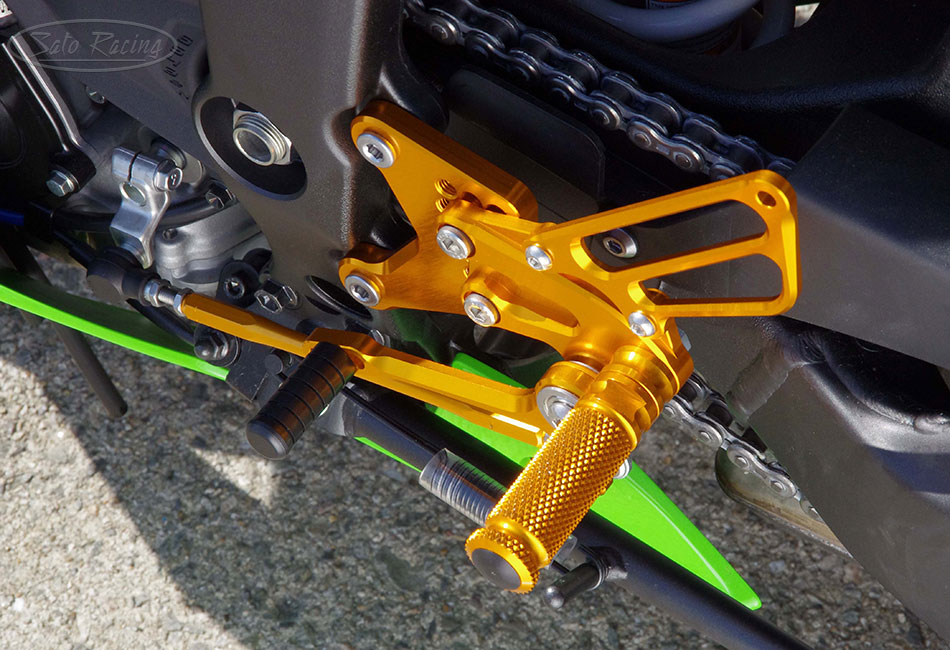

Stock shift pattern shown. You can set it up for reverse / race
shift pattern by flipping the stock shift arm so it is angled upward.
REAR SETS
| BLACK | K-ZX613RS-BK $645 |
 |
| SILVER | K-ZX613RS-SV $645 |
|
| GOLD | K-ZX613RS-GD $645 |
|
Click Here for important info about Sato color-anodized parts.
For positions 1-5, you can use the stock brake light pull switch. To use in positions 6-8, a hydraulic
brake switch will need to be fitted instead, since the stock switch will not work in those positions.
| BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
OPTIONS
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 5 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Most replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $48 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (L-side #17) |
PEGCLR-12 $15 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $16.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #1) |
HG-2L $60 |
|
 |
[L] STEP PLATE (BK/ SV/ GD) (L-side #3) |
K-ZX613SP-L $85 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (L-side #7) |
SPD-0912 $80 |
|
 |
SHIFT ROD 160 (BK/ SV/ GD) (L-side #8) |
SRD-160 $39 |
|
 |
BEARING COLLAR 5s [BLACK] (L-side #15) |
PEGBGCLR-5SB $10.00 |
|
 |
ROD END COLLAR 3 (L-side #16) |
RDED-CLR3 $6.00 |
|
 |
REVERSE STUD M6 (L-side #18) |
STUD-M6L $4.20 |
|
 |
HEX HEAD M8-40mm ( L-side #21, L Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
SOCKET HEAD M6-20mm (L-side #23) |
SBT-M620 $1.50 |
|
 |
SOCKET HEAD M8-15mm (#24) |
SBT-M815 $1.50 |
|
 |
BUTTON HEAD M6-10mm (L-side #25) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-20mm (#26, for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
REVERSE JAM NUT M6 (L-side #29) |
JNT-6L $2.50 |
|
|
JAM NUT M6 (L-side #30) |
JNT-6 $1.75 |
|
 |
SPLIT WASHER M8 (L-side #35) |
SWS-8 $1.20 |
|
 |
M6 MALE ROD END (L-side #36) |
RDED-M6 $12.50 |
|
 |
SOCKET HEAD M6-30mm (L-side #40) |
SBT-M630 $1.50 |
|
 |
PLAIN NUT M6 (L-side #41) |
NUT-6 $1.00 |
|
 |
BUTTON HEAD M8-30mm (L-side #42) |
BBT-M830 $2.00 |
|
 |
BRAKE PEDAL (BK / GD) (R-side #8) |
BPD-19 $85.00 |
|
 |
BRAKE ROD M40 (R-side #10) |
BRD-M40 $13.50 |
|
 |
BEARING COLLAR SUS (R-side #14) |
BGCLR-SUS $6.50 |
|
 |
STUD BOLT M8-50mm (R-side #19, R Foot Peg bolt) |
STBT-50 $4.50 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (R-side #2) |
HG-23R $58 |
|
 |
BUTTON HEAD M8-25mm (R-side #27) |
BBT-M825 $1.50 |
|
 |
FLANGE NUT M8 (R-side #31) |
FNT-8 $1.50 |
|
 |
E-CLIP M6 (R-side #32) |
ECP-6 $1.50 |
|
 |
WASHER M6 (R-side #33) |
WS-6 $1.00 |
|
 |
PEG WASHER - M8 (R-side #34) |
PWS-8 $1.00 |
|
 |
RETURN SPRING 40 (R-side #37) |
RS-RSP $8.00 |
|
 |
PULL SWITCH STAY 16 (R-side, #38) |
PSTAY-16 $9.50 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) (optional part) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
