YAMAHA YZF-R7 ('22-'24)
REAR SETS

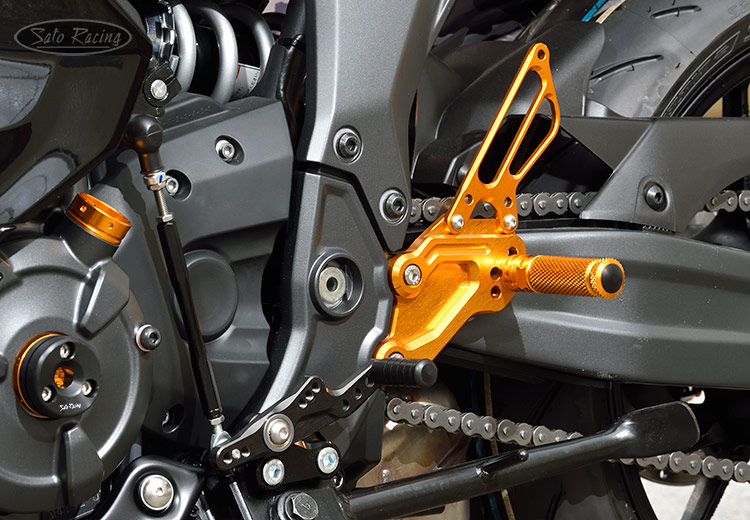

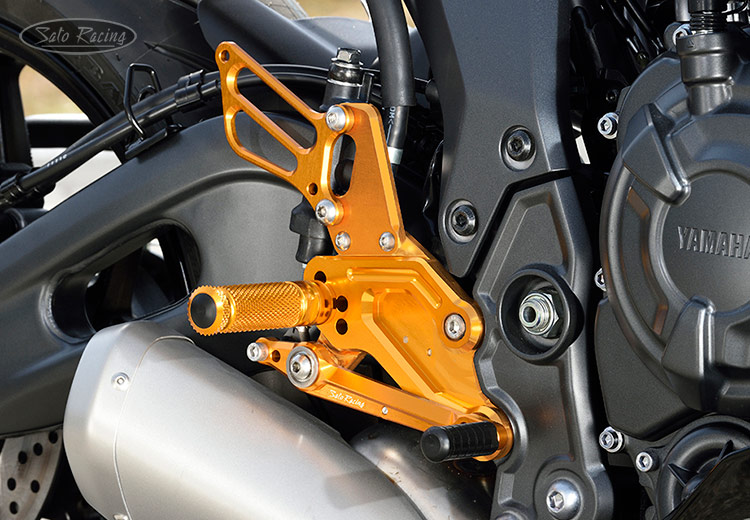

| SATO RACING Rear Sets for 2022+ Yamaha R7 feature components precision precision machined out of light-weight, high strength anodized billet aluminum, with stainless steel bolts. These thoroughly track-tested foot controls can be set up for stock shift pattern or reverse (GP-style) shift pattern, with 2 unique versions - for the standard shift linkage or the optional OEM quickshifter. Adjustable peg mounts let you select from 4 foot peg positions that range from near stock, to higher up and back compared to stock. Choice of Black or Gold anodized finish. |
PEG POSITIONS*
| 1 | 5mm Back | 0mm Up |
| 2 | 5mm Back | 12mm Up |
| 3 | 20mm Back | 12mm Up |
| 4 | 20mm Back | 24mm Up |
note: all measurements are in relation to stock position (0 mm).
| * Have a track-only R7 and want a more aggressive range of positions? Check out our Race Concept' Racing Rear Sets for R7. |
Foot peg position is adjustable 4 ways. Pedal Tip position is also adjustable.
'Street'-friendly design - compatible with the stock brake light pull switch.
The shift and brake pedals use miniature double stainless bearings for smooth, precise lever action.
To set it up for stock shift or reverse shift pattern, relocate the shift rod end to the opposite end of
the double-ended shift pedal. (NOTE: The shift pedal and shift rod have a Black anodized finish)
2 models are available; for the standard shift linkage,

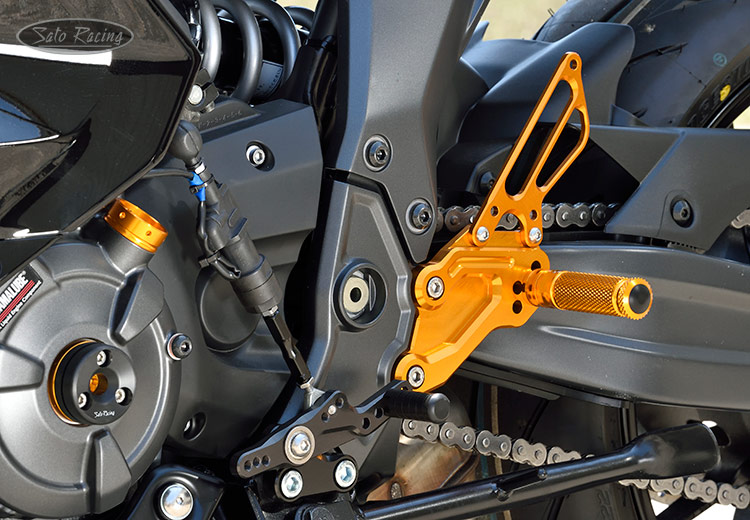

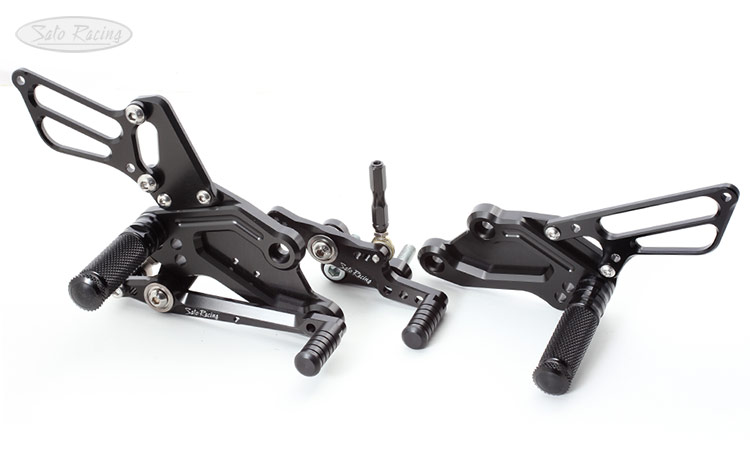

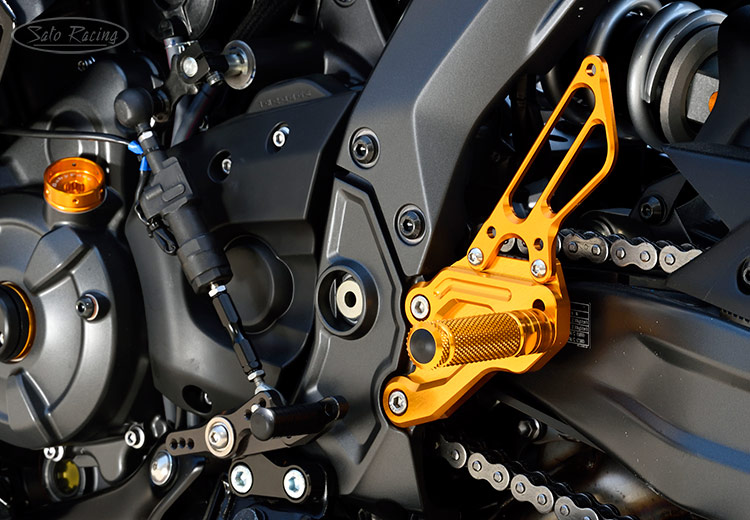

and this version that works with the OEM quick-shifter.
Choice of Black or Gold anodized finish
Standard version
| BLACK | Y-R7RS-BK $585 |
 |
| GOLD w/ Black Shift Pedal |
Y-R7RS-GD $585 |
|
For OEM Quick-Shifter
| BLACK | Y-R7RSQ-BK $585 |
|
| GOLD w/ Black Shift Pedal |
Y-R7RSQ-GD $585 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the
llustrated parts list included with your SATO RACING Rear Sets.
Some replacement parts for these Rear Sets
can be purchased in our online store:
(Part numbers correspond to the quickshifter version unless otherwise noted.)
 |
FOOT PEG (BK / GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK / GD) |
PEGCLR-15B $15 |
|
 |
HEX HEAD M8-40mm (Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
LOW SOCKET HEAD M6-20mm (for Pedal Tip) |
LSBT-M620 $4.00 |
|
 |
BUTTON HEAD M6-10mm (#23, for L heel guard) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-12mm (#24 R-side) |
BBT-M612 $1.50 |
|
 |
HEX HEAD M6-18mm (#19) |
HBT-M618 $2.00 |
|
 |
REVERSE JAM NUT M6 (#29) |
JNT-6L $2.50 |
|
 |
M6 MALE REVERSE ROD END (#32) |
RDED-M6L $12.50 |
|
 |
FEMALE ROD END 6-M8 (#33) |
RDED-F6-8 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
More Sato Racing items for Yamaha R7
|
