SATO RACING | 'Race Concept' Racing Rear Sets

YAMAHA YZF-R7 ('22- )

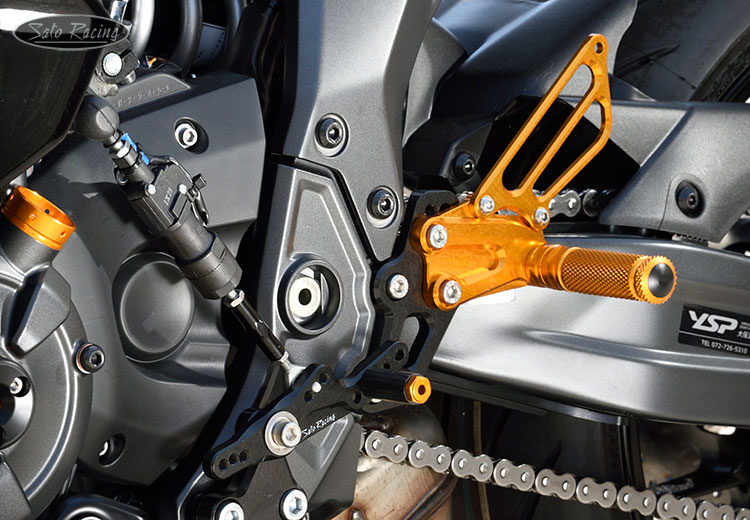

SATO RACING 'Race Concept' Rear Sets are pure, no-compromise racing rear sets designed for track-only bikes.

Our 'Race Concept' Rear Sets for 2022-24 Yamaha YZF-R7 features components precision machined out of light-weight, high strength anodized billet aluminum. Modular adjstable design lets you select from multiple peg positions that bring your feet significantly higher up and further back compared to stock, for a more intuitive riding position for racing. These race-spec Rear Sets are designed for use with the Yamaha quick shifter, and can be set up for stock shift pattern or reverse (GP-style) shift patttern. Choice of Black anodized finish with Gold accents, or Gold finish with black base plates and shift lever.

NOTE: Not for street use. Not compatible with the stock brake light switch. Since it was designed for use with racing brake setups, compatibility with the ABS system is not known. (There might be error codes)

For more 'street'-friendly Rear Sets, see our standard R7 Rear Sets.

POSITIONS

1	30mm Back	25mm Up
2	35mm Back	37mm Up
3	40mm Back	25mm Up
4	40mm Back	37mm Up

note: all measurements are in relation to stock position (0 mm).

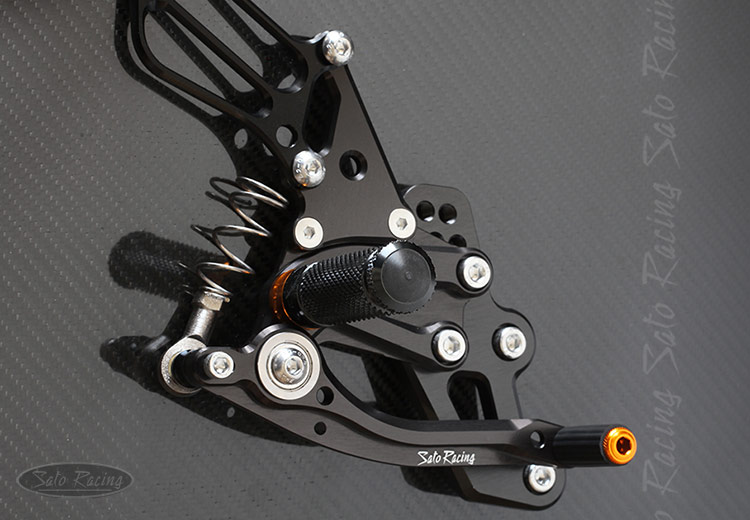

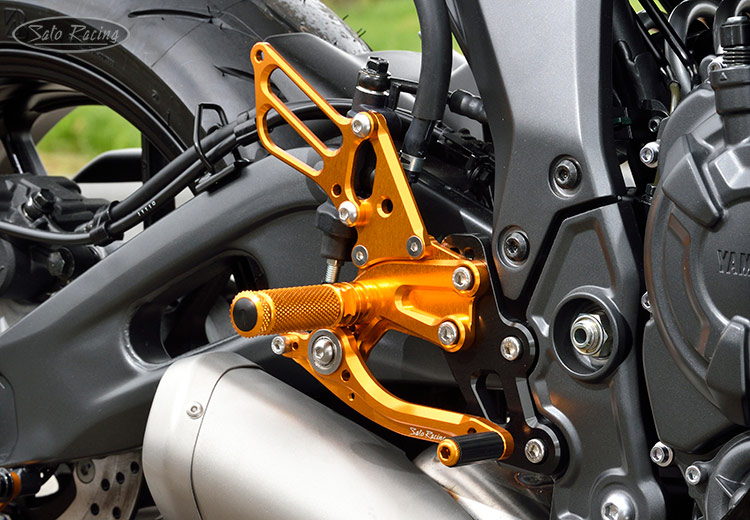

SATO RACING Yamaha YZF-R7 '22 Race Concept Rear Sets [R]-side
The shift and brake pedals use double miniature stainless bearings for smooth, precise lever actuation.
Gold-anodized aluminum Pedal Tips with fluted rubber grips are standard with these Rear Sets.

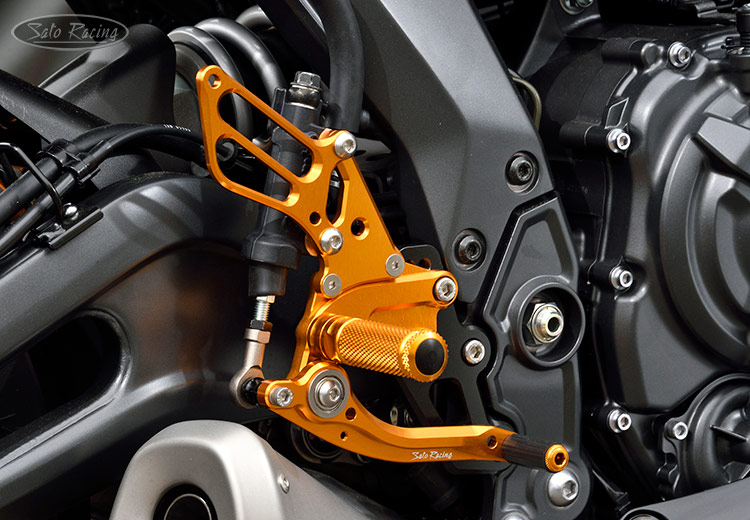

SATO RACING Yamaha YZF-R7 '22 Race Concept Rear Sets [R]-side
Finely knurled Foot Pegs provide great grip along with a comfortable, intuitive feel.
NOTE: These 'track-only' Rear Sets are not compatible with the stock brake light switch.

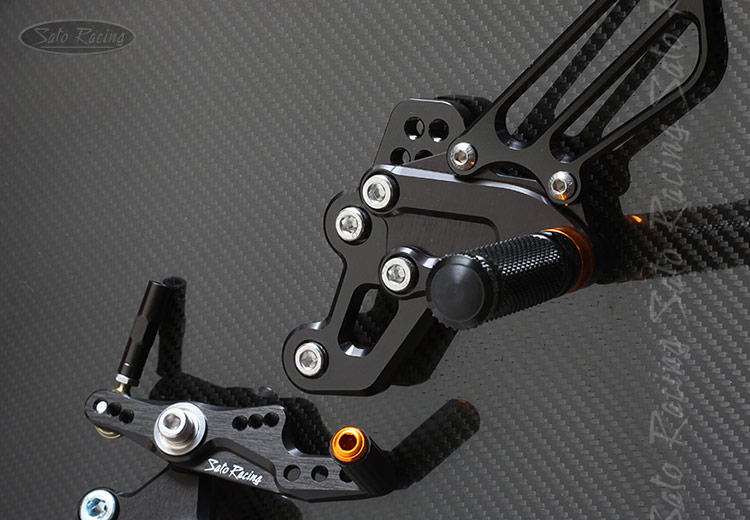

SATO RACING Yamaha YZF-R7 '22 Race Concept Rear Sets [L]-side
The shift lever is optimized for use with the OEM quickshifter, and can be set up for
stock shift pattern or reverse / GP shift pattern. (GP shift pattern setup shown above).

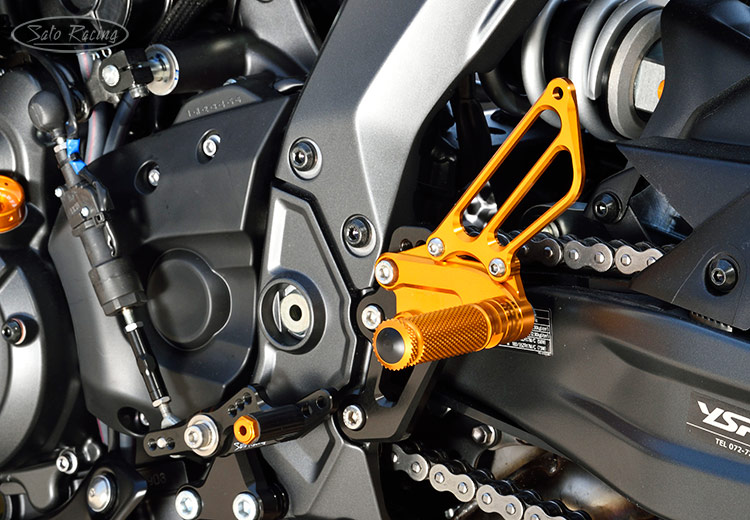

SATO RACING Yamaha YZF-R7 '22- Race Concept Rear Sets [L]-side
Modular Base Plate / Step Plate design allows for quick and easy position changes.

Hardware is included that lets you delete the stock side stand, as pictured above.
If you want the side stand, the stand bracket can be attached behind the Shift Base.

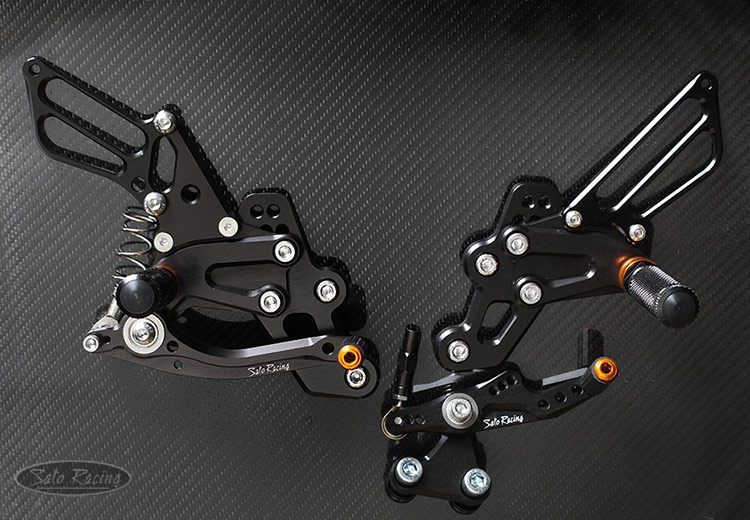

SATO RACING Yamaha YZF-R7 '22- Race Concept Rear Sets in Black
Choice of Gold over Black, or Black with Gold accents.

SATO RACING Yamaha YZF-R7 '22- Race Concept Rear Sets in Black

BLACK w/ Gold accents	Y-R7RCRS-BK $570
GOLD w/ Black Base Plates / Shift Lever	Y-R7RCRS-GD $570

Click Here for important info about Sato color-anodized parts.

Have questions or prefer to order by phone? You can call us to place an order -

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -
