YAMAHA VMAX 1700 ('09-'20)
REAR SETS
|

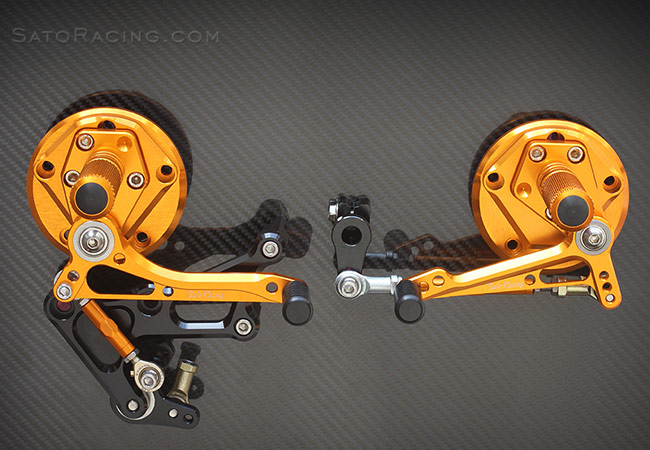

SATO RACING Rear Sets for 2009-20 Yamaha VMAX 1700 feature a track-engineered design, precision CNC-machined from high strength billet aluminum and anodized in your choice of Black, Silver, or Gold finish. You can select from 10 adjustable positions in a range that brings your feet higher up and further back compared to stock, for a sportier and more aggressive riding position. These premium quality Rear Sets can be set up for either stock shift pattern or reverse shift pattern. ABS compatible. We also offer an optional Heel Guard set that matches our VMAX Rear Sets. |
| 1 | 88mm Back | 23mm Up |
| 2 | 70mm Back | 24mm Up |
| 3 | 88mm Back | 35mm Up |
| 4 | 70mm Back | 36mm Up |
| 5 | 94mm Back | 40mm Up |
| 6 | 66mm Back | 42mm Up |
| 7 | 81mm Back | 51mm Up |
| 8 | 94mm Back | 52mm Up |
| 9 | 66mm Back | 54mm Up |
| 10 | 181mm Back | 63mm Up |

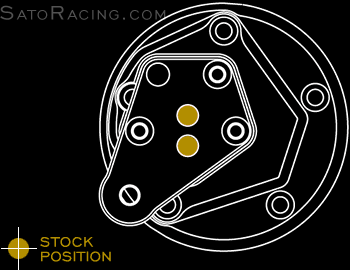

Note: all measurements are in relation to stock position (0 mm).

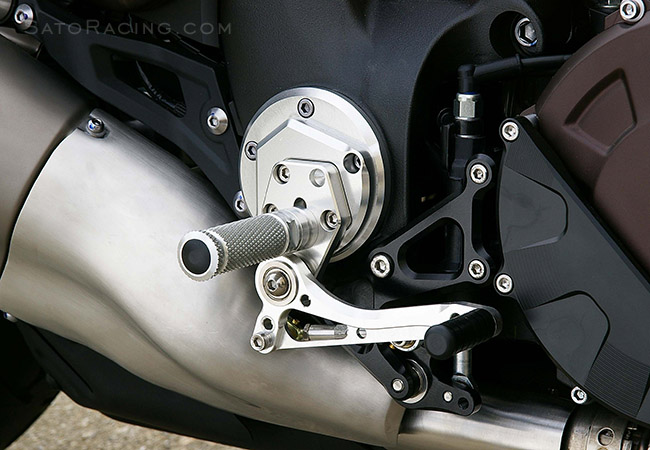

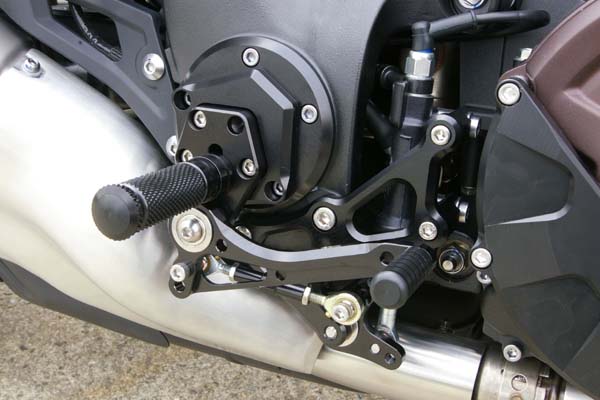

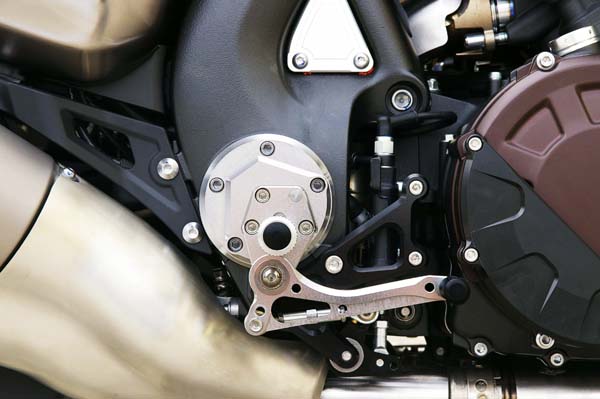

The shift and brake pedals use double stainless bearings for smooth, precise pedal movement
with a solid feel. Modular step plate design lets you choose from a wide range of positions.
(Note: Master Stay comes in black only)
A hydraulic brake light switch is included with our Rear Sets kit.

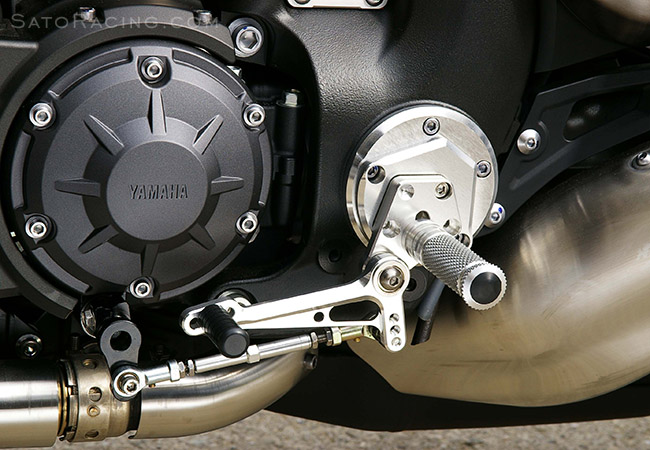

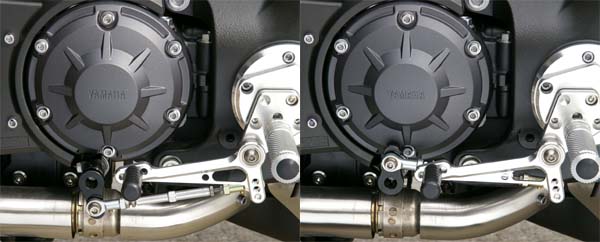

Stock shift pattern shown. For GP-style reverse shift pattern, flip the shift arm 180 degrees.
(See animated GIF below)

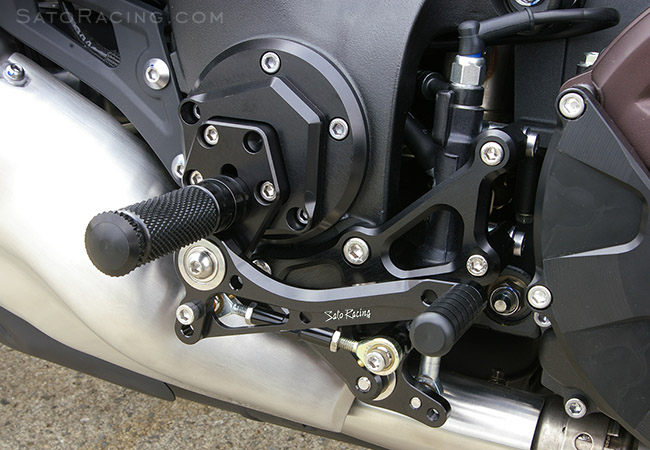

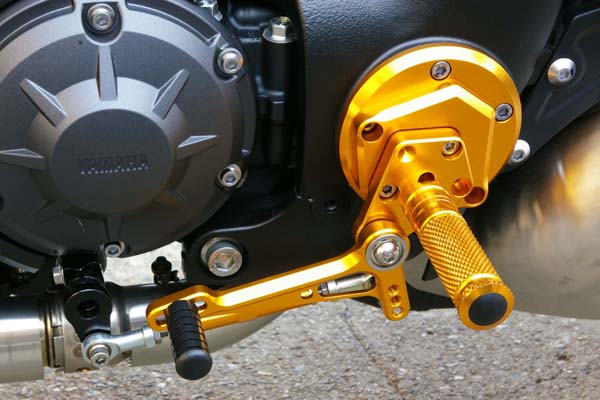

Footpegs feature a finely knurled grip pattern with excellent non-slip characteristics.

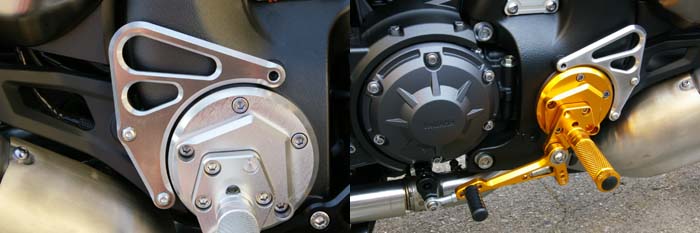

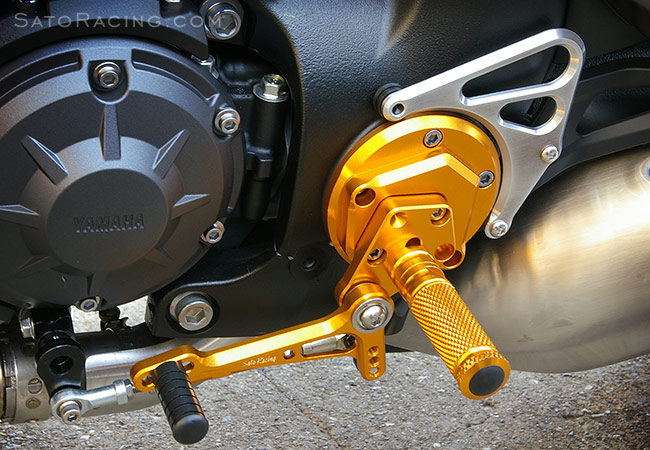

(Rear Sets shown with optional Heel Guard Set)

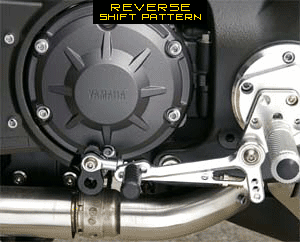

Switch to reverse shift pattern
by rotating the change arm.
| BLACK | Y-VMAX09RS-BK $775 |
 |
| SILVER | Y-VMAX09RS-SV $775 |
|
| GOLD | Y-VMAX09RS-GD $775 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONAL PARTS
HEEL GUARDS

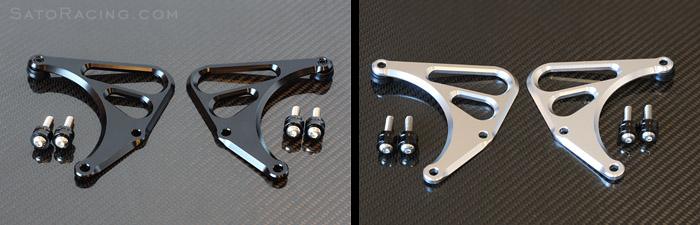

This Heel Guard Set looks great with our VMAX 1700 Rear Sets. Anodized
billet aluminum in your choice of Black, Silver or Gold, with stainless steel bolts.
HEEL GUARDS (Set of 2)
| BLACK | Y-VMAX09HG-B $95 |
|
| SILVER | Y-VMAX09HG-S $95 |
|
| GOLD | Y-VMAX09HG-G $95 |
|
Click Here for important info about Sato color-anodized parts.
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (L-side #9/ R-side #14) |
PEGCLR-15B $15 |
|
 |
FLAT HEAD M8-45mm (Foot Peg bolt) |
FBT-M845 $2.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
ROD END COLLAR 15 (L-side #8) |
RDED-CLR15 $8.00 |
|
 |
SHIFT ROD 70 (BK/ SV/ GD) (L-side #10) |
SRD-70 $39 |
|
|
BRAKE ROD 40 (BK/ SV/ GD) (R-side #15) |
SRD-40 $35 |
|
 |
ROD END COLLAR 19 (R-side #13) |
RDED-CLR19 $8.00 |
|
 |
PEG WASHER - M8 (L-side #11 / R-side #16) |
PWS-8 $1.00 |
|
 |
SOCKET HEAD M6-10mm (L-side #12 / R-side #17) |
SBT-M610 $1.50 |
|
 |
FEMALE ROD END M6 (L-side #23) |
RDED-F6 $15 |
|
|
REVERSE FEMALE ROD END M6 (L-side #24) |
RDED-F6L $15.00 |
|
 |
JAM NUT M6 (L-side #21 / R-side #27) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (L-side #22 / R-side #28) |
JNT-6L $2.50 |
|
 |
ROD END COLLAR 6 (R-side #29) |
RDED-CLR6 $6.00 |
|
 |
MALE ROD END M6 (R-side #30) |
RDED-M6 $12.50 |
|
 |
M6 MALE REVERSE ROD END (R-side #31) |
RDED-M6L $12.50 |
|
 |
FEMALE ROD END 6-M8 (R-side #32) |
RDED-F6-8 $25 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
