TRIUMPH THRUXTON (R/ RS/ TFC) '16-
REAR SETS

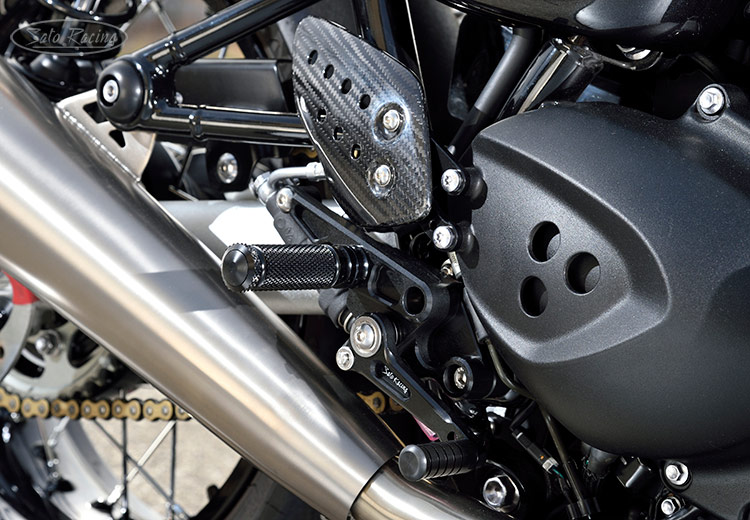

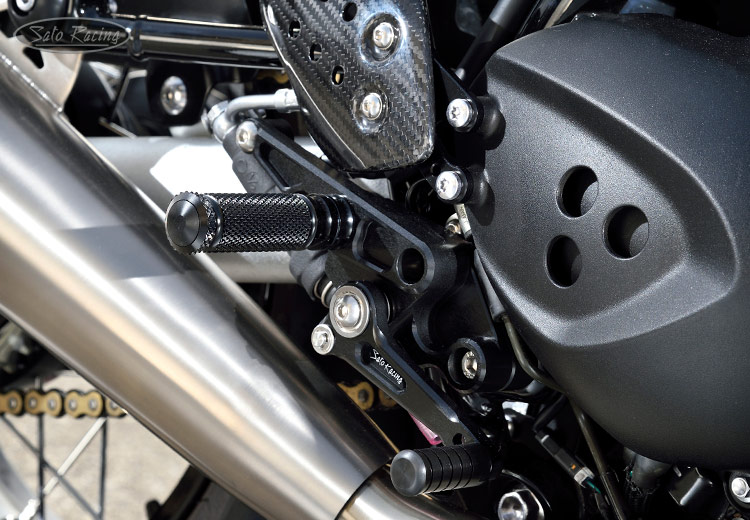

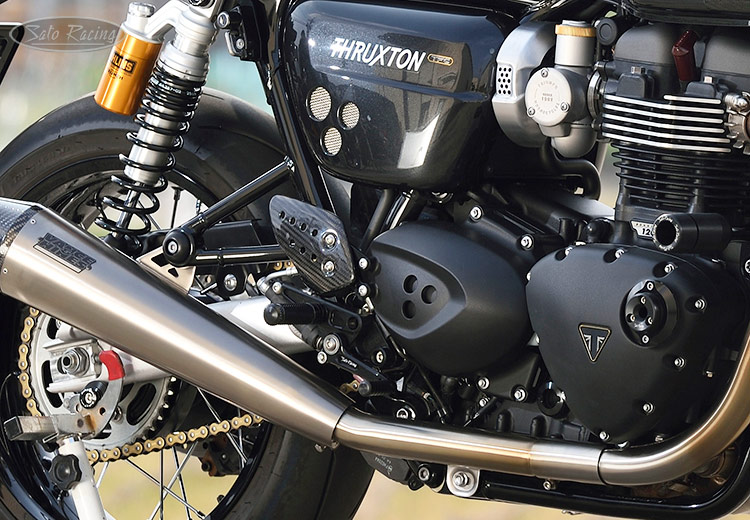

| SATO RACING Rear Sets for 2016+ Triumph Thruxton R/ RS / TFC feature components precision CNC-machined out of high strength anodized billet aluminum, in a design that fits well with the classic styling of the Thruxton. The Foot Peg has a fixed position higher up and further back compared to stock, for sportier riding position ideally suited to spirited riding. Choice of Black or Silver anodized finish. NOTE: This Rear Sets model (part# T-THRUXTRS) is similar to earlier part# T-THRUX16RS we made for the original Thruxton R, but has slightly different hardware for best compatibility with the carbon fiber heel guards found on the TFC. This kit will also fit with the standard metal heel guards found on other Thruxton 1200 models 2016 and up, in addition to the carbon fiber guards. |
| 1 | 27.5mm Back | 50mm Up |
note: measurements are in relation to stock position (0 mm).
These Rear Sets are designed to utilize the stock heel guards.
(No heel guards are included in the kit.)
The shift and brake pedals have double miniature stainless bearings for smooth, precise lever
actuation with a solid feel. This kit is compatible with the rear brake light switch.
![SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [R]-side](pics/T-THRUXTRS-BK_fitR3_750x520.jpg "SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [R]-side")

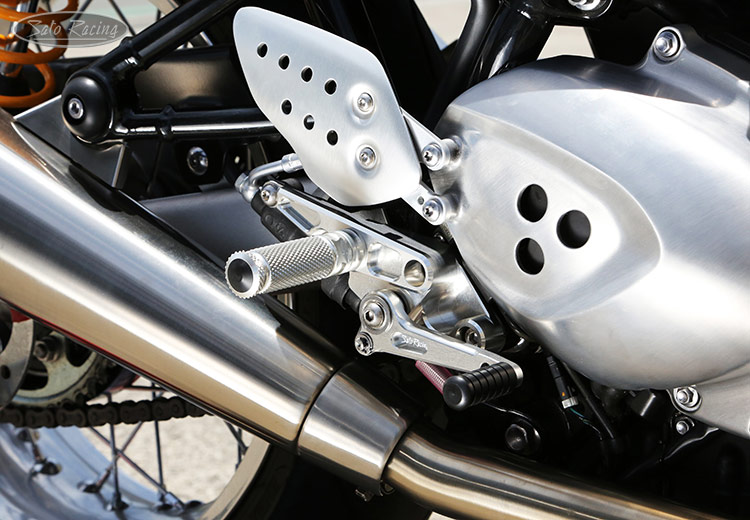

![SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [R]-side](pics/TriumphThruxton_RS_fitR1.jpg "SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [R]-side")

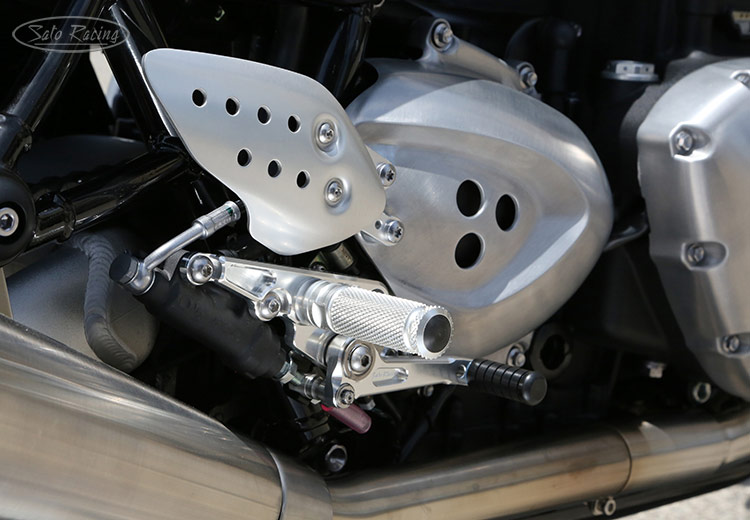

Choice of Black or Silver anodized finish. (Shown on a 2016 Thruxton R.)
![SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [R]-side](pics/TriumphThruxton_RS_fitR2.jpg "SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [R]-side")

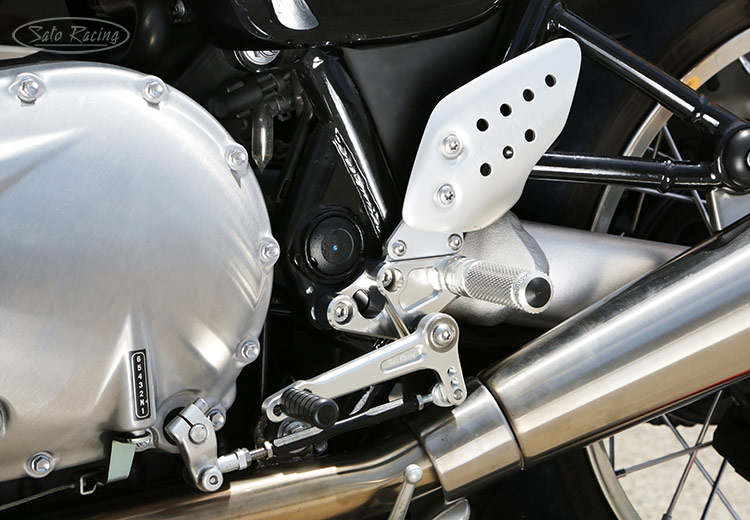

![SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [L]-side](pics/TriumphThruxton_RS_fitL1.jpg "SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [L]-side")
|

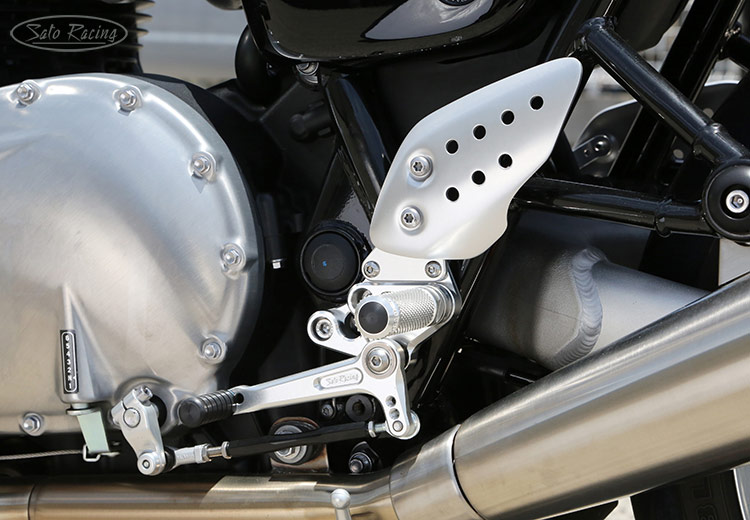

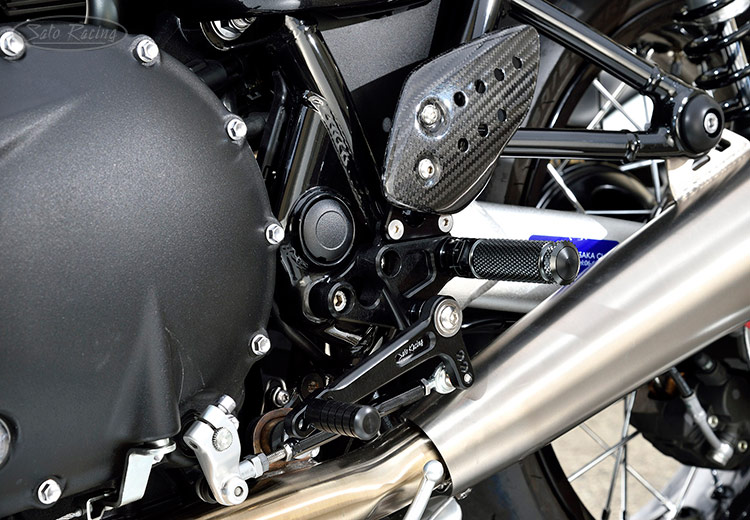

The Foot Pegs are rigid (non-folding), and have a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. The standard Pedal Tips are made of abrasion-resistant black Delrin. Additional styles of Pedal Tips, such as aluminum Pedal Tips with fluted rubber sleeves, are an option: Details |
![SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [L]-side](pics/TriumphThruxton_RS_fitL2.jpg "SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [L]-side")
![SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [L]-side](pics/T-THRUXTRS-BK_fitL1_750x520.jpg "SATO RACING Triumph Thruxton R/RS/TFC Rear Sets [L]-side")

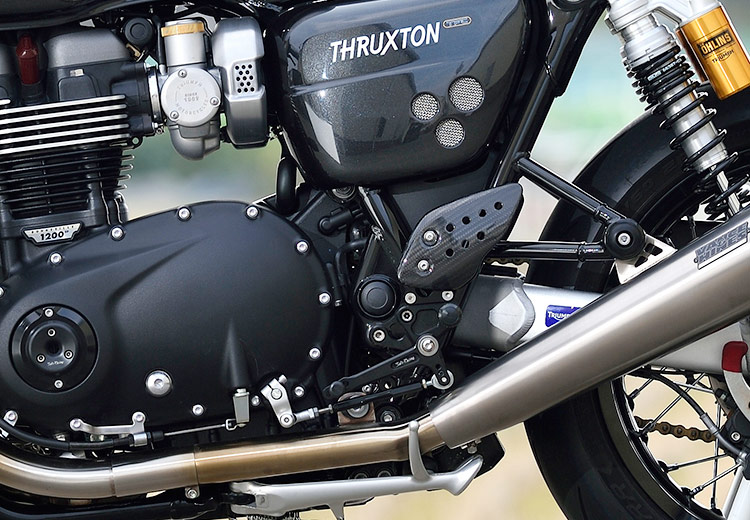

These Rear Sets use the stock change arm hardware, and provide a stock shift pattern.
(Reverse/ GP-style shift pattern is not an option for this model).
![SATO RACING Triumph Thruxton TFC Rear Sets [L]-side](pics/T-THRUXTRS-BK_fitL2_750x520.jpg "SATO RACING Triumph Thruxton TFC Rear Sets [L]-side")
T-THRUXTRS
(Fits all 2016+ Thruxton models)
| BLACK | T-THRUXTRS-BK $635 |
 |
| SILVER | T-THRUXTRS-SV $635 |
|
T-THRUX16RS
(Original design version for Thruxton R)
| BLACK | T-THRUX16RS-BK $635 |
SOLD OUT |
| SILVER | T-THRUX16RS-SV $635 |
|
OPTIONS

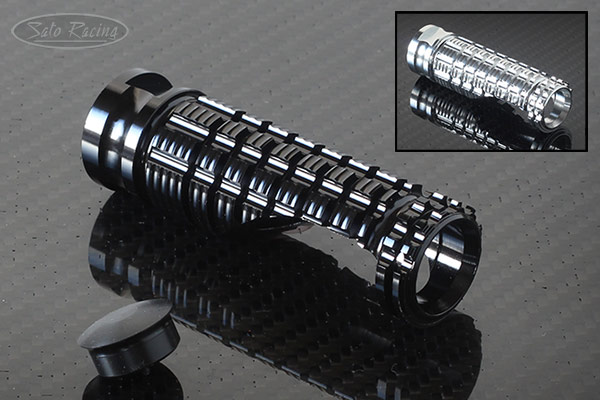

Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find indvidual part names and numbers, see the illustrated parts list
included with your SATO RACING Rear Sets, or view the PDF parts list:
T-THRUX16RS | T-THRUXTRS
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG [BLACK] | PEG-BK $42 |
|
 |
FOOT PEG [SILVER] | PEG-SV $42 |
|
 |
PEG COLLAR 15 [BLACK] (L-side Collar) |
PEGCLR-15B $15 |
|
 |
PEG COLLAR 15 [SILVER] (L-side Collar) |
PEGCLR-15S $15 |
|
 |
PEG COLLAR 10 [BLACK] (R-side Collar) |
PEGCLR-10B $15 |
|
 |
PEG COLLAR 10 [SILVER] (R-side Collar) |
PEGCLR-10S $15 |
|
 |
FLAT HEAD M8 x 40mm (Foot Peg bolt) |
FBT-M840 $2.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
