TRIUMPH SPEED TRIPLE RS ('22- )
REAR SETS

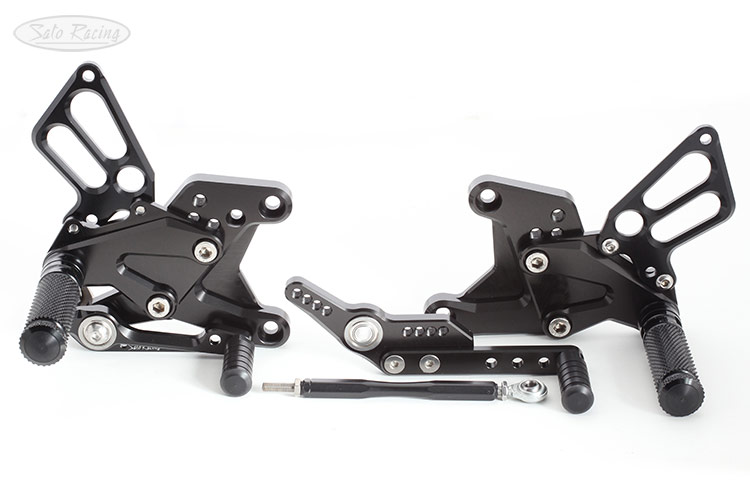

| SATO RACING Rear Sets for 2022-23 Triumph Speed Triple 1200 RS features an extensively track-tested design, with components precision CNC-machined out of high strength anodized billet aluminum, with stainless steel bolts. Adjustable Step Plates provide 4 foot peg positions, bringing your feet higher up and further back compared to stock. The externally mounted shift linkage integrates with the stock quickshifter and can be set up for stock shift pattern to GP-style reverse shift pattern. Choice of all-Black anodized finish, or Gold finish with Black-anodized shift assembly. |

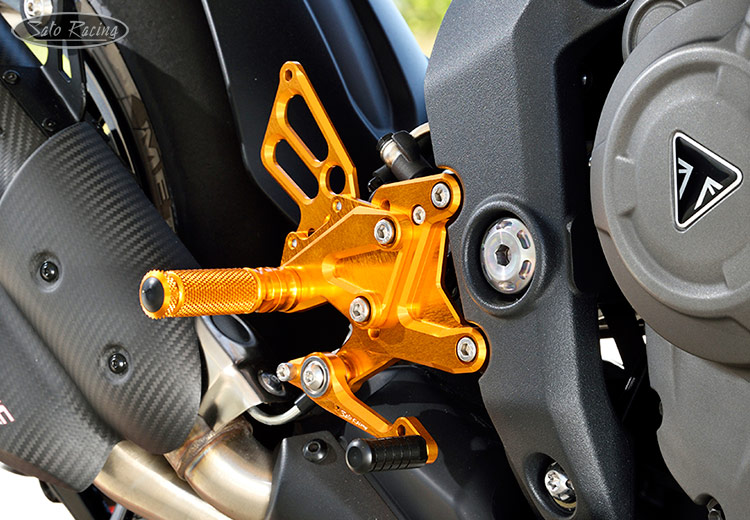

![SATO RACING Triumph Speed Triple RS Rear Sets [R]-side](pics/T-ST22RS-GD_fitR1.jpg "SATO RACING Triumph Speed Triple RS Rear Sets [R]-side")
The shift and brake pedals utilize double miniature stainless bearings
for smooth, precise lever actuation with a solid, high quality feel.
![SATO RACING Triumph Speed Triple RS Rear Sets [R]-side](pics/T-ST22RS-GD_fitR2.jpg "SATO RACING Triumph Speed Triple RS Rear Sets [R]-side")
These Rear Sets are compatible with ABS, and work with the stock brake light switch.
PEG POSITIONS
| 1 | 10mm Back | 12.5mm Up |
| 2 | 10mm Back | 24.5mm Up |
| 3 | 22mm Back | 24.5mm Up |
| 4 | 22mm Back | 36.5mm Up |
note: all measurements are in relation to stock peg position on the RS (0 mm).

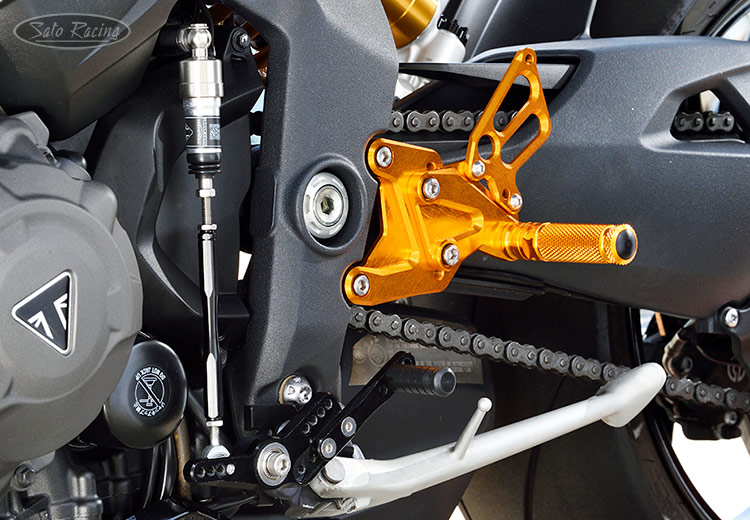

![SATO RACING Triumph Speed Triple RS Rear Sets [L]-side](pics/T-ST22RS-GD_fitL1.jpg "SATO RACING Triumph Speed Triple RS Rear Sets [L]-side")
The shift pedal assembly can be set up for stock or reverse shift pattern,
and has numerous adjustment holes so you can find the ideal shifter feel.

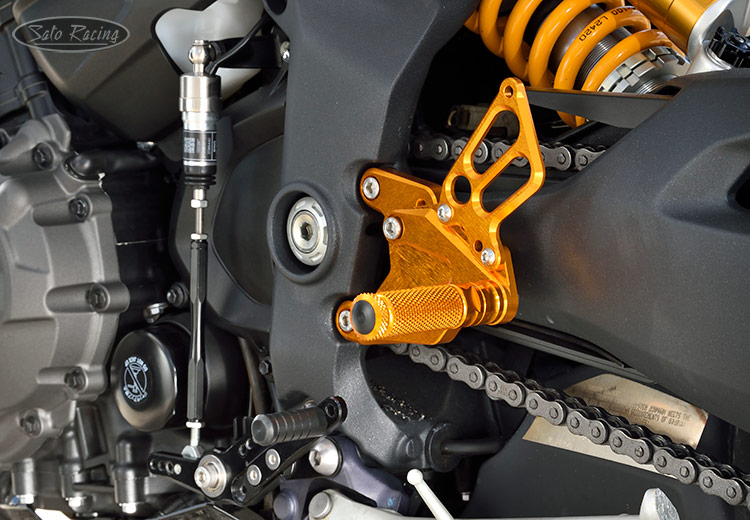

![SATO RACING Triumph Speed Triple RS Rear Sets [L]-side](pics/T-ST22RS-GD_fitL2.jpg "SATO RACING Triumph Speed Triple RS Rear Sets [L]-side")
Choice of Black or Gold anodized finish.
| BLACK | T-STRS22RS-BK $605 |
 |
| GOLD w/ BLACK Shift Pedal |
T-STRS22RS-GD $605 |
|
Click Here for important info about Sato colot-anodized parts.
OPTIONAL PARTS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the
illustrated parts list included with your Sato Racing Rear Sets.
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK / GD) |
PEG $42 |
|
 |
HEX HEAD M8-40mm (Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
LOW SOCKET HEAD M6-20mm (For Pedal Tip) |
LSBT-M620 $4.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
