Home

HONDA GROM  ('22- )
REAR SETS + TANDEM BRACKETS

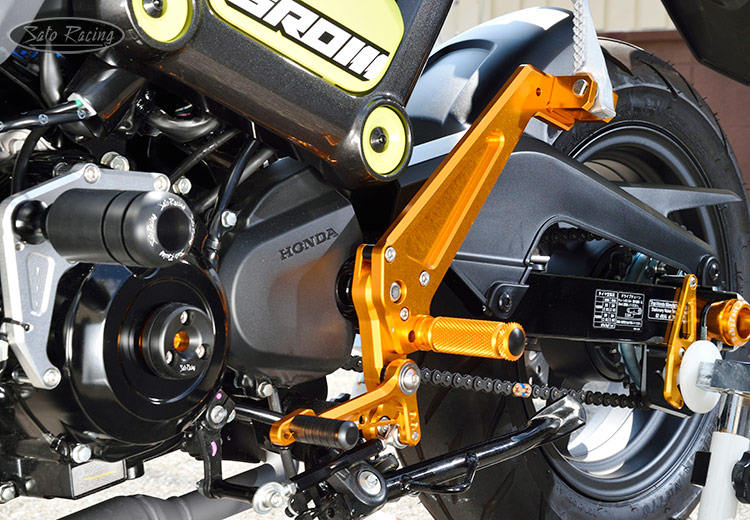

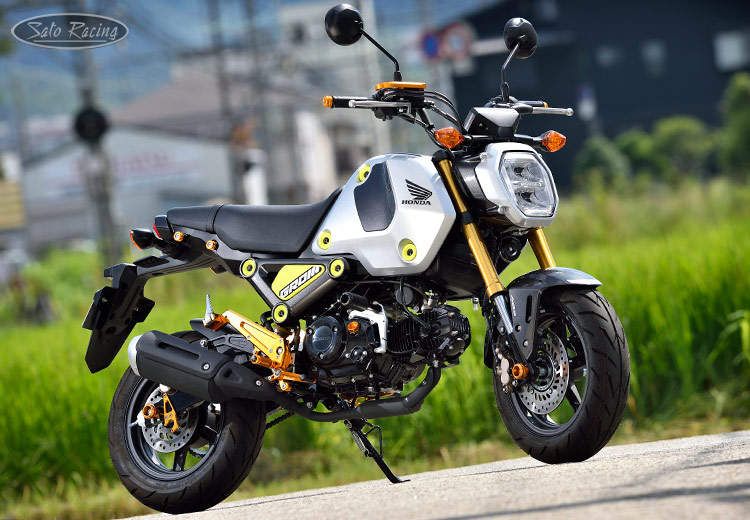

2022 Honda Grom with SATO RACING Rear Sets + Tandem Brackets

SATO RACING Rear Sets + Tandem Brackets for 2022-24 Honda GROM features a track-engineered design, with components precision machined out of light-weight, high strength anodized billet aluminum. You can select from 2 foot peg positions that place your feet higher up and significantly further back compared to the stock foot position, for a less upright position well-suited for spirited riding. These Rear Sets are compatible with the stock rear brake light switch and stock exhaust canister, and also include integrated Tandem Brackets to attach the stock passenger pegs.

2 versions of these Rear Sets are available: The standard version, which has a stock shift pattern, and Reverse Shift Rear Sets, which provides a dedicated GP-style reverse shift pattern. Both types are available in your choice of Black or Gold anodized finish.

We also offer an optional Shift Spindle Holder that works well with these Rear Sets, reducing play in the spindle shaft for more precise shift action.

Also check out our standard GROM '22 Rear Sets, which shares the same base design but omits the tandem brackets, ideal for riders who don't regularly carry passengers.


POSITIONS

1 87.5mm Back
(3.44" Back)
37.5mm Up
(1.48" Up)
2 100mm Back
(3.93" Back)
37.5mm Up
(1.48" Up)

note: all measurements are in relation to stock position (0 mm).

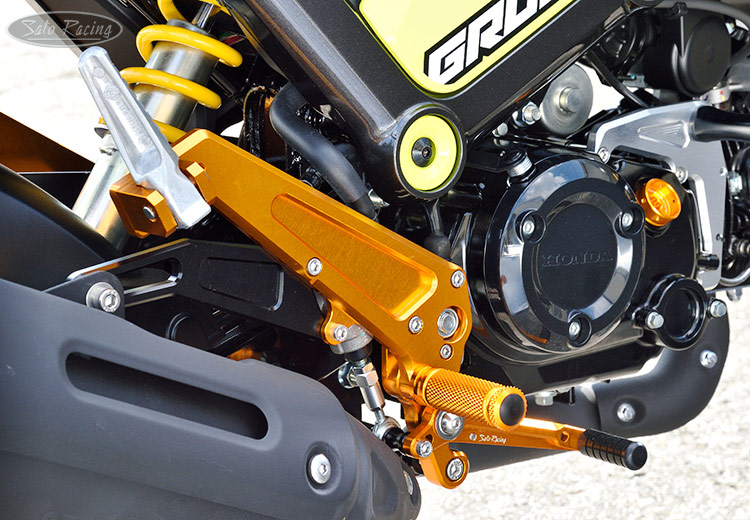

SATO RACING Honda Grom '22 Rear Sets + Tandem Brackets - [R]-side

You can adjust the position of the Foot Pegs 2 ways. The Pedal Tip position is also adjustable.

The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such as aluminum Pedal Tips with fluted rubber sleeves, are an available option:  More Details.

SATO RACING Honda Grom '22 Rear Sets + Tandem Brackets - [R]-side

The Foot Pegs have a finely knurled pattern for excellent grip, along with a comfortable, intuitive feel. The Tandem Brackets are designed for use with the stock Grom passenger pegs. (NOTE: Minor modifications to the OEM passenger peg pivot hardware will be necessary to use the passenger pegs with our Rear Sets).

These Rear Sets are compatible with the stock pull switch for the rear brake light.

Rear Sets kit also includes a black anodized exhaust hanger bracket.

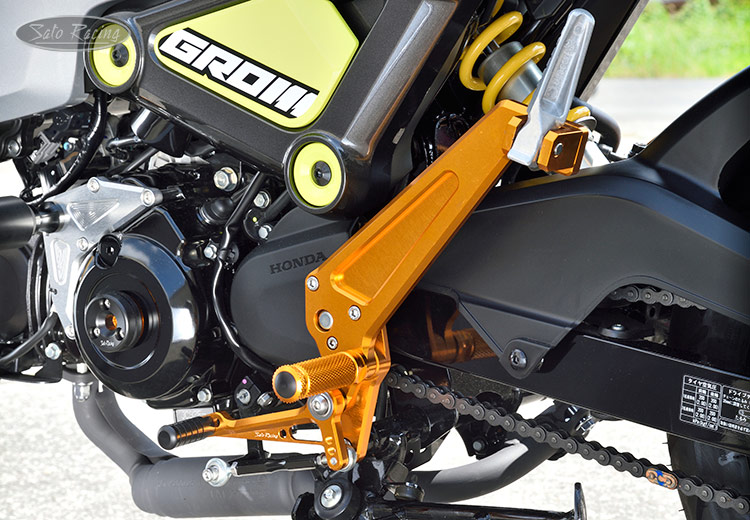

SATO RACING Honda Grom '22 Rear Sets + Tandem Brackets - [L]-side
Rear Sets (standard version) - provides a dedicated stock shifting pattern.

SATO RACING Honda Grom '22 Rear Sets + Tandem Brackets - [L]-side
The shift and brake levers utilize double miniature stainless
bearings for smooth, precise movement with a solid feel.

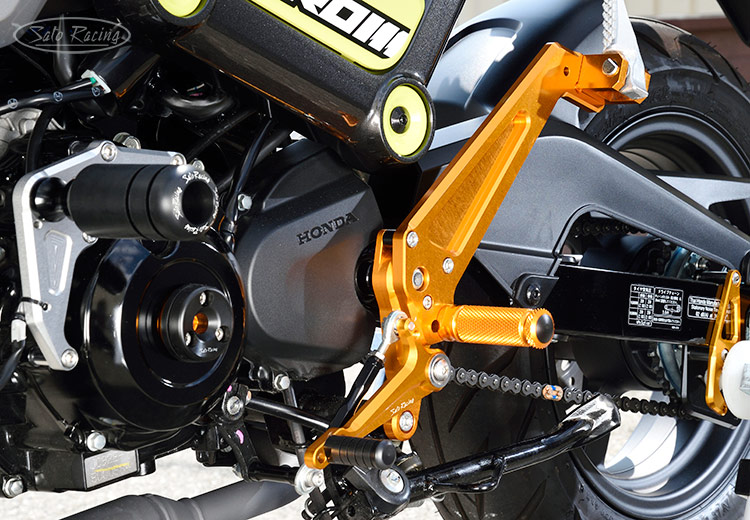

SATO RACING Honda Grom '22 Rear Sets + Tandem Brackets - [L]-side
Reverse Shift version - provides a GP-style reverse shift pattern.




Rear Sets + Tandem Brackets
(Stock shift pattern)

BLACK H-GROM22RST-BK
$675
GOLD H-GROM22RST-GD
$675


Reverse Shift Rear Sets + Tandem Brackets

BLACK H-GROM22RSTR-BK
$675
GOLD H-GROM22RSTR-GD
$675

Click Here for important info about Sato color-anodized parts.



____________________________________________________________________

OPTIONS

____________________________________________________________________



HONDA GROM / MONKEY ('22- )
SHIFT SPINDLE HOLDER

SATO RACING Shift Spindle Holder for the 2022+ Honda Grom and Monkey (5sp) reinforces the shift linkage by reducing lateral play in the spindle shaft during shifts, for more consistent and precise shifting and extra durability in heavy-duty use. Gold anodized billet aluminum with a Teflon inner bushing.

SATO RACING Shift Spindle Holder for 2022 Honda GROM and Monkey
Shift Spindle Holder (shown installed on a Honda Monkey.)


GOLD H-GROM22RS-SHDR
$85






Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.






PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45



Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



_____________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated
parts list included with your SATO RACING Rear Sets.
