SUZUKI HAYABUSA ('14-'20)
REAR SETS

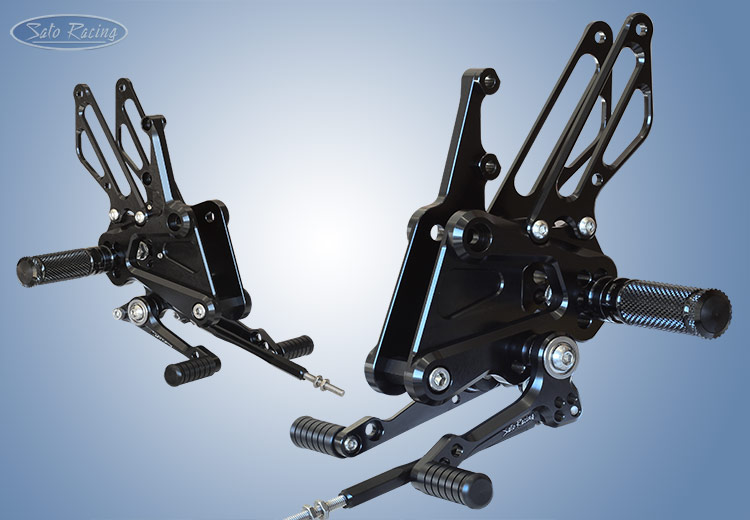

| SATO RACING Rear Sets for 2014-20 ABS-equipped Suzuki GSX1300R Hayabusa feature 5 adjustable positions in a useful range that moves your feet up to 37mm higher and 31mm further back compared to stock, for a sportier, more aggressive riding position. These premium foot controls are precision machined out of light-weight, high strength billet aluminum alloy, with your choice of Black or Gold anodized finish. |
| 1 | 20mm Back | 15mm Up |
| 2 | 20mm Back | 26mm Up |
| 3 | 20mm Back | 37mm Up |
| 4 | 31mm Back | 26mm Up |
| 5 | 31mm Back | 37mm Up |
note: all measurements are in relation to stock position (0 mm).

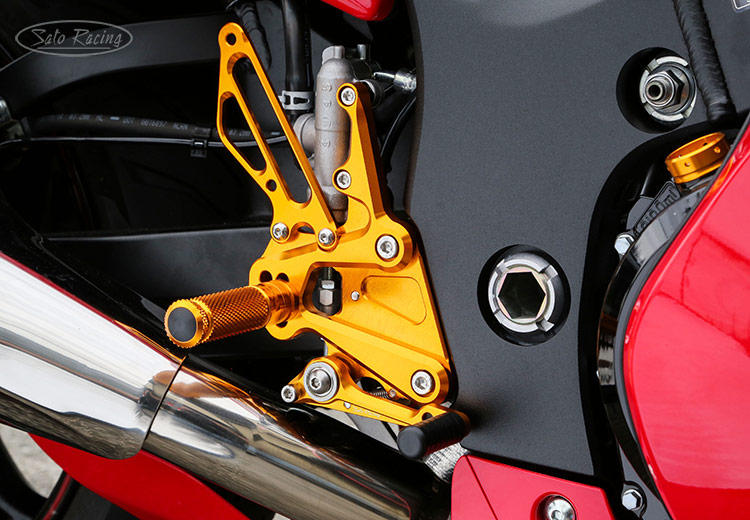

![SATO RACING Suzuki Hayabusa ('14-'20) Rear Sets [R]-side in Gold](pics/Suzuki_Hayabusa_'14-_rearsets_R1.jpg "SATO RACING Suzuki Hayabusa ('14-'20) Rear Sets [R]-side in Gold")
| Foot peg position is adjustable 5 ways. The one-piece Step Plate design allows full compatibility with the stock brake light switch and ABS. |

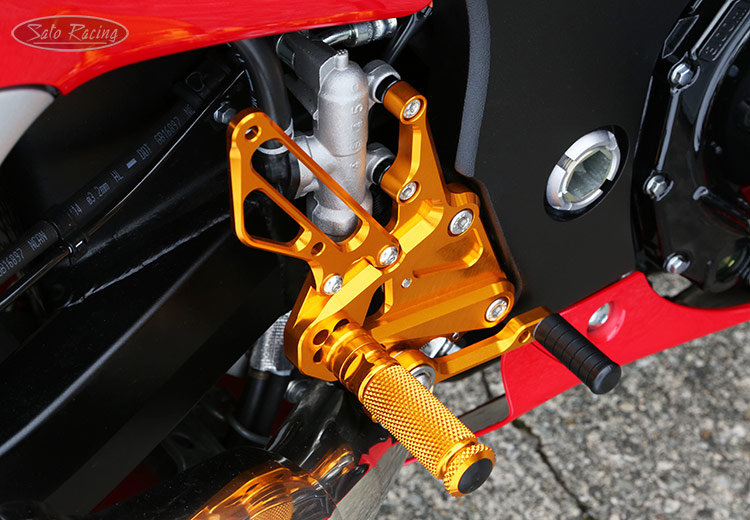

![SATO RACING Suzuki Hayabusa ('14-'20) Rear Sets [R]-side in Gold](pics/Suzuki_Hayabusa_'14-_rearsets_R2.jpg "SATO RACING Suzuki Hayabusa ('14-'20) Rear Sets [R]-side in Gold")
| The Foot Pegs fhave a finely knurled pattern for nice grip, along with a comfortable, intuitive feel. The standard Pedal Tips are made of high density, abrasion-resistant black Delrin. Additional Pedal Tip styles, such as aluminum Pedal Tips with fluted rubber sleeves, are an available option: More Details |

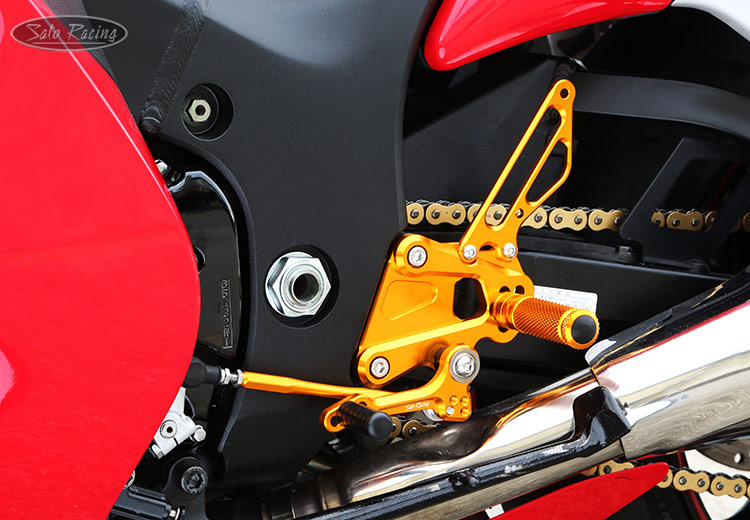

![SATO RACING Suzuki Hayabusa ('14-'20) Rear Sets [L]-side in Gold](pics/Suzuki_Hayabusa_'14-_rearsets_L1.jpg "SATO RACING Suzuki Hayabusa ('14-'20) Rear Sets [L]-side in Gold")
|
The Shifter and Brake Pedal feature double miniature stainless bearings for smooth, precise
lever actuation with a solid feel. These Rear Sets are designed for stock shift pattern. GP-style
reverse shift pattern may be possible if you have removed the stock side stand. Our Hayabusa Rear Sets are designed for use with the stock Suzuki shift arm and rod end, as seen in these photos. We also make an adjustable black anodized billet aluminum Shift Arm (part# S-CA2) that works well with our Hayabusa Rear Sets, providing additional adjustment options for the shift linkage. |

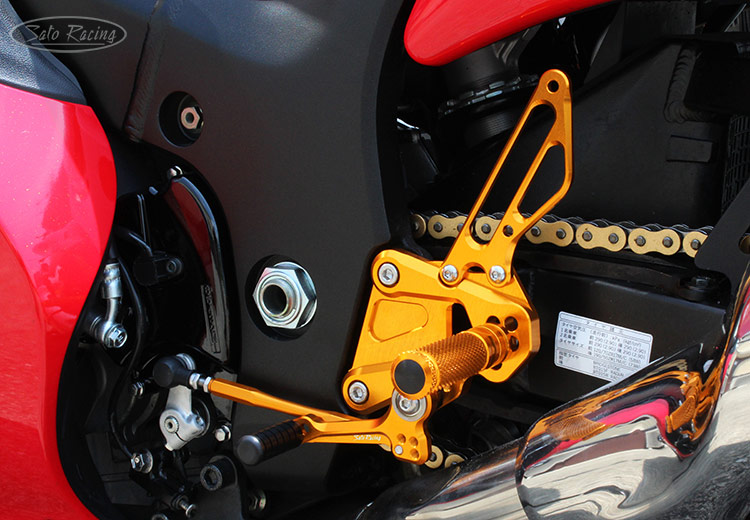

![SATO RACING Suzuki Hayabusa ('14-'20) Rear Sets [L]-side in Gold](pics/Suzuki_Hayabusa_'14-_rearsets_L2.jpg "SATO RACING Suzuki Hayabusa ('14-'20) Rear Sets [L]-side in Gold")
| There are 2 horizontally adjustable mounting positions for the Shift Pedal on the Step Plate. The holes at the base of the pedal let you fine-tune the shift stroke (throw) to your preference. |
| Choice of Black or Gold anodized finish |
| BLACK | S-GSX1314RS-BK $565 |
 |
| GOLD | S-GSX1314RS-GD $565 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Most replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#32) |
PEGCLR-15 $15 |
|
 |
STUD BOLT M8-50mm (#12, Foot Peg bolt) |
STBT-50 $4.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (#1) |
HG-8L $55 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (#2) |
HG-8R $55 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (L-side #5) |
SPD-10 $62.50 |
|
 |
SHIFT ROD 120 (BK/ SV/ GD) (L-side #6) |
SRD-120 $39 |
|
 |
BRAKE PEDAL (BK/ SV/ GD) (R-side #7) |
BPD-15 $66.50 |
|
 |
STUD M6 (#11) |
STUD-M6 $2.50 |
|
 |
HEX HEAD M5-6mm (R-side, #13) |
HBT-M56 $2.00 |
|
 |
SOCKET HEAD M5-15mm (R-side, #14) |
SBT-M515 $2.00 |
|
 |
SOCKET HEAD M5-40mm (R-side #15) |
SBT-M540 $2.00 |
|
 |
SOCKET HEAD M6-20mm (#17) |
SBT-M620 $1.50 |
|
 |
SOCKET HEAD M6-50mm (#18) |
SBT-M650 $2.00 |
|
 |
SOCKET HEAD M8-25mm (#19) |
SBT-M825 $1.50 |
|
 |
BUTTON HEAD M6-10mm (#20) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-25mm (R-side #22) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-35mm (L-side #23) |
BBT-M835 $2.00 |
|
 |
NUT M5 (R-side #24) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#25) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (L-side #26) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (R-side #27) |
LNT-6 $1.50 |
|
 |
FLANGE NUT M8 (#28) |
FNT-8 $1.50 |
|
 |
ROD END COLLAR 3 (L-side #29) |
RDED-CLR3 $6.00 |
|
 |
ROD END COLLAR 23 (R-side #30) |
RDED-CLR23 $15.00 |
|
 |
BASE PLATE COLLAR 8 (#31) |
BPCLR-8 $8.00 |
|
 |
BEARING COLLAR 10s [BLACK] (L-side #33) |
PEGBGCLR-10SB $10.00 |
|
 |
ROD ADAPTER M6-8 (R-side, #34) |
RDED-ADPTRM6-8 $8.00 |
|
 |
MALE ROD END M6 (R-side #35) |
RDED-M6 $12.50 |
|
 |
M6 MALE REVERSE ROD END (L-side #36) |
RDED-M6L $12.50 |
|
 |
PULL SWITCH STAY 16 (R-side, #37) |
PSTAY-16 $9.50 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
