KTM RC8 / RC8R
REAR SETS - Race Concept Edition
|
SATO RACING
Race Concept-edition Rear Sets for KTM RC8 / RC8R features a range of positions significantly higher and further back than our standard RC8 Rear Sets (and much higher than stock), better to help maximize lean angle during cornering. These billet aluminum Rear Sets are available in either Black, or Gold anodized finish with Black base plates and shift assembly. Due to the high position, these Rear Sets are reverse (GP) shift pattern only. An optional Shift Spindle Holder that works great with the Rear Sets to provide a sturdier, more sure-footed shift feel. |
POSITIONS
| 1 | 22.5mm Back | 67.5mm Up |
| 2 | 22.5mm Back | 77.5mm Up |
| 3 | 22.5mm Back | 87.5mm Up |
| 4 | 22.5mm Back | 97.5mm Up |
| 5 | 32.5mm Back | 67.5mm Up |
| 6 | 32.5mm Back | 77.5mm Up |
| 7 | 32.5mm Back | 87.5mm Up |
| 8 | 32.5mm Back | 97.5mm Up |
| 9 | 42.5mm Back | 67.5mm Up |
| 10 | 42.5mm Back | 77.5mm Up |
| 11 | 42.5mm Back | 87.5mm Up |
| 12 | 42.5mm Back | 97.5mm Up |
note: all measurements are in relation to stock position (0 mm).

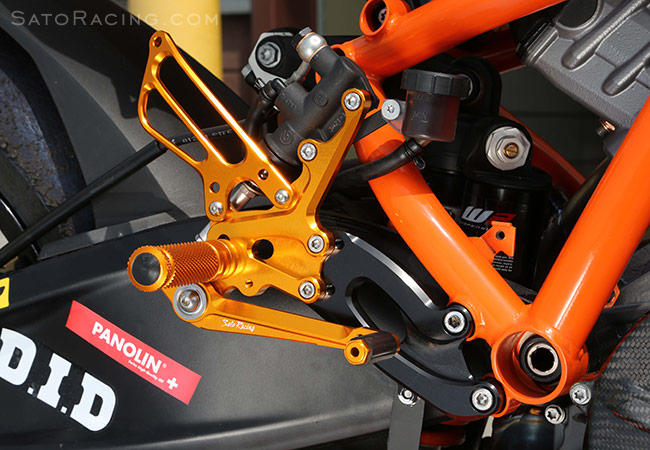

![SATO RACING RC8 'Race Concept' Rear Sets [R]-side](pics/RC8R_RaceConceptRS_R1.jpg "SATO RACING RC8 'Race Concept' Rear Sets [R]-side")
The Foot Peg, Pedal Tip and Step Plate position are adjustable.
GOLD-anodized aluminum Pedal Tips with replaceable rubber
sleeve grips are standard with our 'Race Concept' Rear Sets.

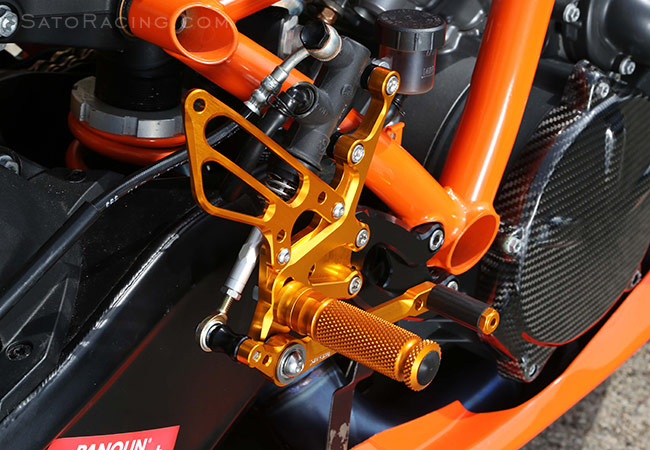

![SATO RACING RC8 'Race Concept' Rear Sets [R]-side](pics/RC8R_RaceConceptRS_R2.jpg "SATO RACING RC8 'Race Concept' Rear Sets [R]-side")
Deeply knurled footpegs provide excellent grip even in wet conditions.

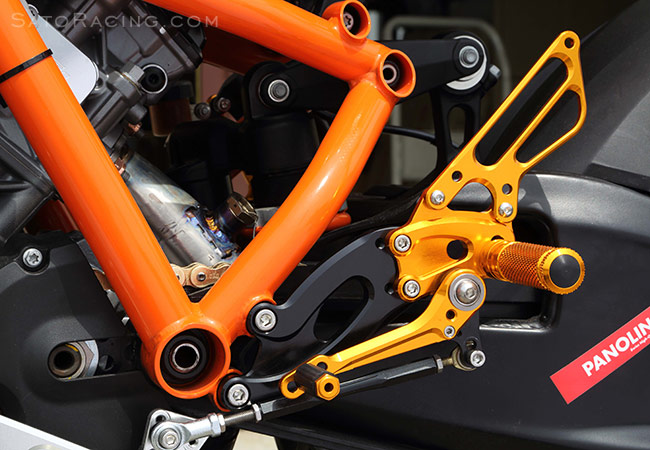

![SATO RACING RC8 'Race Concept' Rear Sets [L]-side](pics/RC8R_RaceConceptRS_L1.jpg "SATO RACING RC8 'Race Concept' Rear Sets [L]-side")
These Rear Sets provide a dedicated reverse (GP-style) shift pattern.
(Note: The shift pedal shown in this photo was a prototype. The actual shift pedal
included with these Rear Sets is a different design with additional adjustment holes.)

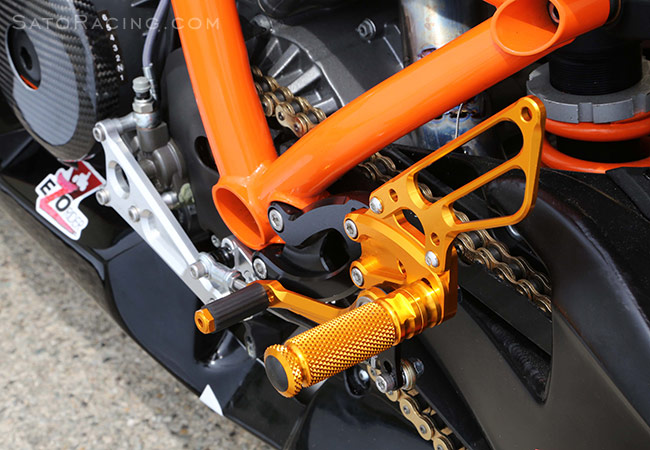

![SATO RACING RC8 'Race Concept' Rear Sets [L]-side with optional Shift Spindle Holder](pics/RC8R_RaceConceptRS_L2.jpg "SATO RACING RC8 'Race Concept' Rear Sets [L]-side with optional Shift Spindle Holder")
(Rear Sets shown with optional Shift Spindle Holder)

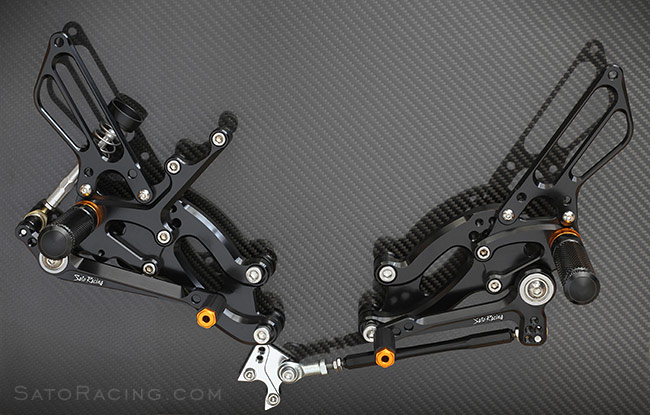

![SATO RACING RC8 'Race Concept' Rear Sets [BLACK]](pics/RC8_raceconcept_RearSets_BLACK_650x415.jpg "SATO RACING RC8 'Race Concept' Rear Sets [BLACK]")
| NOTE: The Shift Rod included in the kit is 130mm length, which is a good length if you plan on using the higher and/or further back mounting positions for the Step Plate on the Base Plate. If you plan on primarily using the lower / forward-most positions, a shorter Shift Rod such as 100mm-length may work better for you. (Available for purchase separately). |
Rear Sets
| BLACK w/ Gold accents |
KTM-RC8RCRS-BK $650 |
 |
| GOLD w/ Black base plates |
KTM-RC8RCRS-GD $650 |
|
| NOTE: Due to the super high positions of these 'Race Concept' Rear Sets, we recommend them for race bikes only. For mixed use riding, our standard RC8 Rear Sets would be a better solution for most riders. We also make RC8 Racing version Rear Sets which have a range of positions higher and back compared to our standard RC8 Rear Sets but about 20mm lower than these 'Race Concept' Rear Sets. |
Click Here for important info about Sato color-anodized parts.
OPTIONS
KTM RC8/ R

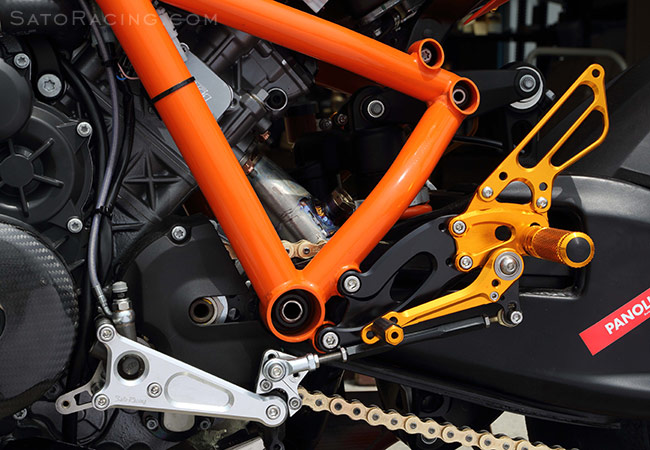

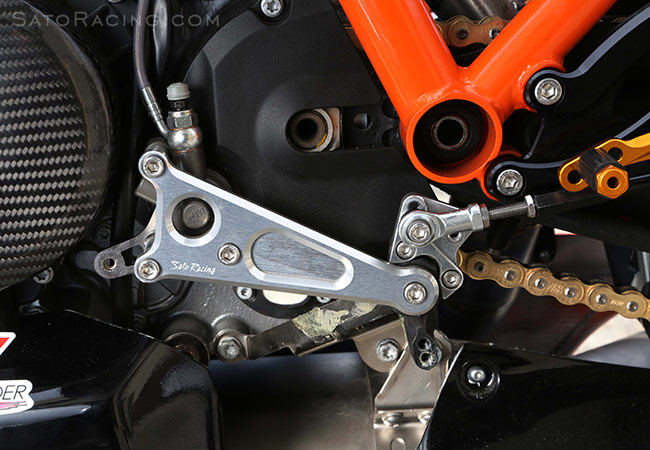

SHIFT SPINDLE HOLDER
| This Shift Spindle Holder adds strength and rigidity to the RC8's shift rod linkage for smoother operation. Includes internal bearings ideal for holding the shift shaft steady during heavy-duty use. Anodized billet aluminum bracket and collars, with stainless steel bolts. |
| SILVER | KTM-RC8RS-SHDR $115 |
|
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
SATO RACING offers a full selection of Replacement Parts for these Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
More Sato Racing items for RC8/ R
|
